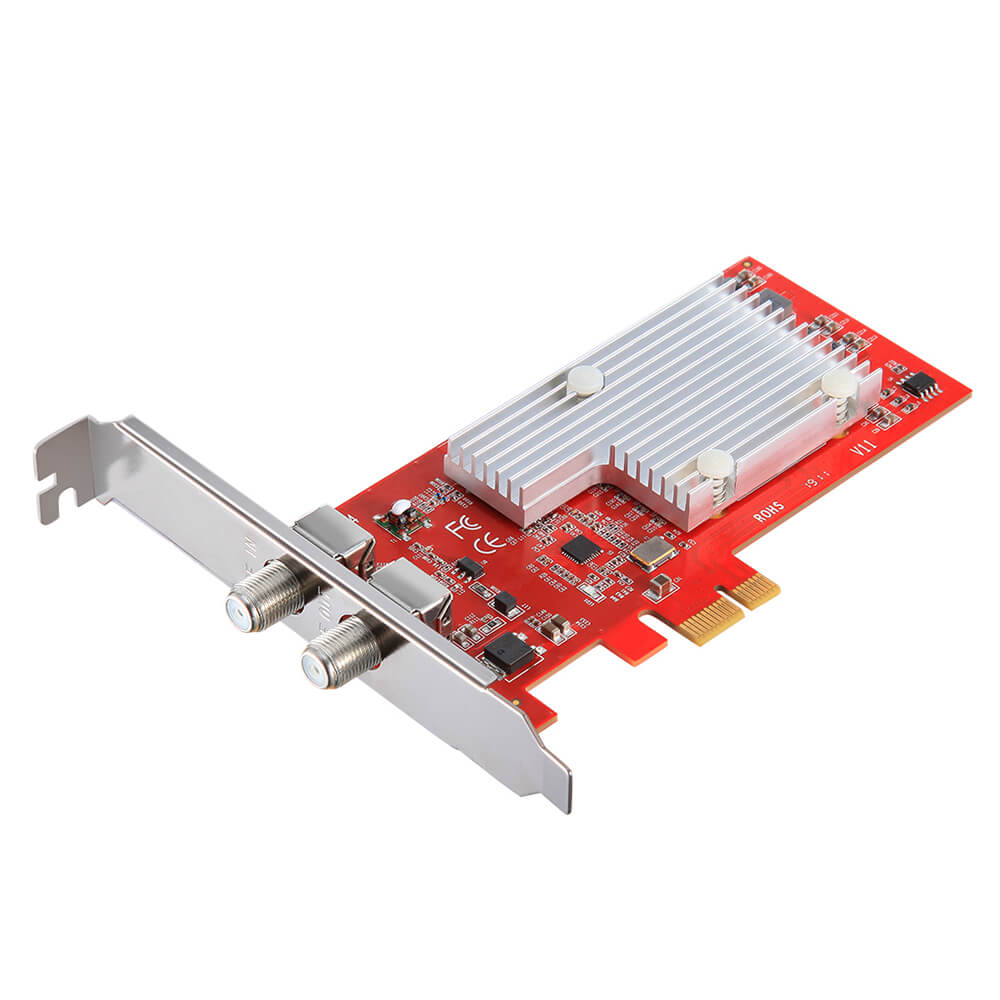

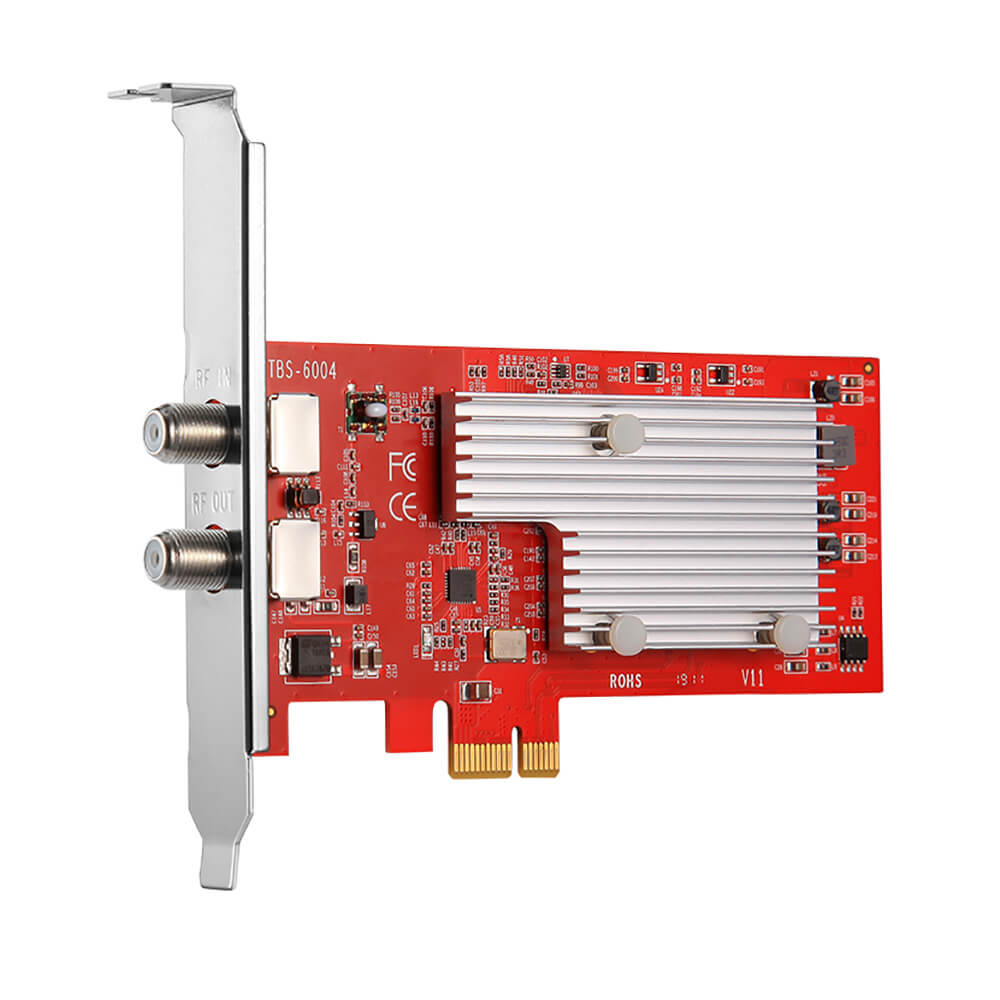

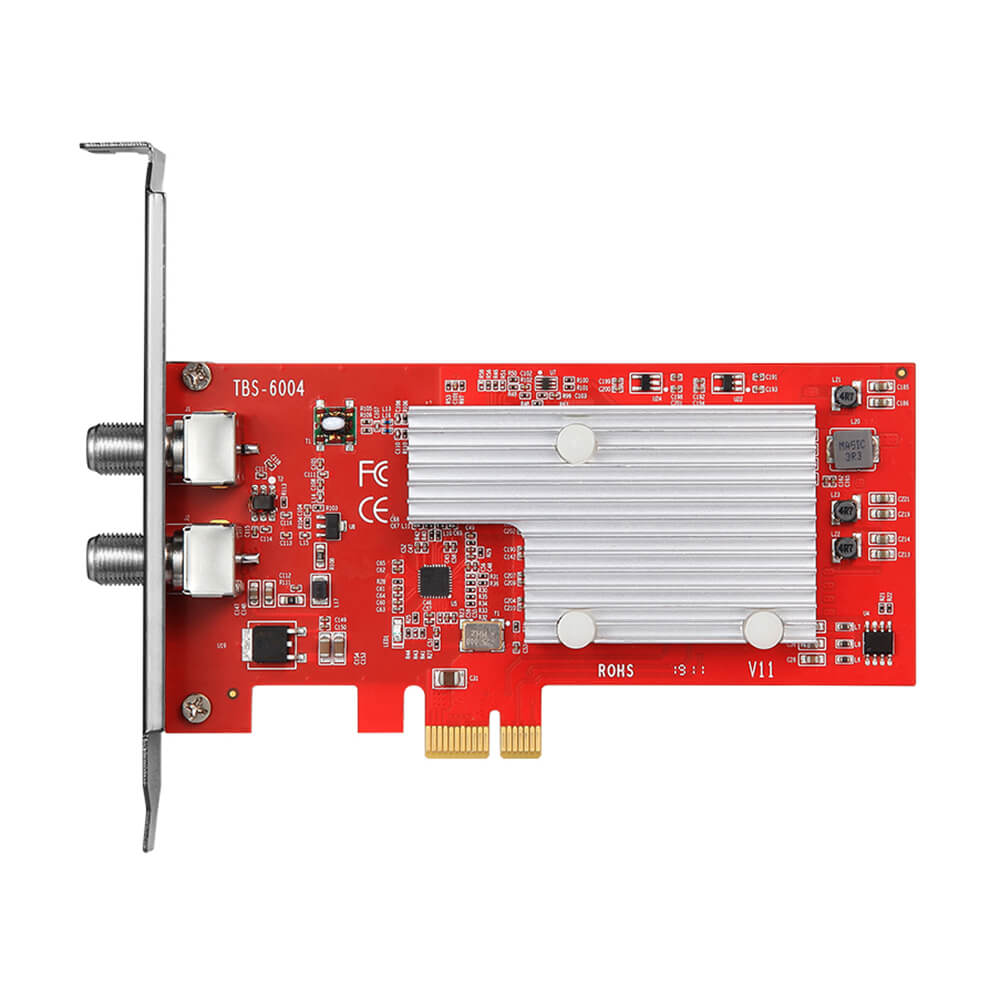

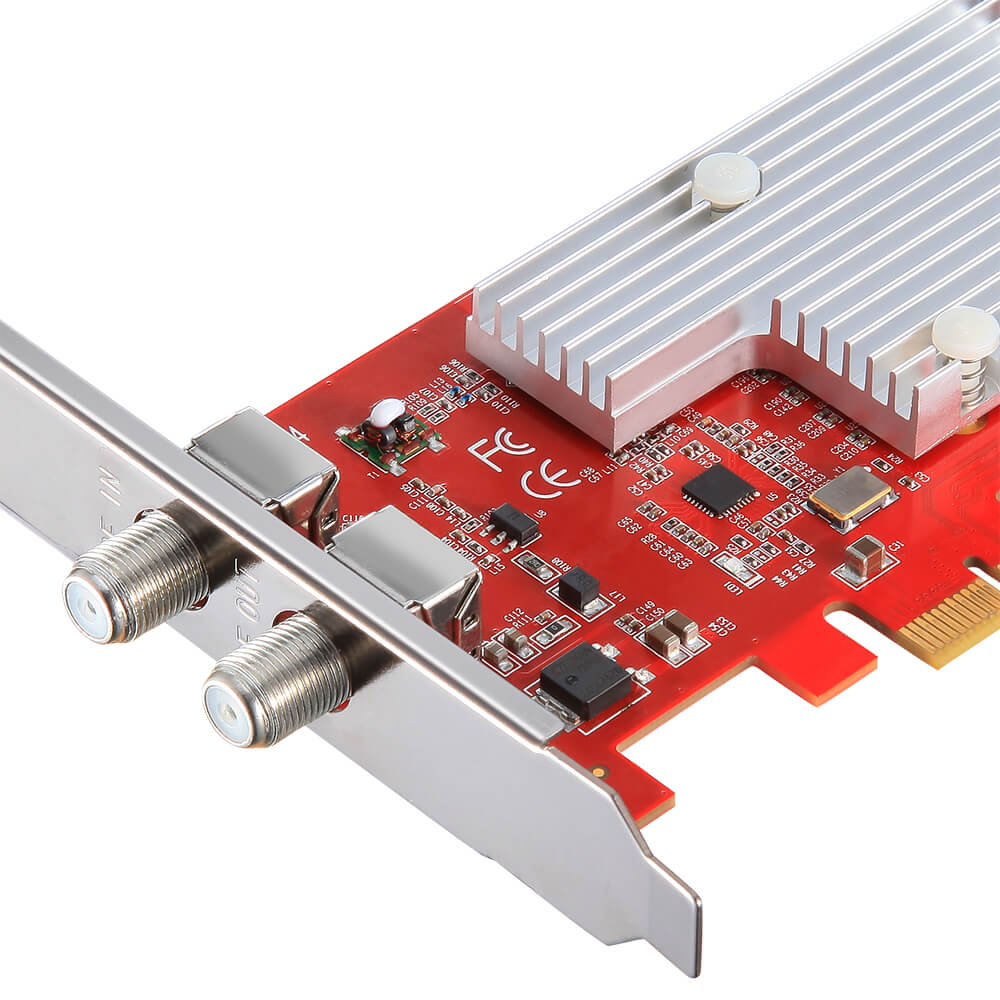

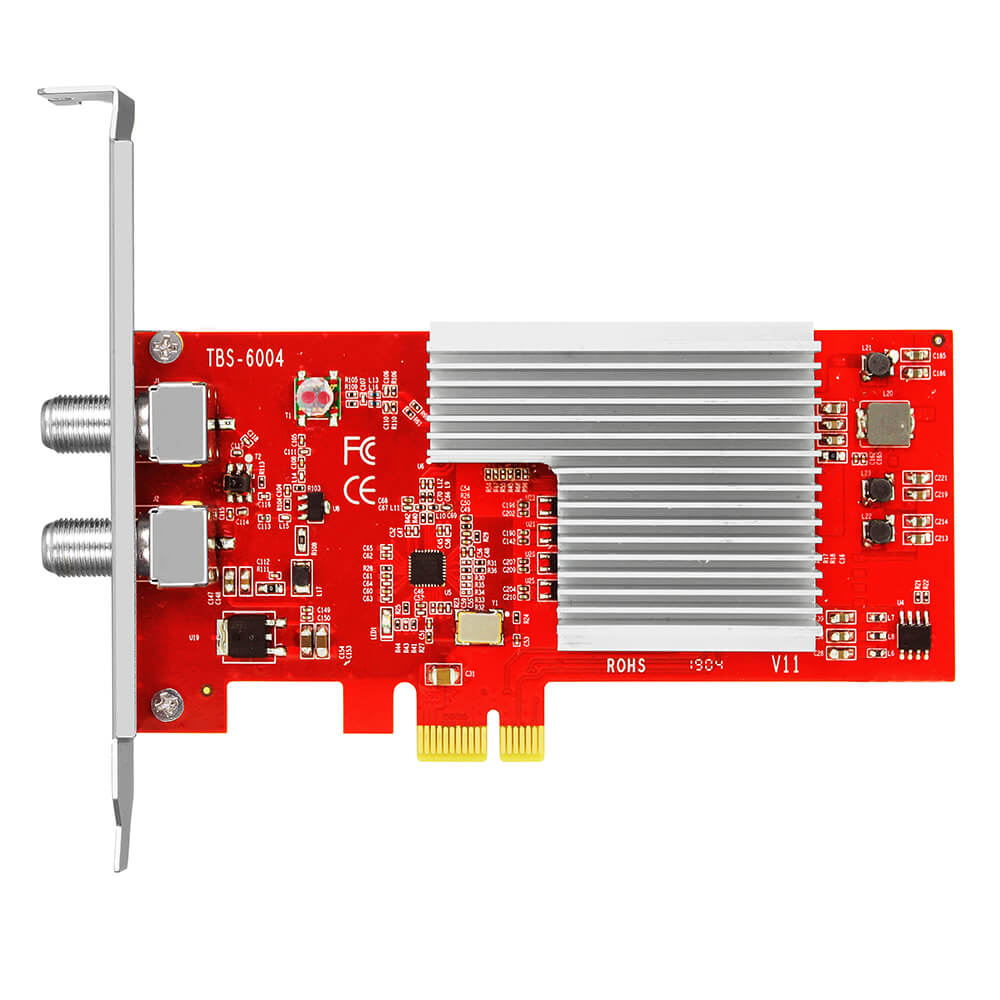

TBS6004 DVB-C 4 QAM PCIe Card


TBS6004 DVB-C 4 QAM PCIe Card

  • Model: TBS6004-DVBC
  • Weight: 500.00g
  • Reward Points:650

In Stock

US$650.00

Available Options

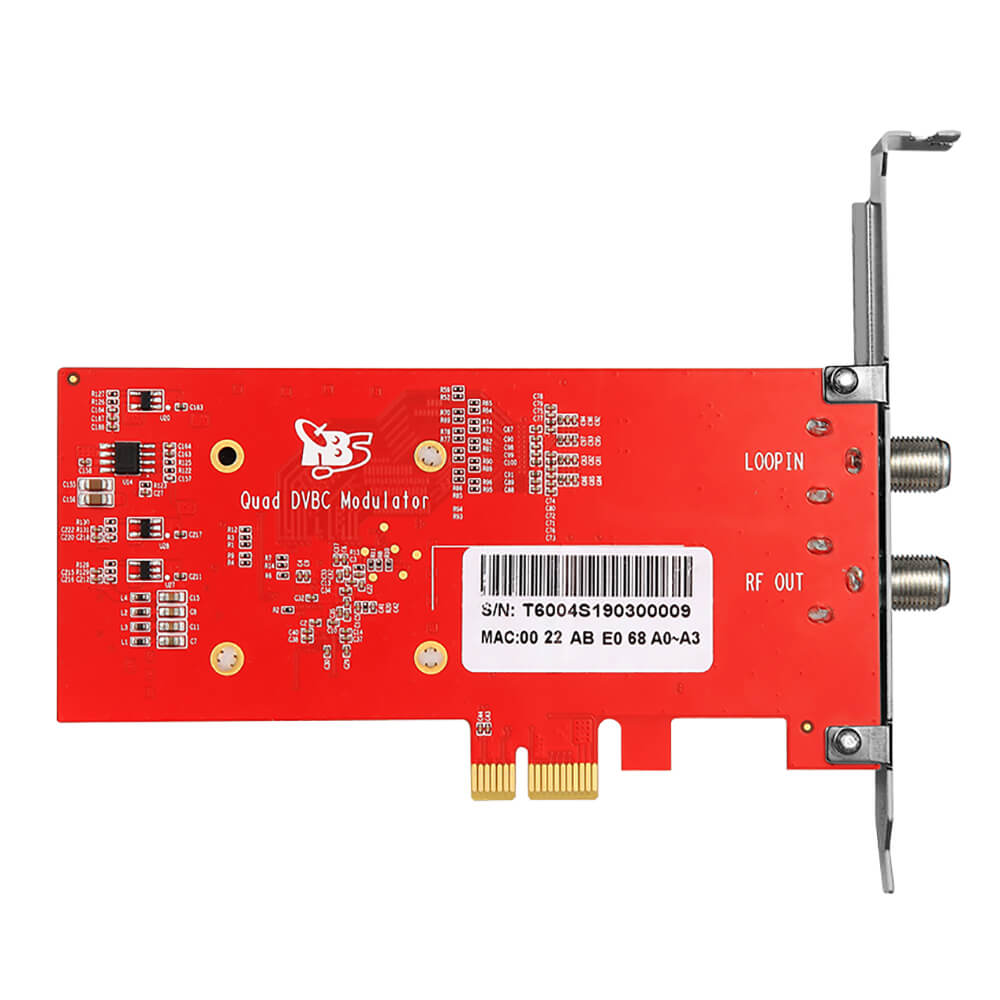

TBS6004 is a DVB-C 4 QAM modulator PCIe card, working as a DVB-C signal generator. It supports to be fed with any DVB resource or other digital resources, and then output DVB-C channels in 4 Frequencies. For example, you can use a TBS DVB-S2 TV tuner card to receive satellite TV channels and then use TBS6004 modulator card converting these channels into DVB-C coaxial system. TBS6004 is equipped with a Loop-in interface, which allows to receive DVB-C resources from other devices, and then remix all the different resources into a new DVB-C coaxial system.

TBS6004 provides a very cost-effective solution to transfer other digital resources, like DVB-S2/S, DVB-T2/T, ISDB-T, ATSC or even IPTV resources into an existing DVB-C Coaxial system in hotels, hospitals, or dormitories.

Specifications:

Possible Inputs DVB-S2/S, DVB-T2/T, ISDB-T, ATSC or IPTV resources
Outputs DVB-C (ETSI EN 300 429/ITU-T J.83A/C) in 4 frequencies
Frequency range 100 ~ 1000 MHz
Symbol rate 2 ~ 7.2MSym/s
Level 5-120
FEC 16QAM,32QAM,64QAM,128QAM,256QAM
Max bit rate 53Mbps/per frequency (7200kps& 256QAM)
Working Temperature -40°~85°
Power 12V/9W
System Requirements Linux (Ubuntu 1604 1804, Centos 7)
Available PCI Express x1, x4, x8 or x16 slot

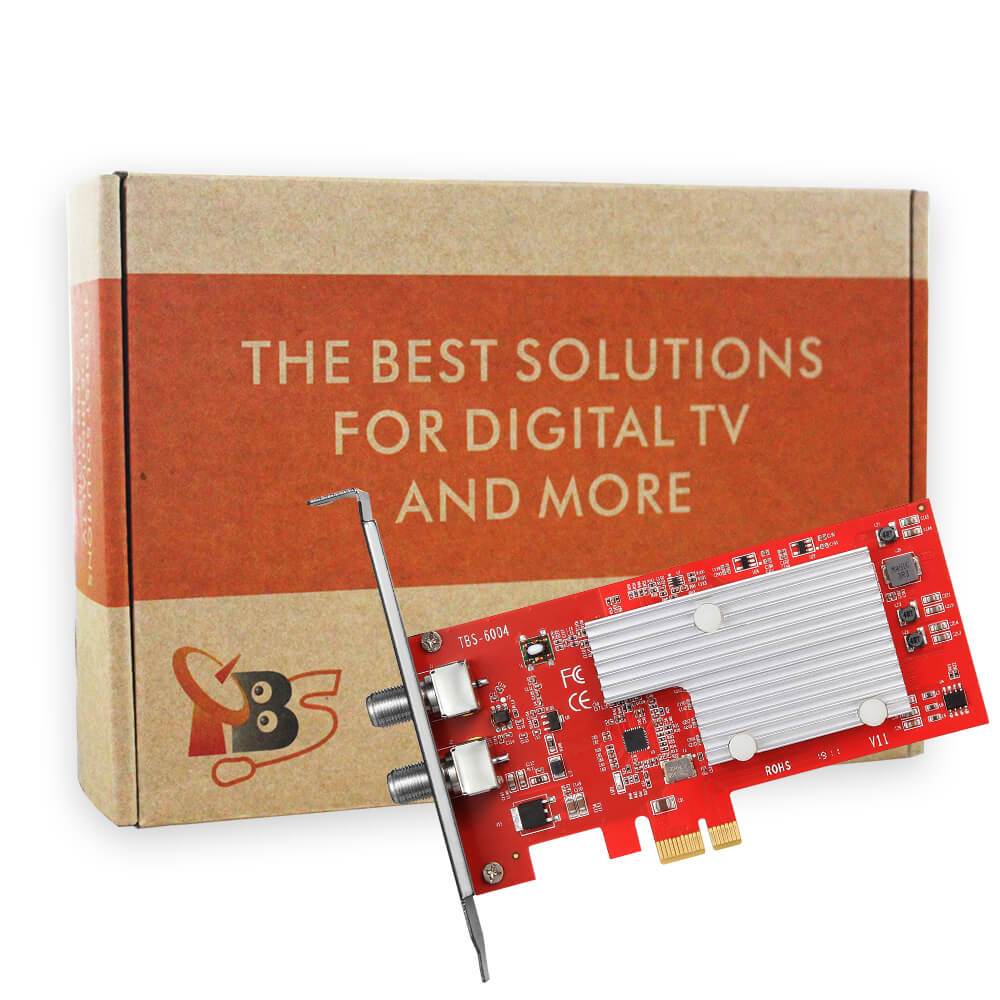

Package Contents 1 * TBS6004
1 * low profile bracket
F-IEC connector
Card Size Gift Box Size Gross Weight
130mm * 68.7mm 200*138*50mm 0.5kg

How does TBS6004 work?

TBS6004 DVB-C modulator is designed to convert spts/mpts which generated from TBS DVB-S/S2 card, DVB-T2/T card, network IP, or local SPTS file to DVB-C signal. Then you can use DVB-C STB to receive and play the channels directly.

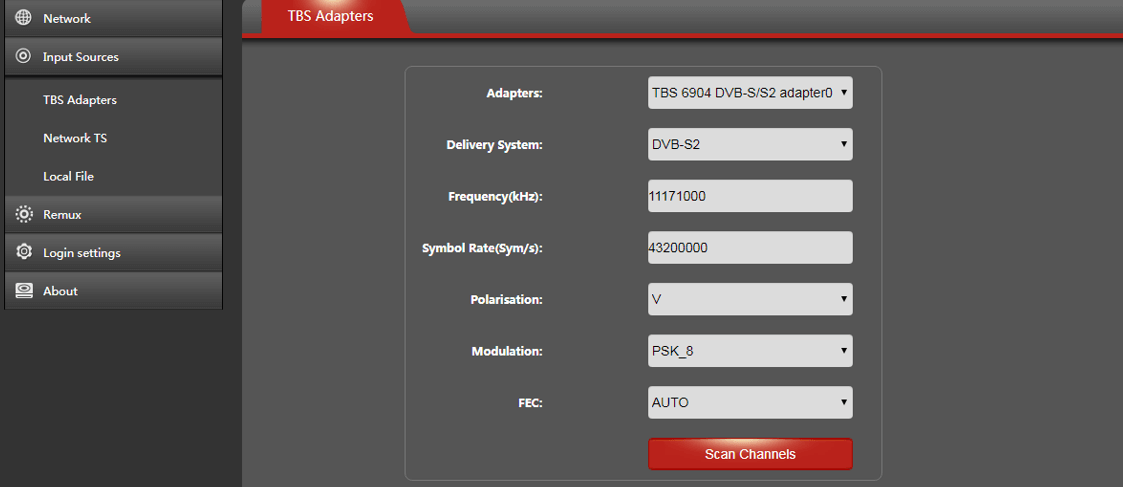

1. Configure input source:

  • TBS Adapters --- Only DVB-S2/S Card supported currently.
  • Network TS --- HTTP, UDP, RTP supported
  • Local Files (SPTS) ---
    Video format: MPEG-1 MPEG-2 MPEG-4 H264 H.265
    Audio format: MPEG-1 MPEG-2 AAC_ADTS AAC_LATM A52 (aka AC3)

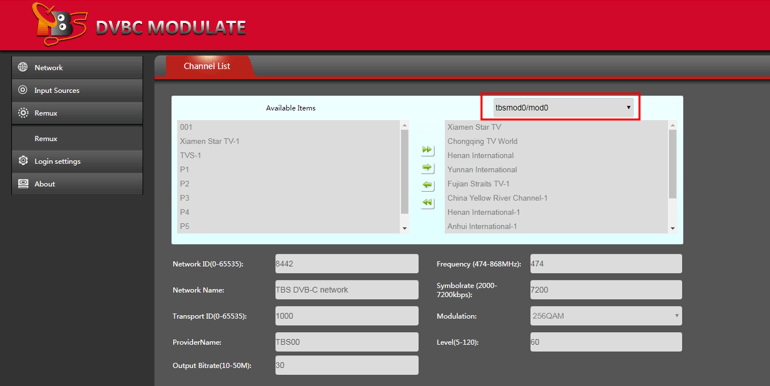

2. Remux and generate the channels into DVB-C streams

A TBS6004 has 4 modulators. As long as the first mod is set with frequency, the other mod will be set automatically by adding 8M one by one.
