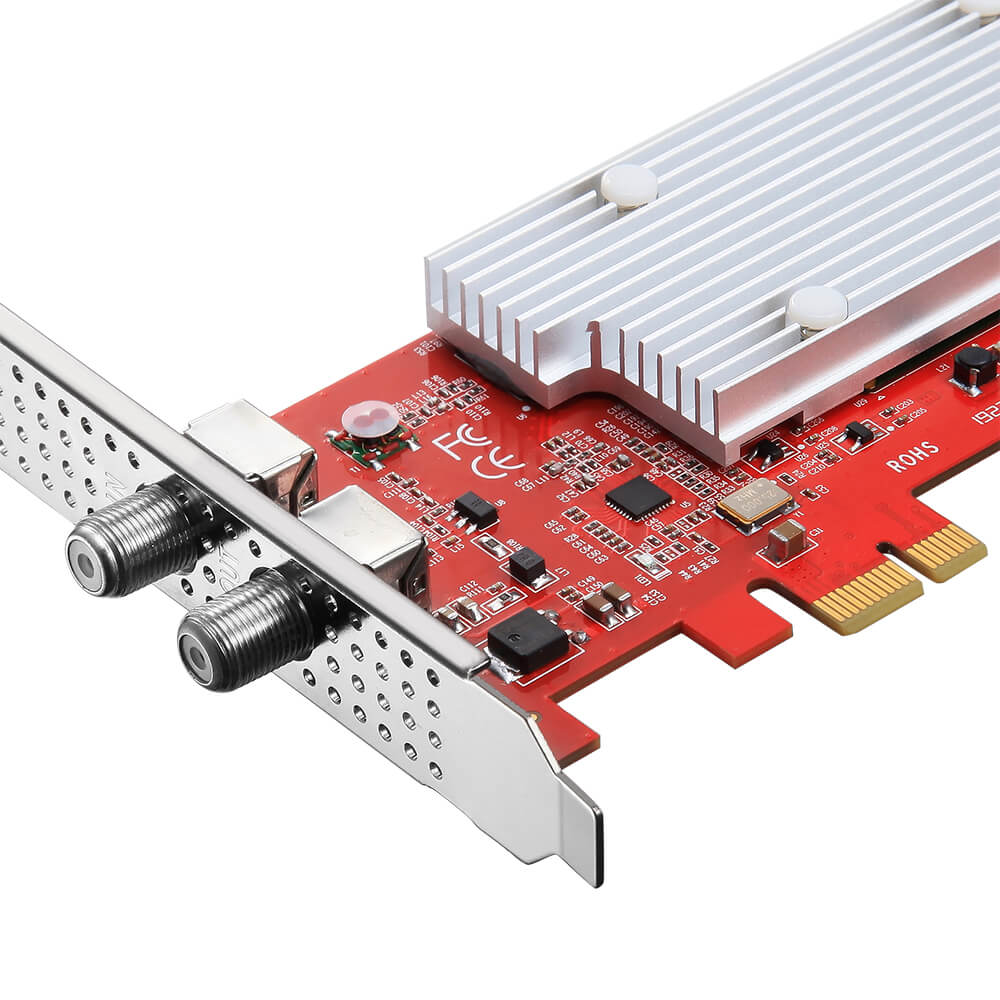

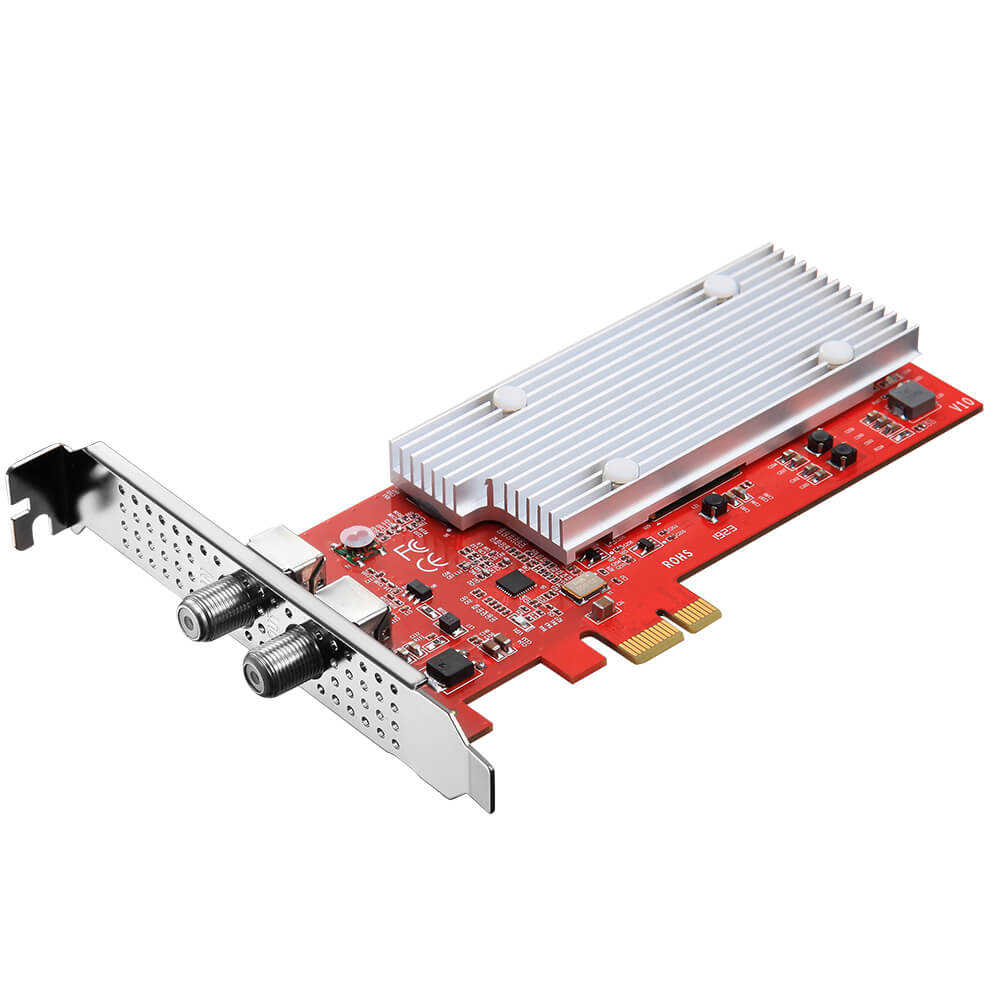

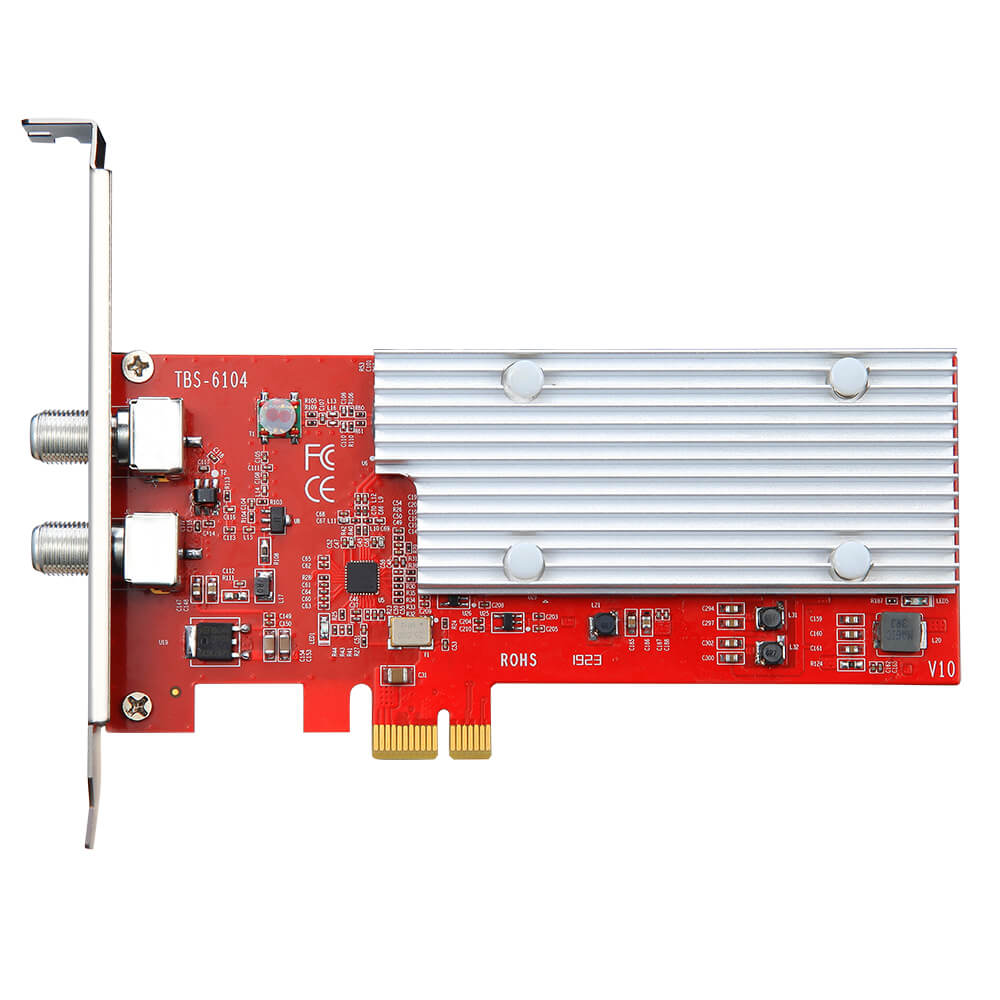

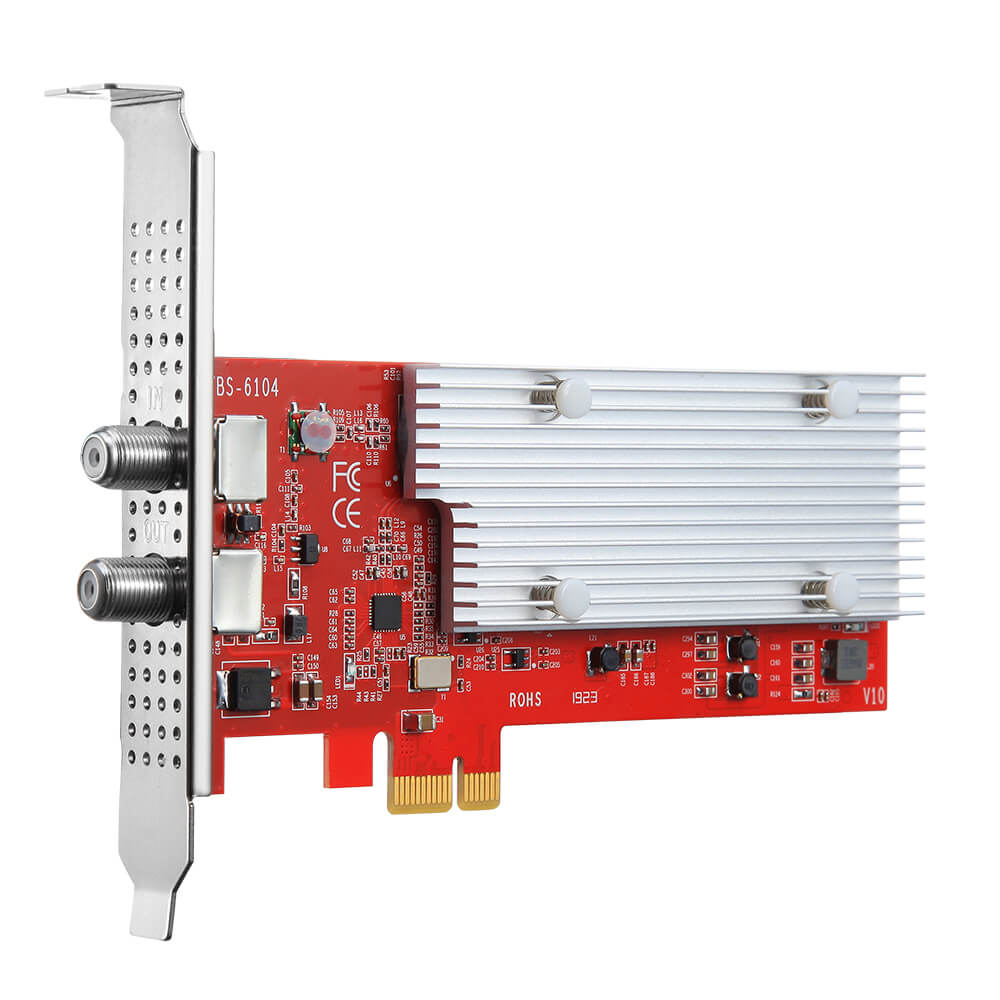

TBS6014 QAMB J.83B Quad Modulator PCIe Card


TBS6014 QAMB J.83B Quad Modulator PCIe Card

  • Model: TBS6014-QAMB
  • Weight: 750.00g
  • Reward Points:599

In Stock

US$599.00

Available Options

This is a QAMB J.83B Quad modulator card, it works as a QAMB signal generator and supports 4- frequencies QAMB transmission. This quad card can convert transport stream to QAMB signal, for example, you can use a TBS DVB-S2 TV tuner card to receive satellite TV channels and use this modulator card to convert the DVB-S2 TS to QAMB signal at the same time, a modern TV or Set-Top-Box with QAMB tuner integrated can be used to receive the terrestrial signal easily from the modulator card.

This card provides a very cost-effective solution to transfer other digital resources, like DVB-S2/S, DVB-C, ISDB-T, ATSC or even IPTV resources into an existing QAMB system in hotels, hospitals, or dormitories.

Specifications

Possible Inputs DVB-S2/S, DVB-C/DVB-T, ISDB-T, or IPTV resources(http/udp/rtp protocol)
Outputs QAMB J.83B in 4 frequencies
Frequency range 100 ~ 866 MHz
Modulation QAM64, QAM256
interleave: 0 ~ 15
Max bit rate 27Mbps/per channel (qam64) / 38.8Mbps/per channel (qam256)
Working Temperature -40° ~ 85°
Power 10W
System Requirements Linux
Available PCI Express x1, x4, x8 or x16 slot

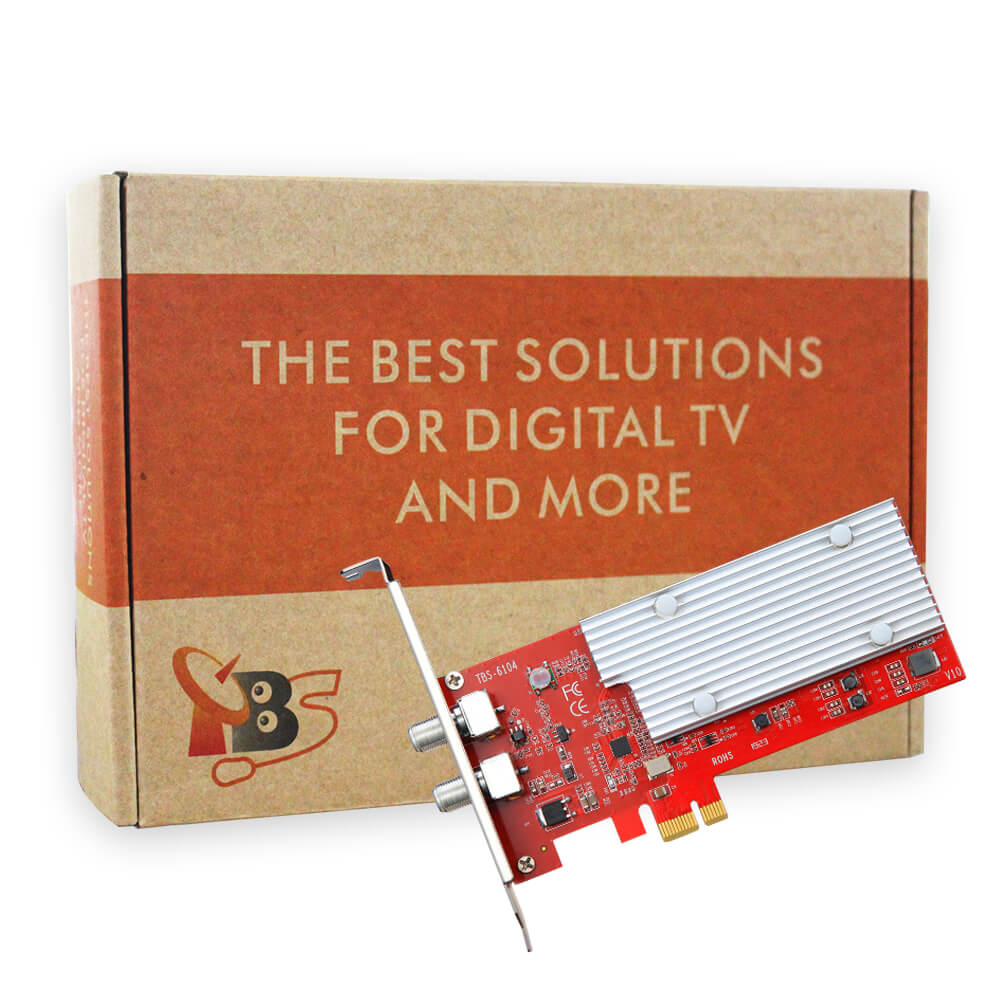

Package Contents 1 * TBS6014 QAMB J.83B Quad Modulator Card
1 * low profile bracket
F-IEC connector
Card Size Gift Box Size Gross Weight
130mm * 68.7mm 200 * 138 * 50mm 0.5kg
