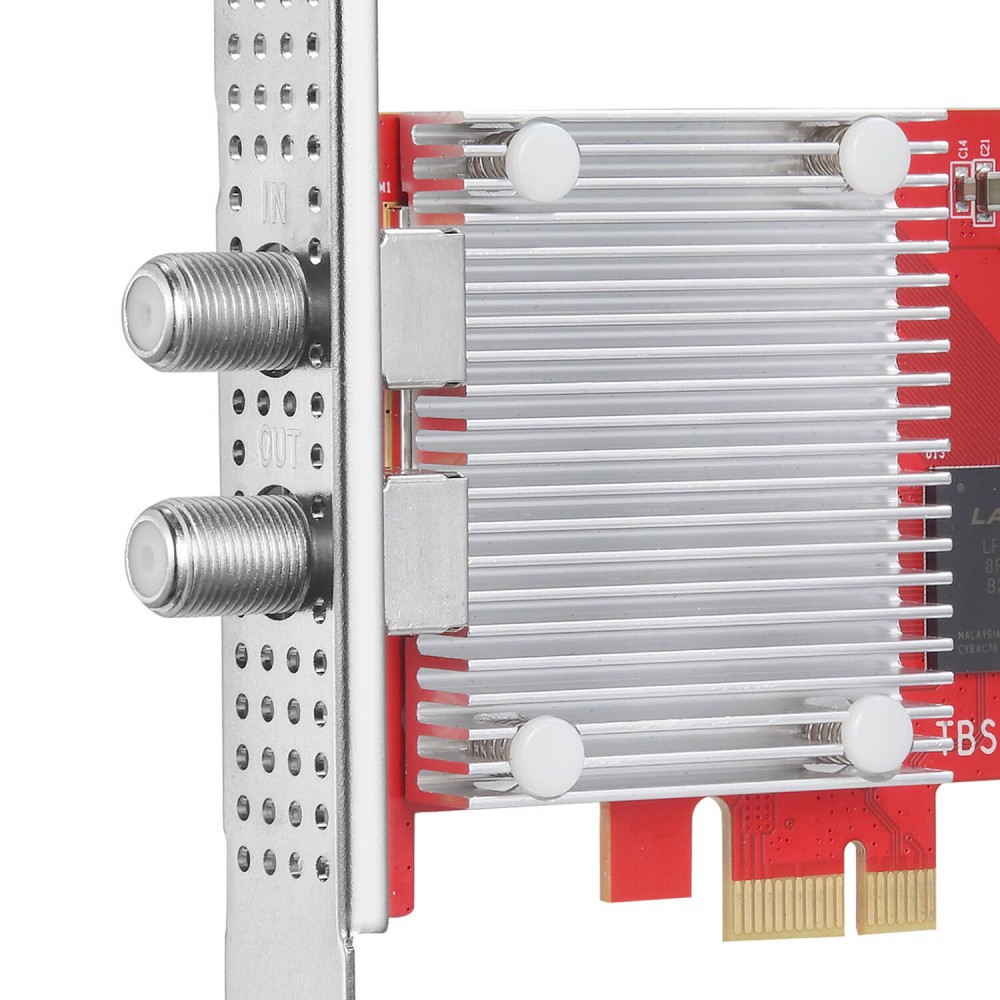

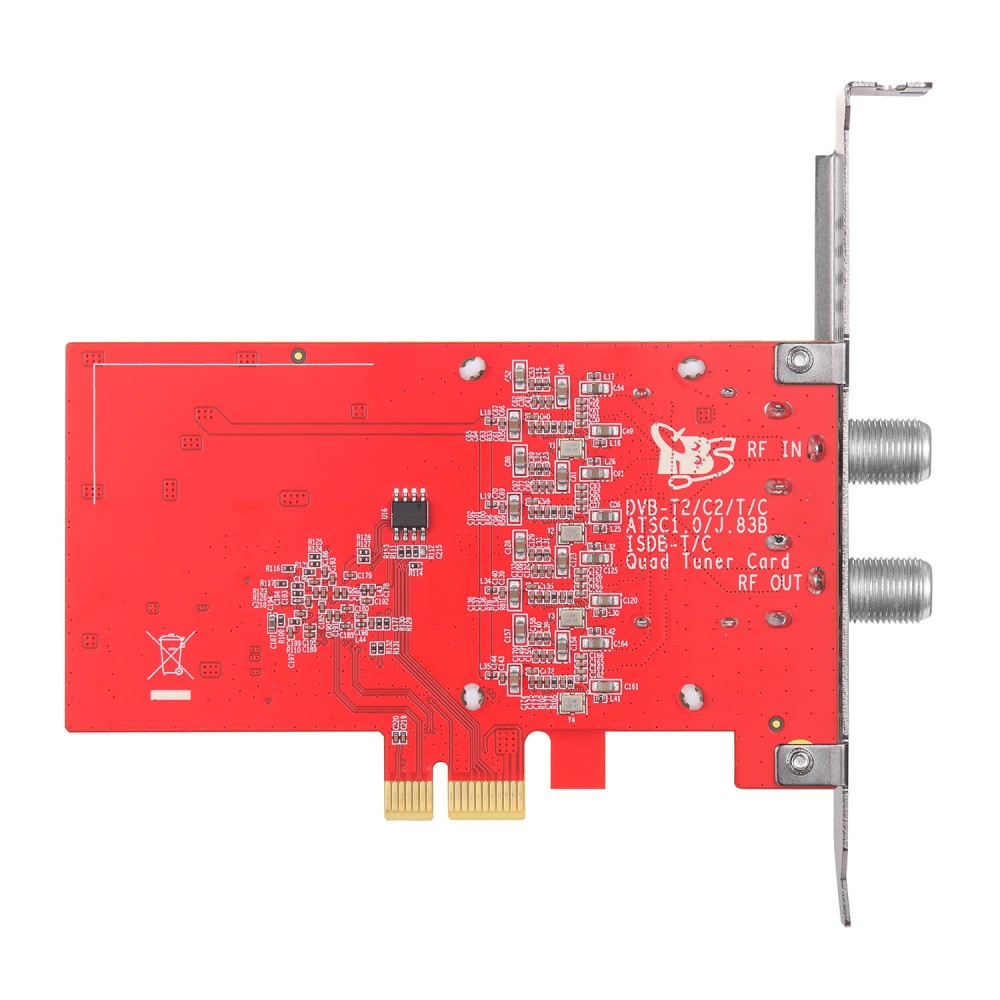

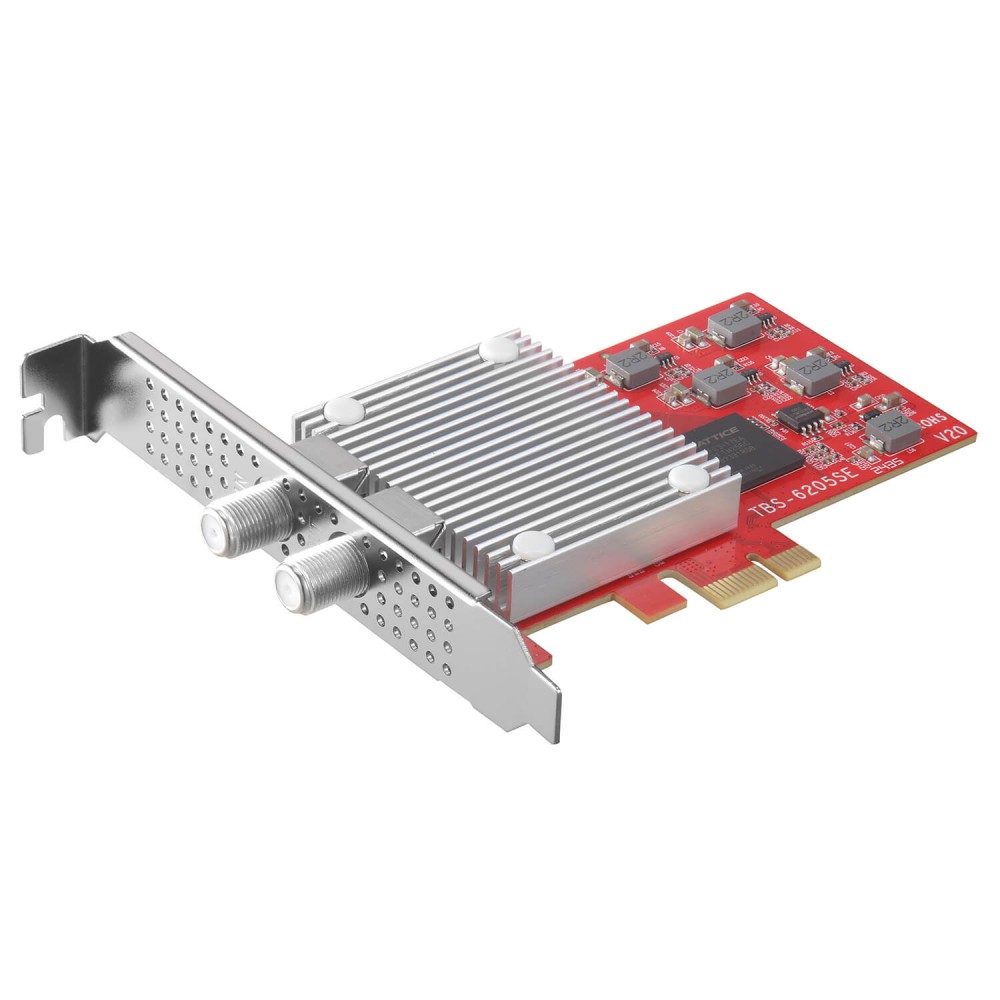

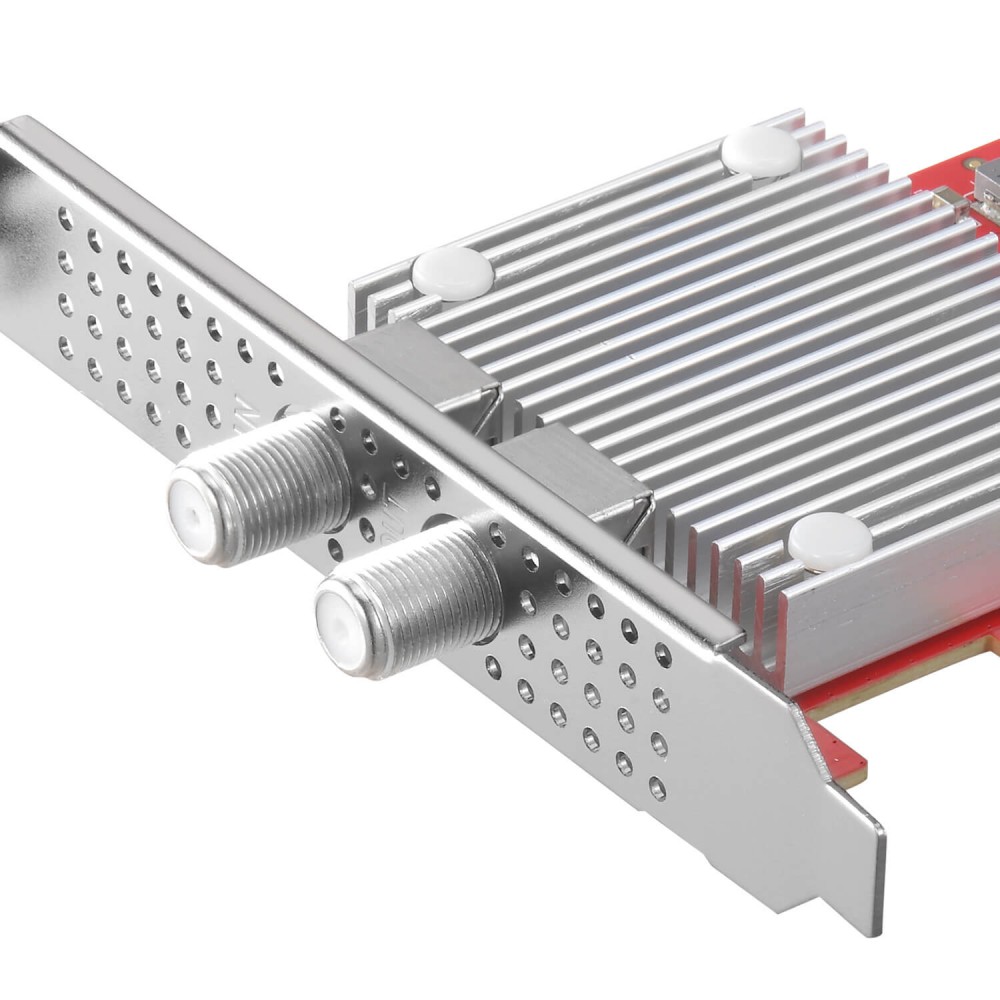

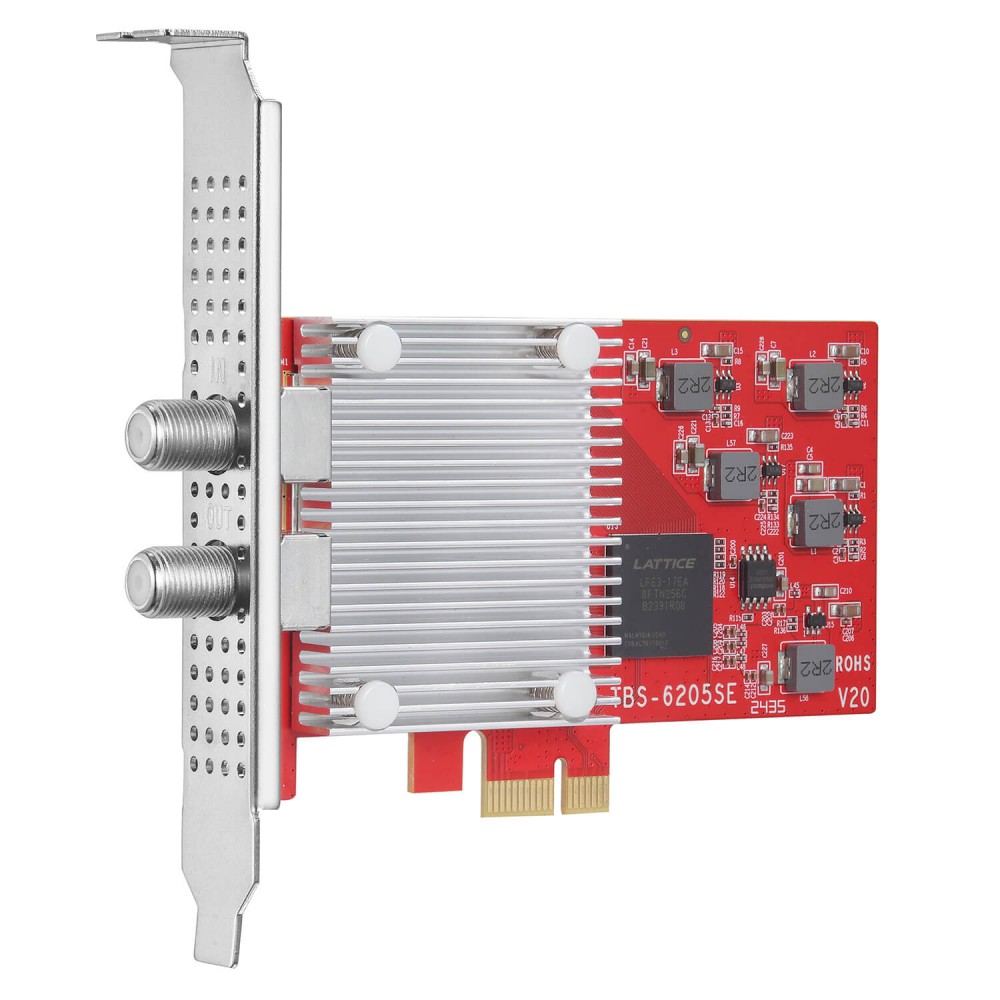

TBS6205se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 Quad TV Tuner Card


TBS6205se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 Quad TV Tuner Card

  • Model: TBS6205se
  • Weight: 400.00g
  • Reward Points:229

In Stock

US$229.00

TBS6205se is a DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0. TV Quad tuner card with PCI-Express interface, it can be used for watching 8 different channels from 4 different frequencies simultaneously, and it supports both DVB-T2 and DVB-C2 standard at the same time.

TBS6205se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0. TV Quad tuner card works also as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. TBS6205se is considered as a professional TV tuner for industrial-level users. When the PCIe slots in the server is limited, TBS6205se enables you to receive more channels than the usual dual TV tuner. Thus, it is highly recommended for IPTV streaming and broadcasting system.

Main Features:

  • DVB-T2/C2/T/C(J.83A/B/C),ISDB-T/C ,ATSC1.0. SD or HD TV receiving
  • Quad channel receiving simultaneously
  • High-definition video, real-Time and scheduled video recording
  • High sensitivity DVB-T2 quad Tuner for the best digital TV reception
  • Windows BDA driver and Linux Driver ready

Specification:

DVB-T2 and T2-Lite Receiving channel: VHF band, UHF band
Bandwidth: 1.7, 5, 6, 7, 8MHz
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
1/32, 1/16, 1/8, 1/4, 1/128, 19/128 and 19/256 guard intervals
16, 32, 64, 128 and 256QAM modulations
Code rate: 1/2, 3/5, 2/3, 3/4, 4/5 and 5/6
DVB-T 6, 7 and 8MHz channel bandwidths
2 and 8K FFT
QPSK, 16 and 64QAM
1/2, 2/3, 3/4, 5/6 and 7/8 code rates
DVB-C2 6 and 8MHz channel bandwidths
1/64 and 1/128 guard intervals
16, 64, 256, 1024, 4096 QAM
2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 code rates
DVB-C 1.7 to 7.2 Msym/s
16, 32, 64, 128 and 256QAM
0.15 roll-off factor
ISDB-T 6, 7 and 8MHz bandwidth
2, 4 and 8K FFT
1/32, 1/16, 1/8 and 1/4 guard intervals
QPSK, 16QAM and 64QAM
ISDB-C 5.274 Msym/s
0.13 roll-off factor
64 and 256QAM
TSMF (Transport Streams Multiplexing Frame)
J.83B (ITU-T J.83 v3.0 Annex B) 5.056941, 5.360537, 5.6 Msym/s
0.18 and 0.12 roll-off factor
64 and 256QAM
ATSC1.0 6MHz channel bandwidths
8VSB modulation
2/3 code rate
Power consumption
Input/ Power: 12V/8W
temperature 0 ~ 60℃
System Requirements Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Digital TV signal DVB-T2/C2/T/C(J.83A/B/C), ISDB-T/C, ATSC1.0.

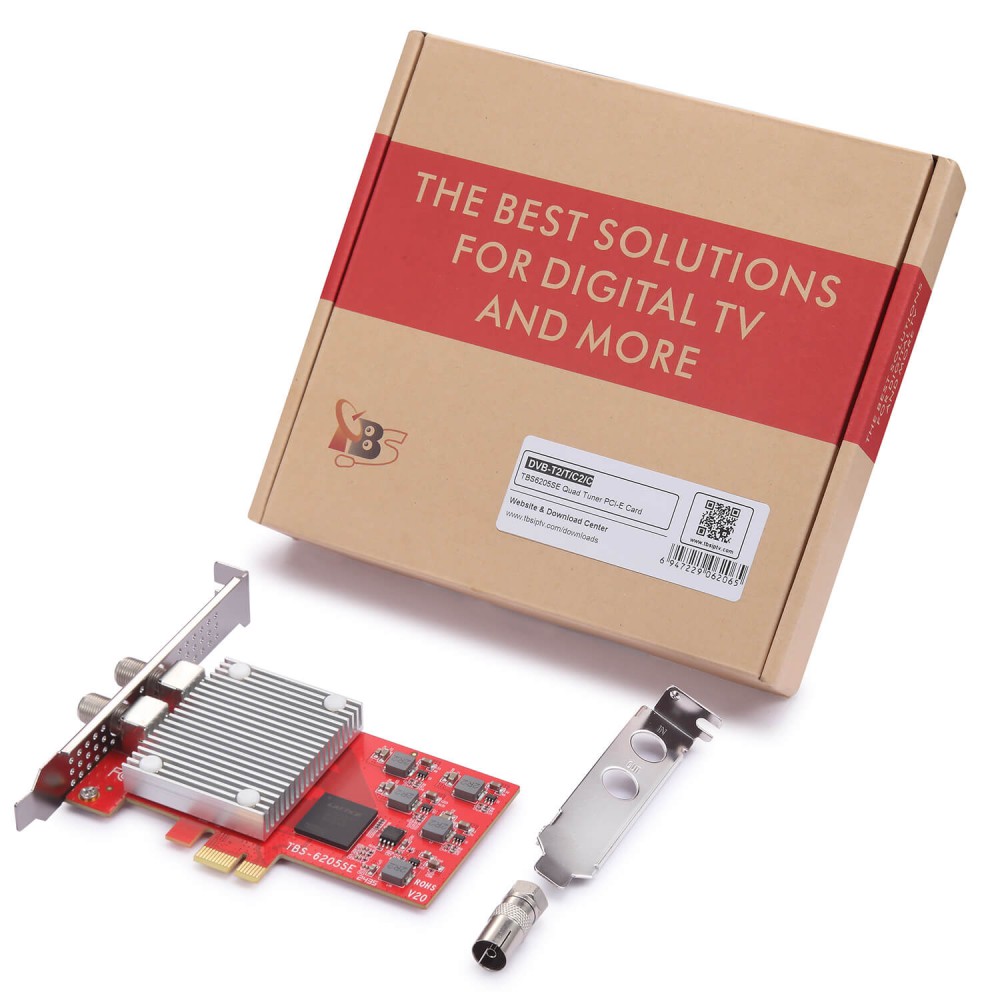

Package Contents 1 x TBS6205se
1 x DC line
1 x F Connector
