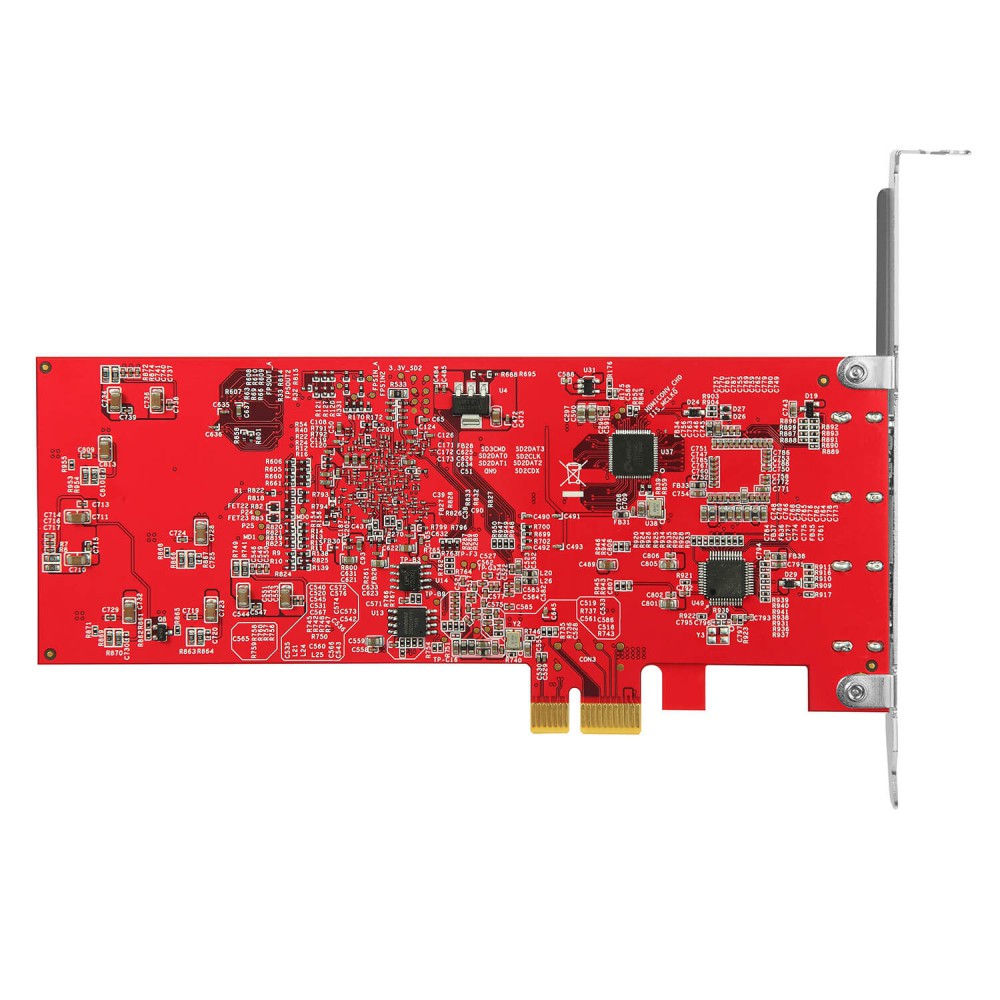

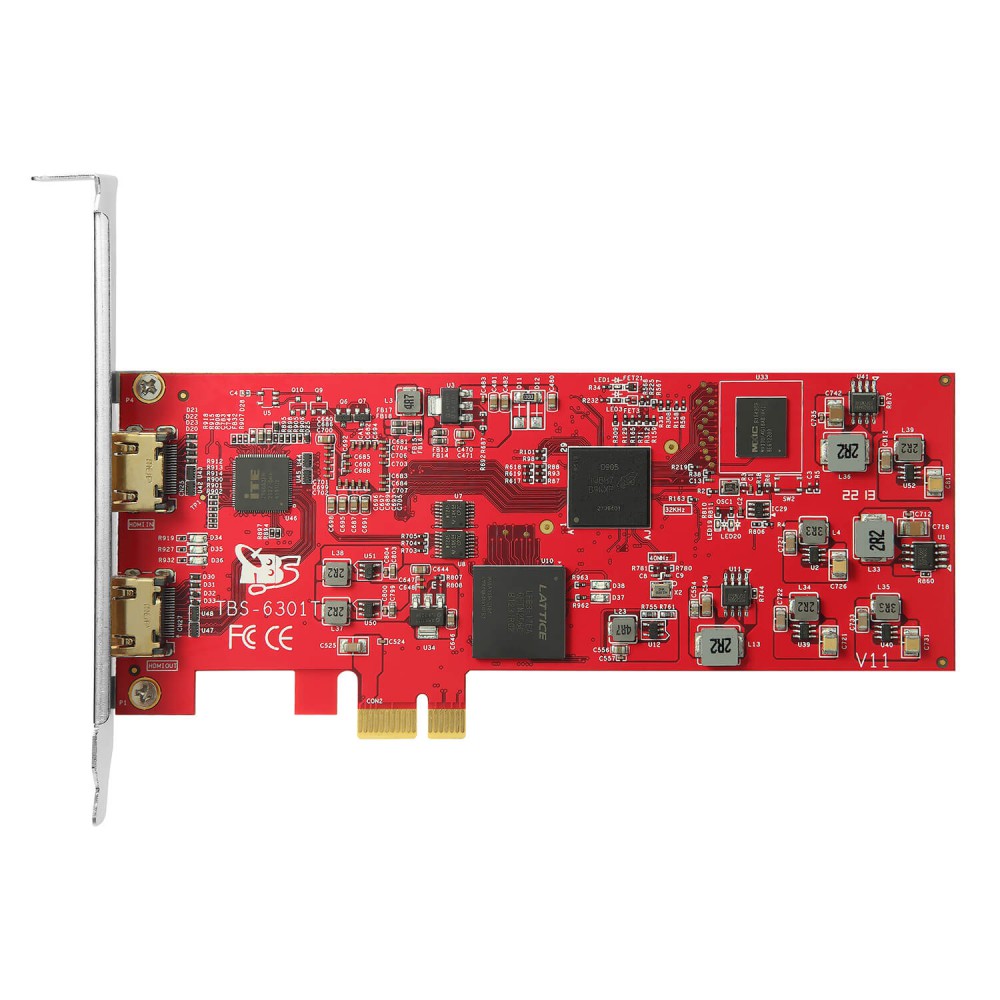

TBS6301T is a HDMI 4K UHD Video Encoding Card, being capable of max 3840 x 2160P@60fps input and H.265 & H.264 encoding. It is an ideal device for whom need to stream lower bit rate video over LAN or WAN networks – often due to internal network limitations, whilst maintaining high quality video.

A special encoding pattern:

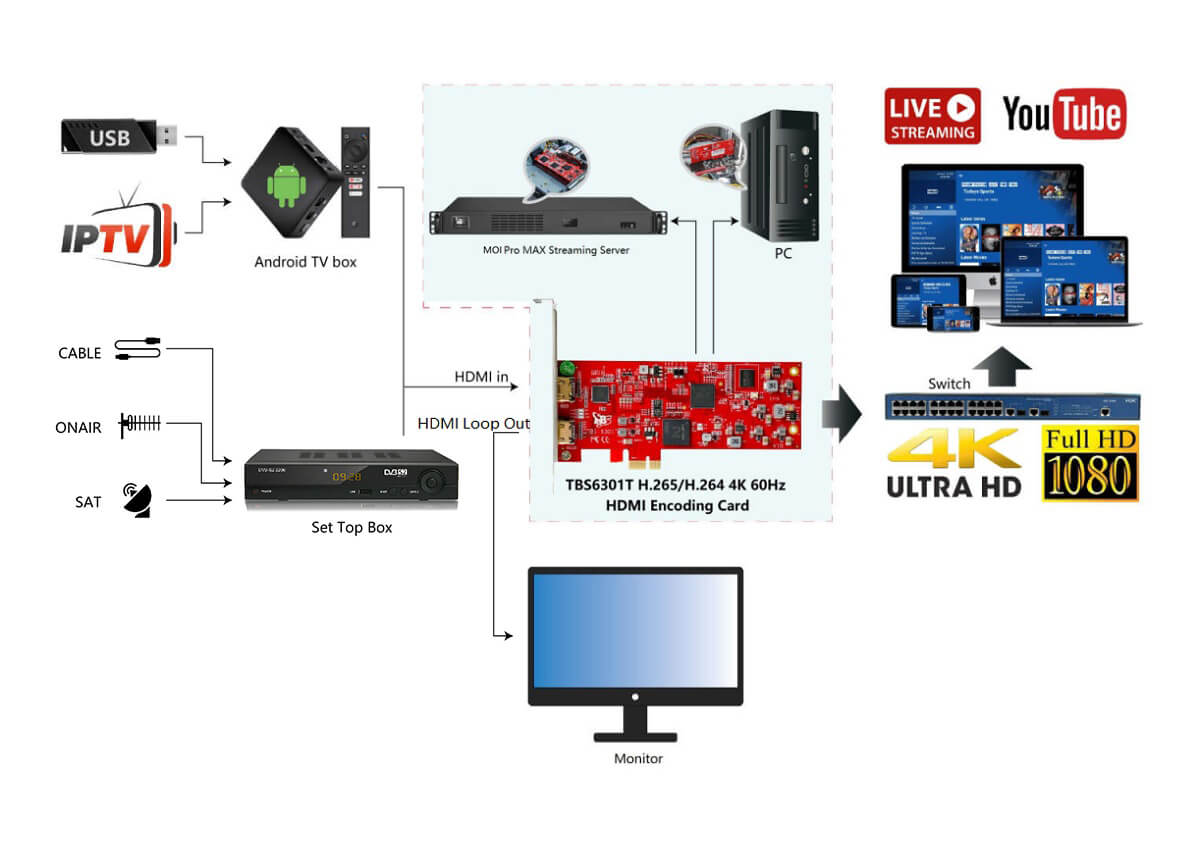

After capturing UHD/HD video from HDMI port, TBS6301T will generate a H.264/H.265-encoded stream by TS packet and output via PCIe connection. In short, TBS6301T can be used as a normal DVB Tuner PCIe card. This allows it to be used with a wide range of DVB streaming software applications, such as Astra Cesbo, Kylone, DVBlast and Tvheadend on Linux or DVB Dream on Windows.

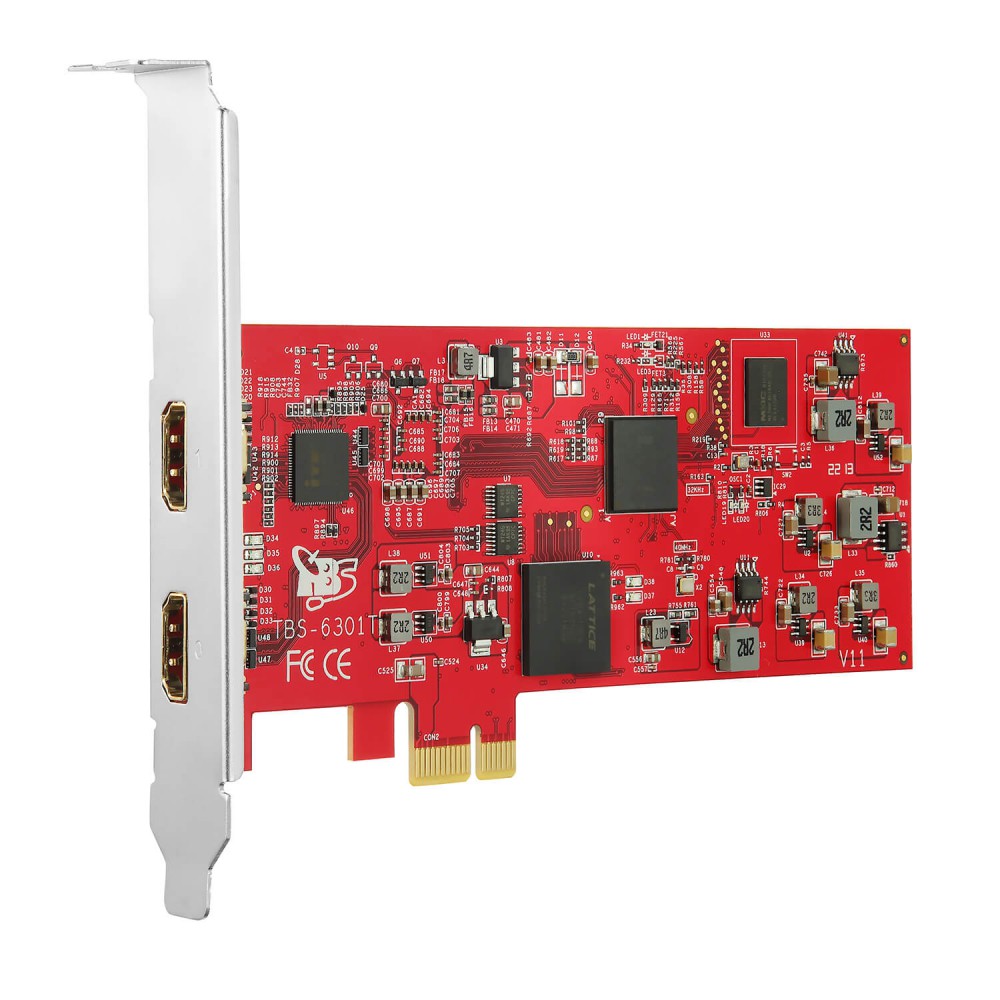

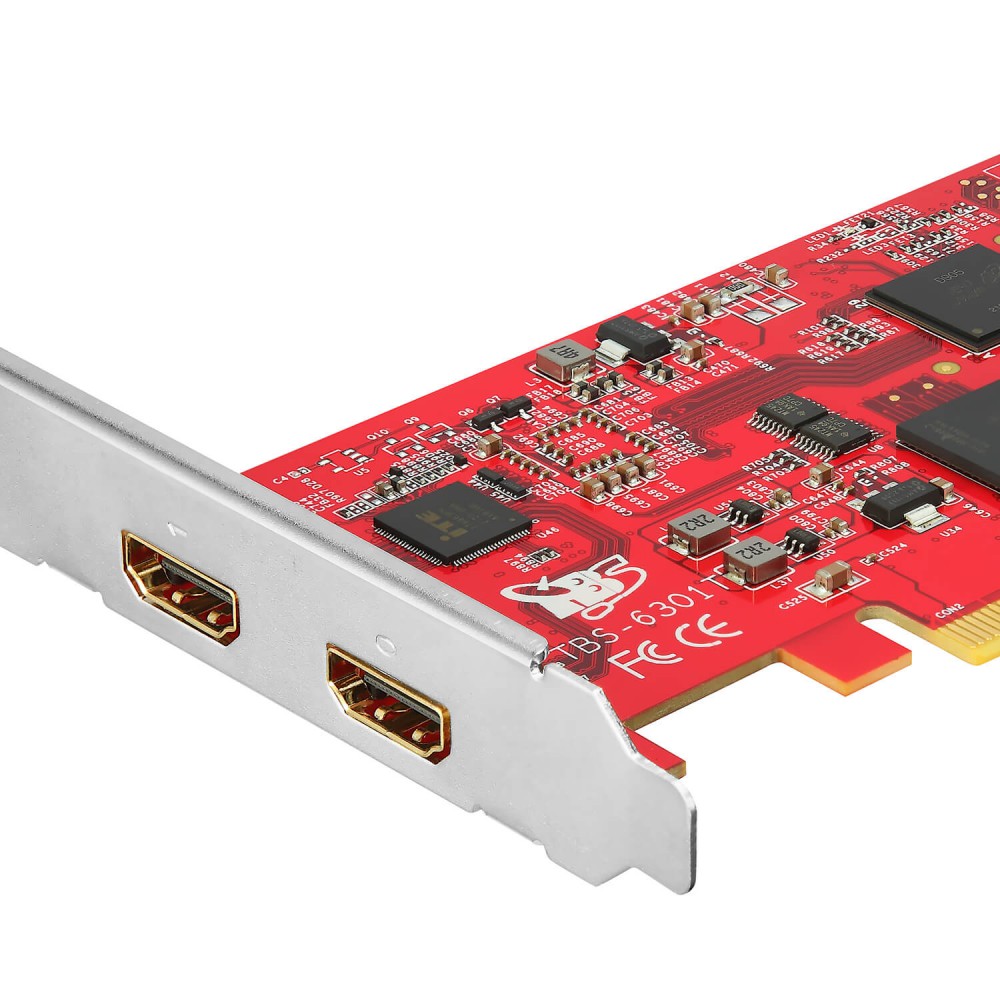

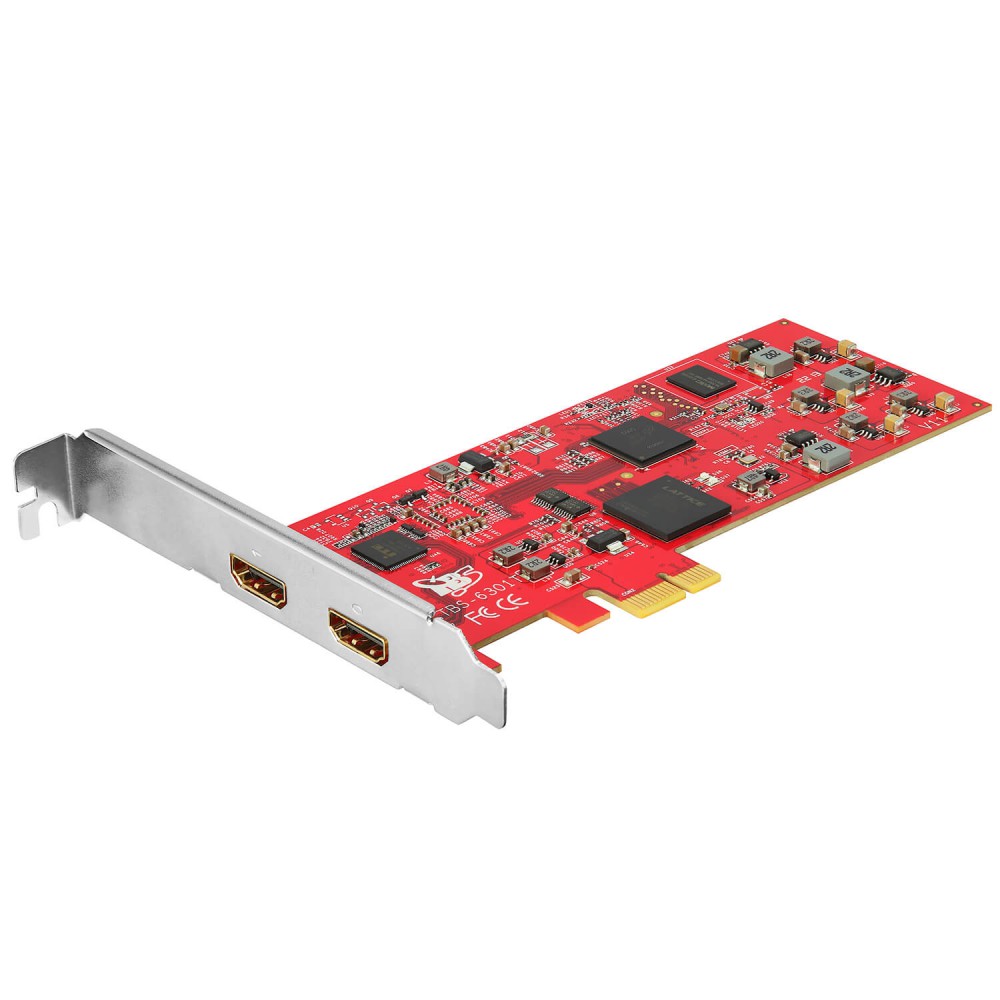

TBS6301T is equipped with a HDMI 2.0 input and a HDMI loop-out port. Its PCIe interface allow users to install the TBS6301T HDMI encoding card into any low-profile or full-profile PCIe slot. This makes it compatible with a wide range of fixed workstations, such as 2U or 4U rack-mounted servers and media centers.

Main Features

• 1 x HDMI 2.0 input
• Supports up to 3840 x 2160P@60fps input
• Supports H.265/HEVC and H.264/AVC hardware encoding
• Compatible with common DVB software (e.g. Astra, Kylone, DVBlast and Tvheadend) supporting HLS, HTTP, UDP, RTP, RTSP, RTMP, and SRT output protocols.
• Supports simultaneous video streaming in multiple protocols
• Well-suited for various IPTV applications, including education, healthcare, conferencing, and news broadcasting.

Specifications
