TBS6302T 4K@60fps Dual HDMI Input Encoding PCIe Card
TBS6302T 4K@60fps Dual HDMI Input Encoding PCIe Card
- Model: TBS6302T
- Weight: 1,000g
- Reward Points: 799
In Stock
US$799.00
TBS6302T is a professional 4K UHD HDMI video encoding card featuring two HDMI 2.0 inputs. Each HDMI port supports up to 3840 x 2160P@60Hz input and H.265 / H.264 encoding. It is ideal for low-bandwidth streaming without sacrificing video quality, perfect for live production, broadcasting, and IP-based video distribution over LAN / WAN network.

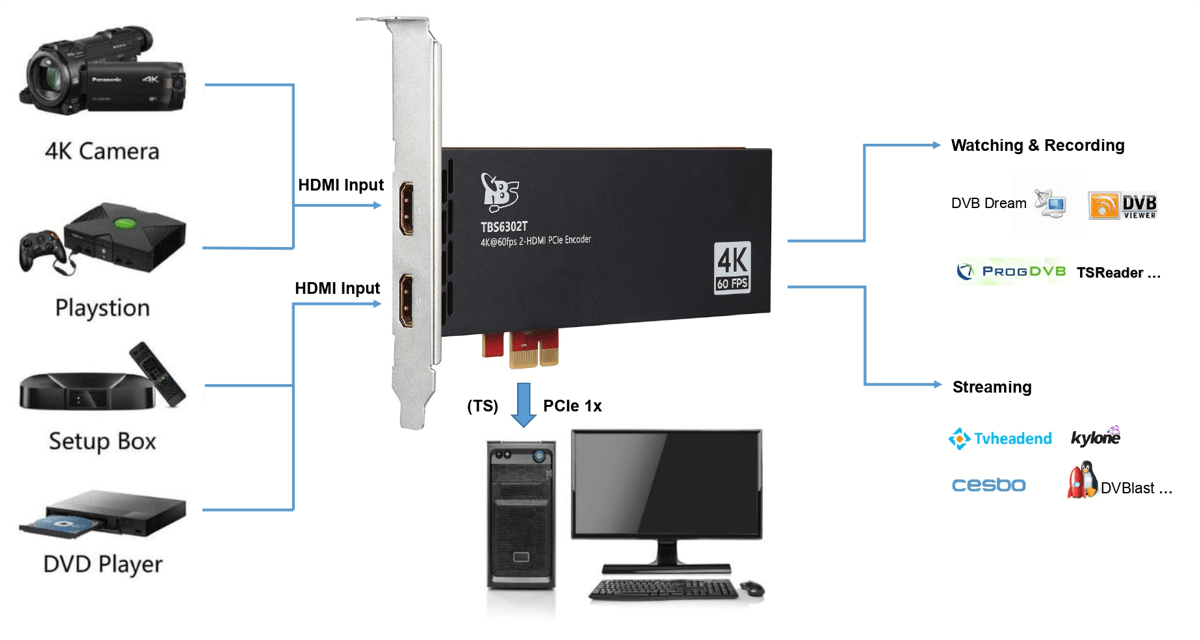

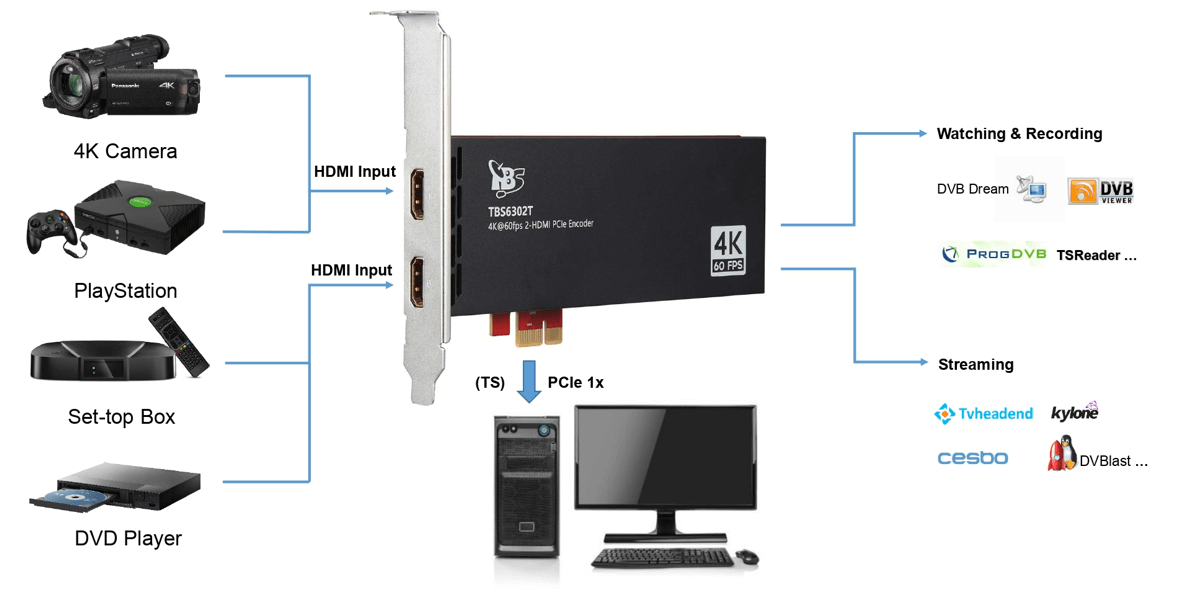

TBS6302T captures UHD/HD video through its dual HDMI ports, generating two independent H.264/H.265 encoded transport streams (TS) that are output via PCIe interface. Functioning as a standard DVB tuner card, it maintains compatibility with major DVB streaming software including Linux DVBlast, TVHeadend, Astra Cesbo and Windows DVB Dream etc.

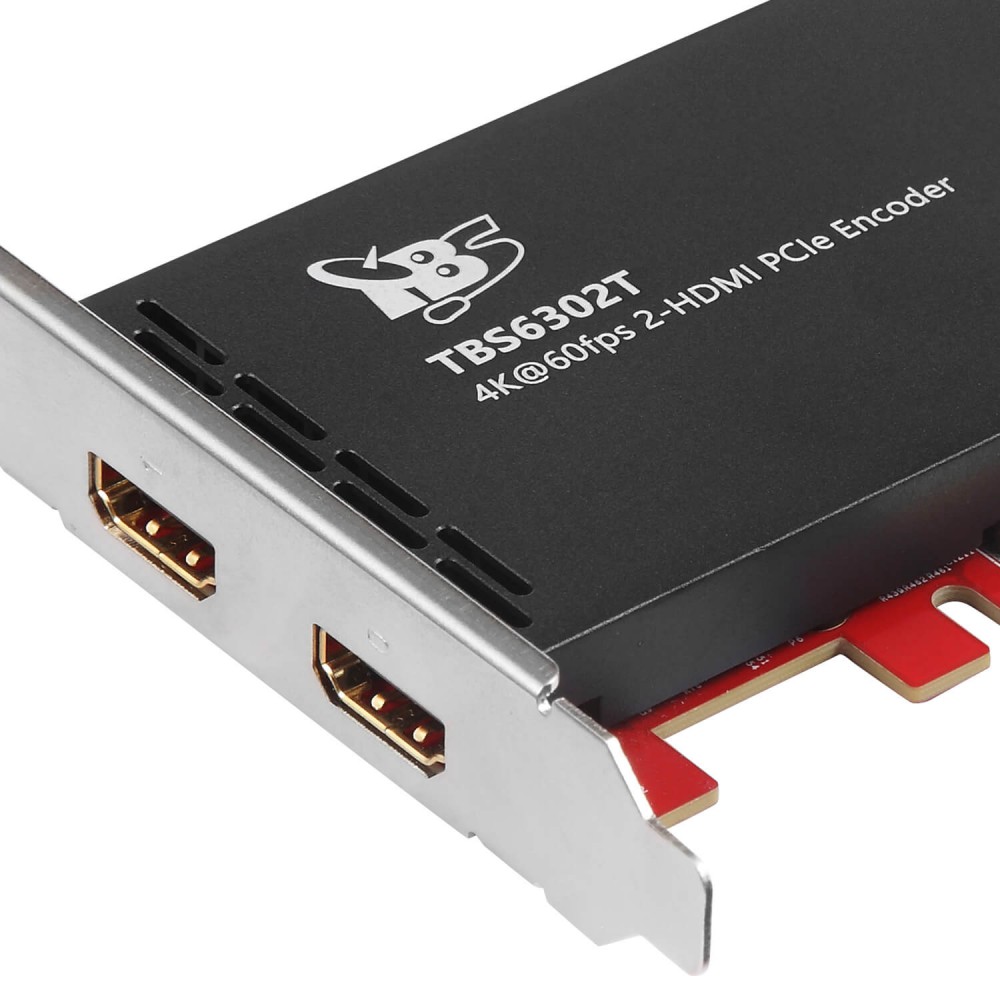

TBS6302T features dual HDMI 2.0 inputs and full-profile PCIe support for seamless integration in 2U/4U server racks and media centers.
Features
- Two HDMI 2.0 inputs supporting resolution up to 3840x2160@60Hz
- High-efficiency hardware encoding with low CPU utilization
- H.265/HEVC and H.264/AVC encode
- Real 4K@60fps encode
- Supports popular DVB software: DVB Dream, DVBViewer, DVBlast, TVHeadend, Astra Cesbo etc.
- Wide range of applications including education, healthcare, conferencing, IPTV, and media production.
- Compatible with Linux and Windows OS
Applications
With TBS encoded setting tool, the TBS6302T can easily switch channels and adjust configurations.
Specification
| Model NO. | TBS6302T |
| Product Name | 4K@60fps Dual HDMI Input Encoding PCIe Card |
| Input | 2x HDMI 2.0 |
| HDCP | HDCP 2.2 supported |
| Interface | PCIe 1x |
| Video | |
| Video Input | 3840x2160_60/50/30hz, 1920x1080p_60/50/30/25/24hz, 1080i_60/50hz, |
| 1280x720p_60/50hz, 720x576p_50hz, 720x480_60hz, etc. | |
| Video Encode Size | 3840x2160, 1920x1080, 1280x720, 720x576, 720x480, 704x576, 640x480, etc. |
| Video Output | 3840x2160@60/50/30fps, 1920x1080p@60/50/30/25/24fps, |
| 1280x720p@60/50/30/25fps, 720x576p@50fps, 720x480@60fs,etc. | |
| Video Codec | H.264, H.265 |
| Profile | H.264: Main, High; H.265: Main |
| Level | 3.0,3.1,3.2,4.0,4.1,4.2,5.0,5.1,5.2 |
| Bitrate Control | CBR, VBR |
| Frame Rate | 20 fps , 24 fps, 25 fps, 30 fps, 50 fps, 60 fps |
| GOP Structure | IPPP, IBBP |
| Video Bitrate | 1 ~ 70Mbps |
| Color depth | 8 bit |
| Chroma subsampling | 4:2:0 |
| Audio | |
| Audio Input | HDMI Embedded audio |
| Audio Codec | AAC (LC) |
| Audio Bitrate | 256Kbps |
| Audio Re-sample rate | 48kHz |
| System & Software | |
| Driver | Linux 64 bit & 32 bit driver / Windows 64 bit & 32 bit driver |

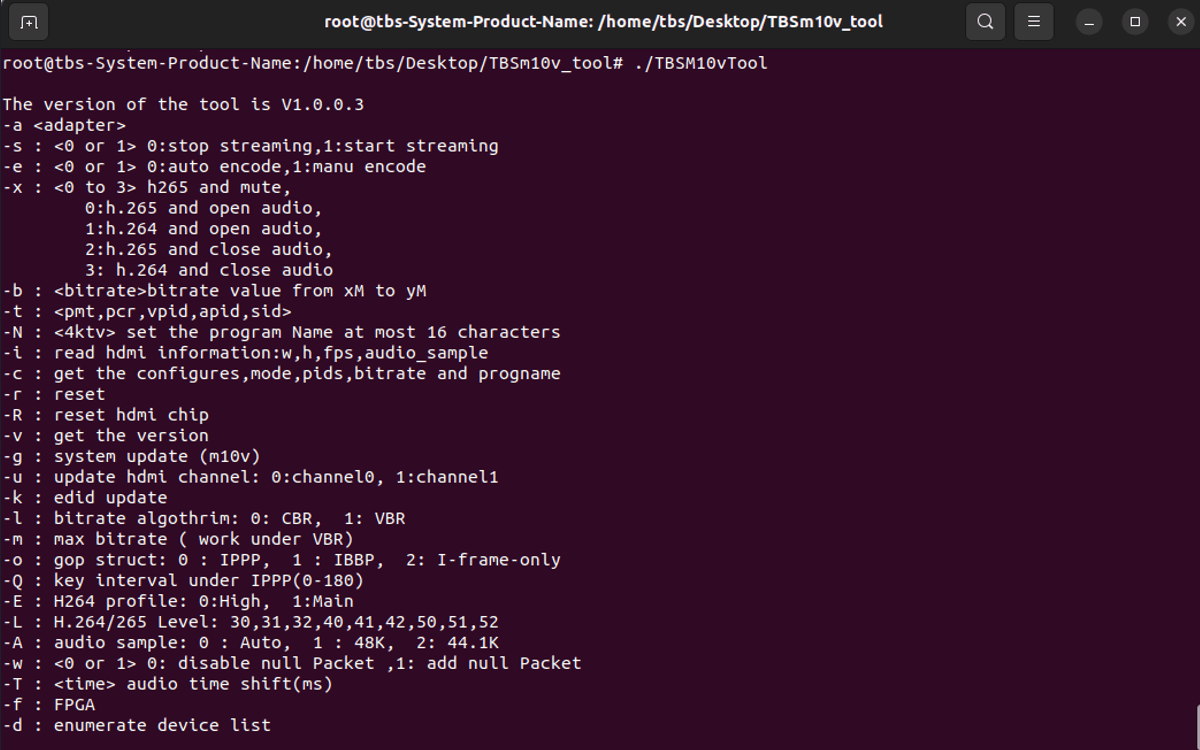

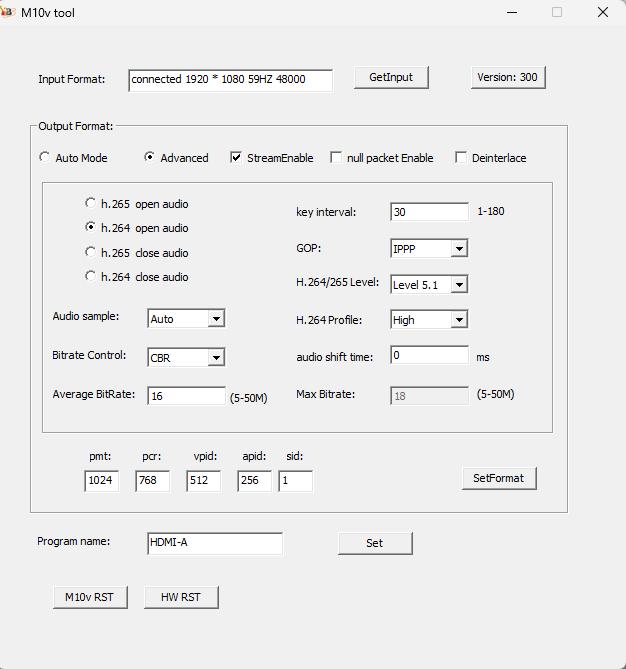

| Control | Linux command line setting tool / Windows GUI setting tool |
| Applications | Compatible with major DVB software. |
| Windows platform: DVBream, DVBviewer, etc. | |
| Linux platform: DVBlast, Tvheadend, Astra Cesbo, etc. | |
| General Spec. | |
| Power Consumption | 9 Watt |
| Net Weight | 150 g |
| Dimension | 155mm x 68.9mm |
| Working Environment | Operating temperature: 0 to 60 ° C |
| Storage temperature: -20 to 70 ° C | |
| Relative humidity: 5% to 90% (non-condensing) | |

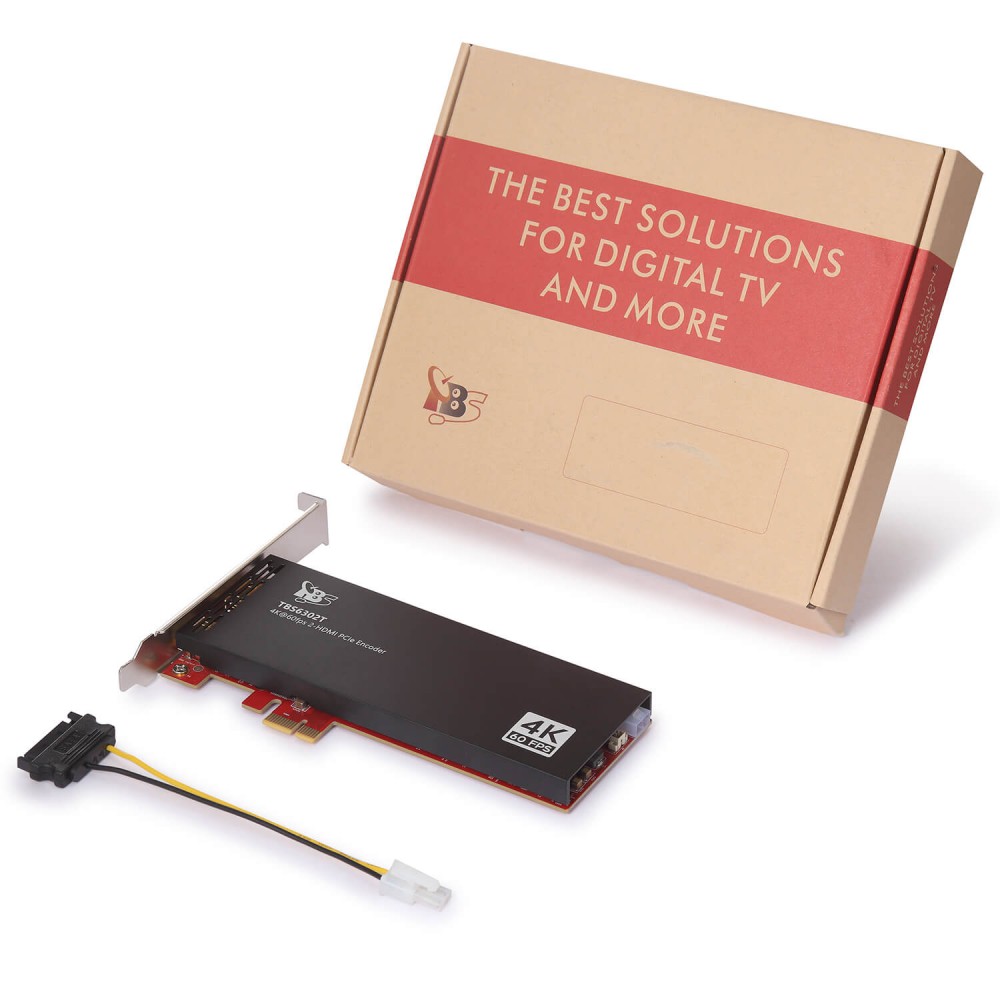

| Package Contents | 1x TBS6302T |
| 1x Low profile bracket | |
| 1x DC cable | |
