TBS6304X 4K Quad HD HDMI Capture Card


TBS6304X 4K Quad HD HDMI Capture Card

  • Model: TBS6304X
  • Weight: 450.00g

In Stock

TBS6304X is a high and standard definition capture & 4K encoding card with quad HDMI 1.4 inputs, it being capable of max 3840 x 2160P@30fps input and H.265 & H.264 encoding. It is an ideal device for whom need to stream lower bit rate video over LAN or WAN networks – often due to internal network limitations, whilst maintaining high quality video.

After capturing UHD/HD video from HDMI ports, TBS6304X will generate H.264/H.265-encoded stream in TS packet and output via PCIe connection. TBS6304X can be used as a normal DVB Tuner PCIe card, so it will stream the video to network by many DVB streaming software, like "DVBLast", "TVheadend" ,"Astra Cesbo" in Linux.

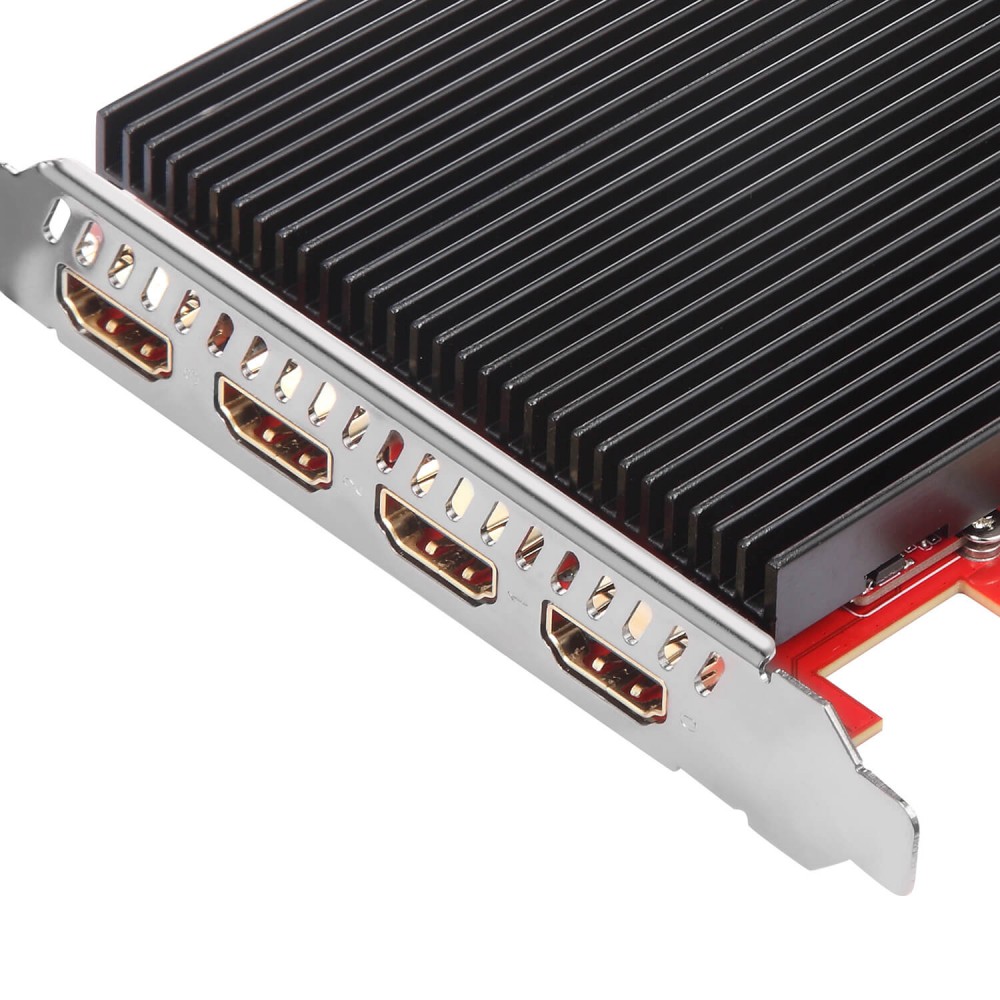

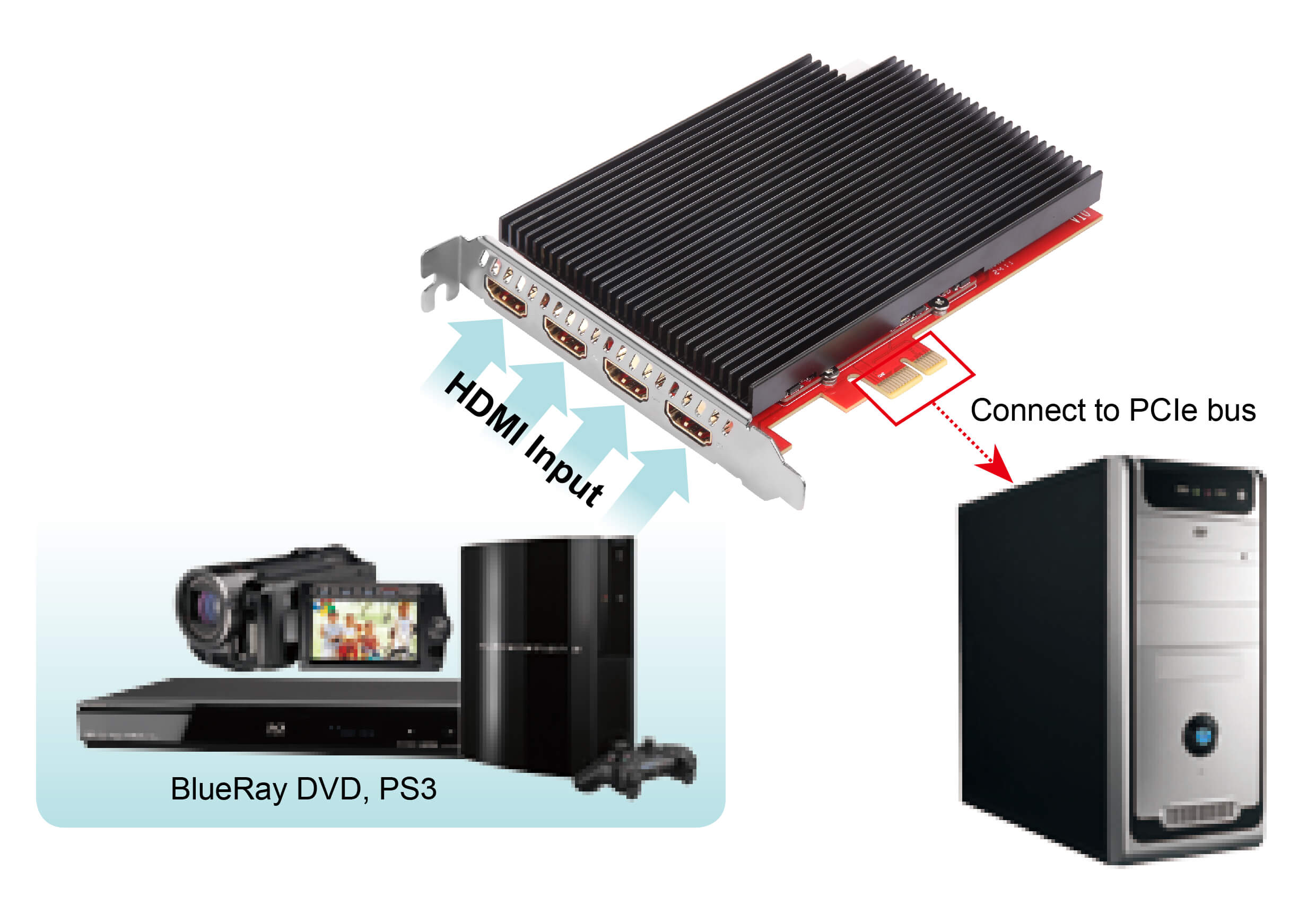

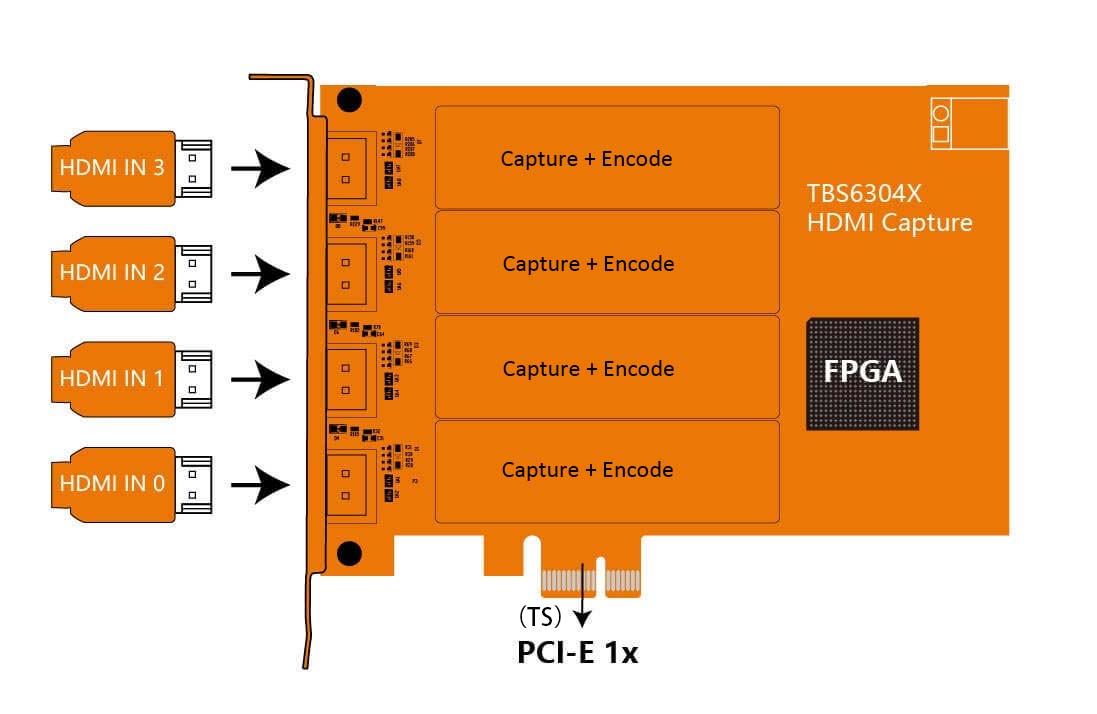

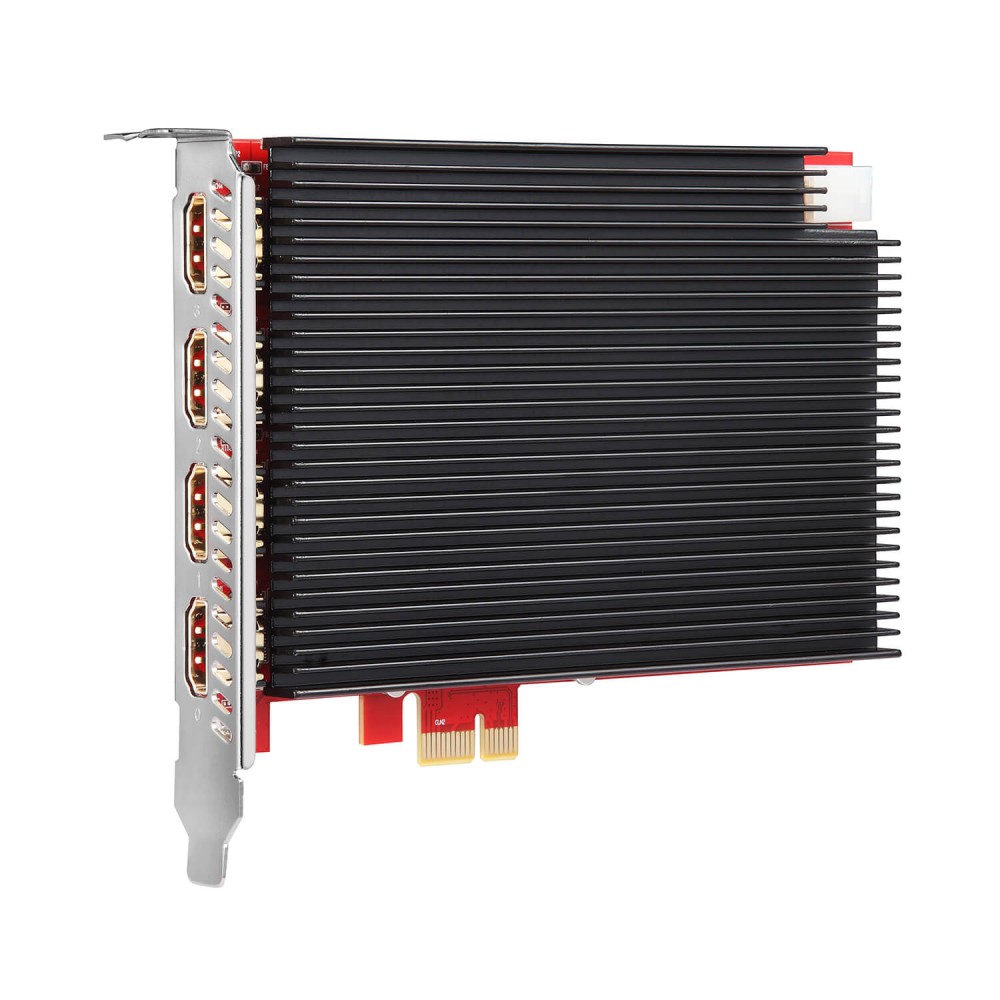

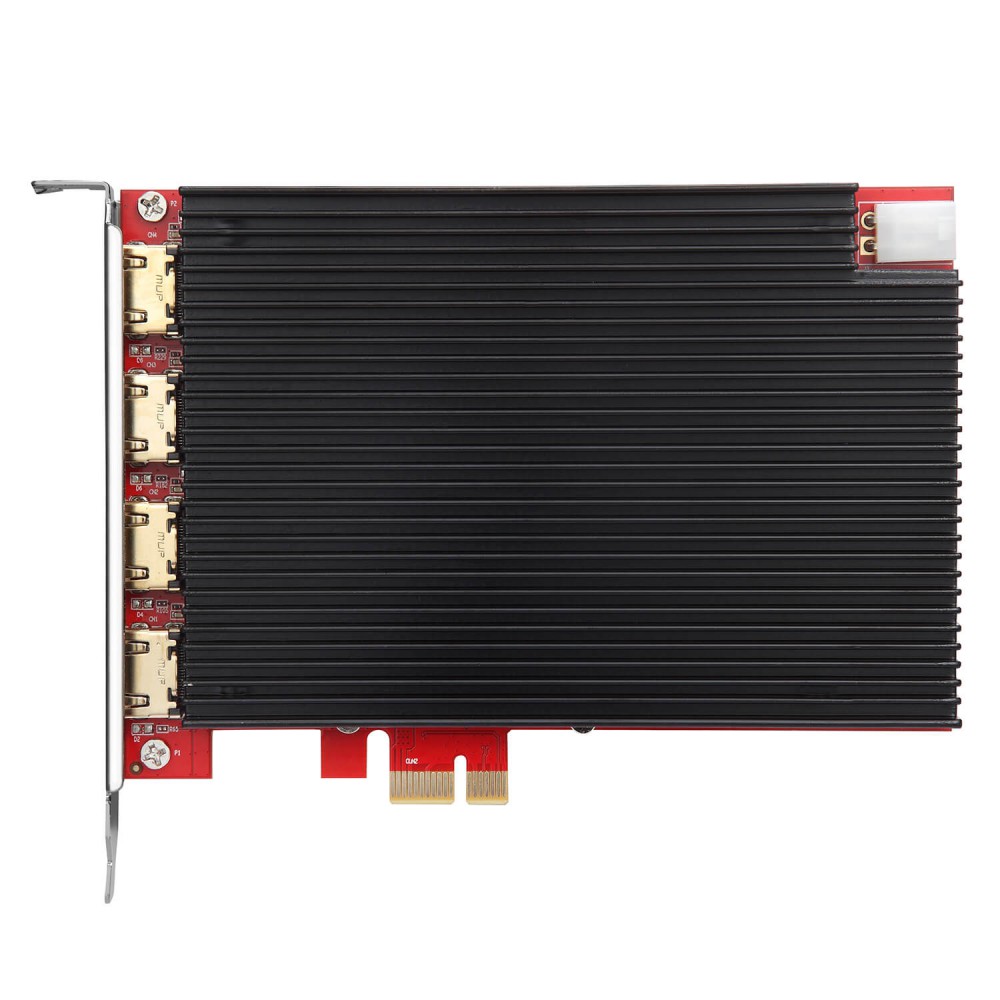

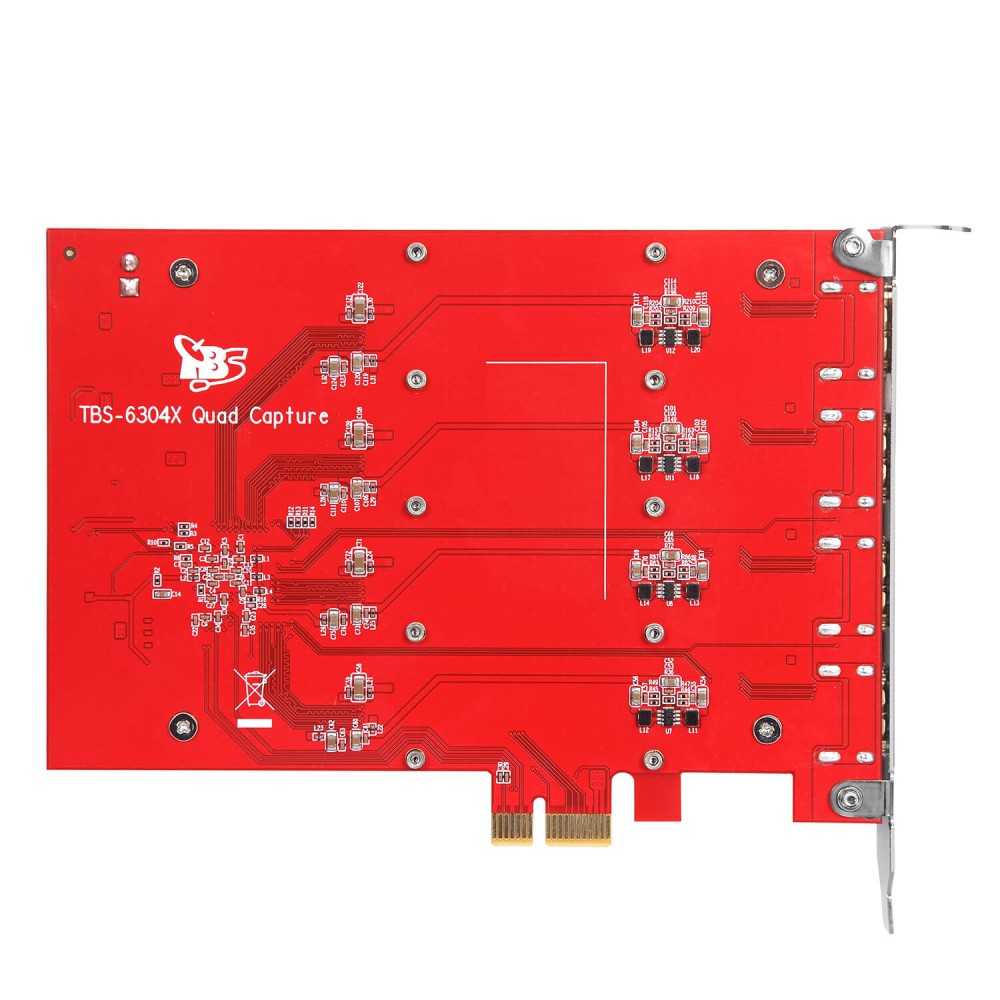

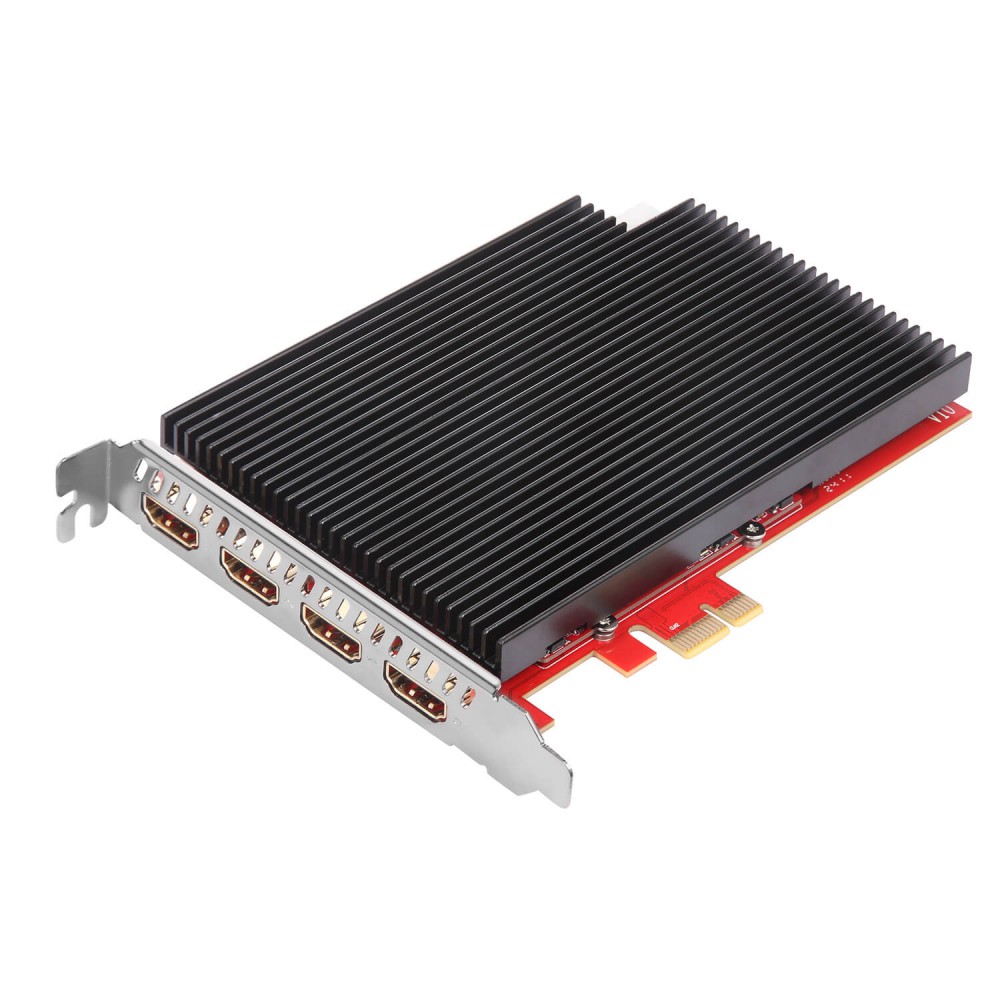

TBS6304X is equipped with 4 HDMI 1.4 inputs. The PCIe interface allows users to install TBS6304X into any full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers.

Main Features:

  • Quad HDMI 1.4 input, HDCP 1.4 is supported
  • Capable of max 3840 x 2160P@30fps input and 3840x2160p@30fps encode
  • Supports H.265/HEVC and H.264/AVC video hardware encoding, AAC-LC/AAC-HE Audio encoding
  • With the support of DVB streaming software, supports to stream the video in several different protocols simultaneously.
  • Support to be applied to various IPTV system in the industries of education, health care, conference, news interview, and so on.

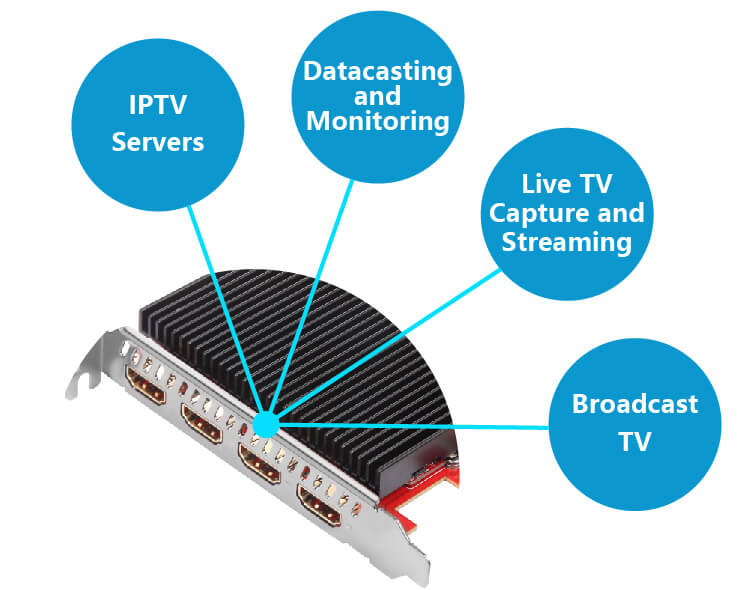

Applications:

  • IPTV Servers
  • Datacasting and monitoring
  • Live TV Capture and streaming
  • Broadcast TV
Works like a DVB Tuner PCIe card, Compatible with DVB software: Windows platform: DVBream, DVBviewer, and etc. Linux platform: DVBlast, Tvheadend, Astra Cesbo and ect.

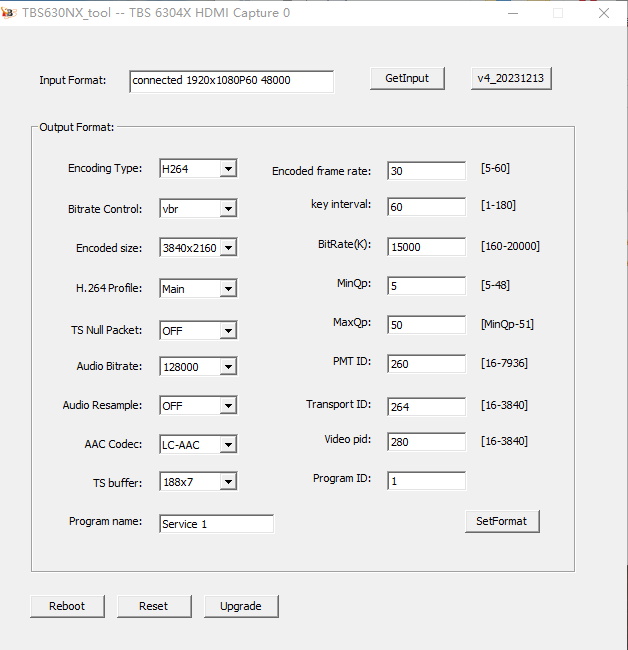

With TBS encoded setting tool, it can easily switch between channels and adjust configurations.

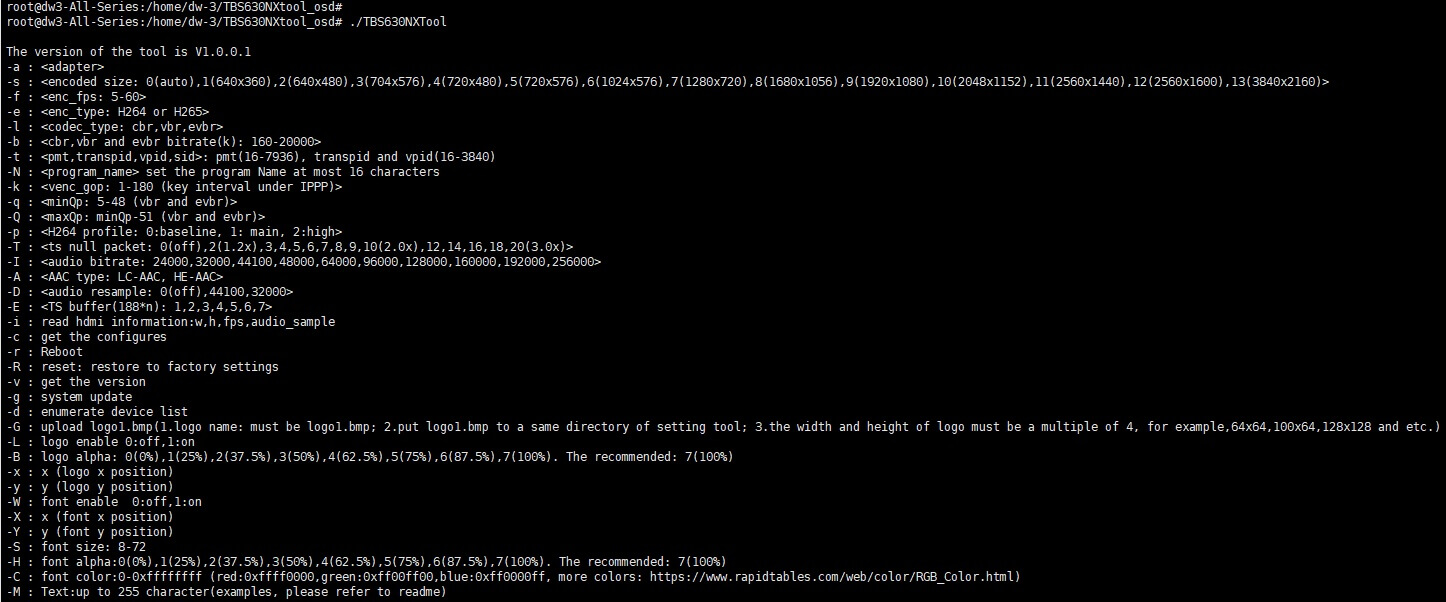

Linux Platform: command line control

Windows Platform: GUI setting tool

Specification:

Input 4x HDMI 1.4a, HDCP 1.4 supported
Video Input 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz,
1280x720p_60/50hz, 720x576p/i, 720x480p/i, and etc.
Encode Size 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1080, 1680x1056, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, auto
Video Codec H.264/H.265
Profile H.264: Baseline, Main, High
H.265: Main
Level H264: Level 4.2; H265: Level 4.1
Bitrate Control CBR/VBR/EVBR
Frame rate 5~60fps
Key Interval (gop) 5~180fps
GOP Structure IPPP
Bitrate 300~20000Kbps
Color depth 8 bit
Chroma subsampling 4:2:0
De-interlace force to do de-interlace when i (interlace) input
Audio Input HDMI embedded
Audio Codec AAC-LC, AAC-HE
Audio Bitrate 24000/32000/44100/48000/64000/96000/128000/160000/192000/256000bps
Audio Resample 48k, 44.1k, 32k
Bitrate 24000/32000/44100/48000/64000/96000/128000
160000/192000/256000bps
Slot PCIe 1x
Control Linux command line, Windows GUI setting tool
Driver Linux/Windows 64-bit/32-bit driver
Application Compatible with DVB software: Windows platform: DVBream, DVBviewer, and etc. Linux platform: DVBlast, Tvheadend, Astra Cesbo and ect.
Power Consumption 13.8 Watt
Net Weight 240g
Working Environment
  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% (non-condensing)
