TBS6314 Quad HD HDMI Raw Data Video Capture Card


TBS6314 Quad HD HDMI Raw Data Video Capture Card

  • Model: TBS6314
  • Weight: 400.00g

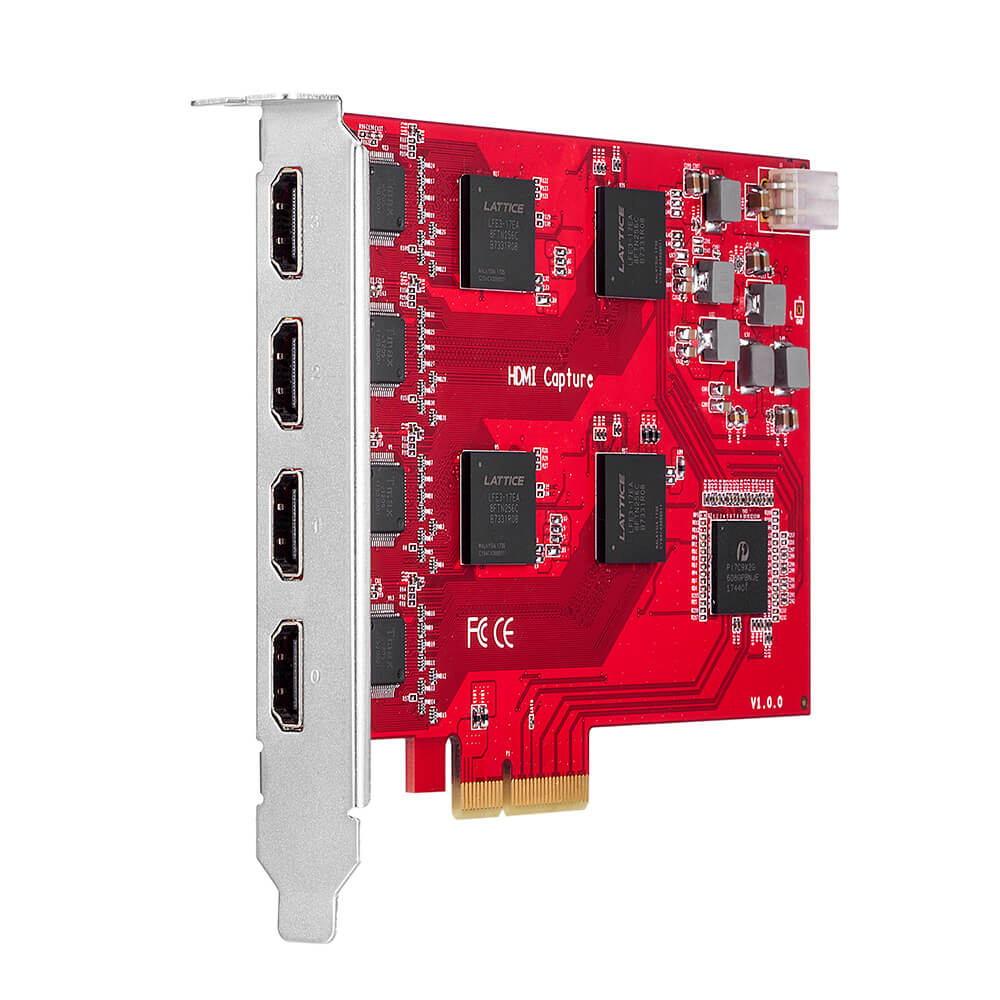

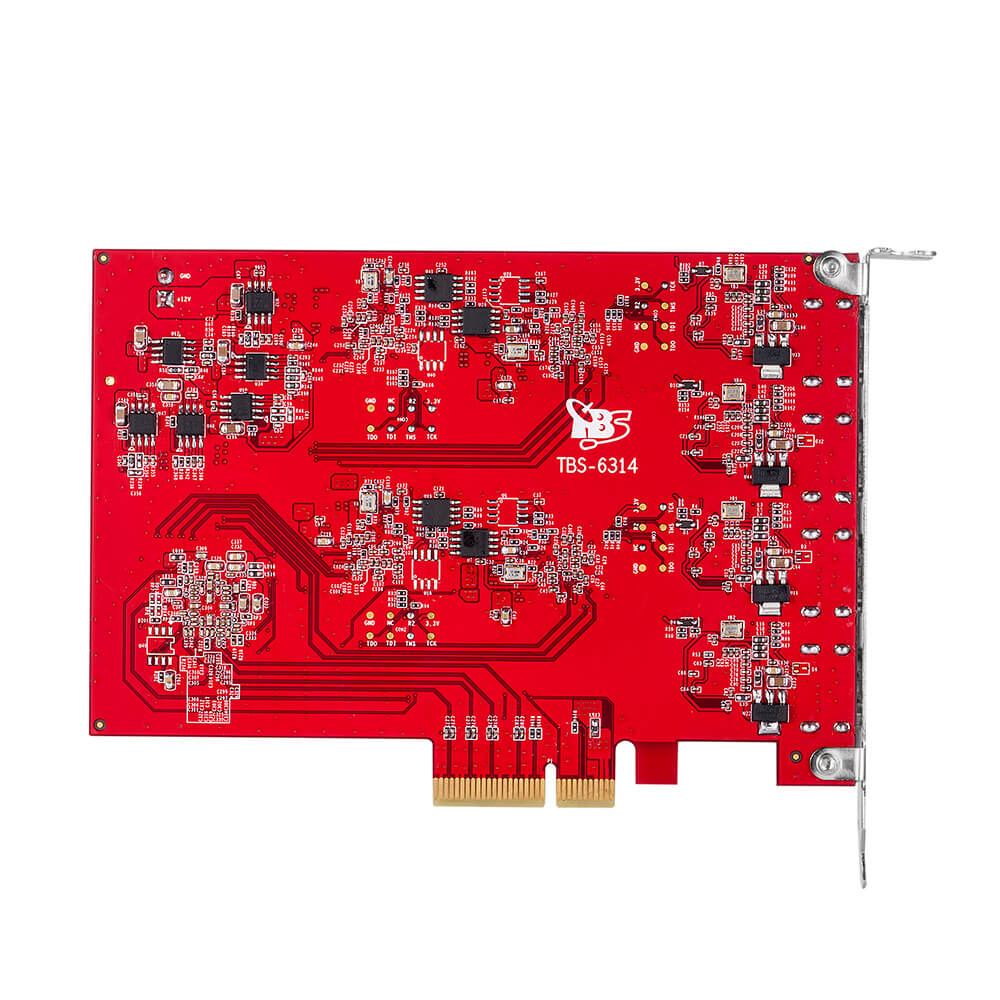

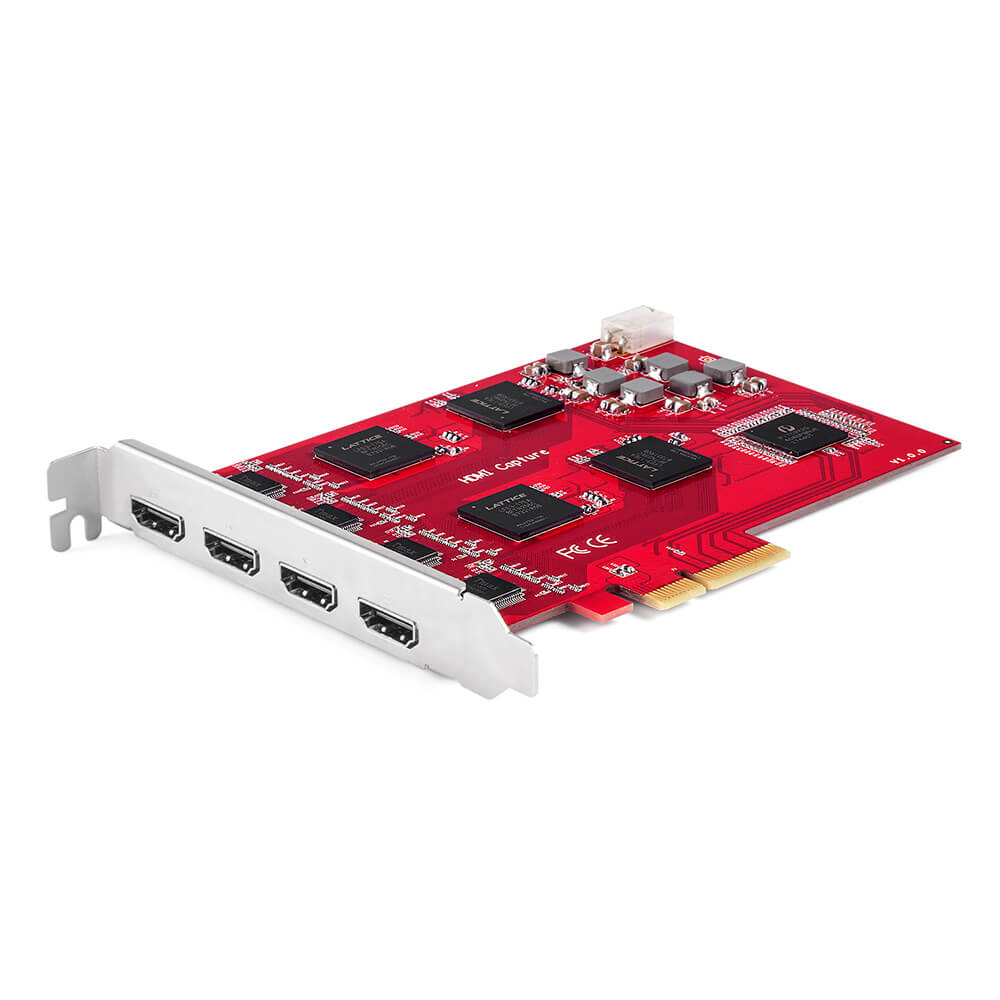

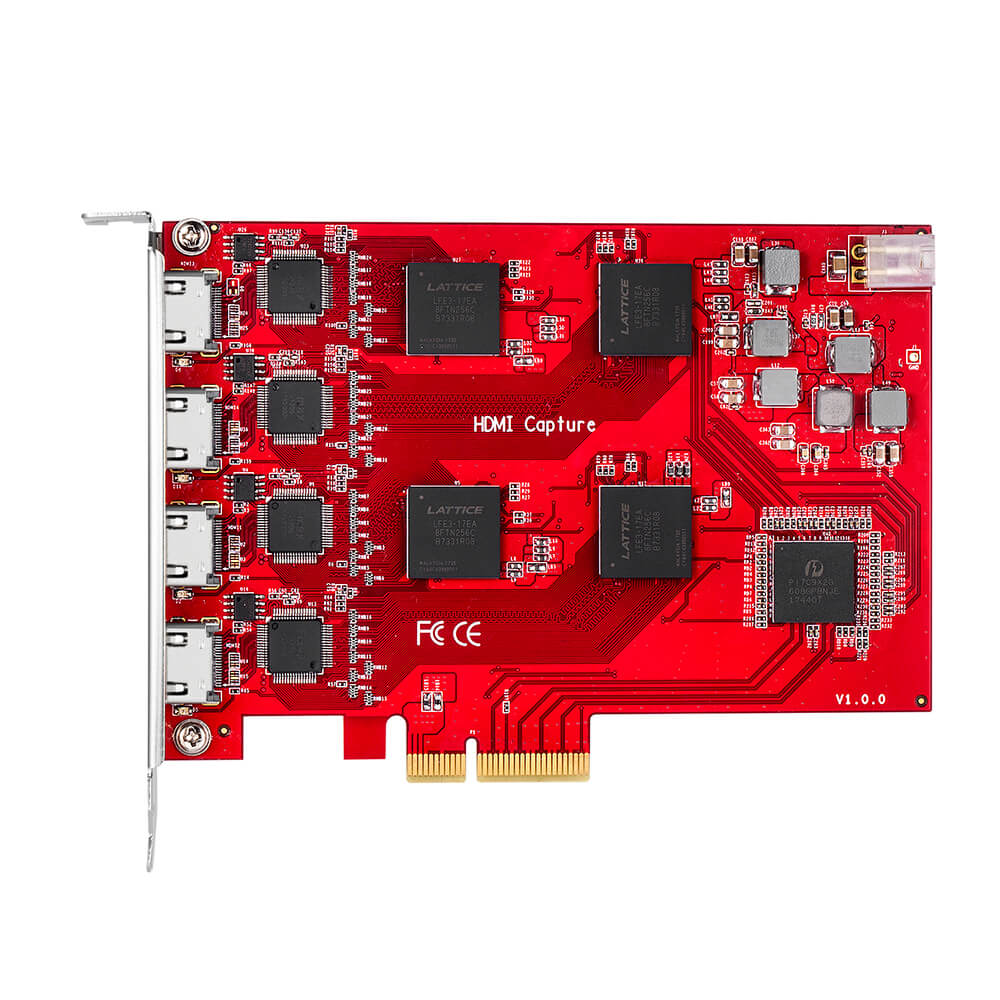

TBS6314 is a PCI-E 4x raw data video capture with superior quality, equipped with 4 HDMI inputs, which support uncompressed real-time video capturing at full HD resolution up to 1920x1080.

Utilizing software encoding, it offers the customization function that can adjust or modify codecs' decompression and compression settings, with TBS Windows and Linux driver support, you are able to choose from a wide range of platforms as needed.

Main Features:

  • 4 x Real HDMI Digital Interface
  • Compatible with 1080p Full HD Input
  • 4-channel max. input 1920x1080 p@60HZ Raw data video capture
  • Quad HDMI inputs
  • Software Compression, Real-Time Mode
  • Compliant with HDMI 1.3, HDMI 1.4a, HDCP 1.4


  • IPTV
  • Education
  • Video conferencing
  • Data casting and monitoring
  • Live streaming
  • Virtual Studio


Model TBS6314
Interface PCI-E x 4
Video Input 4 x HDMI 1.4
Recoding mode Software Compression , Real-Time Mode
Video RAW Data Format UYVY4:2:2 16bit
Video raw data resolution Up to 4-channel 1080P 60hz
Audio input 4 × HDMI embedded audio
Audio format 16-bit / 44.1Khz, 48Khz
Supported OS Windows: Windows XP / Vista / Windows 7 Windows 8 / Windows 8.1 / Windows 10
Linux: centOS 7.2/7.4; Ubuntu 14.04/16.04/18.04, and other Linux OS with kernel version 4.4.0 and above
Supported software
  • VLC
  • VirtualDub
  • OBS
  • xSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • FFMPEG, ffplay, xawtv
  • Any other DirectShow/V4L2 encoding/streaming software
Driver Linux:V4L2 ALSAWindows: AVStream Driver mode
Dimension 144mm * 104.5mm
Net Weight 104g
Gross Weight 186.6g

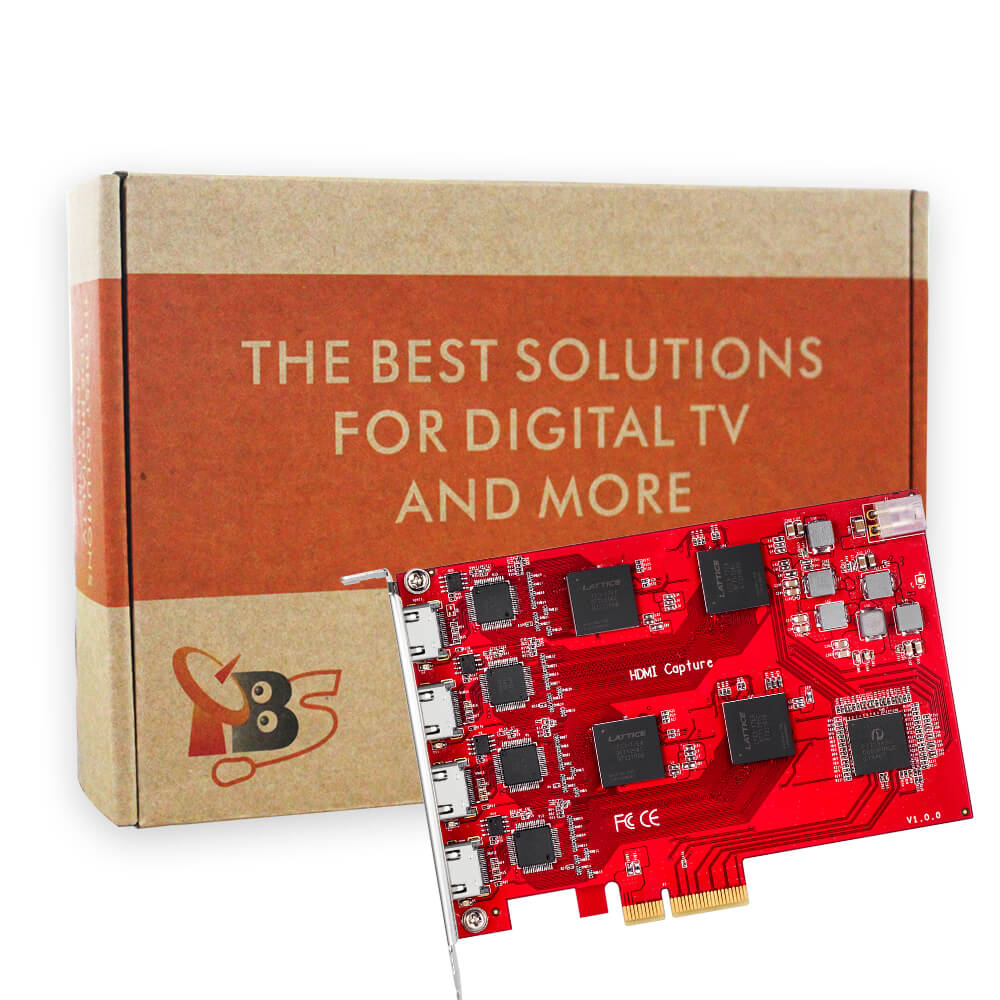

Package content: 1x TBS6314
1x DC line
