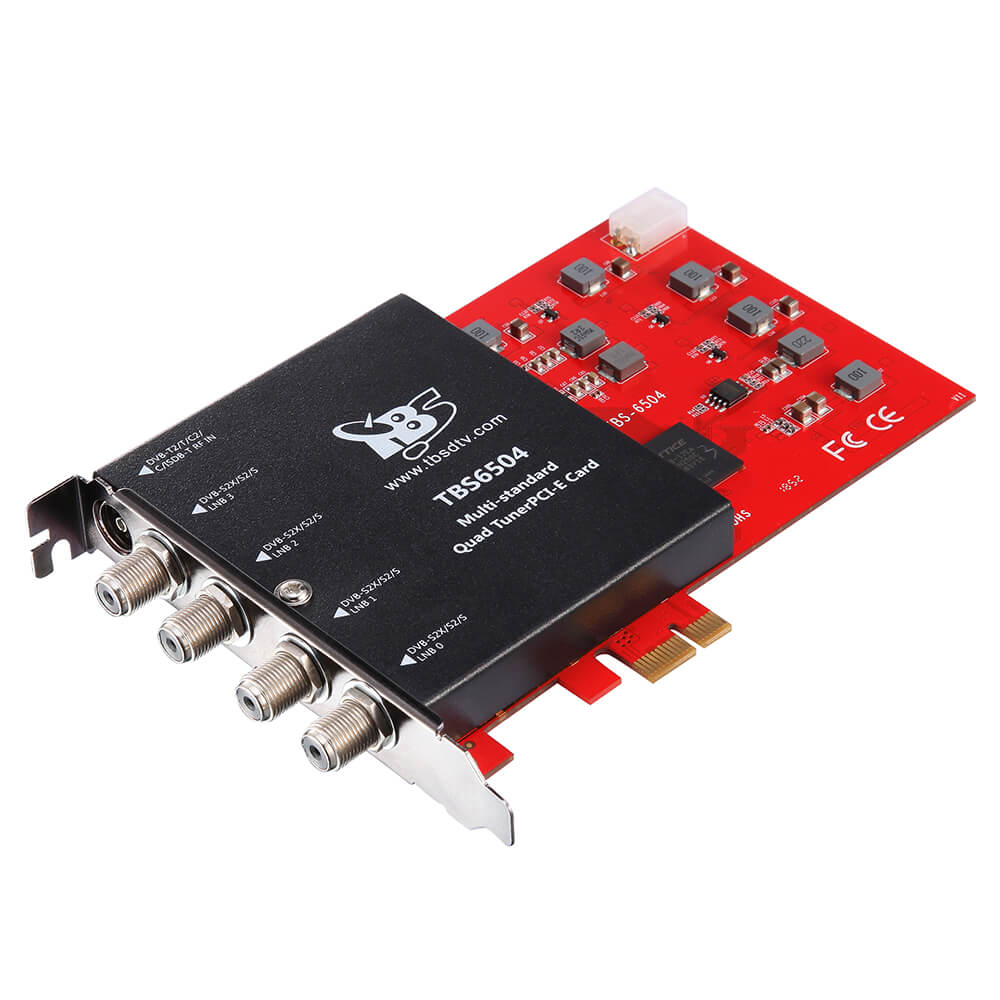

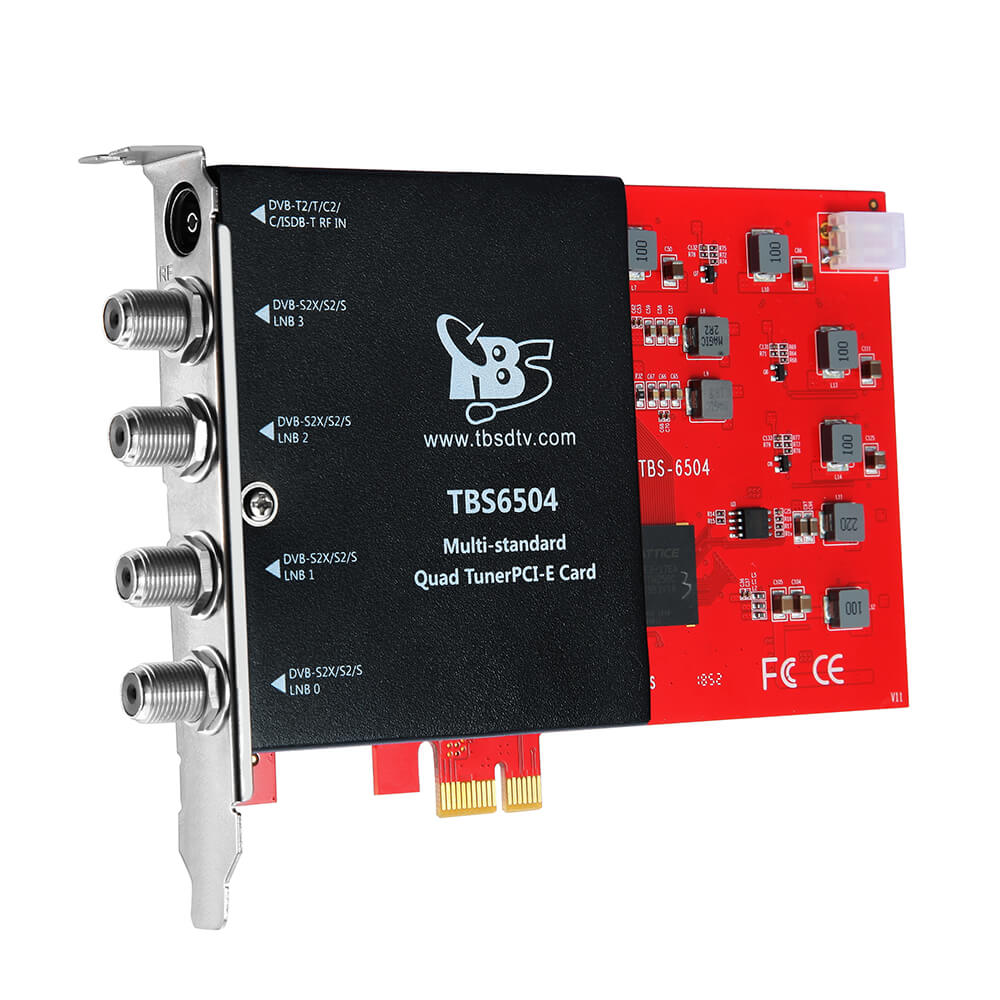

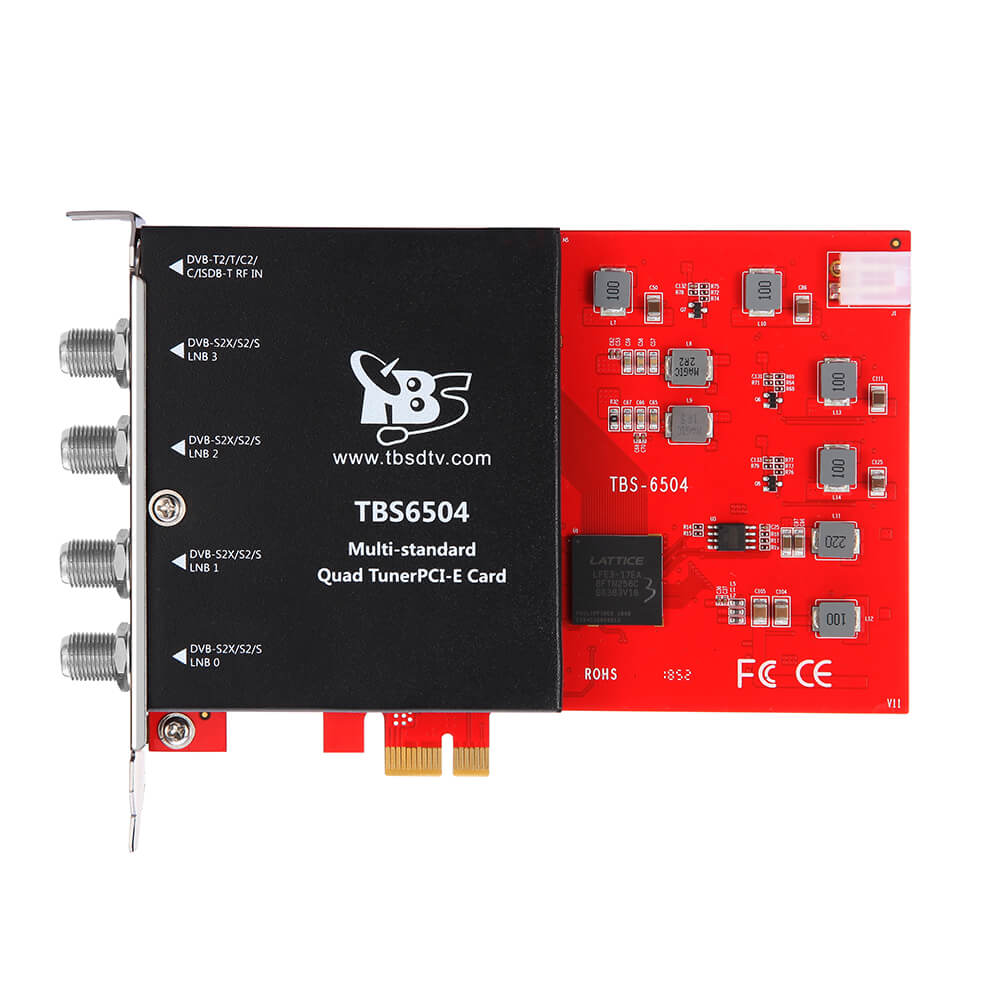

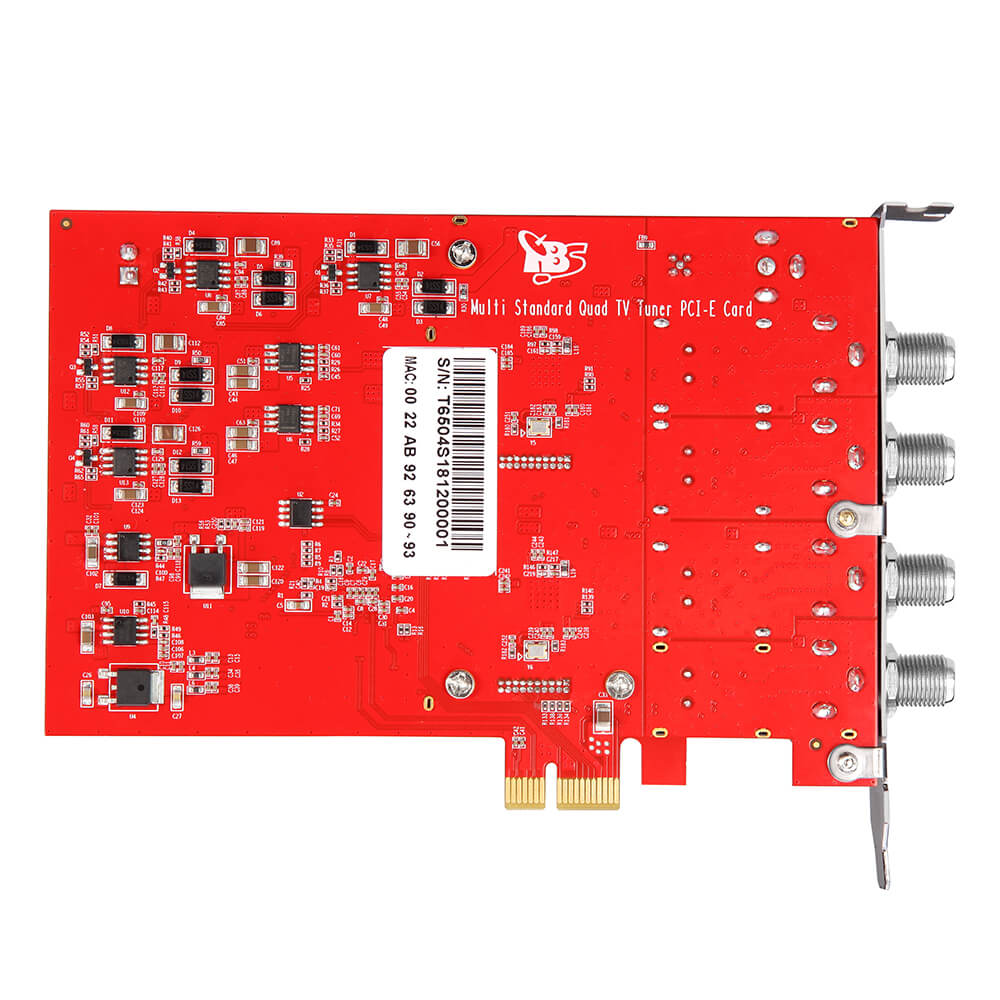

TBS6504 Multi Standard Quad Tuner PCI-e Card
TBS6504 is a Quad PCI express TV tuner card that supports multiple digital TV standards including DVB-S2X/S2/S/T2/T/C2/C/ISDB-T, four RF IN is independent with each other. With this multi-standard TV tuner card, it is much easier to switch between different digital TV signals. You just need to plug another signal cable instead of taking out the card from your server. With four tuners, the TBS6504 enables you to watch TV channel from one transponder/satellite while recording other channels from other transponder/ satellite at the same time.
Main Features:
- Support DVB-S/S2/S2X , DVB-T2/T, DVB-C2/C (ITU-T J.83 Annex A/B/C), ISDB-T
- Fast scanning functionality for all media
- Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK;
- Up to 173M/bps(TS Data Rate)
- Quad flexible TS interfaces
Applications:
- Data receiving
- Media monitoring
- Digital content distribution
Specifications:
| ISDB-T | COFDM demodulator and FEC decoding |
| Support 3 layers decoding | |
| TMCC decoding | |
| Support differential demodulation | |
| AC1 and AC2 decoding | |
| DVB-T2 and T2-Lite | Receiving channel: VHF band, UHF band |
| Bandwidth: 1.7, 5, 6, 7, 8MHz | |
| FEC: QPSK, 16QAM, 64QAM,256QAM | |
| FFT mode: 1K, 2K, 4K, 8K, 16K, 32K | |
| Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 | |
| DVB-C2 | COFDM demodulator(16_QAM to 4096_QAM) |
| FEC(LDPC/BCH) decoder | |
| Bandwidth: 6MHz, 7MHz, 8MHz | |
| DVB-C and ITU-T J.83 Annex B | QAM demodulator |
| FEC decoder | |
| 1 to 7.2MSymbol/s | |
| DVB-S/S2/S2X | symbol rates: 1-45Msps |
| FEC:
DVB-S/S2
QPSK:
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK:
3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK:
2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK:
3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X
QPSK:
13/45, 9/20, 11/20
2_4_2_APSK:
100/180, 104/180
8PSK:
23/36, 25/36, 13/188_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30
16APSK:
26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180
4_12_16rb_APSK:
2/3
4_8_4_16_APSK:
128/180, 132/180, 140/180
|
|
| Power consumption | |
| Input/ Power: | 12V/6~18W |
| temperature | 0°~ 60° |
| Other information: | |
| System Requirements | Windows XP / Vista/ 7/8/10, Linux |
| Available PCI Express x1, x4, x8 or x16 slot | |
| Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S) | |
| Dimension: | |
| TV tuner card size | 16*10.5*1.9 (cm) |
| Net weight | 135g |

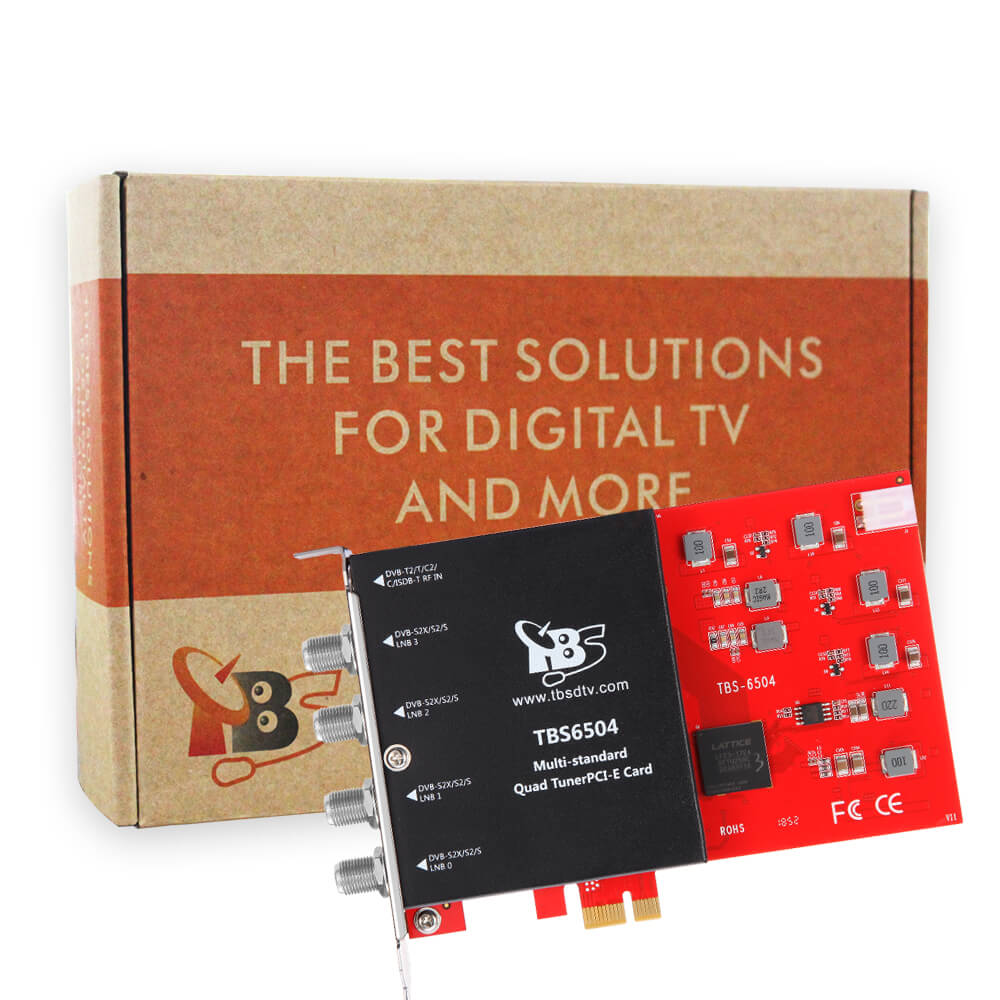

| Gift Box Size | 18*16.5*3.5 (cm) |
| Weight | 320g |
| Package Contents | 1 x TBS6504 |
| 1 x DC cable | |
| 2 x F-IEC adapter | |
