TBS6514 DTMB Quad Tuner PCI-E Card


TBS6514 DTMB Quad Tuner PCI-E Card

  • Model: TBS6514
  • Weight: 400.00g
  • Reward Points:200

In Stock


TBS6514 is a DTMB Quad tuner TV card with PCI Express interface, it can be used for watching four different channels from four different frequencies simultaneously.

TBS6514 works also as a digital video recorder for recording digital terrestrial multimedia TV programs with full HDTV support. With the Time-shifting function, it enables you to pause a live broadcast and continue from where you left. This DTMC PC TV card is ready with windows BDA driver and Linux driver. It's ideal for watching SD and HD channels on your desktop PC.


  • DTMB quad tuner
  • Watch & record DTMB TV /radio programs on PC
  • Real-time signal quality monitoring
  • Unicable/one cable compatible
  • High reliability design, stable operation


  • Data receiving
  • Media monitoring
  • Digital content distribution


  • Frequency range: 42 ~ 1002MHz
  • Signal Level: -80 ~ -20dBm
  • 5 ~ 8MHz transmission band supported

System Requirements

  • Windows XP / Vista/ 7/8/10, Linux
  • Available PCI Express x1, x4, x8 or x16 slot

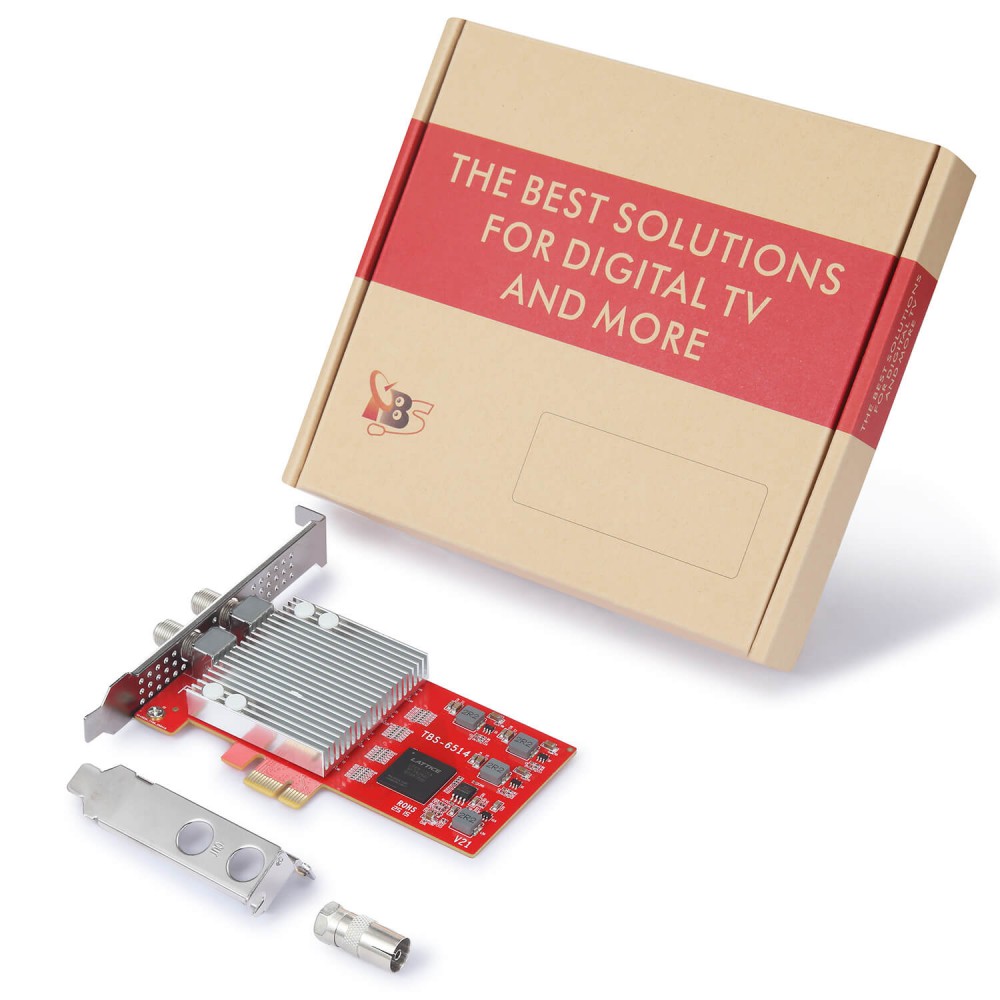

Package Contents

  • TBS6514
  • 1 * low profile bracket
  • 1 * connector
