TBS6900 DVB Dual CI PCI-E Card


TBS6900 DVB Dual CI PCI-E Card

  • Model: TBS6900
  • Weight: 500.00g
  • Reward Points:159

In Stock

US$159.00

Available Options

TBS6900
DVB network Dual CI PCI-E Card

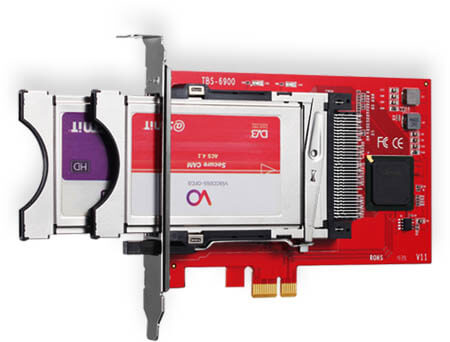

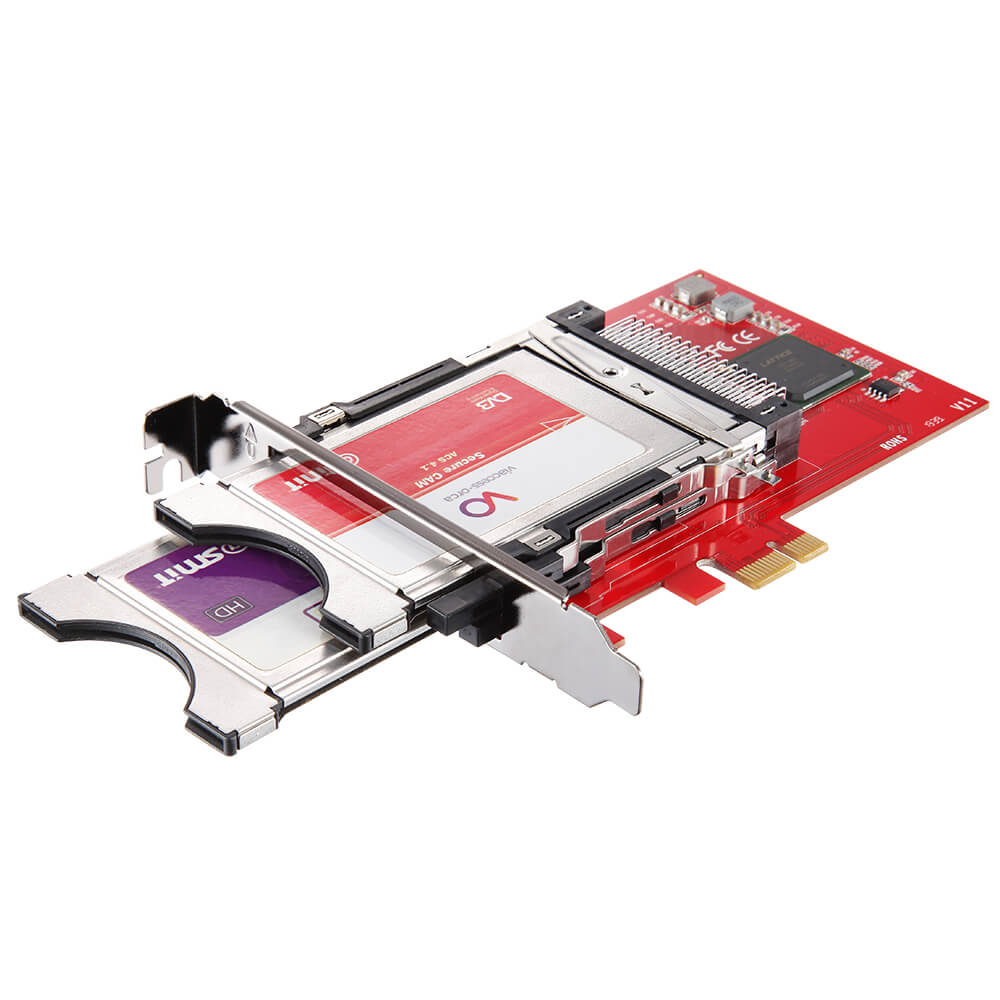

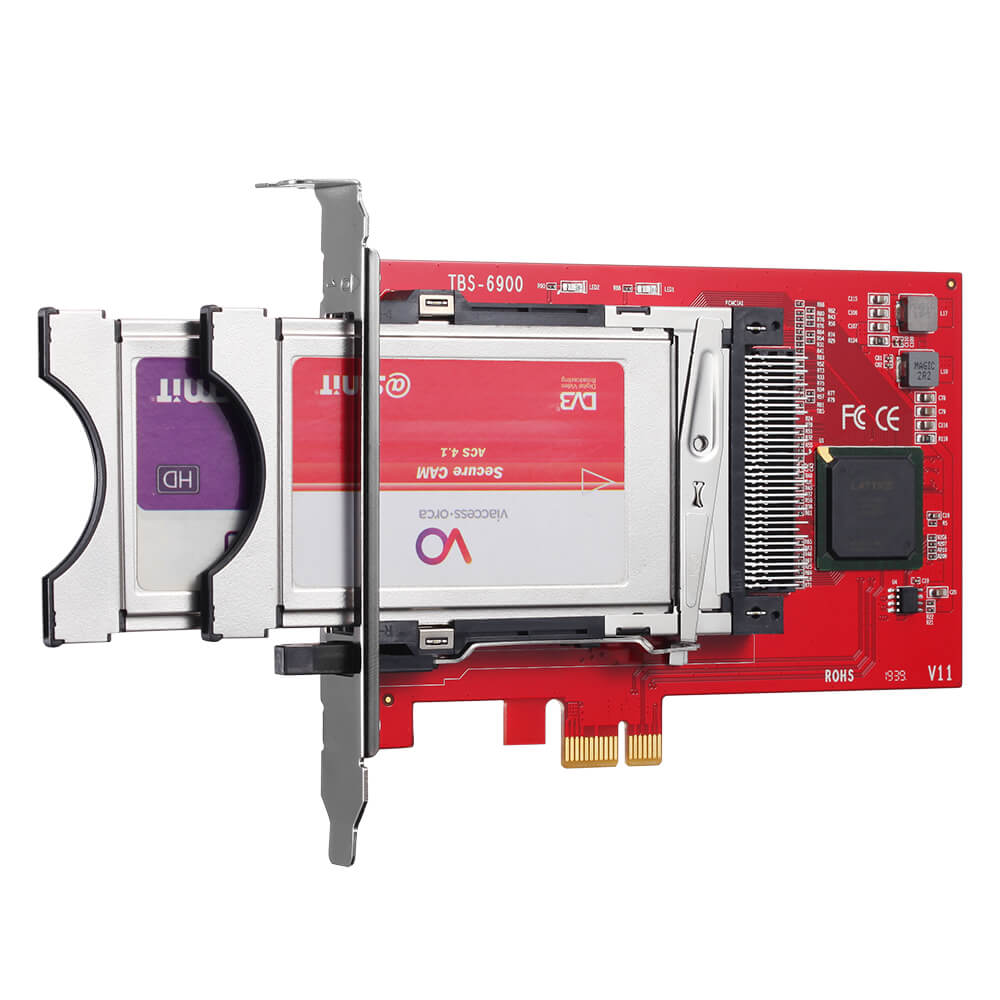

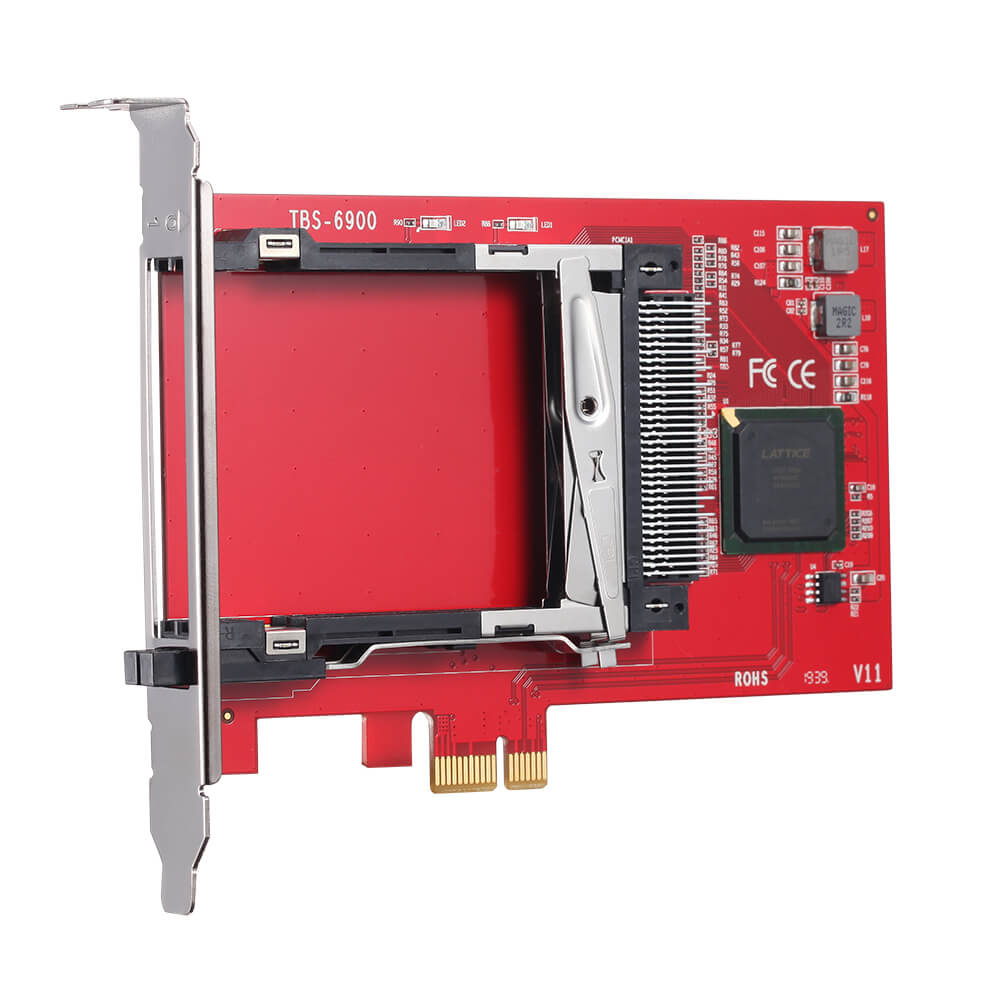

TBS6900 is a DVB network PCI-E card with two common interface slots, where you can insert 2 CAM inside to decrypt the pay channels. With a PCI-e slot, it can be used with any PC or server (based on linux)with PCI-e slots, receive signals from IP (udp/rtp/http) , after decryption and remux , will output FTA channels to IP (udp/rtp/http).
TBS6900  is fully compatible with TBS tuner cards and servers , which means you can use it with our tuner cards with all DVB standard or streaming server together , it can be used for DVB-IP gateways, satellite Internet systems, home theaters and other solutions.

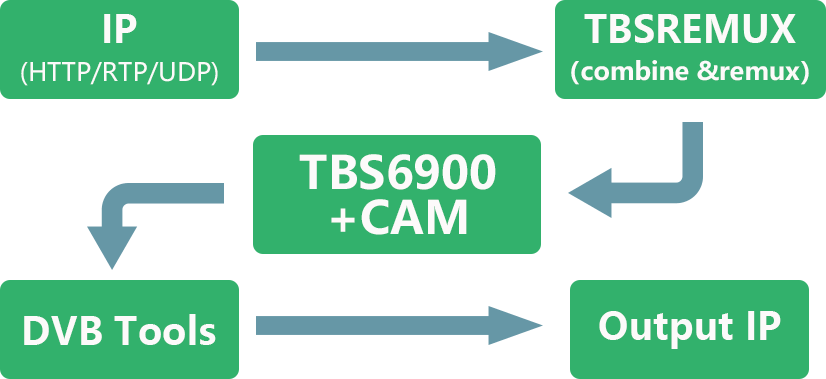

How it works ?

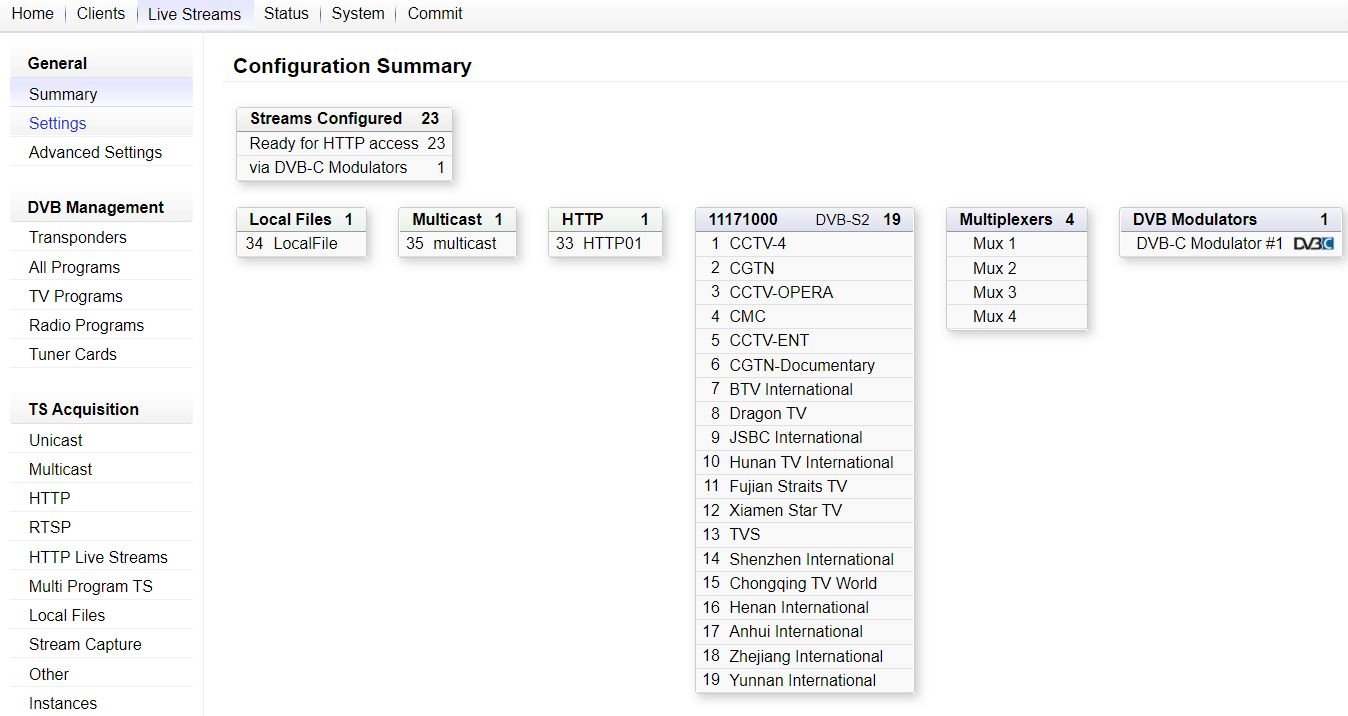

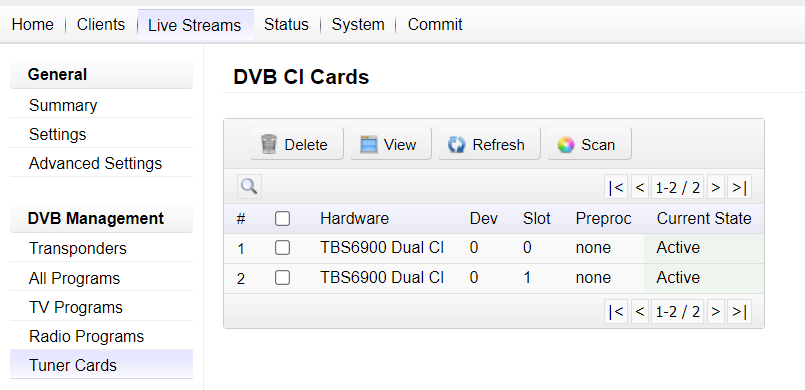

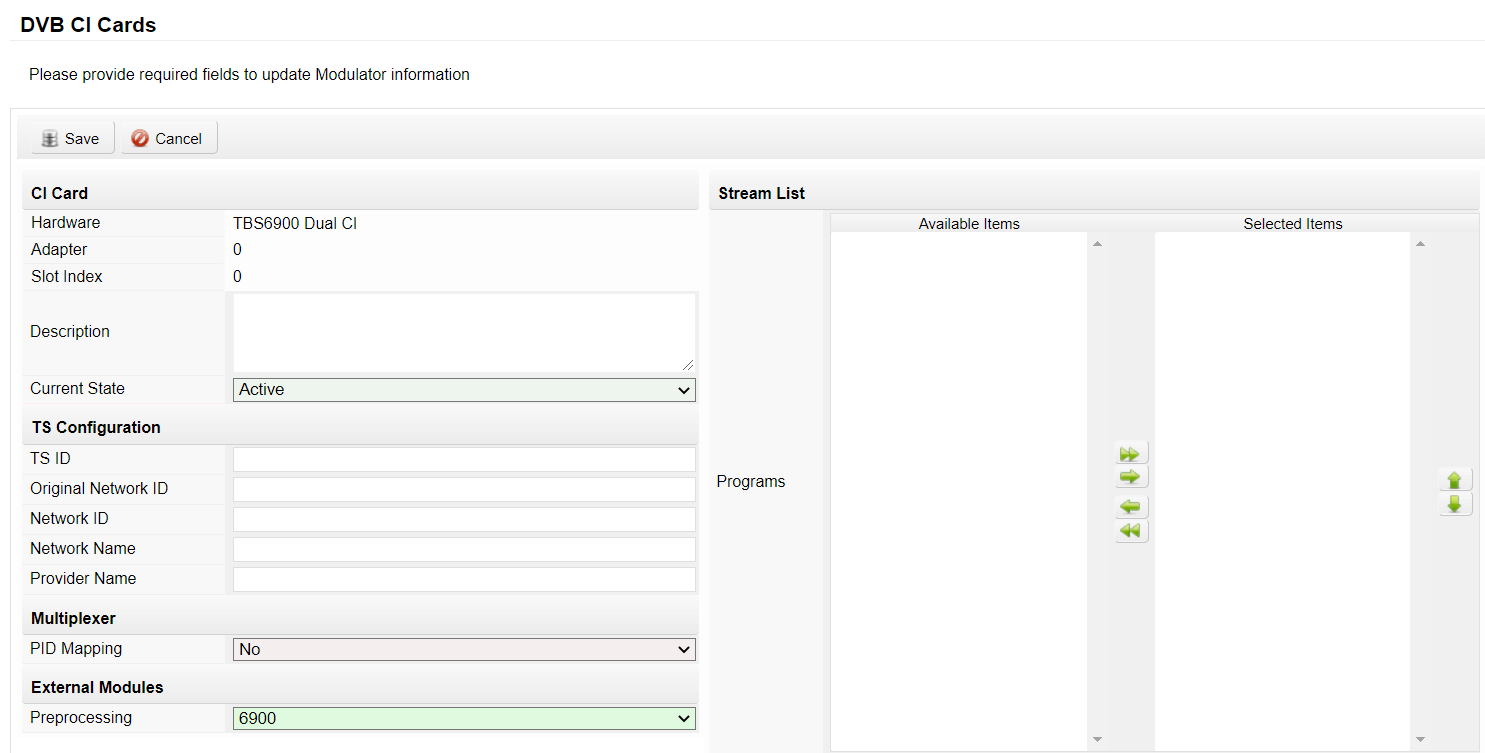

Based on our software TBSREMUX, which can receive MPEG TS streams from multicast (udp/rtp) or http and combine them into one multiple program stream. That is suitable for outputing as /dev/dvb/adapterx/secy (x=0-16, y=0,1), then use DVB tools like DVBLAST, TVHEADEND,ASTRA to scan the transponder, then output to network via udp/rtp/http protocol.


How to use it with other TBS products ?

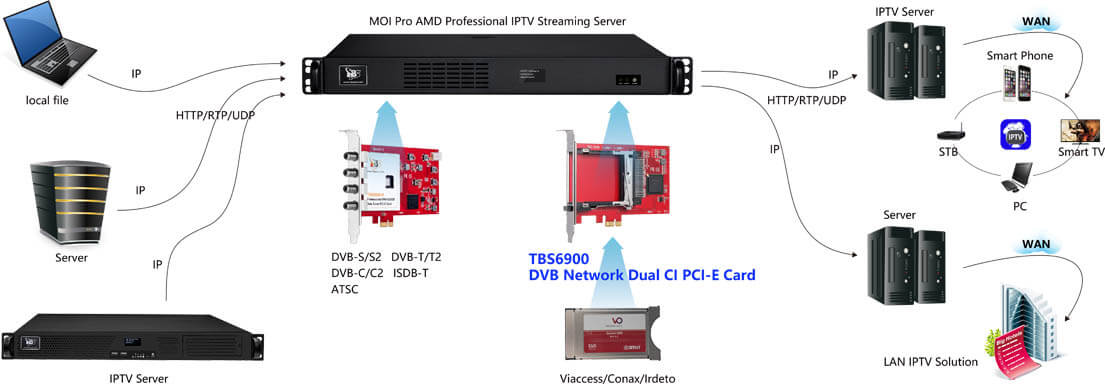

TBS6900 is compatible with all TBS tuner cards and server products , supports to install in MOI pro AMD or MOI-V. This is especially useful in systems where there are a limited number of free slots and need to decrypted many channels. For example, you can use 2 TBS6909 (which can be received from 16 transponders)  to receiving the signals in MOI Pro AMD, and then use 2 TBS6900 for decryption.

Specifications:

Inputs IPTV streams (udp/rtp/http) unicast or multicast
Outputs IPTV streams (udp/rtp/http) unicast
Max bit rate 80Mbps/per channel
Working Temperature 0-60℃
Power 12V/10w
System Requirements Linux (Ubuntu 1604 1804, Centos 7)
Available PCI Express x1, x4, x8 or x16 slot
Package Contents 1 x TBS6900
Card Size 130mm*92mm
Gift Box Size 17.7*16*3CM
