TBS2954 DVB to IP Server Chassis


TBS2954 DVB to IP Server Chassis

  • Model: TBS2954
  • Weight: 10,000.00g
  • Reward Points:1200

In Stock

US$1,200.00

Available Options

Overview

TBS2954 DVB to IP server chassis is equipped with X86 4 cores, 8 thread CPU. It can be loaded with 2pcs TBS TV tuner cards to receive live TV channels for converting to IP stream. In another word, TBS2954 is a universal solution for receiving and multicast/unicast streaming of DVB-S/S2/S2X, DVB-T, DVB-C, ATSC, or ISDB-T TV channels.

TBS2954 DVB to IP server chassis IPTV headend streaming server supports NMS system, can be configured via Ethernet using a standard browser. This function will allow system manager to log in the system can configure it in anywhere and anytime as long as he can connect to internet.

Specifications

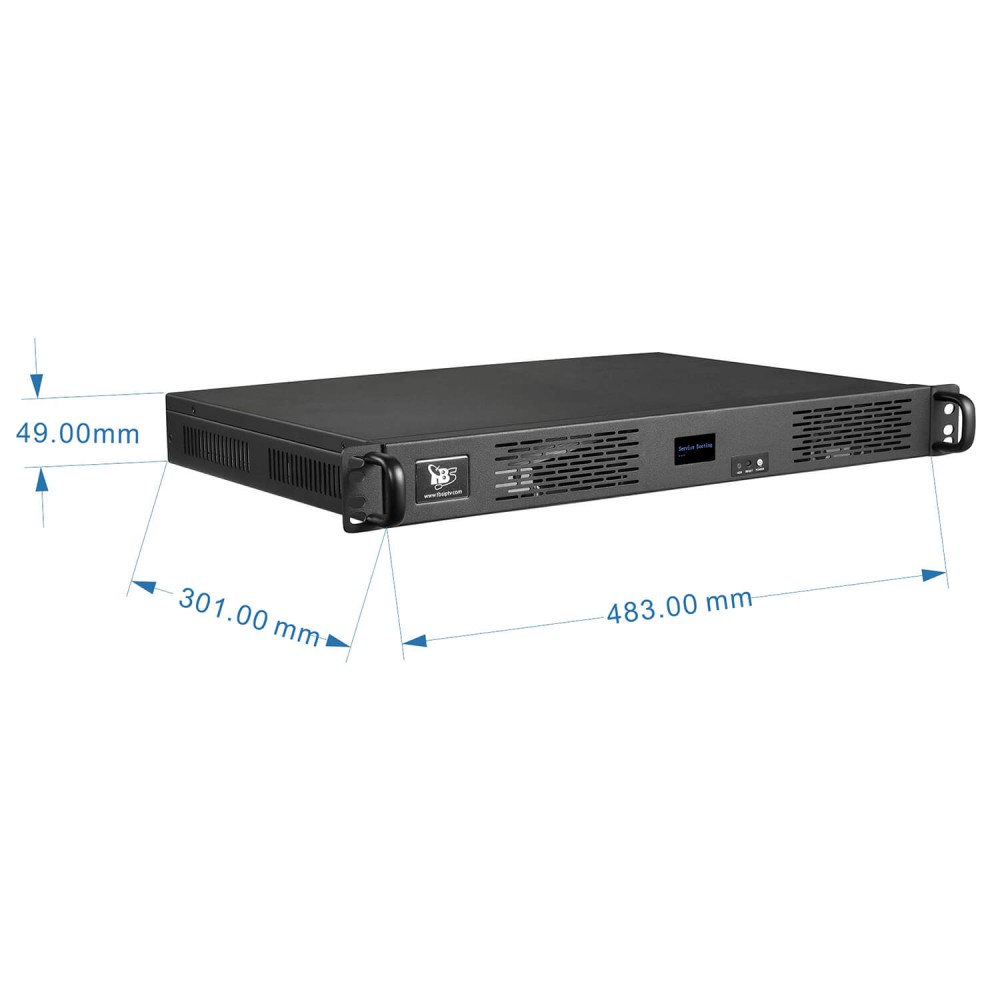

Size 1U Chassis (430mm*300mm*47mm)
Processor X86, 4 cores, 8 thread
Memory DDR4 16G
Ethernet 2 x 1Gbps LAN
Storage Connection 2 x SATA3.0
SSD 256G SATA SSD

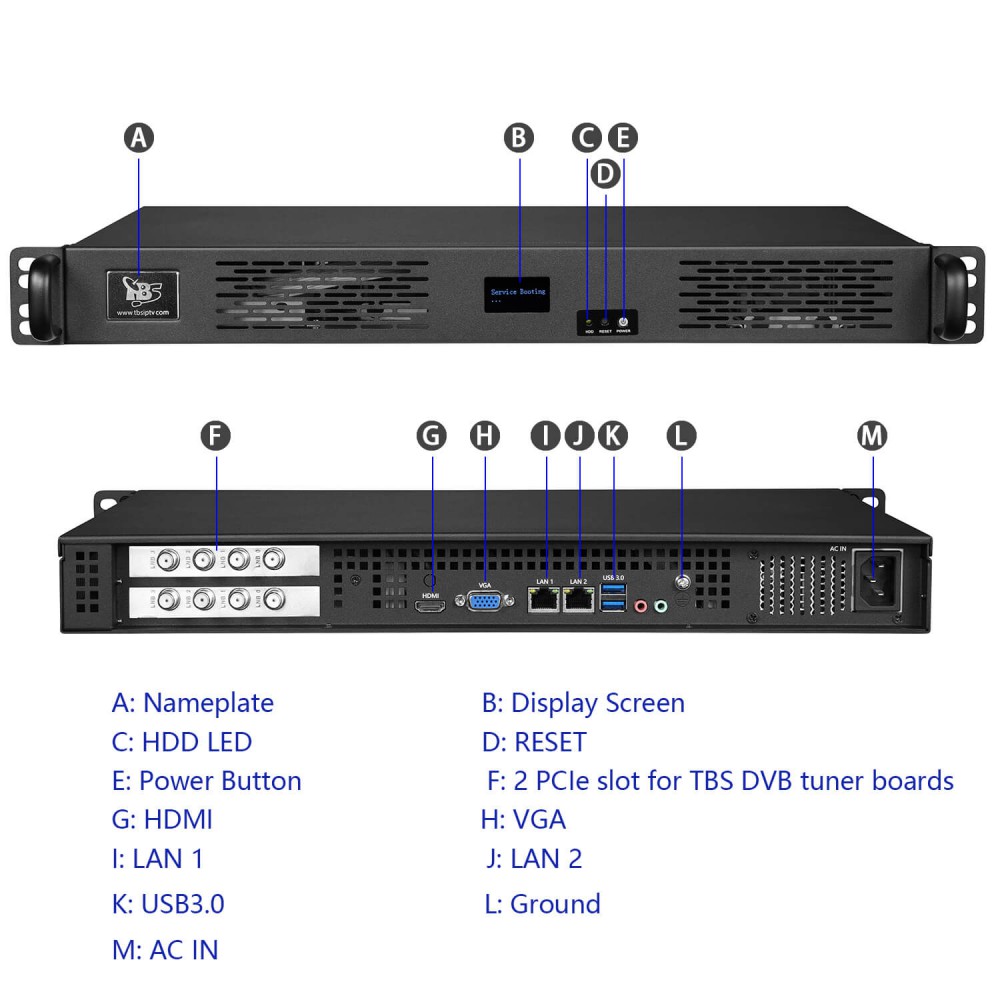

FRONT PANEL POWER SW
RESET SW
POWER LED
HDD LED
Display Interface 1 x HDMI
1 x VGA
USB Port 2 x USB 3.0
Operating Systems Microsoft® Windows 8, Microsoft® Windows 7,
Microsoft® Windows® 7/8 embedded Standard, Microsoft® Windows® 7 Embedded Compact
Centos 7, Ubuntu

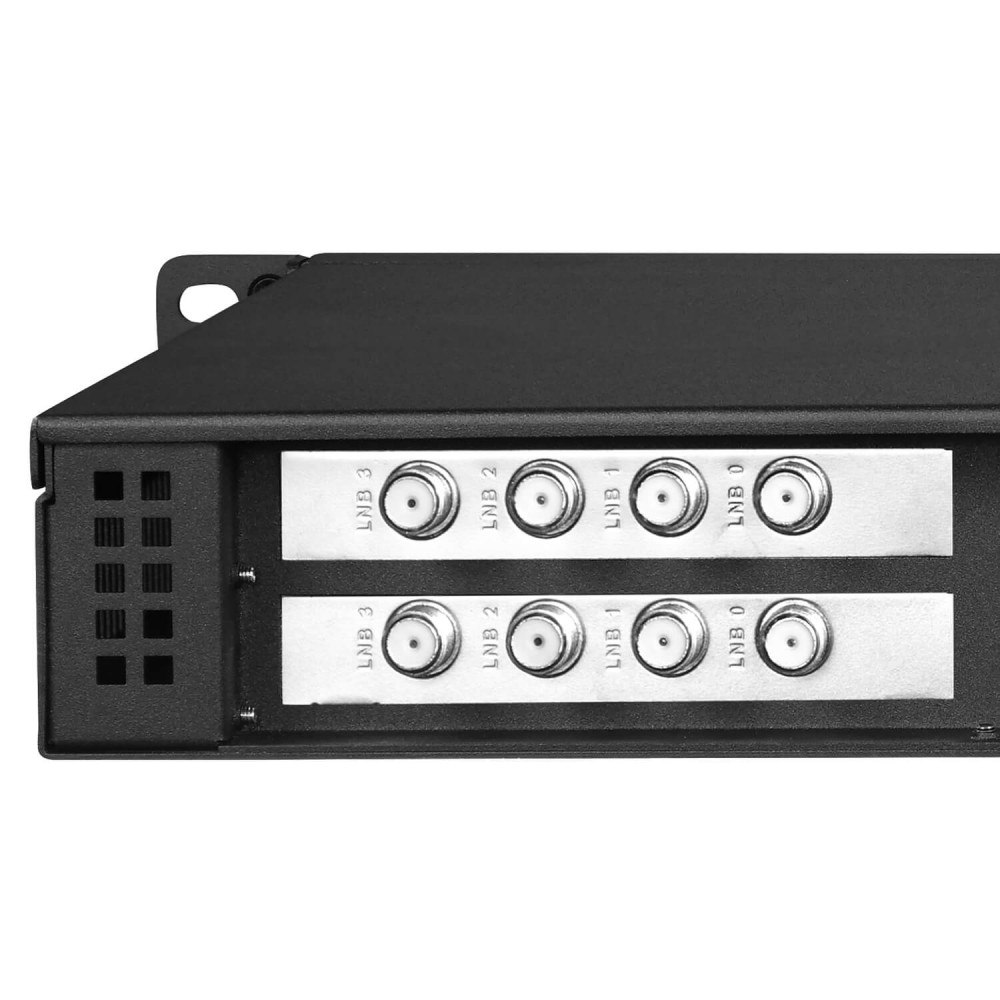

DVB tuner card support Up to 16 TV tuners (2 TV tuner PCIe cards)
Pre-installed software
Tvheadend, VDR, MuMuDVB, DVBlast, szap-s2, dvbdate, dvbscan, dvbdstream, dvbsnoop, scan-s2, szap-s2, tzap-t2, LIRC, telnet, ssh, ftp, samba
Kylone IPTV managing platform (Optional and additional Charged.)
