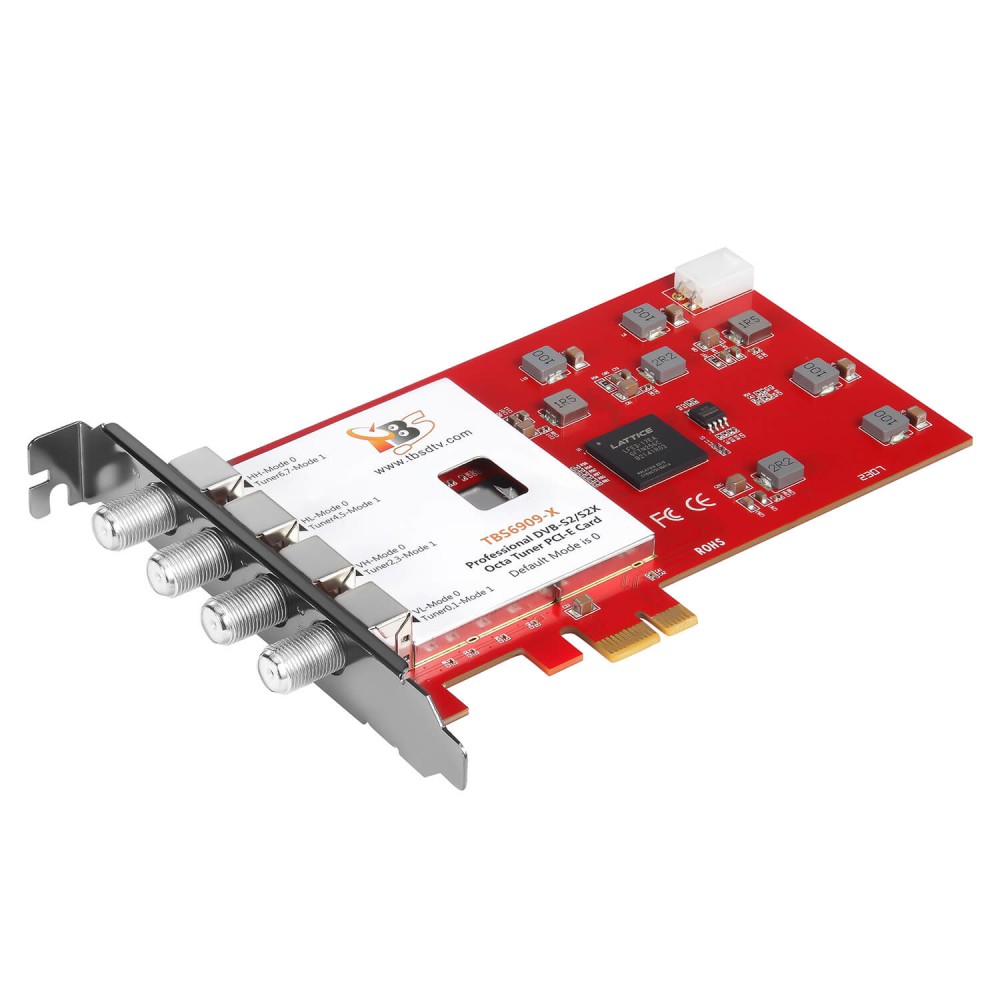

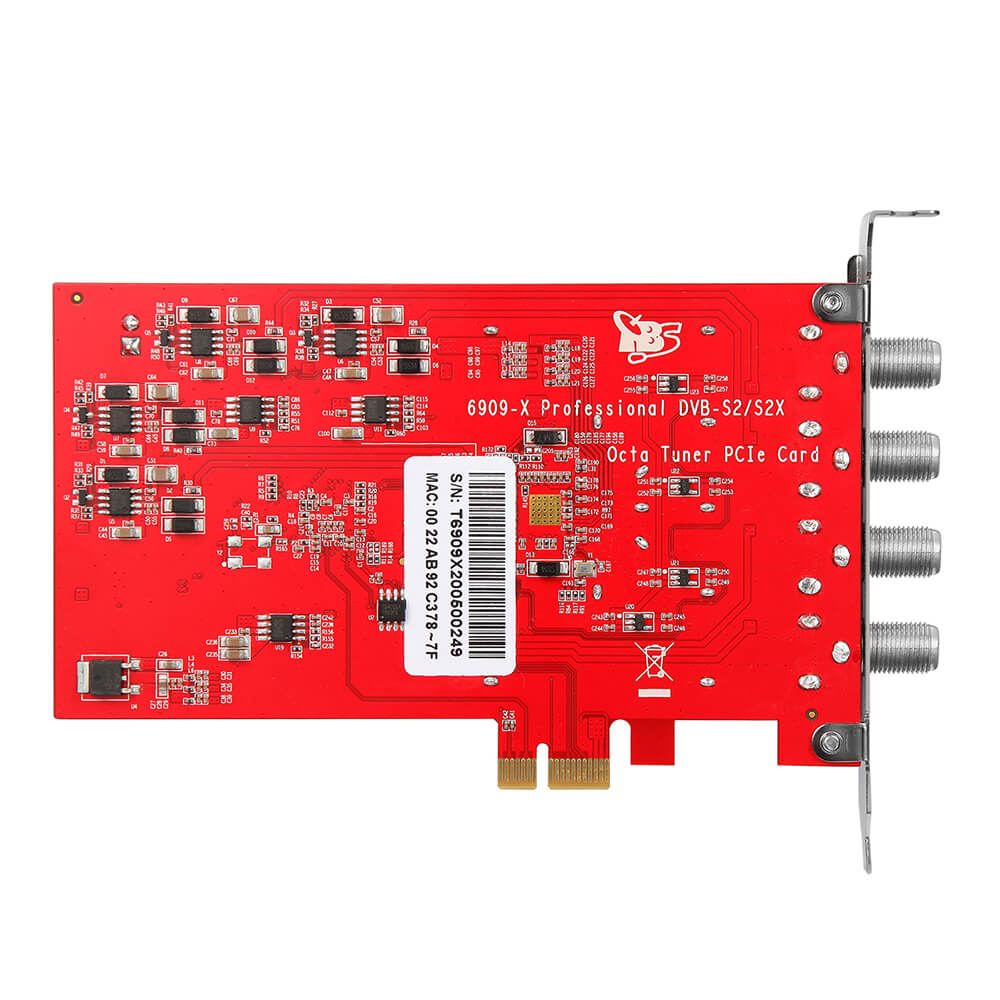

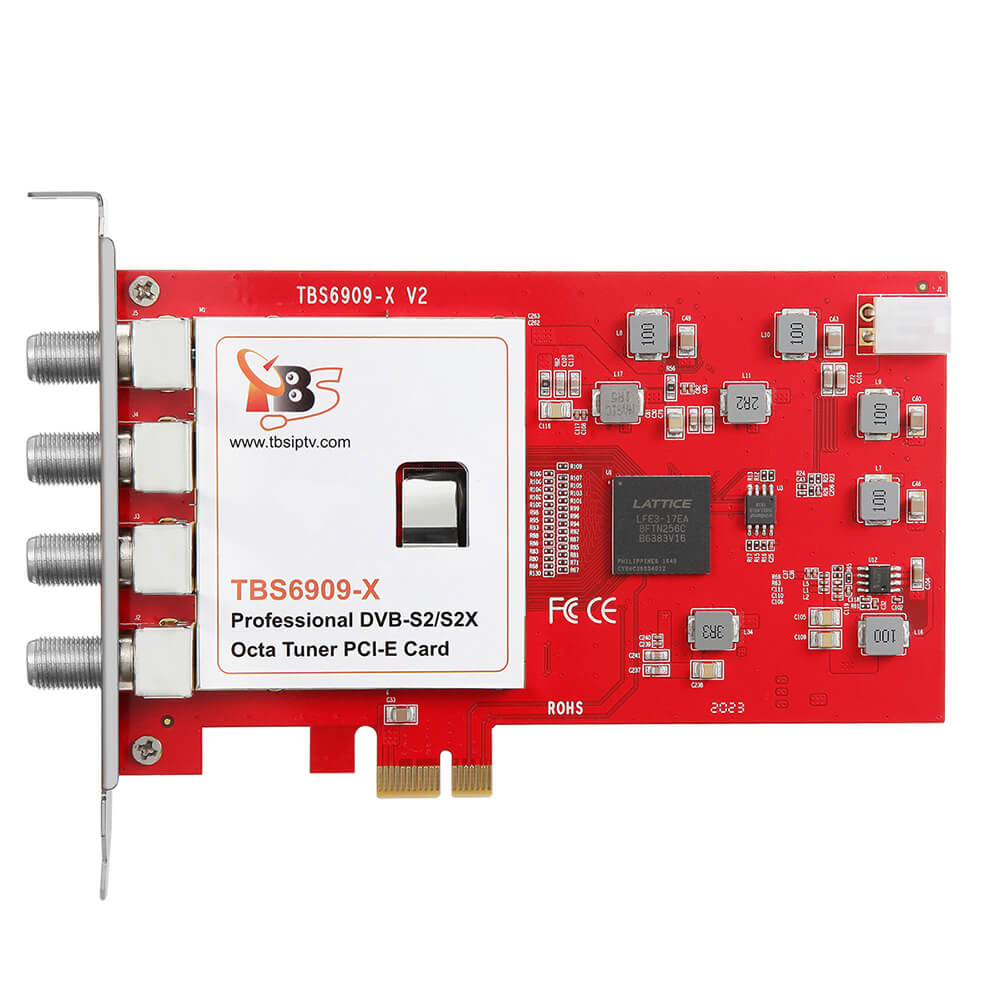

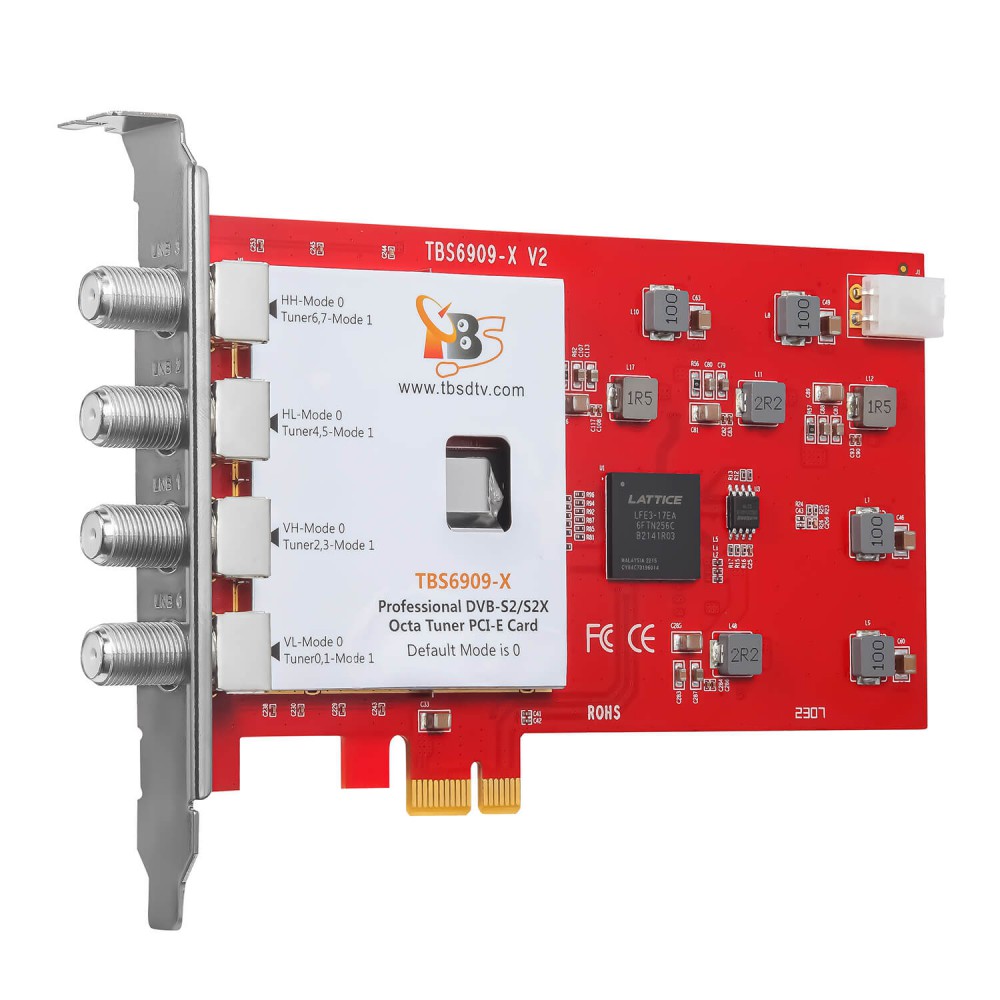

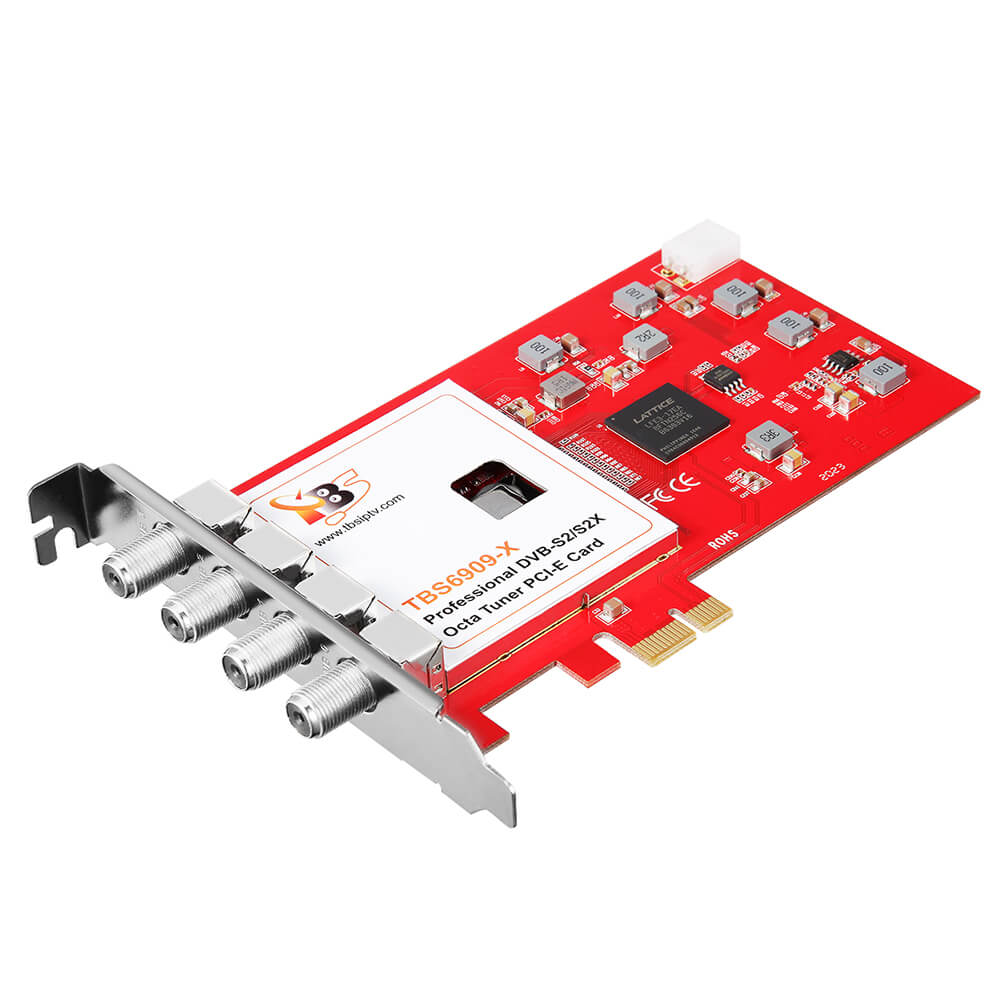

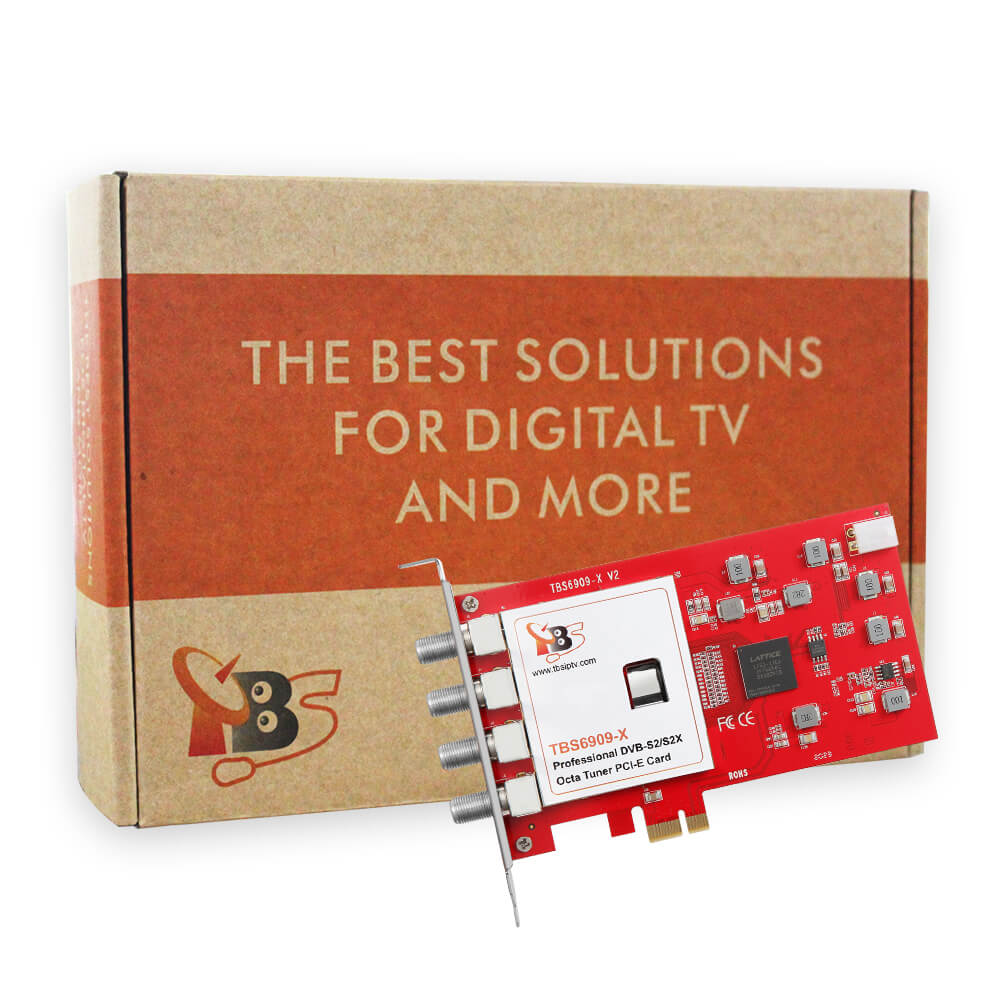

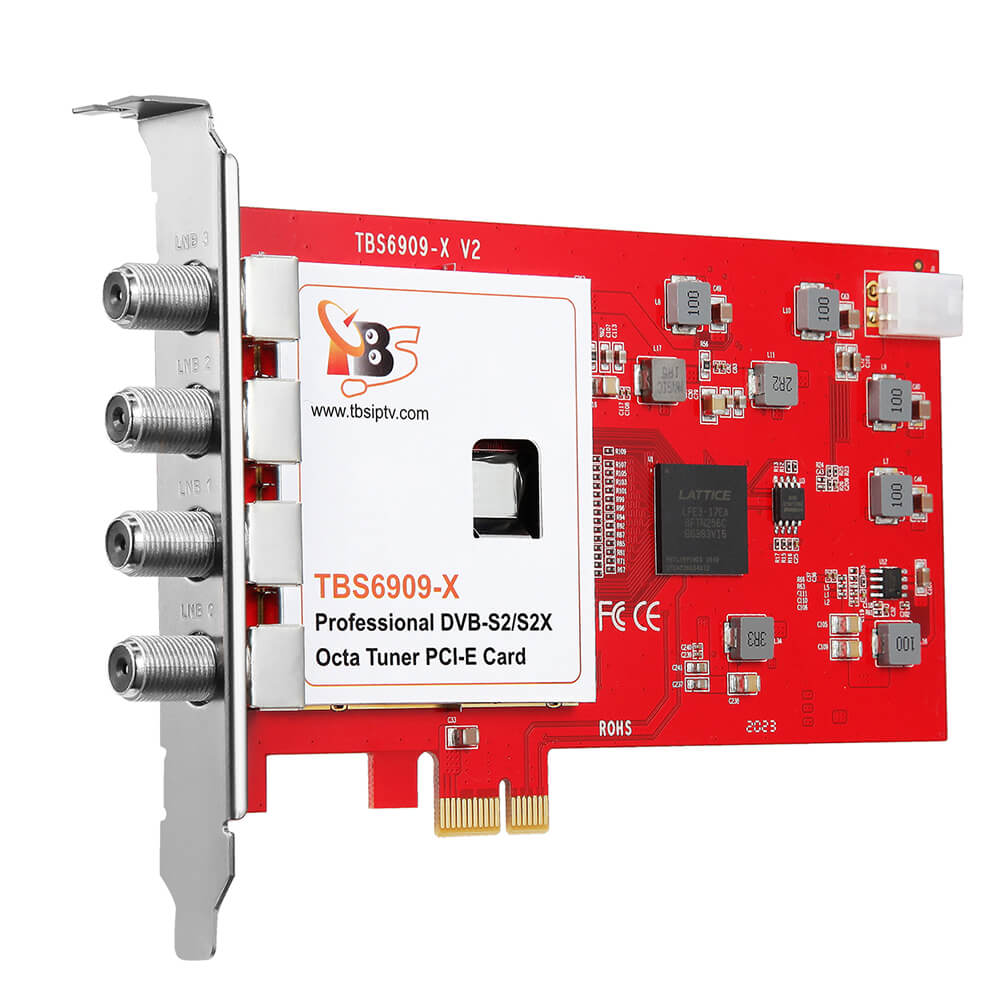

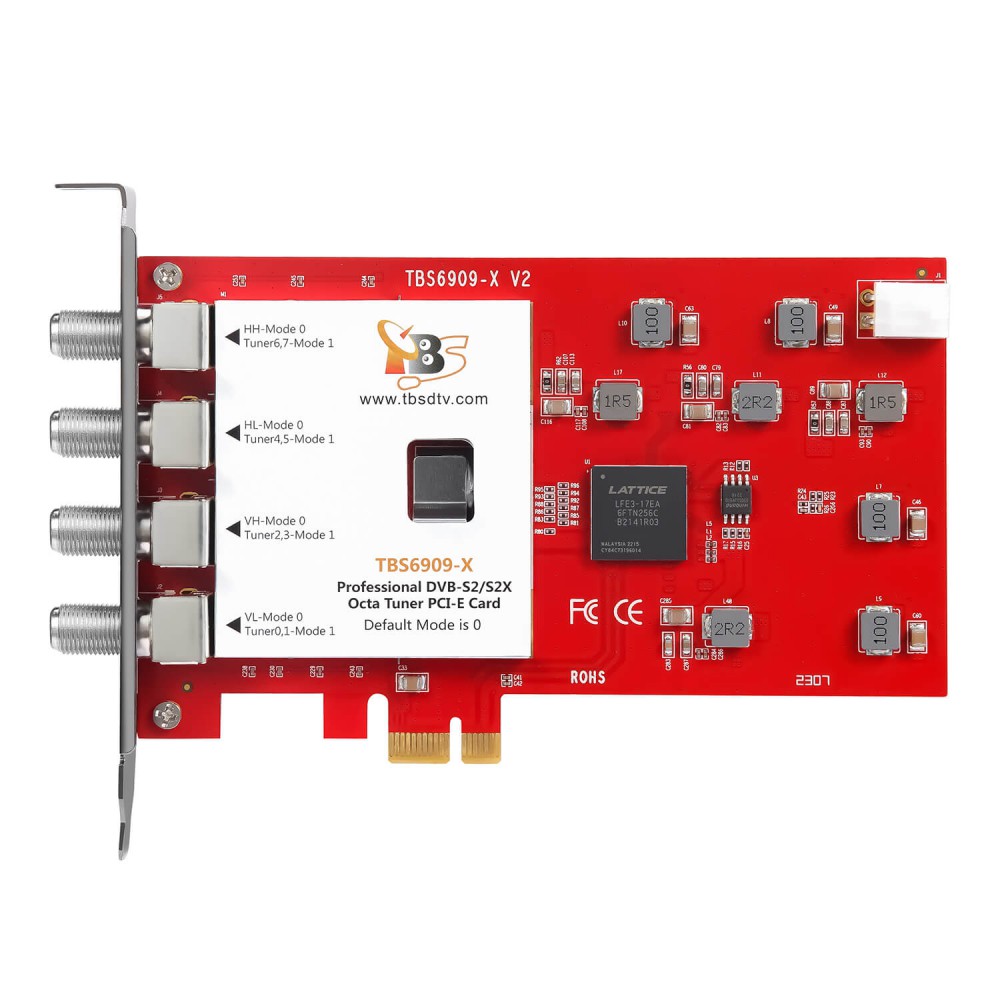

TBS6909-X V2 DVB-S2X/S2/S Octa Tuner PCIe Card Compatible with Tvheadend


TBS6909-X V2 DVB-S2X/S2/S Octa Tuner PCIe Card Compatible with Tvheadend

  • Model: TBS6909X-V2
  • Weight: 400.00g

In Stock

TBS6909-X V2 is a powerful DVB-S2X/S2 and annex M octa tuner card with PCI Express interface, it not only supports to receive SD/HD digital TV channels from 8 different satellite transponders simultaneously, but also supports CCM, ACM, VCM and Multi Input Stream, which is considered as a professional TV tuner for industrial-level users. When you have limited PCIe slots in your server, TBS6909-X V2 enables you to receive more channels than the usual dual or quad TV tuner, thus it is highly recommended for IPTV streaming and broadcasting system.

Main Features:

  • Support Octa DVB-S/S2/S2X
  • Fast scanning functionality for all media
  • Supports CCM, ACM, VCM and Multi Input Stream
  • Support wide band

Applications:

  • Data receiving
  • IPTV streaming
  • Media monitoring
  • Digital content distribution

TBS6909-X DVB-S2X Octa Tuner Card PCIe

DVB-S2X/S2; Octa tuner; Linux OS; PCI Express; IPTV Streaming

Specification

Model TBS6909-X V2
Connection PCI-express

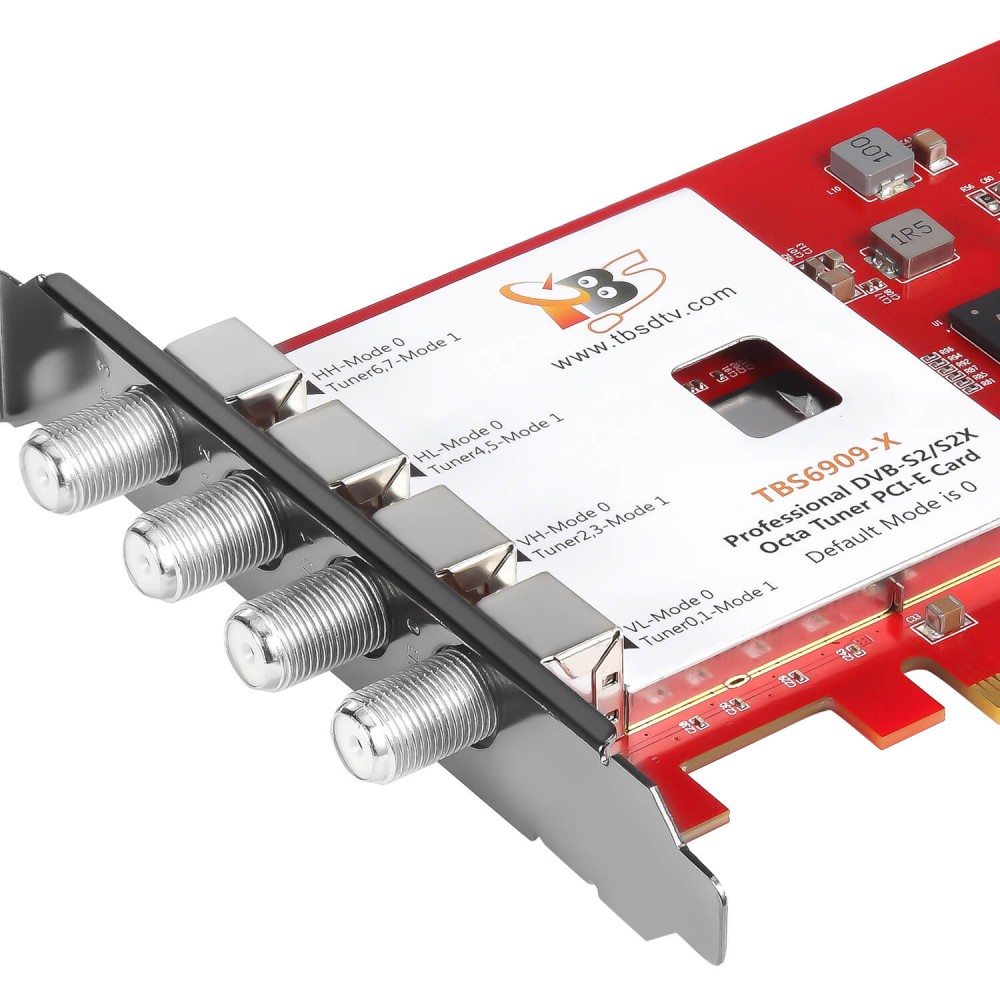

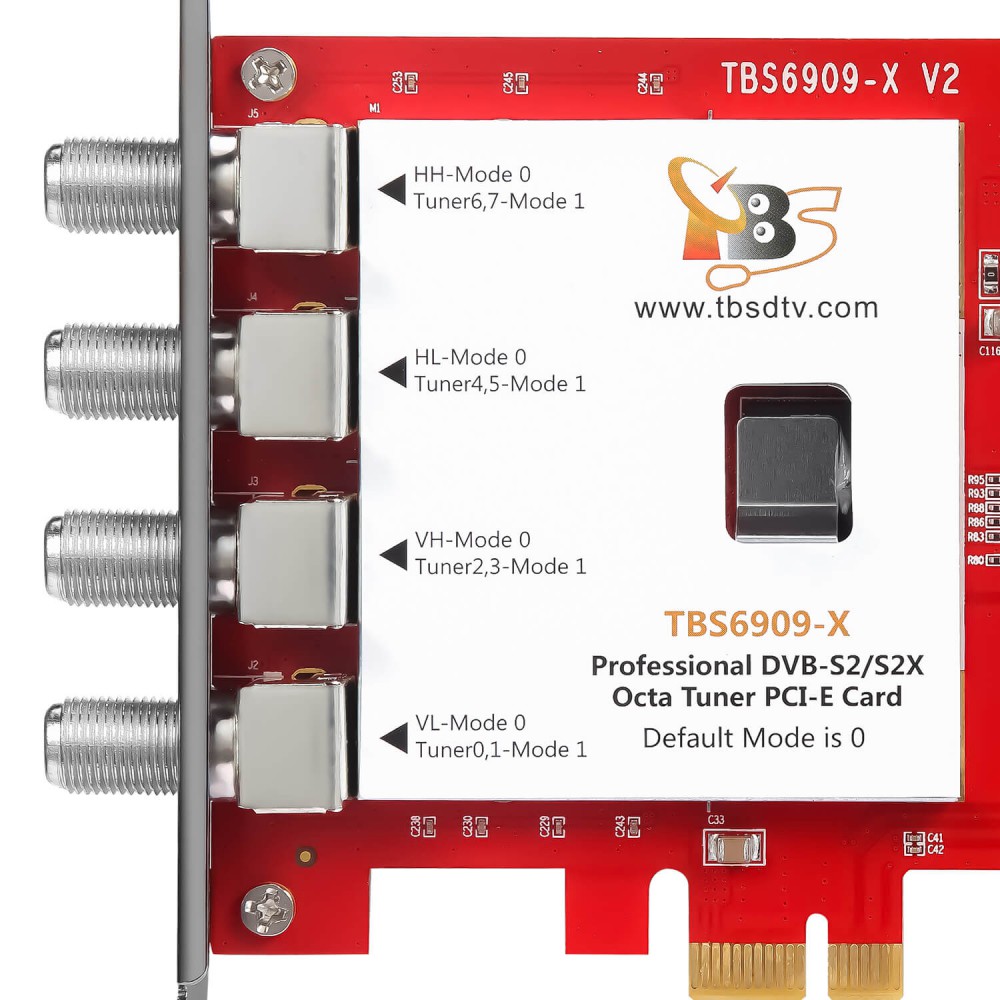

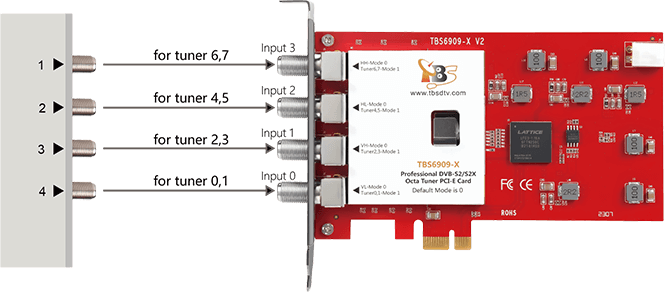

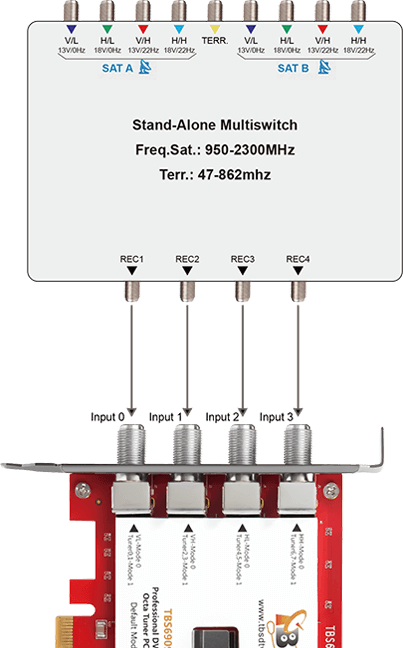

4x RF in
DVB-S/S2/S2X
DVB-S/S2 QPSK 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X QPSK 1/4,1/3, 2/5 (S2-MODCODs)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCODs)
11/45, 4/15, 14/45, 7/15 8/15, 32/45
8PSK 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 32/45
16APSK 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 3/5, 32/45
32APSK(32APSK-L) 3/4 ,4/5,5/6, 8/9, 9/10 (S2-MODCODs) 32/45 ,11/15,7/9 ,(2/3)
64APSK(64APSK_L) 11/15, 7/9,4/5, 5/6.(32/45)
CCM Yes
VCM Yes
ACM Yes
Power consumption
Input/ Power: 12V/7~20W
temperature 0°~ 78°
System Requirements Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Dimension:
TV tuner card size 145*92*1.6mm
Gift Box Size 200*130*30mm
Weight 400g

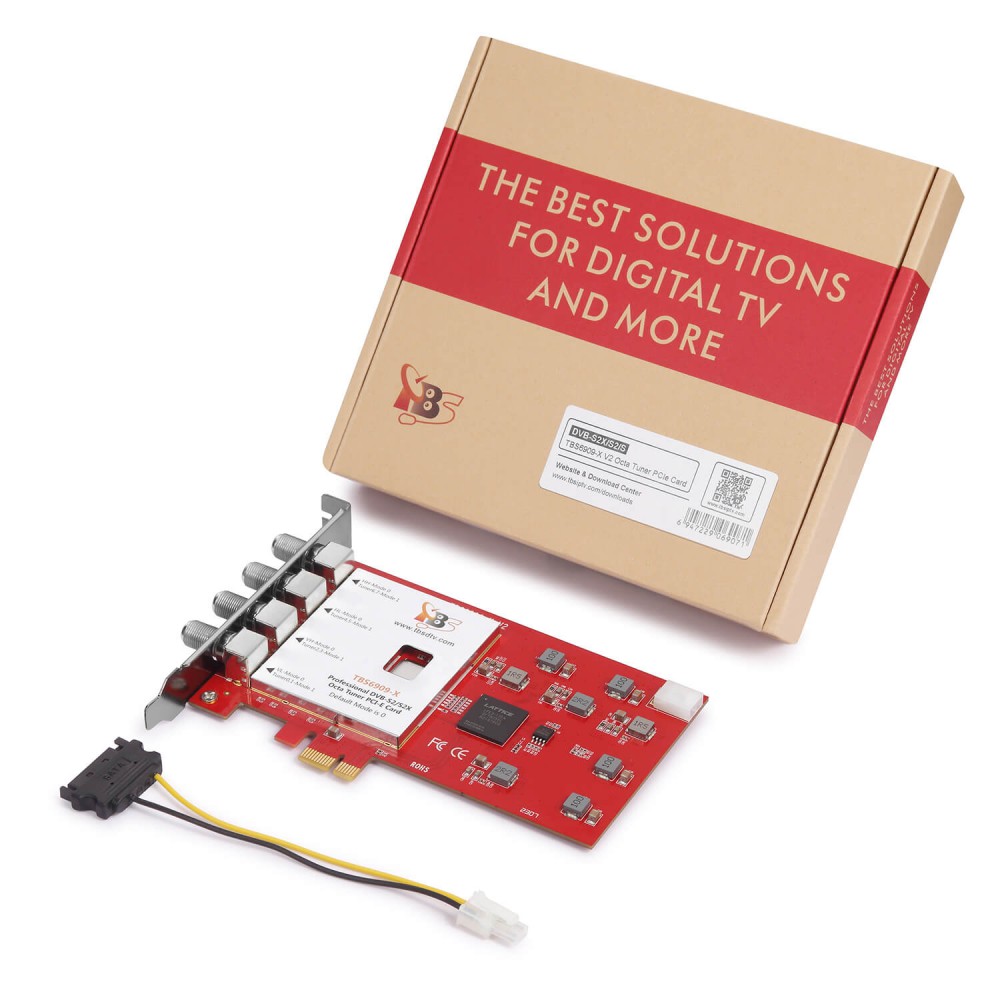

Package Contents 1* TBS6909-X
1* Power cable

Maximum symbol DVB-S2X/S2 rate limitations (Msymb/s)

Msymb/s Demod LDPC 4 simultaneous
demodulators
6 simultaneous
demodulators
8 simultaneous
demodulators
QPSK 64 720 64 60 45
8PSK 64 720 60 45 30
16APSK 64 720 45 30 22.5
32APSK 51 720 36 24 18
64APSK 43 720 30 20 15
