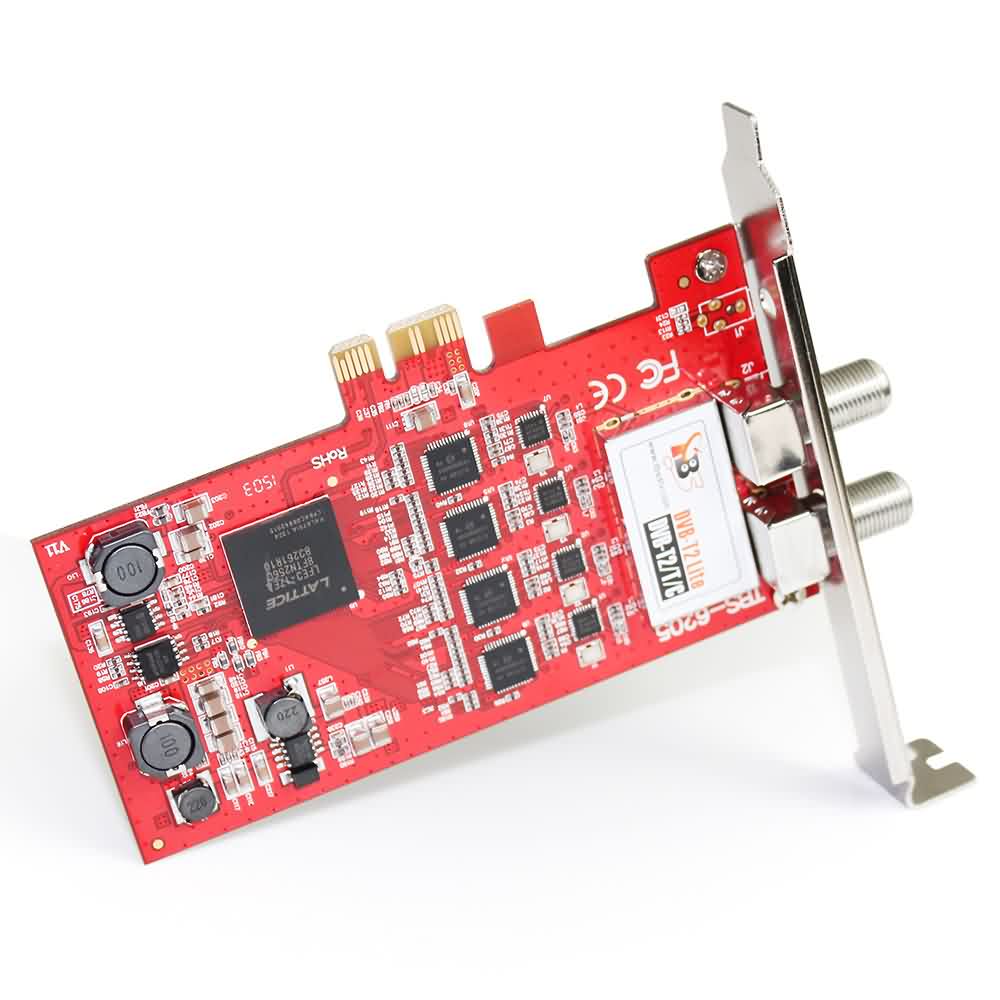

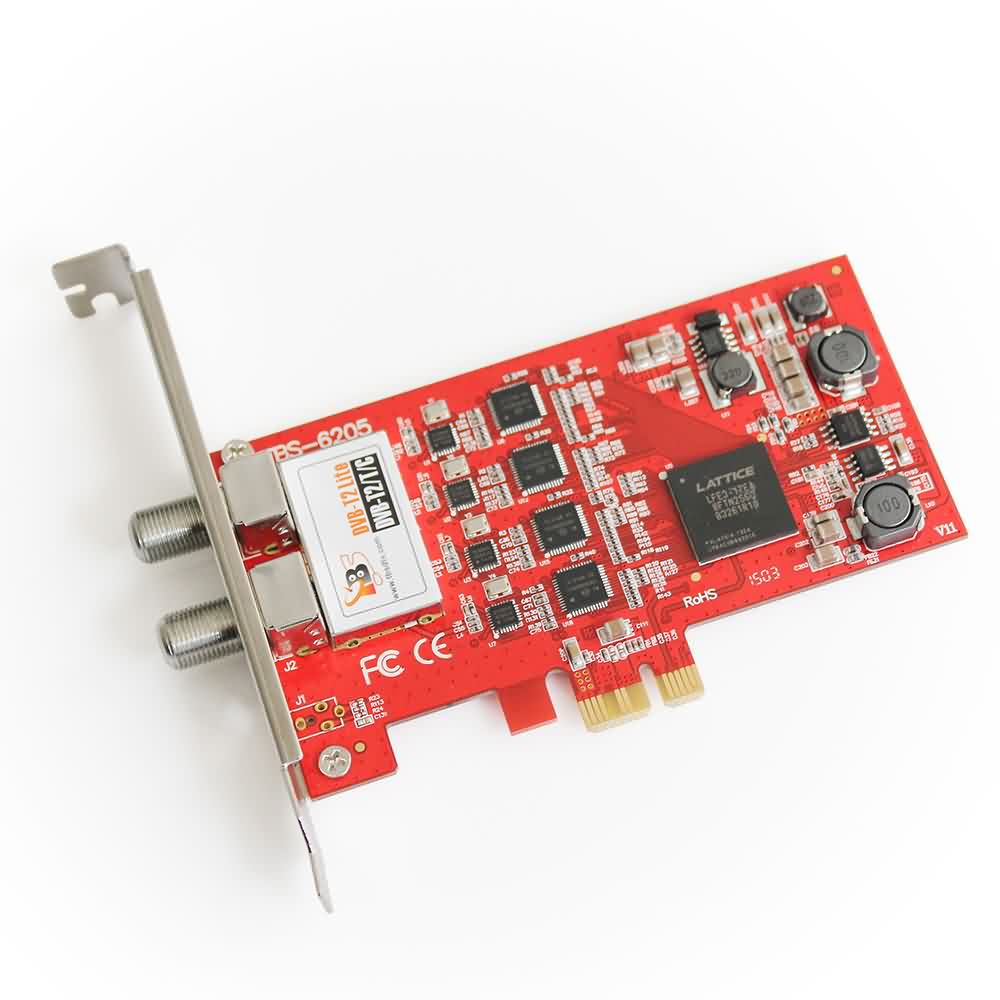

TBS6205 DVB-T2/T/C Quad TV Tuner PCIe Card

TBS6205 is a DVB-T2/T/C TV quad tuner card with PCI-Express interface, it can be used for watching four different channels from four different frequencies simultaneously, and it supports DVB-C standard at the same time.

TBS6205 DVB-T2/T/C TV quad tuner card works also as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. With the Time-shifting function, it enables you to pause a live broadcast and continue from where you left. This DVB T2 PC TV card is ready with windows BDA driver and Linux driver. It's ideal for watching UK Freeview SD and HD channels on your desktop PC.

Main Features:

    Low profile design

    DVB-T2/T/C SD or HD TV receiving

    Quad channel receiving simultaneously

    High-definition video, real-Time and scheduled video

    Recording

    High sensitivity DVB-T2 Quad Tuner for the best digital TV reception

    Windows BDA driver and Linux Driver ready

Specifications:

      Support PLP( Physical Layer Pipe)

      DVB-T2/T2 Lite/T

          Receiving channel: VHF band and UHF band

          Channel bandwidth: 6, 7, 8 MHz

          DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM

          FFT mode: 1K, 2K, 4K, 8K, 16K, 32K

          Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8

          Guard internal: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256

          Intermediate frequency

          IF mode: low IF

          Center IF Frequency: 3 ~ 5 MHz

          Note: default 4MHz

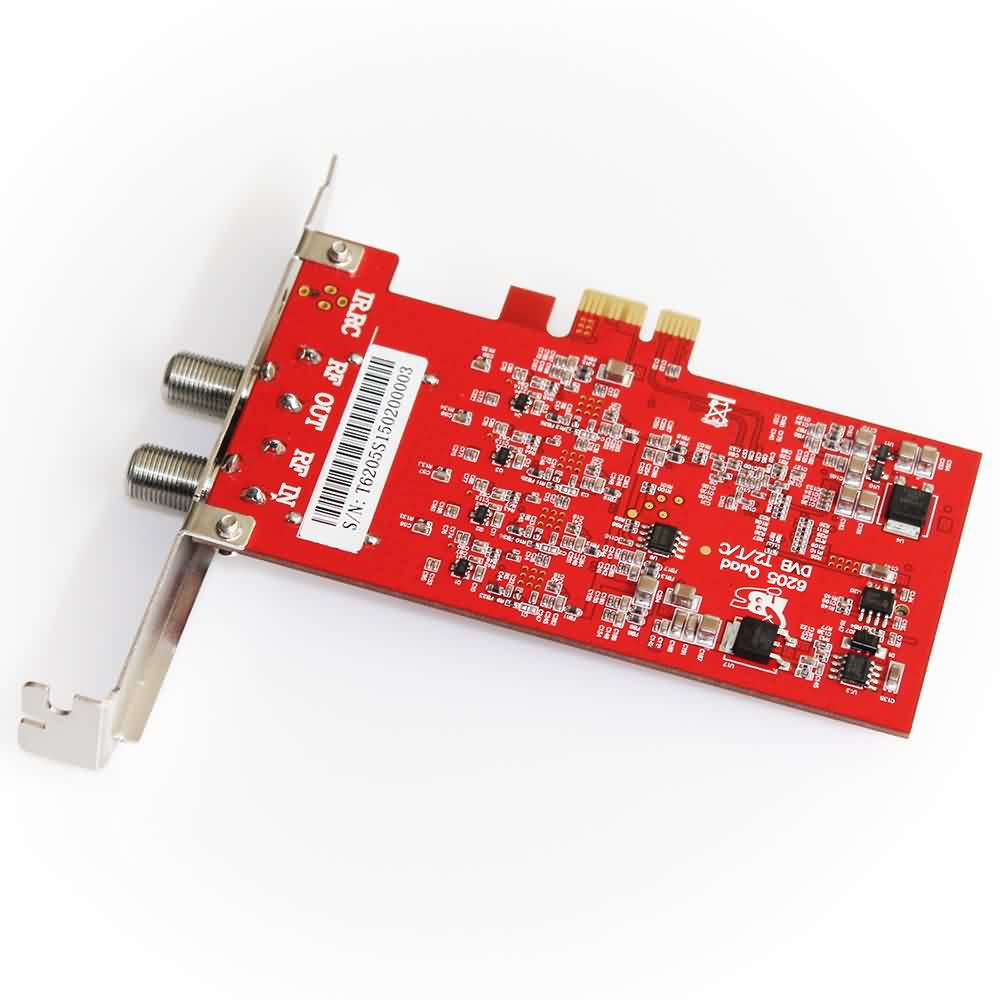

          RF-Input impedance 75Ω (IEC-DIN female)

          RF-Output impedance 75Ω (IEC-DIN male)

          TV card size: 115x68.7mm (length x height)

          TV card weight: 78g

          Power consumption: 6.7 – 9 W

          Operating temperature: -10°C ~ 70°C

      DVB-C

          Fully compliant with DVB-C and ITU J83 A/B/C specifications

          Receiving Frequency: 47~862 MHz Tuning Range

          Input level: -65~-10dBm

          16QAM, 32QAM, 64QAM, 128QAM and 256QAM Support

          Symbol Rate: 0.87 to 9Mbaud

          System Requirements:

          Windows 2000/XP/Vista/7/8/10 or Linux

          Available PCI Express x1, x4, x8 or x16 slot

          CD/DVD drive for software installation

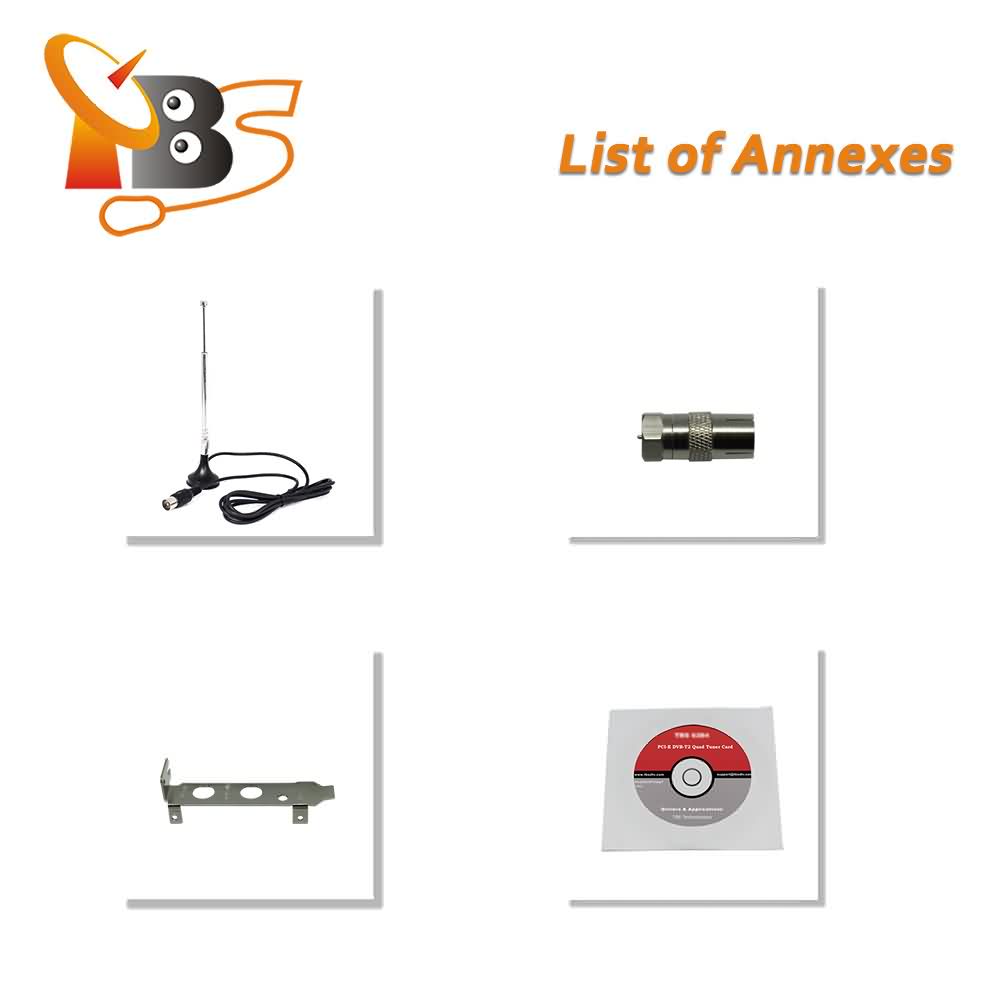

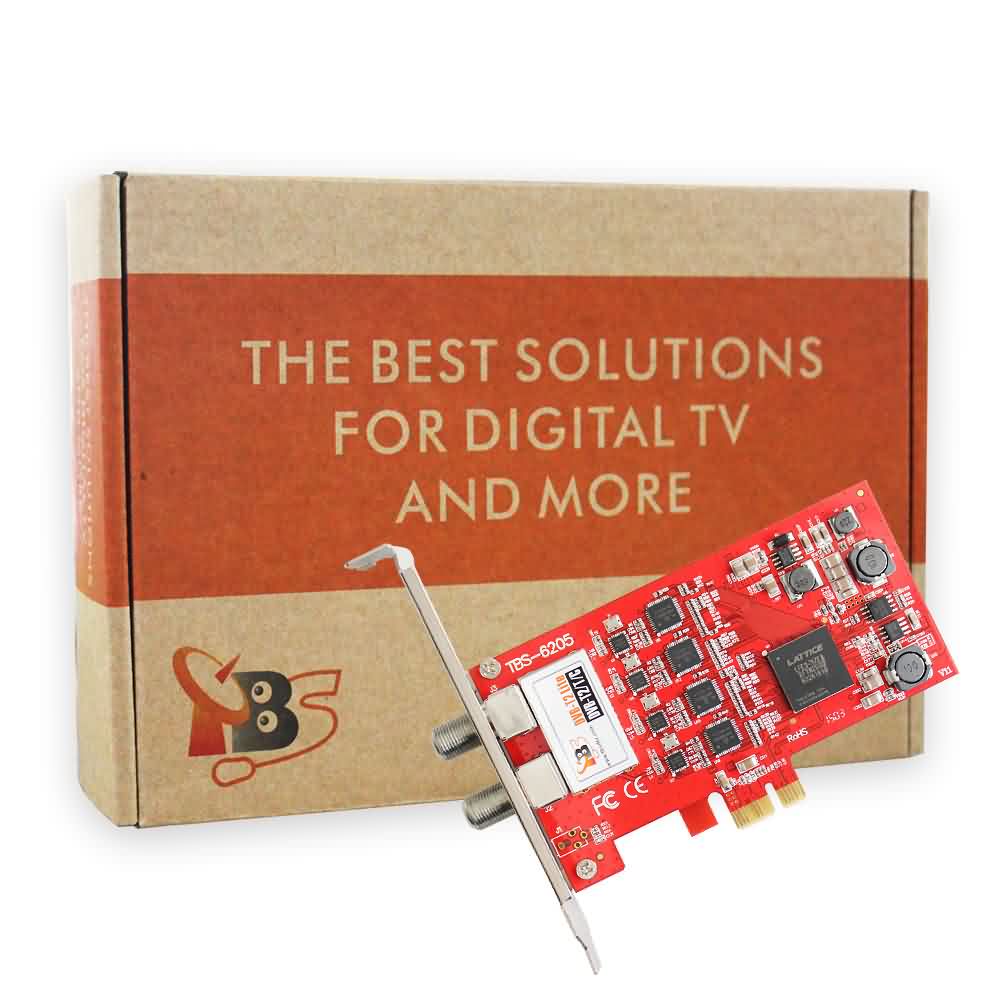

Package Contents:

      1x TBS6205

      1x Aerial

      1x Low profile bracket

      1x Fconnector

      1x Software CD
