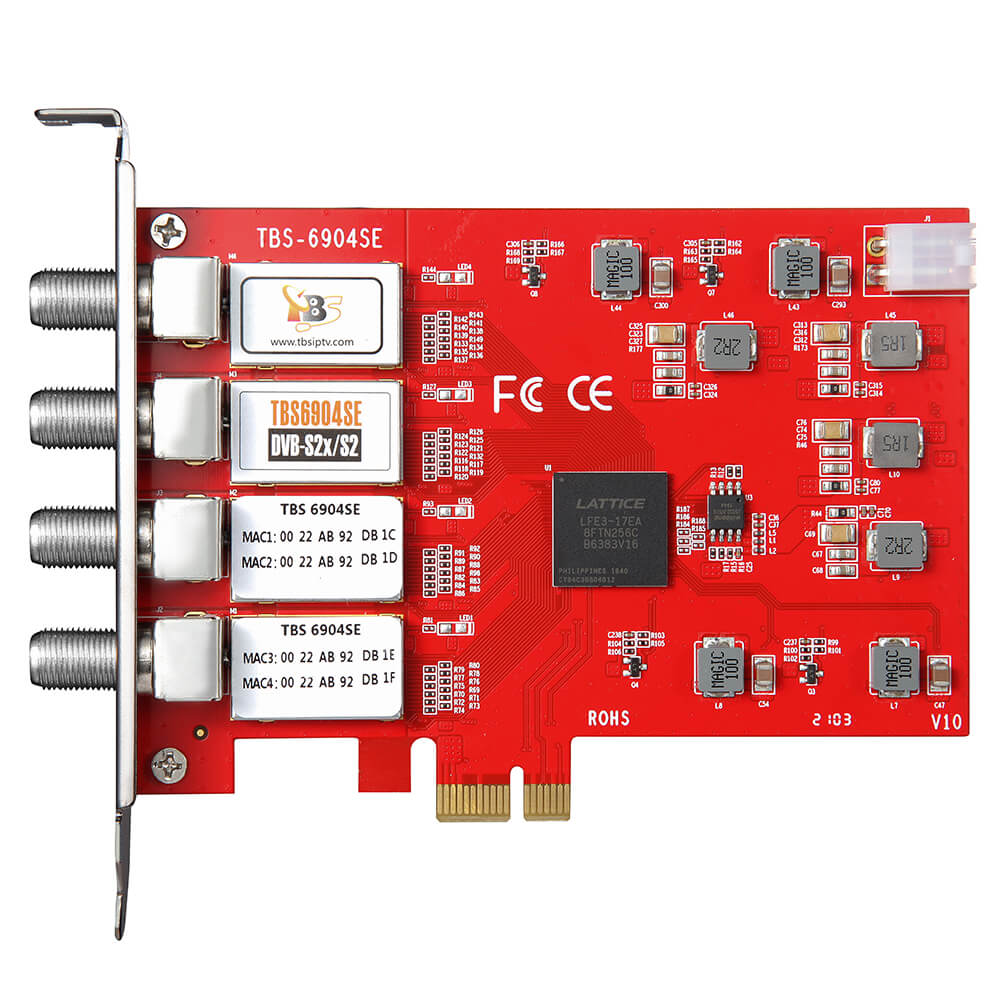

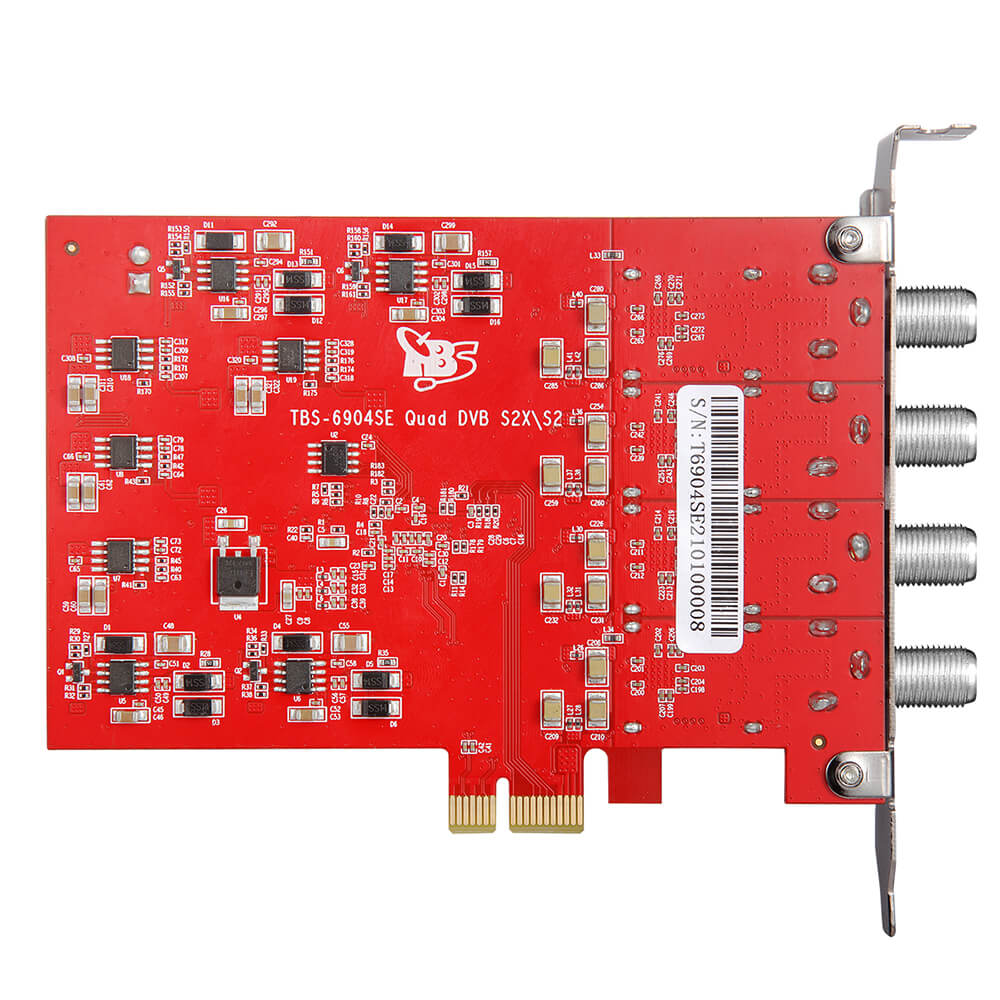

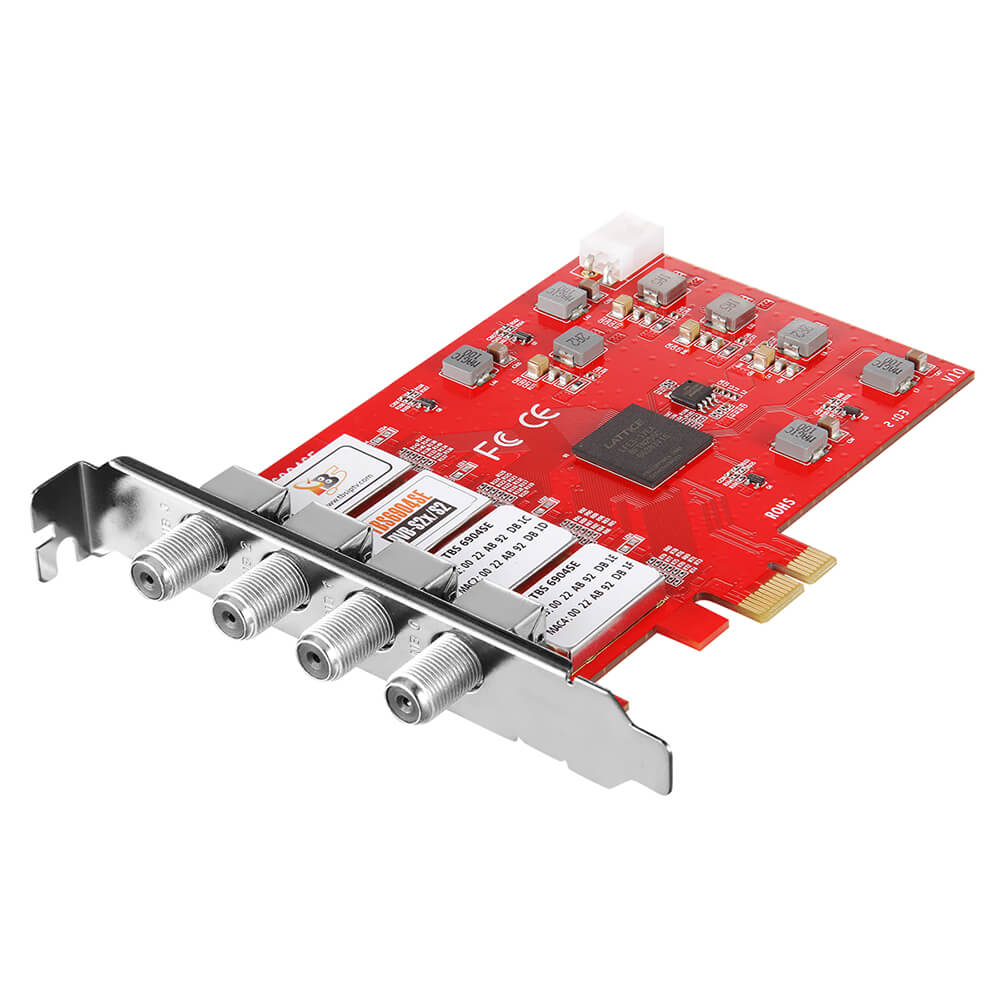

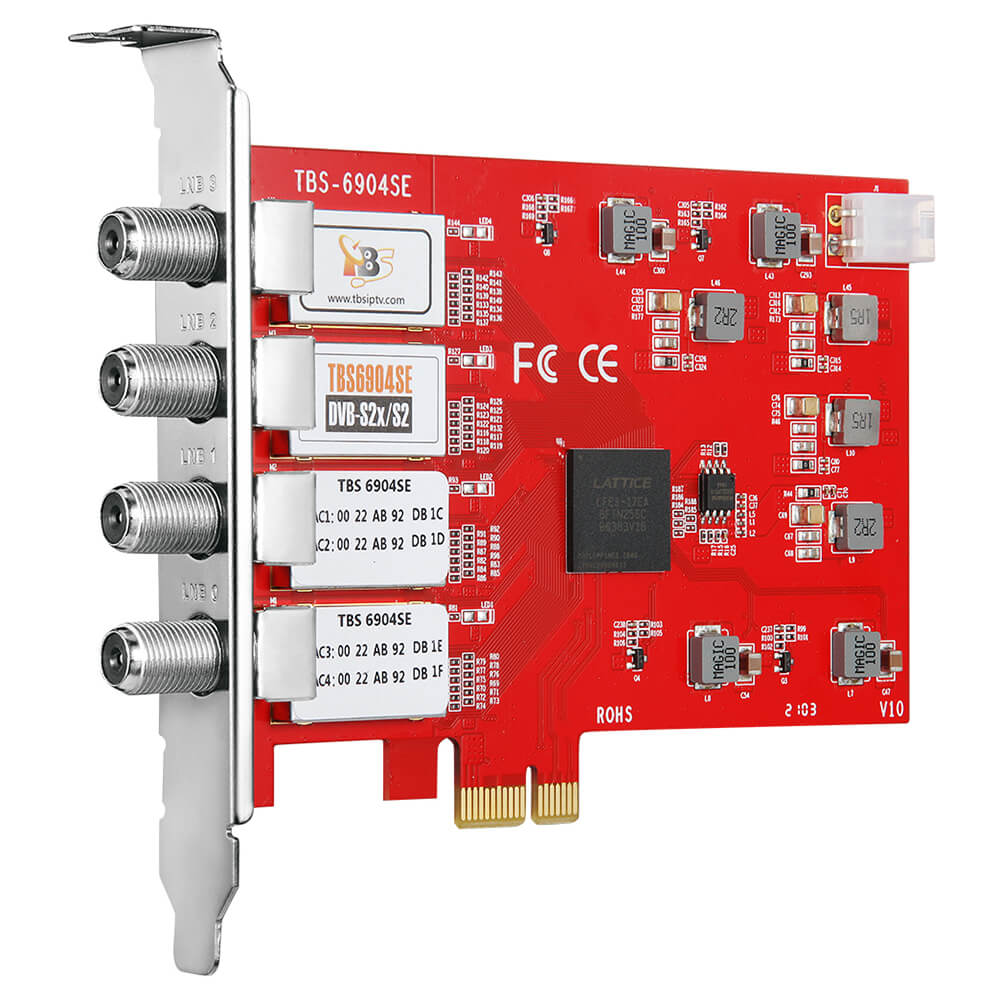

TBS6904SE DVB-S2X Quad Tuner PCIe Card


TBS6904SE DVB-S2X Quad Tuner PCIe Card

  • Model: TBS6904SE
  • Weight: 400.00g
  • Reward Points:200

In Stock

US$199.99

TBS6904SE is the successor of TBS6904, it not only supports to receive SD/HD digital TV channels from 4 different satellite transponders simultaneously, but also supports VCM, which is considered as a professional TV tuner for industrial-level users. The four advanced DVB-S2X/S2/S tuners enable you to watch TV channel from one satellite transponder, while recording three other channels from different satellite transponders at the same time. This quad tuner card is one of the most popular TV tuners for building IPTV streaming systems.

Main Features:

  • Support Quad DVB-S/S2/S2X
  • Fast scanning functionality for all media
  • Supports VCM and multi stream
  • High-speed data download via satellite
  • Watch & record satellite TV / radio programs on PC

Applications:

  • Data receiving
  • IPTV streaming
  • Media monitoring
  • Digital content distribution

Specification

Model TBS6904SE
Connection PCI-express

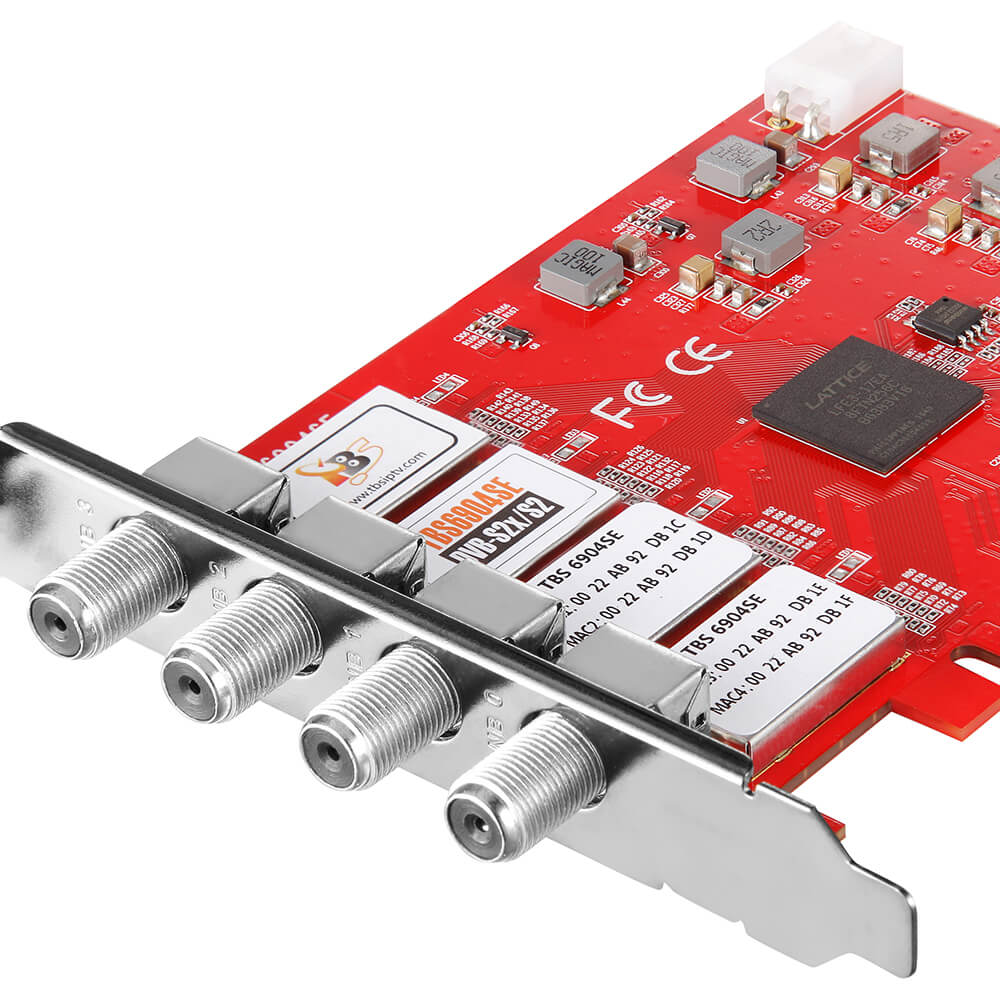

4x RF in
DVB-S/S2/S2X
DVB-S/S2 QPSK 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X QPSK 1/4,1/3, 2/5 (S2-MODCODs)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCODs)
11/45, 4/15, 14/45, 7/15 8/15, 32/45
8PSK (8APSK-L) 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 32/45
16APSK 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 3/5, 32/45
32APSK(32APSK-L) 3/4 ,4/5,5/6, 8/9, 9/10 (S2-MODCODs)32/45 ,11/15,7/9 ,(2/3)
VCM Yes
Symbol rate 1 ~ 45Msymb/s
Power consumption
Input/ Power: 8 ~ 12W
temperature 0°~ 78°
System Requirements Windows XP / Vista/ 7/ 8/ 10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Dimension:
TV tuner card size 145 * 92 * 1.6mm
Gift Box Size 200 * 130 * 30mm
Weight 400g

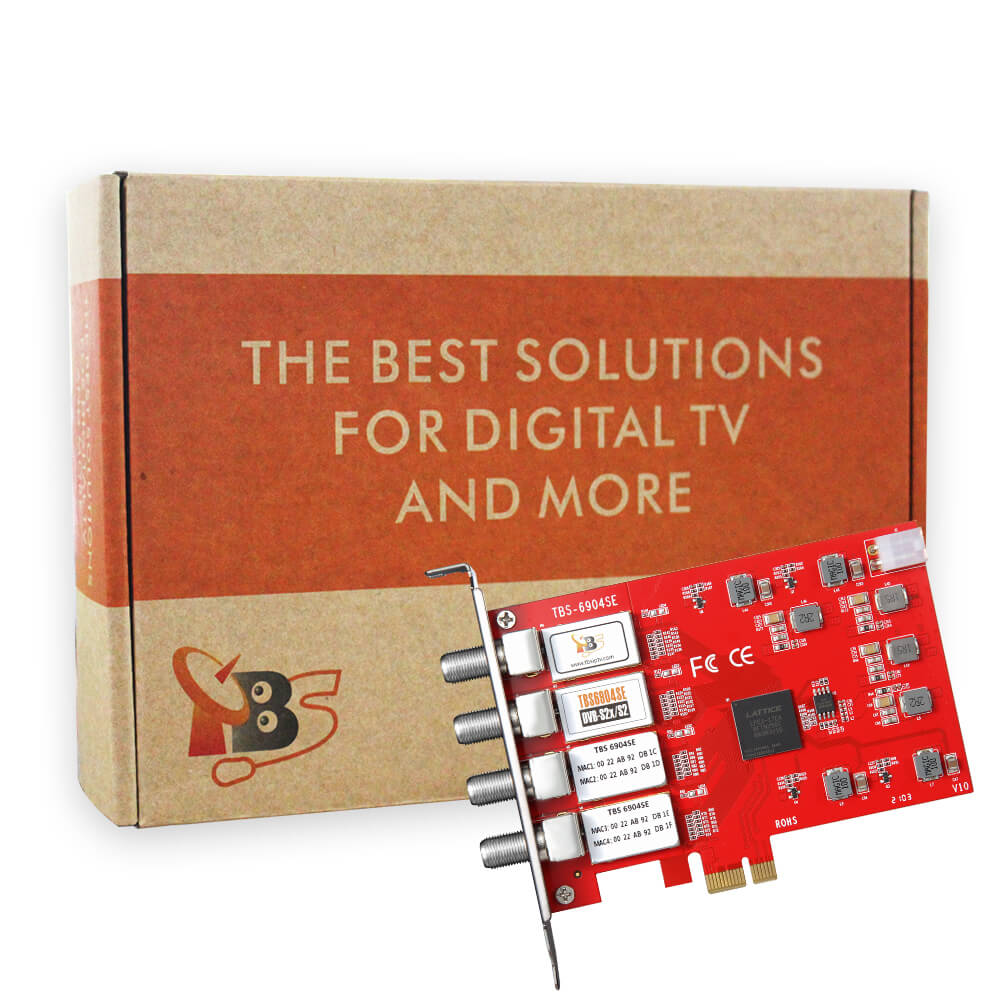

Package Contents 1* TBS69094SE
1* Power cable
