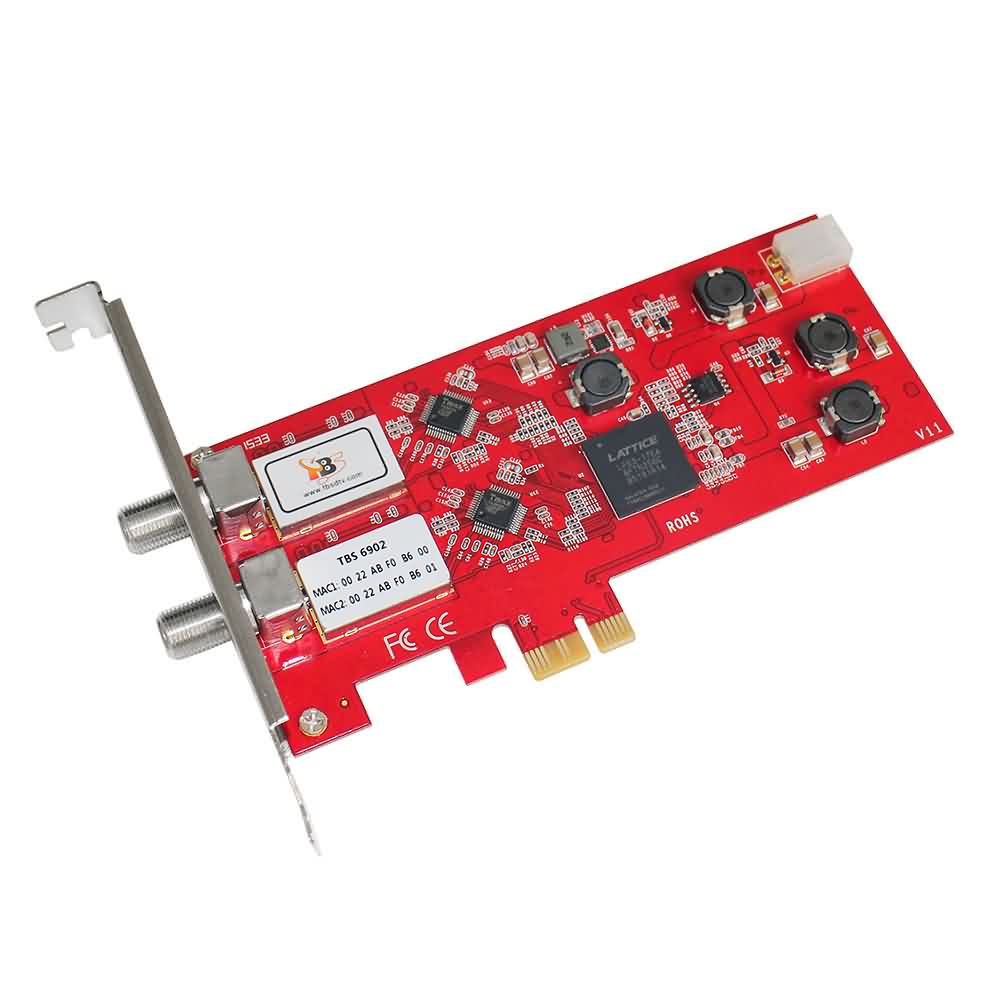

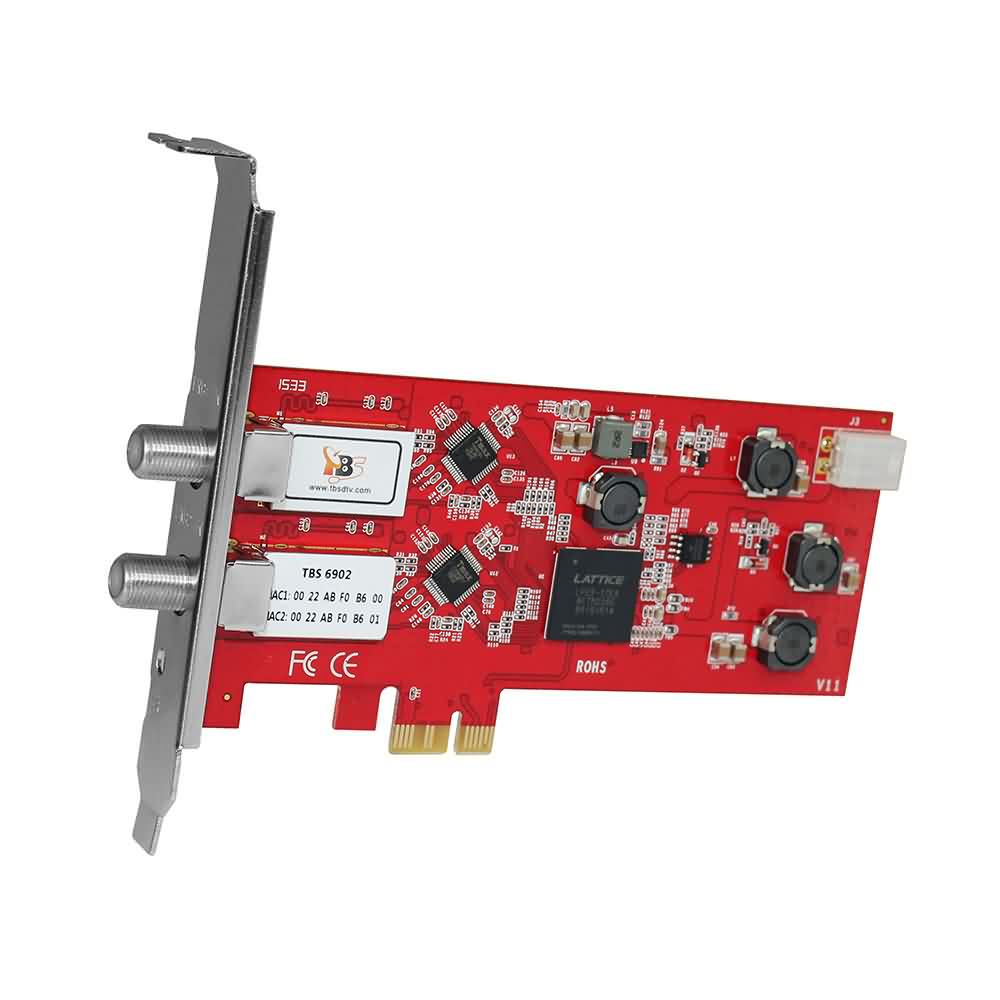

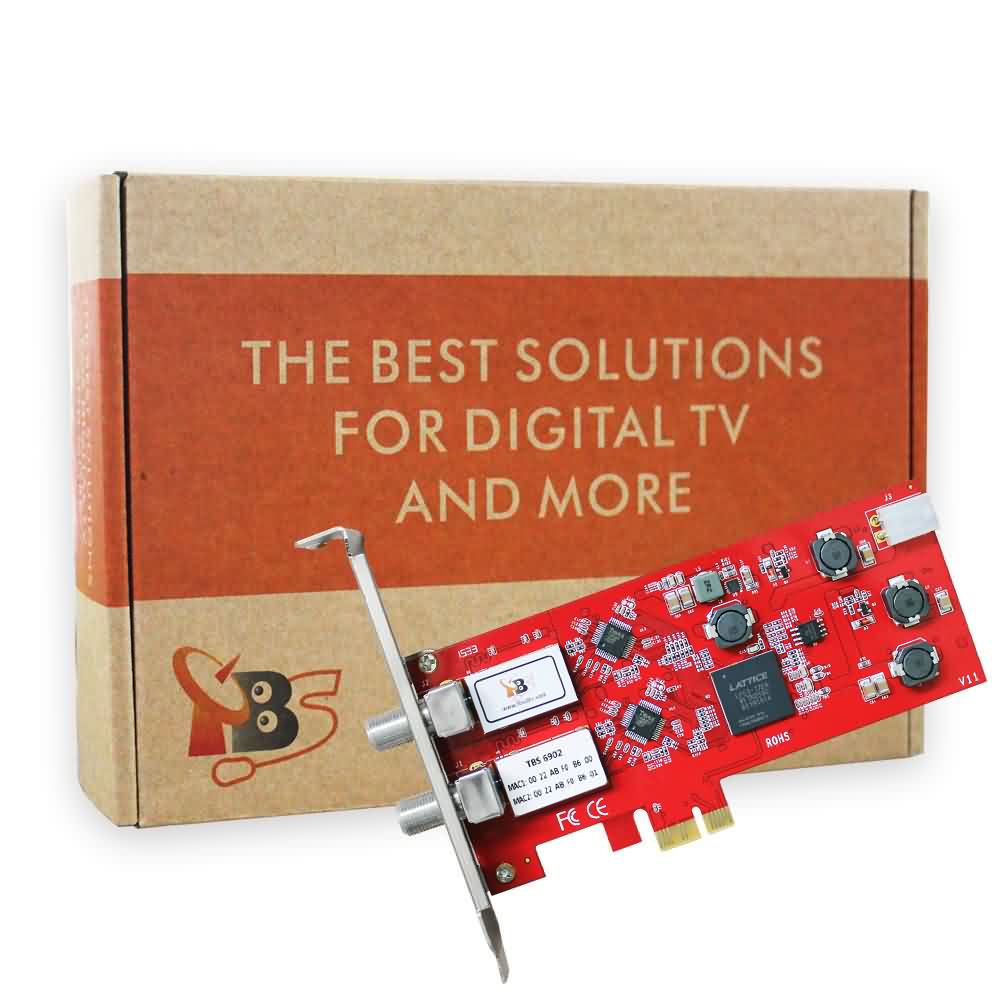

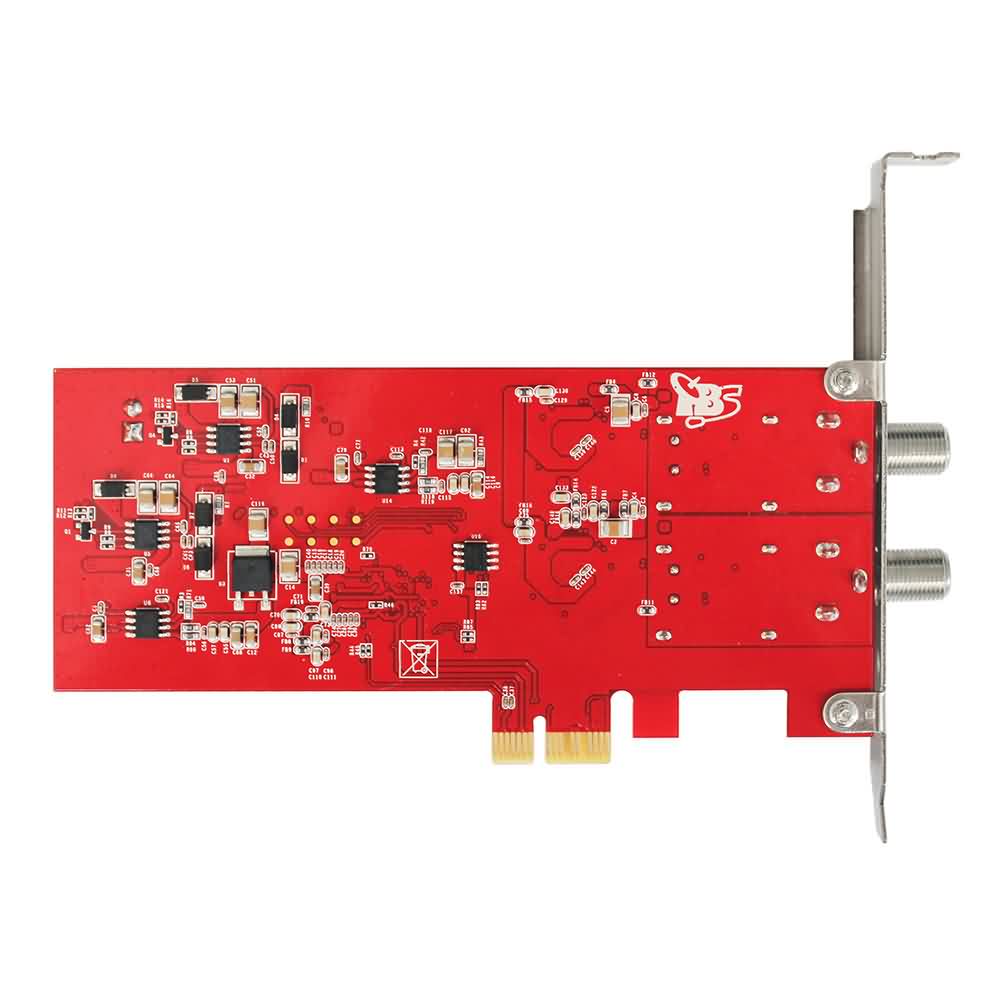

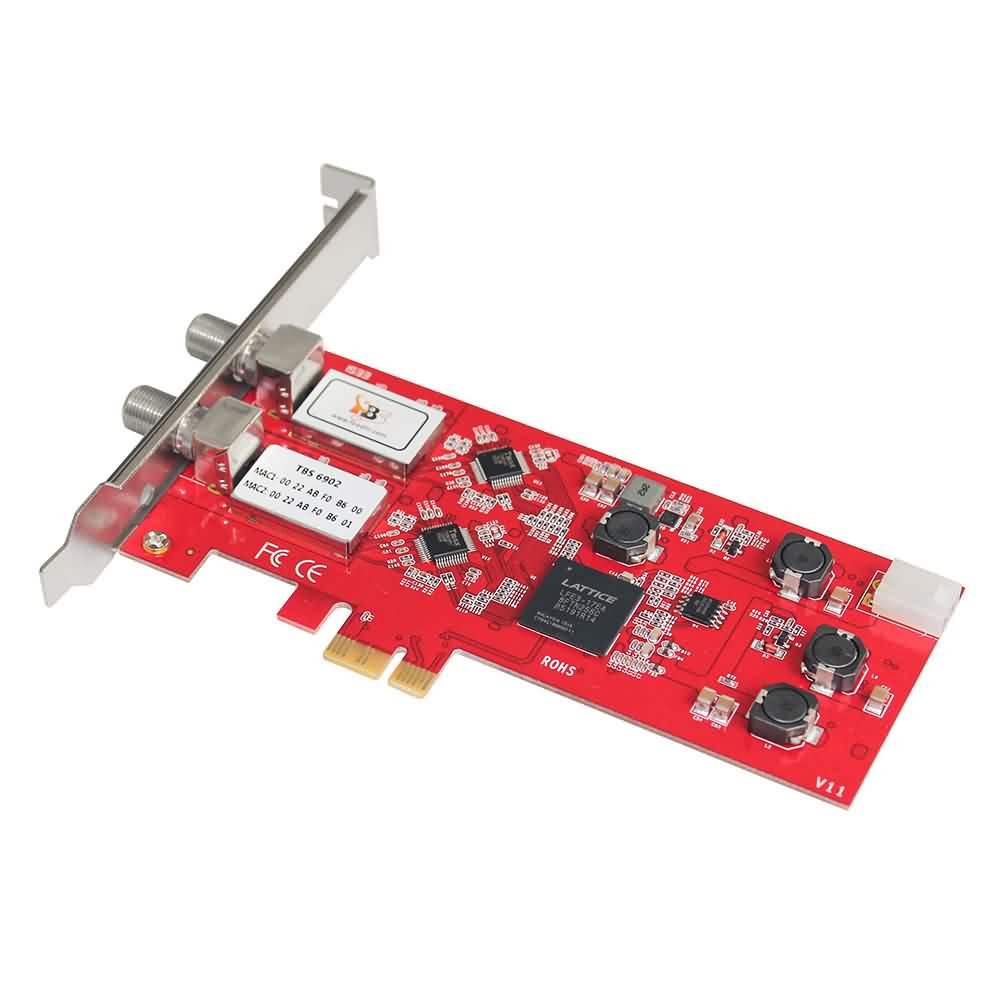

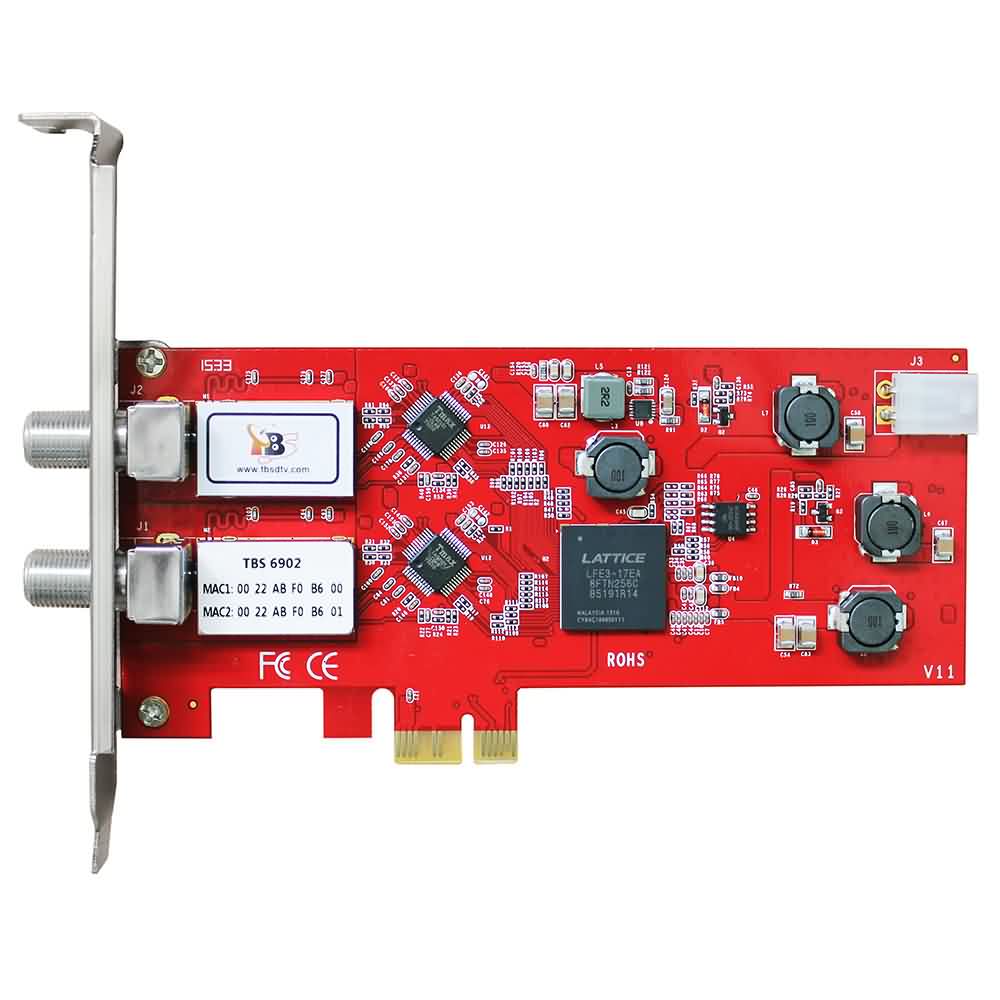

TBS6902 DVB-S2 Dual Tuner PCIe Card


TBS6902 DVB-S2 Dual Tuner PCIe Card

  • Model: TBS6902
  • Weight: 500.00g
  • Reward Points:119

In Stock


TBS6902 PCI-E DVB-S2 Dual Tuner TV card is a PCI Express interface digital satellite TV Tuner card for watching and recording Free to Air satellite TV on desktop PC. With two tuners, the TBS6902 enables you to watch TV channel from one transponder/satellite while recording another channel from another transponder/ satellite at the same time. This dual  tuner card is one of the most popular TV tuners for building IPTV streaming systems.


        DVB-S2/DVB-S SD or HD TV receiving

        Watch satellite TV & listen to radio on PC

        Dual tuner for recording two different channels/transponders

        EPG (Electronic Program Guide) support

        Unicable/one cable compatible

        High-speed data download via satellite


        Data receiving

        IPTV streaming

        Media monitoring

        Digital content distribution


    Frequency range: 950~2150 MHz

    Signal Level: -85~-10dB

    Symbol rate:

    DVB-S QPSK 1-45Msps

    DVB-S2 QPSK/8PSK 1-45Msps

    Automatic acquisition range : ±10MHz

    Automatic pilot detection:

    DVB-S2 CCM:

        QPSK+1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

        8PSK+3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

        16APSK+/3, 3/4, 4/5, 5/6, 8/9, 9/10

        32APSK+3/4, 4/5, 5/6, 8/9, 9/10


        QPSK+1/2, 2/3, 3/4, 5/6, 7/8

        DiSEqC support: 1.0, 1.2, 2.x

Power consumption :7-15W



        PCI Express

        2x LNB IN

System Requirements

        Windows XP / Vista/ 7/8/10, Linux

        Available PCI Express x1, x4, x8 or x16 slot
