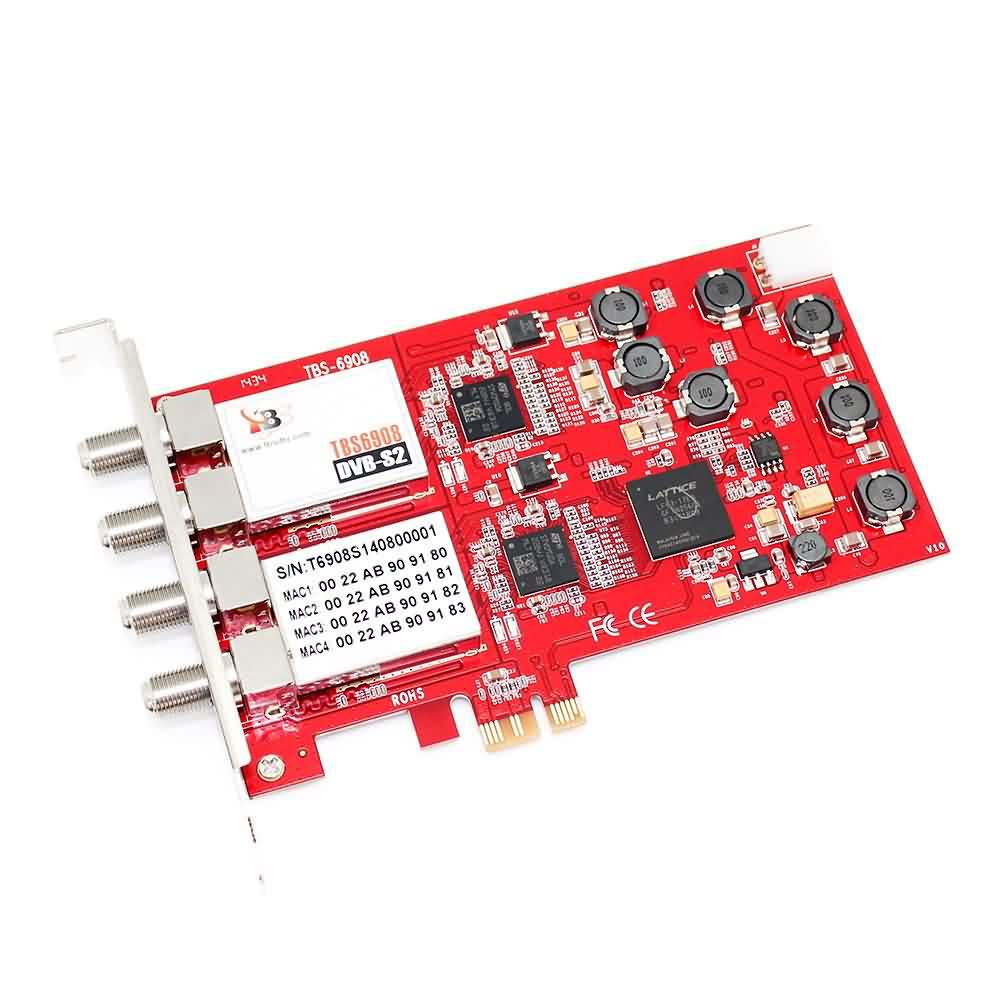

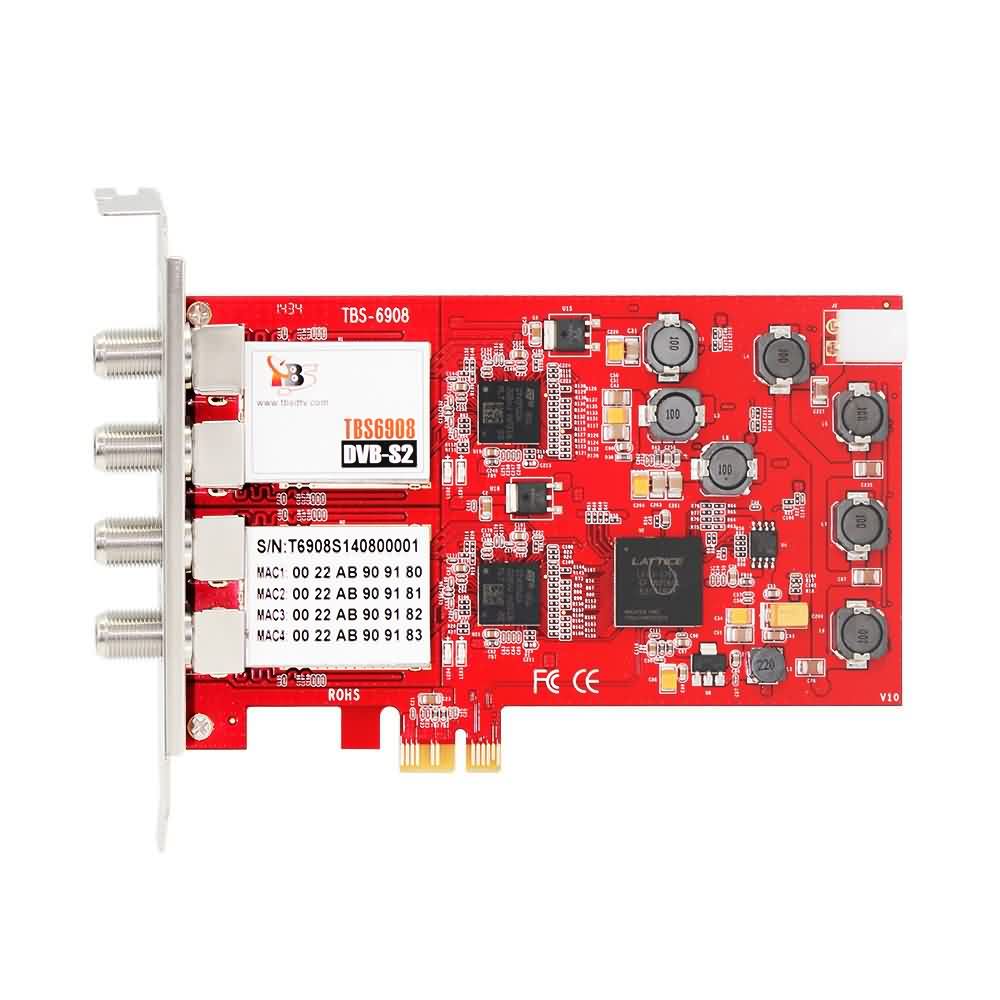

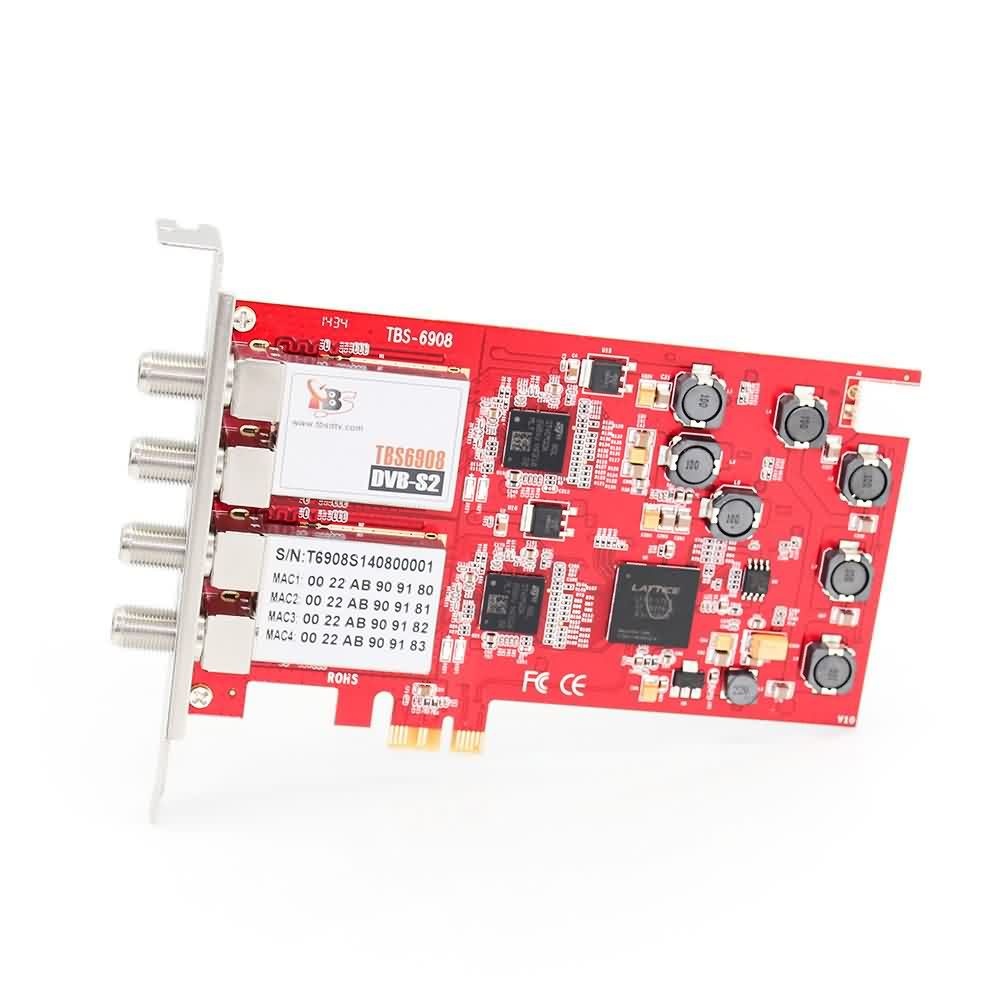

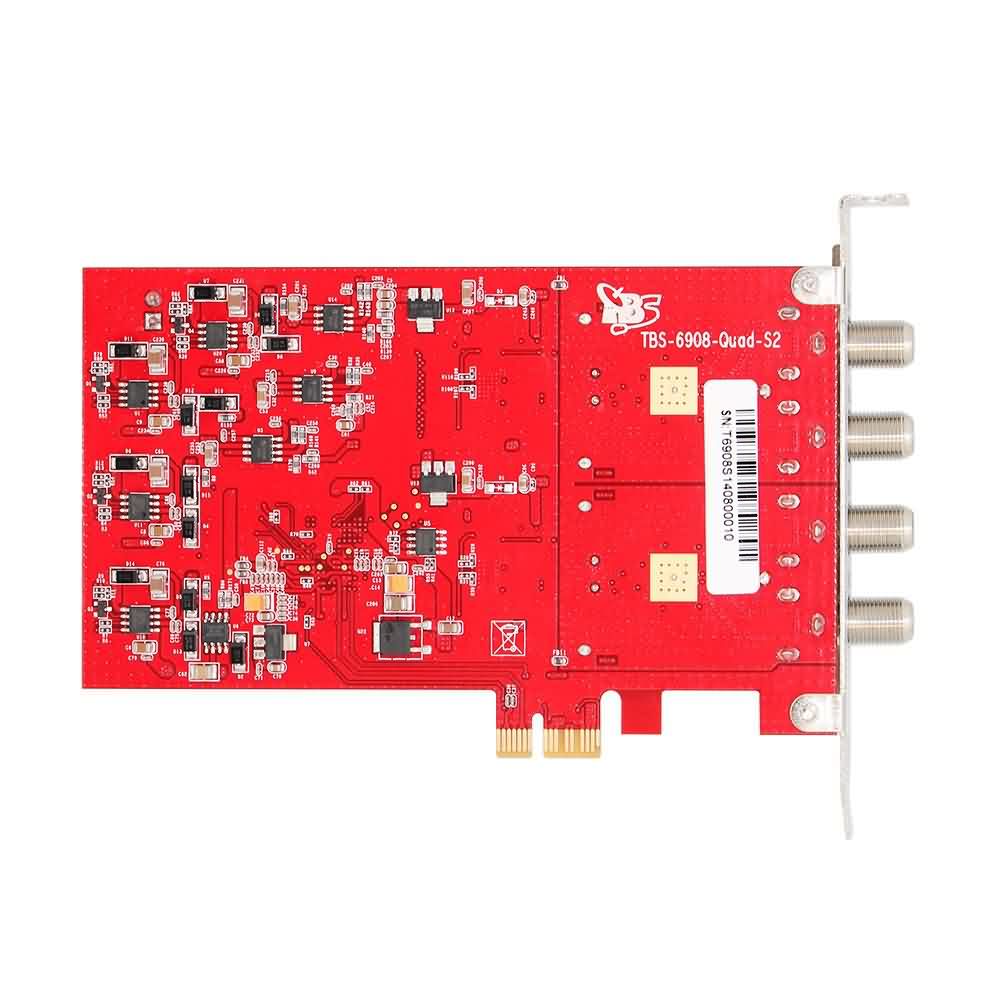

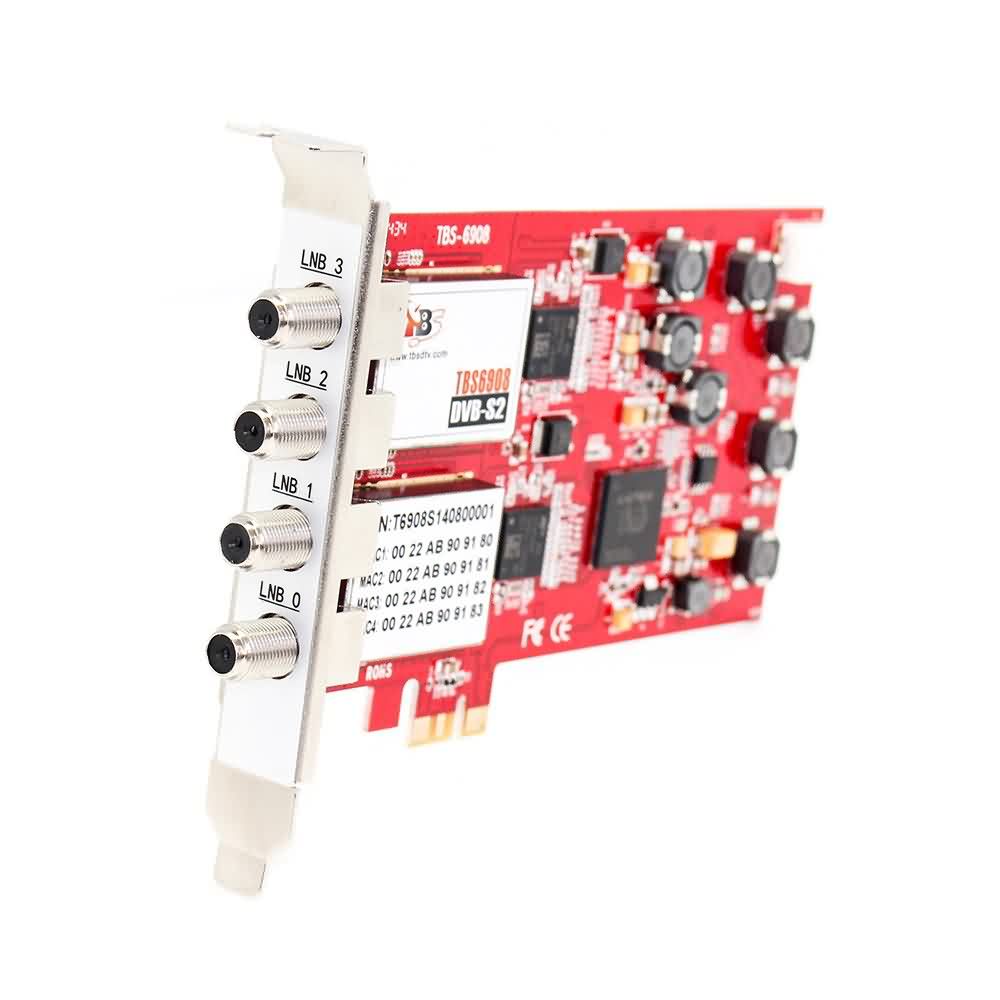

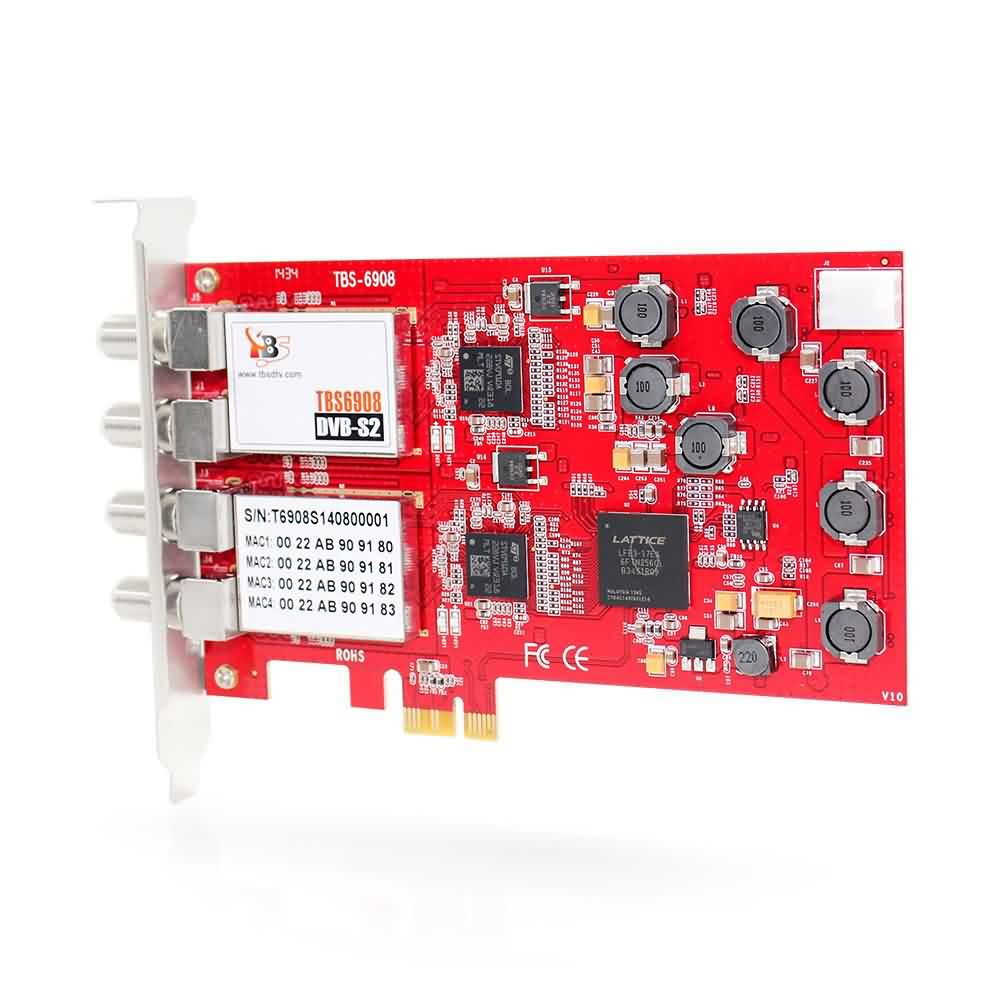

TBS6908 Professional DVB-S2 Quad Tuner Card PCIe

  • Product Model: TBS6908
  • text_weight 0.00g
  • Reward Points: 350
  • Price in reward points: 17500

In Stock

US$349.99

  • Qty.Range(unit) Price(per unit)
    2 + US$344.99
    6 + US$339.99

TBS6908 is a Professional level digital satellite TV Tuner card with PCI Expressinterface. TBS6908 supports not only normal DVB-S2/DVB-S QPSK, 8PSK which issupported by normal satellite receivers, but also CCM,ACM, VCM, Multi Input Stream, 16APSK,32APSK,Generic Stream Mode , which most satellite receivingdevices can’t support. With use of dedicated TBS tools, those special streamscan be captured. Both Windows BDA driver and Linux driver up to the latestkernel 3.X are ready

TBS6908 Professional DVB-S2 Quad Tuner PCIe Card, built with the highest industry standard, with its rock reliability is the device that any personal enthusiasts or engineers in digital satellite TV industry dream to have. The applying of an unique DVB-S2 demodulator chipset makes it possible to receive special streams broadcasted withACM, VCM, Multi Input Stream, 16APSK,32APSK or Generic Stream Mode.


Main Features:

Ÿ  Quad tuner DVB-S2/S transponders receiving

Ÿ  CCM, VCM, ACM and Multi Input Stream support

Ÿ  Generic stream mode Support

Ÿ  Up to 190 Mbit/s channel bit rate capture

Ÿ  Wide range symbol rates support from 1Msps to 45Msps

Ÿ  High-speed data download via satellite

Ÿ  Unicable/one cable compatible

Ÿ  Blindscan



Applications:

Ÿ  Satellite feed hunt

Ÿ  Satellite data download

Ÿ  Lock of special transponders


Specifications:

Ÿ   Receiving frequency: 950~2150 MHztuning range

Ÿ   Input level: -69~-23dBm

Ÿ   Quad channels DVB-S2/DVB-S 8PSK QPSK16APSK

Ÿ   32APSK ACM/VCM Demodulator

Ÿ   Symbol rate:

-Maximum symbol DVB-S2 rate limitations (Msymb/s)

Msymb/s

Demod

LDPC

Single

Dual

QPSK

67.5

135

67.5

67.5

8PSK

67.5

90

67.5

45

16APSK

67.5

67.5

67.5

33.7

32APSK

67.5

54

54

27



Ÿ   -DVB-S

Ÿ   QPSK+1/2, 2/3, 3/4, 5/6,7/8

Ÿ   Support Data Burst &Tone Burst

Ÿ   Support DiSEqC2.X andMotor

Ÿ   Power consumption: 0.66W~ 33.13W

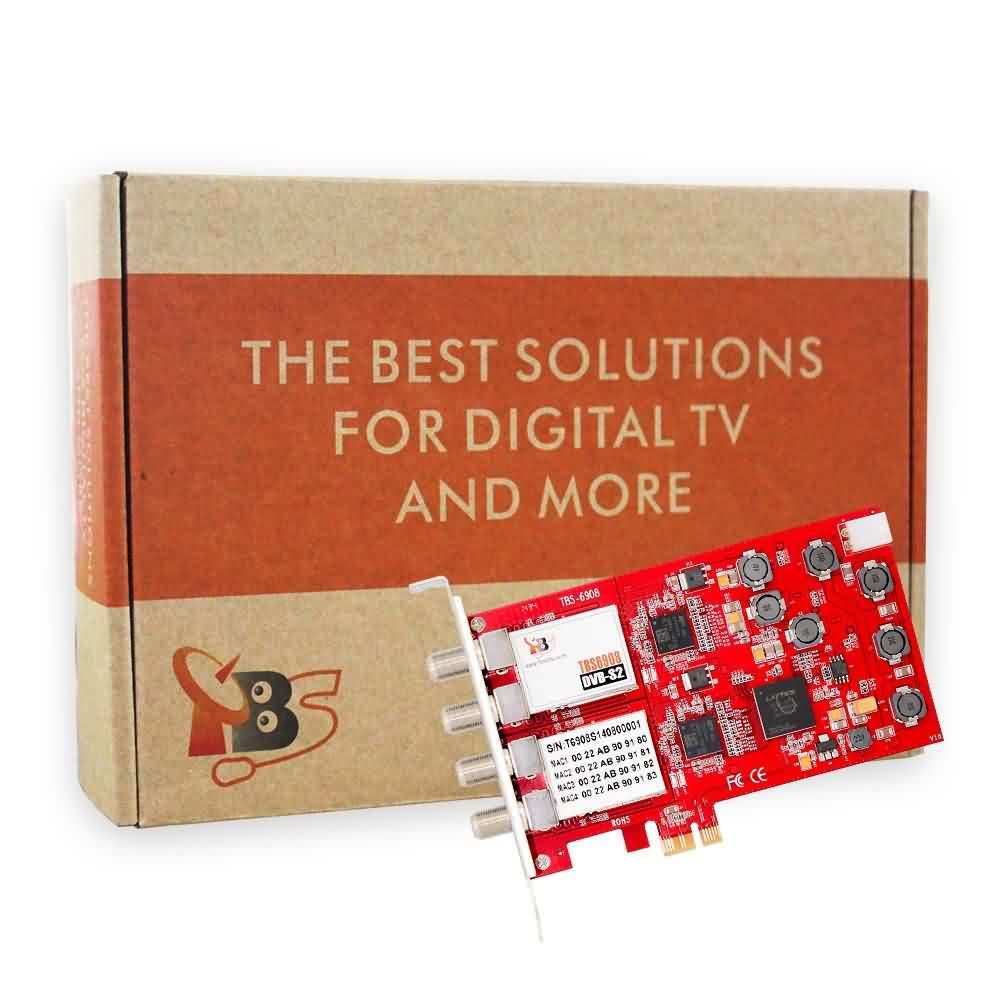

Package Contents:

Ÿ  1 x TBS6908

 1 x DC line
