TBS6909 DVB-S2 8 Tuner PCIe Card


TBS6909 DVB-S2 8 Tuner PCIe Card

  • Model: TBS6909
  • Weight: 400g

Discontinued

Successor

TBS6909 is a powerful DVB-S2 octa tuner card with PCI Express interface, capable of receiving SD/HD digital TV channels from 8 different satellite transponders simultaneously, which is considered as a professional TV tuner for industrial-level users. When the PCIe slots in the server is limited, TBS6909 enables you to receive more channels than the usual dual or quad TV tuner. Thus it is highly recommended for broadcasting system

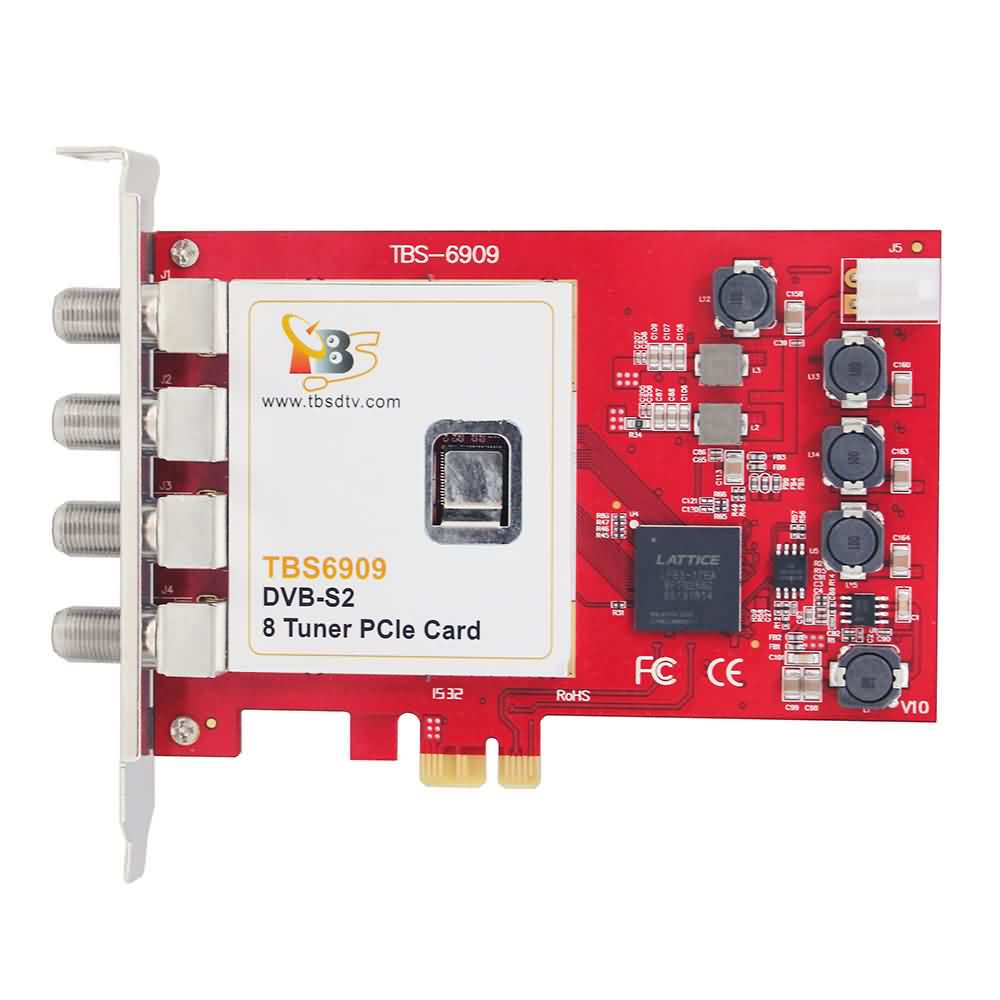

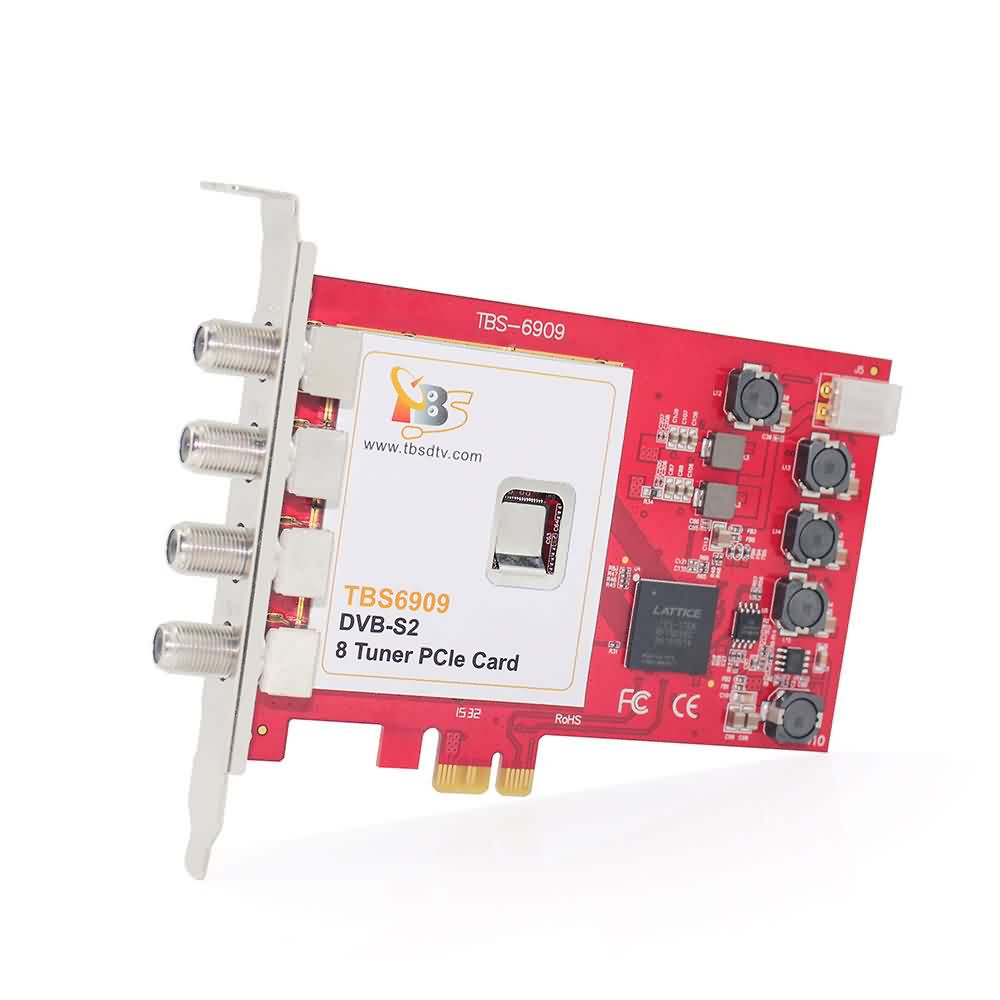

TBS6909 DVB-S2 Octa Tuner Card PCIe

DVB-S2/S; Octa tuner; Linux OS; PCI Express;

TBS6909 Three Signal Input Way

Default mode is multiswitch mode. The signal input can be like this:

Master output
Quattro-LNB/Multiswitch

If you are using quattro LNB, you have 4 cables (V/L,V/H,H/L,H/H), connect the right one to TBS6909 like the above picture ( input 0- input 3 should be connected to V/L,V/H,H/L,H/H respectively).

Quad-LNB

If you are using quad LNB, you can directly connect the 4 cables to the 4 ports of TBS6909.

Single C or Ku Band

If you are using single C or Ku band, then two inputs are enough, you just need to connect the cables to input 0 and input 2 to provide V and H signal.

LNB

If you want to use DiSEqC with TBS6909, you could use this mode.
In some case multiswitch have more than one satellite input, need to choose the satellite first.
Digital Video Recorder

Benefits

  • DVB-S2/S 8 tuner
  • Watch & record satellite TV/ radio programs on PC
  • EPG (Electronic Program Guide) support
  • Unicable/one cable compatible
  • High-speed data download via satellite


Applications

  • Data receiving
  • Media monitoring
  • Digital content distribution


Package Contents:

  • 1 x TBS6909
  • 1 x Power cable
  •  1x TBS6909 user manual

Specifications

  • Frequency range: 950~2150 MHz
  • Signal Level: -85~-10dB
  • Symbol rate: 1~45Msps
  • Demodulation:
      DVB-S QPSK, DVB-S2 8PSK
  • FEC:
      8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    DVB-S
      QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
  • DiSEqC support: 1.0, 1.2, 2.x

Connections

  • PCI Express
  • 4x RF IN

System Requirements

  • Linux OS
  • Available PCI Express x1, x4, x8 or x16 slot
  • Satellite dish and LNB

Power consumption ：13-24W
