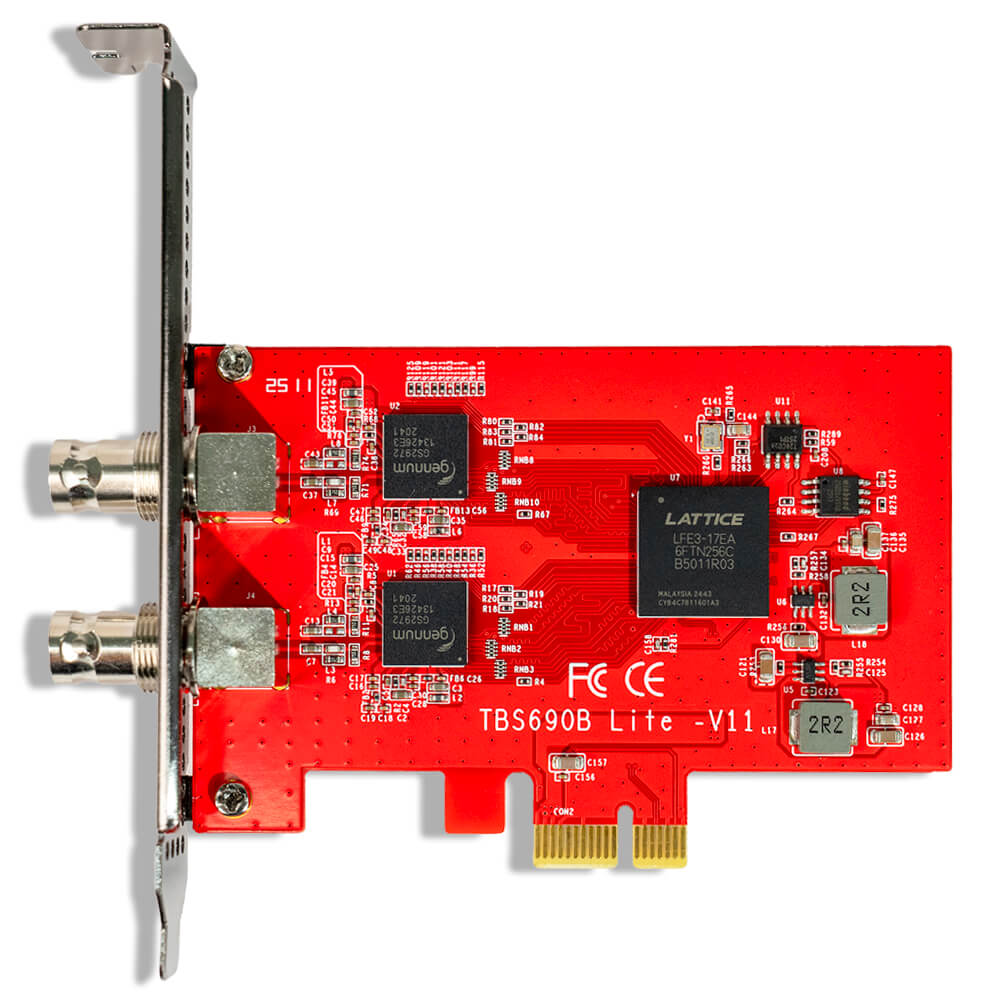

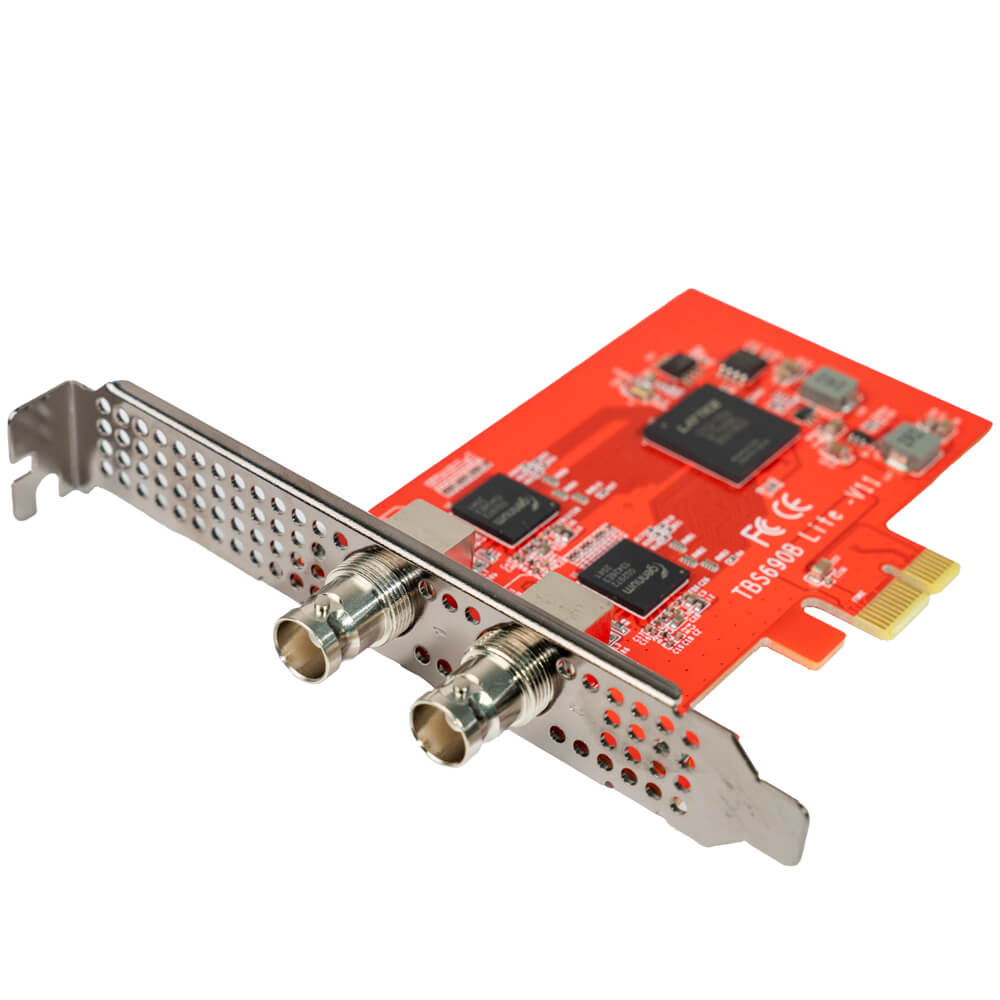

TBS690B-Lite is a single/dual-output PCI-e DVB-ASI transmission card that converts transport streams to DVB-ASI signals.

It can be installed on any PCI-e slot-equipped PC or server to receive high-speed IP streams from TV studios and broadcast headends, and generate them into ASI signals.

Additionally, it delivers built-in IP jitter suppression and TS stream PCR recovery functions to ensure stable signal transmission.

Compatible with a wide range of TBS hardware devices, TBS690B-Lite is well-suited for digital TV broadcasting, IPTV and digital TV distribution headend systems.

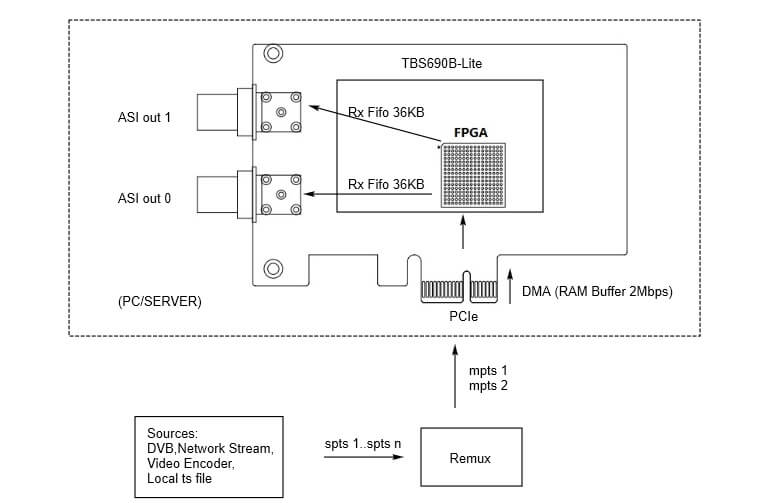

Block Diagram

Features:

• Single or Dual DVB-ASI output
• Supports up to 140Mbps data generation per ASI port
• Supports a wide variety of signal sources, including DVB/Network streams/Video encoders, and local files
• Processing Hi-speed streams
• Long lifespan
• Extremely low power consumption, less than 2 Watts

Applications:

• Digital TV Broadcasting SystemIPTV streaming
• Digital TV Programs Transmission
• IPTV System
• Head-end system of Digital TV branch network
• CATV Broadcasting system
• Edge side of Digital TV backbone network

Specification
