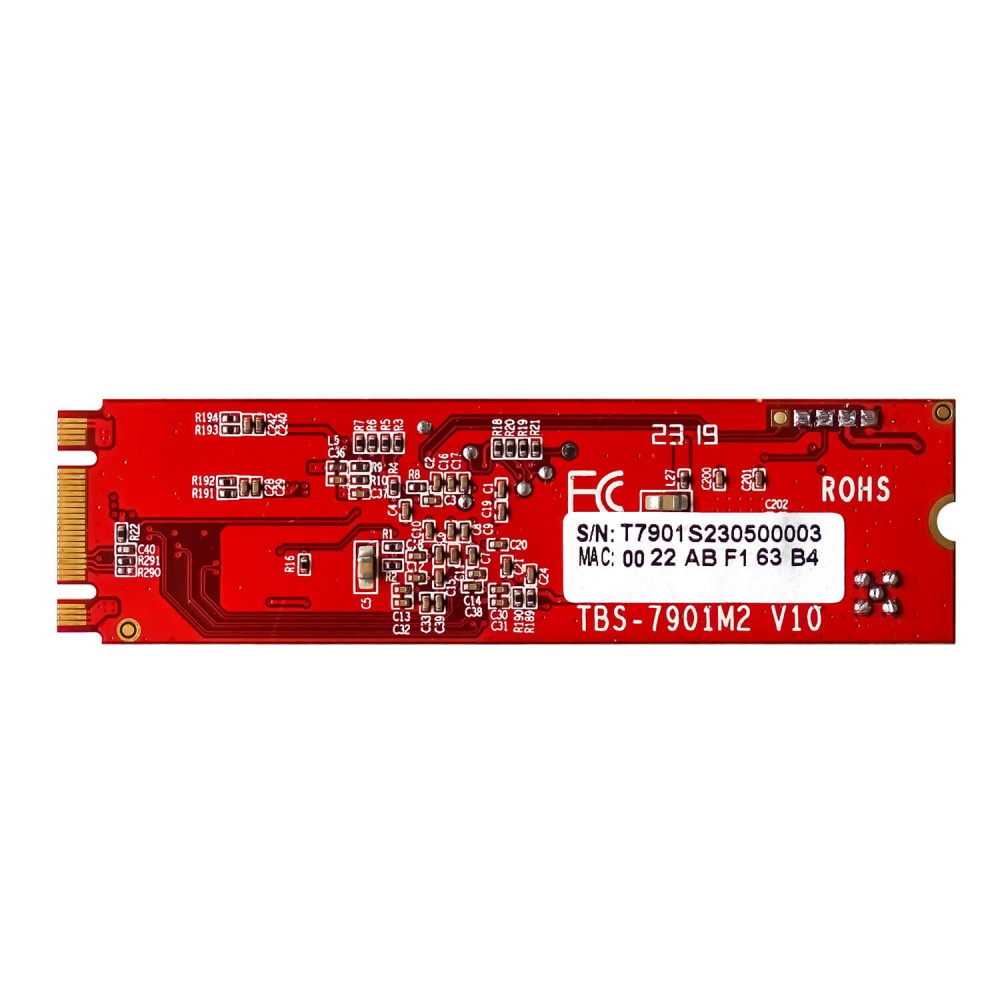

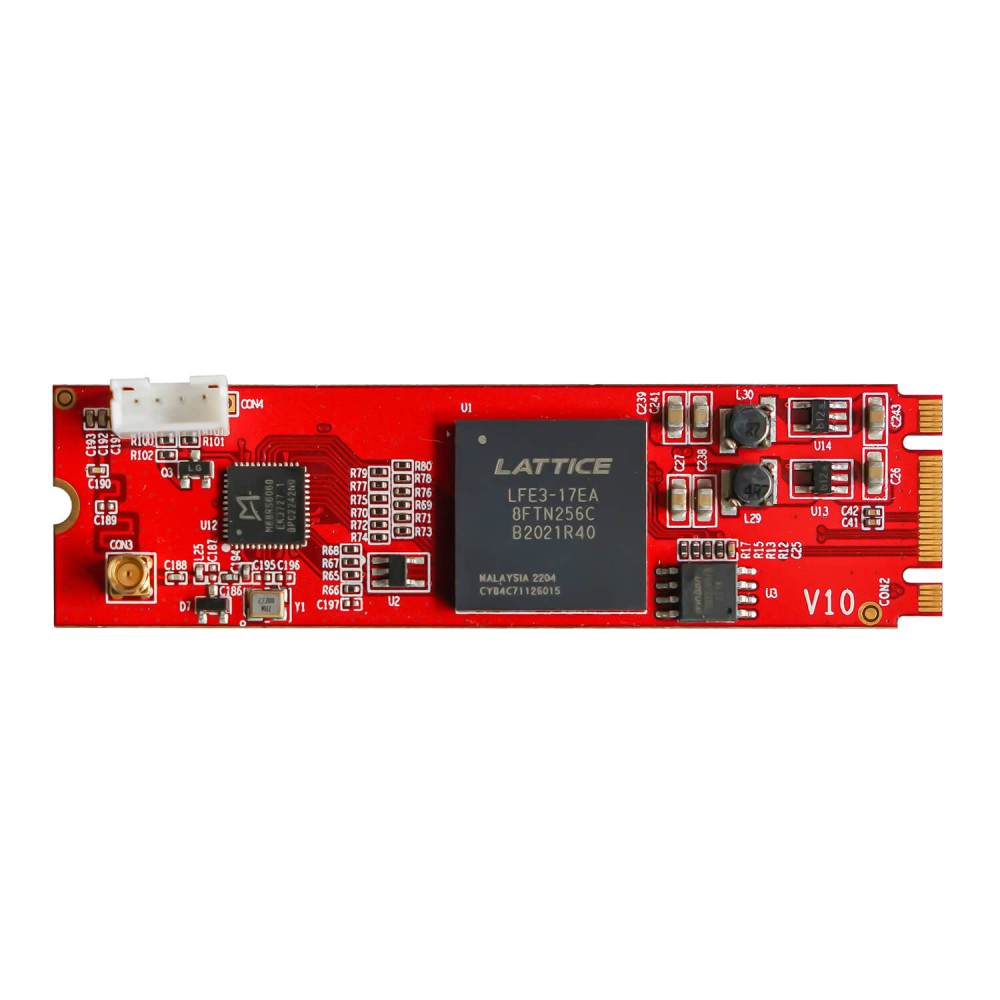

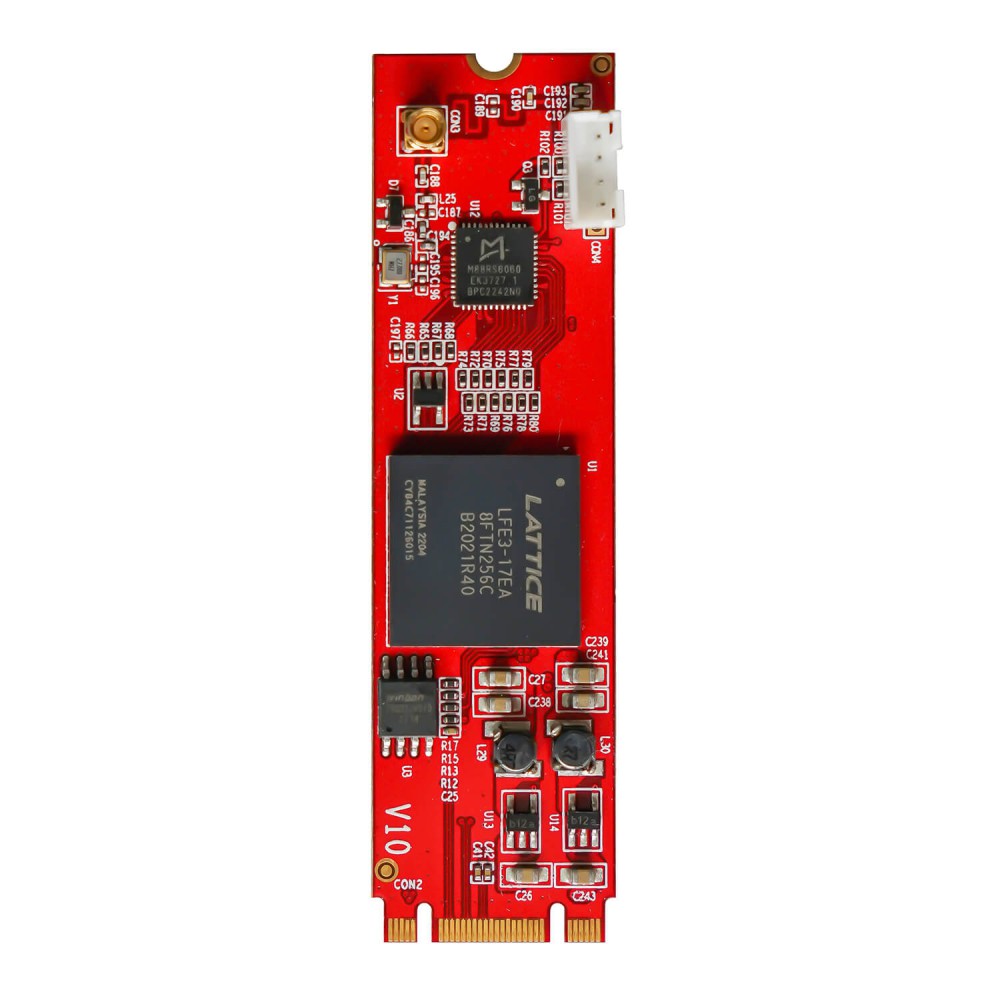

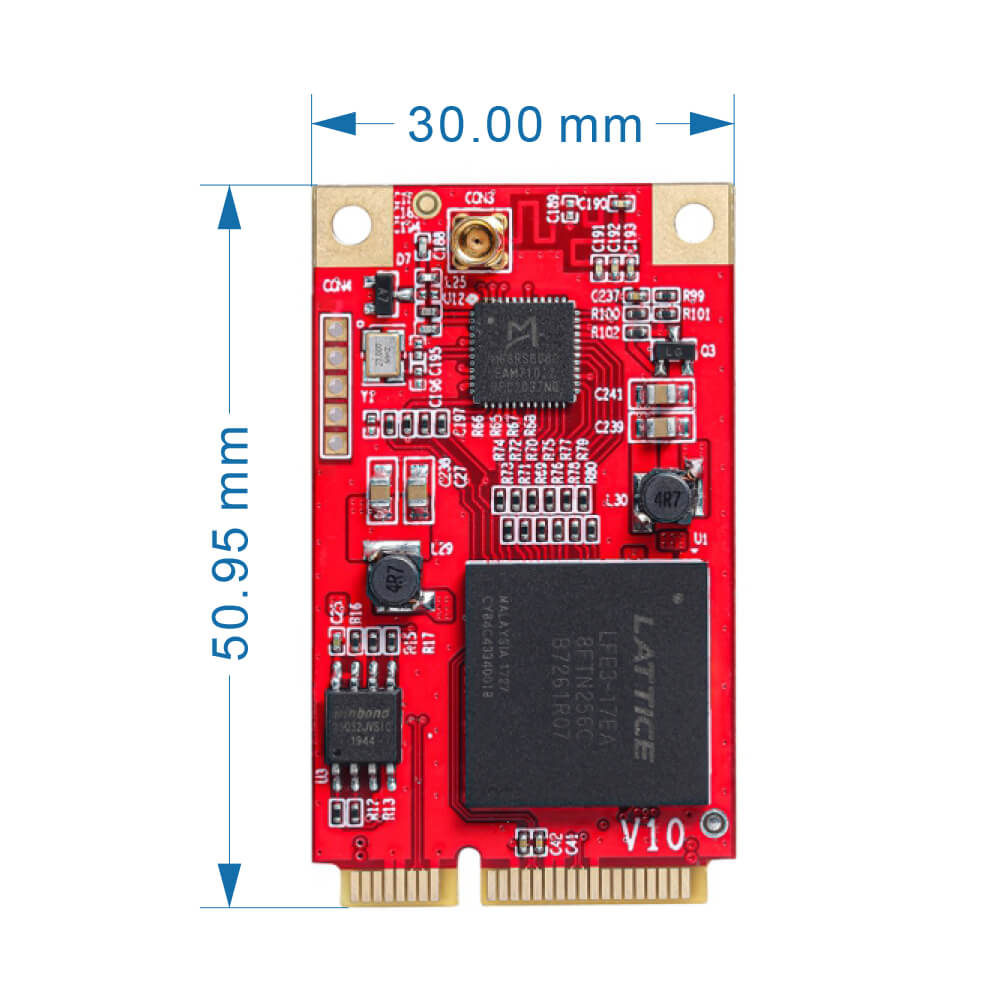

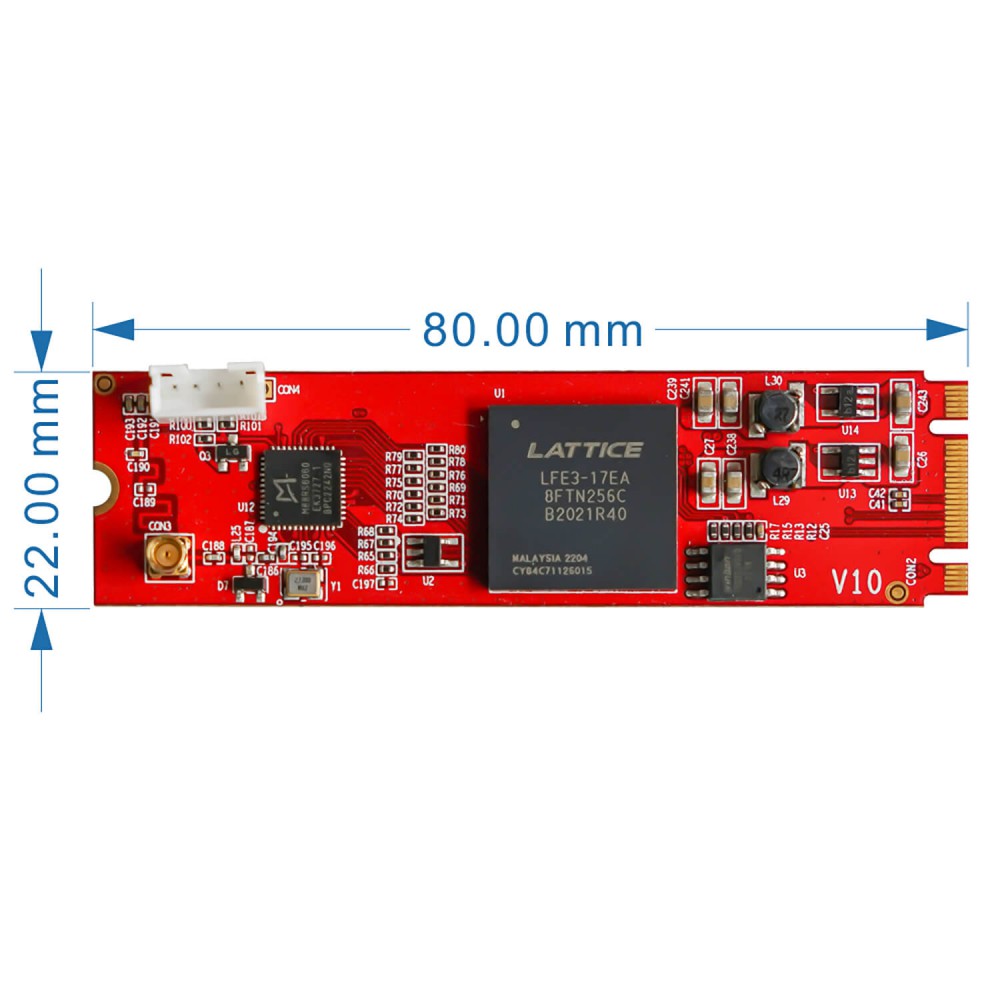

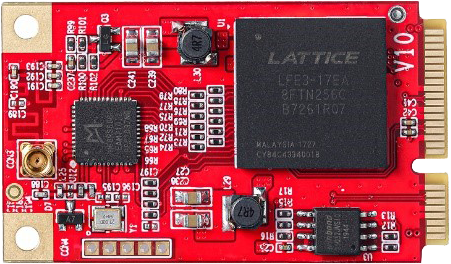

TBS7901 DVB-S2X/S2/S mini PCI-e/M.2 card
TBS7901 DVB-S2X/S2/S mini PCI-e/M.2 card
- Model: TBS7901
- Weight: 100.00g
- Reward Points:119
In Stock
US$119.00

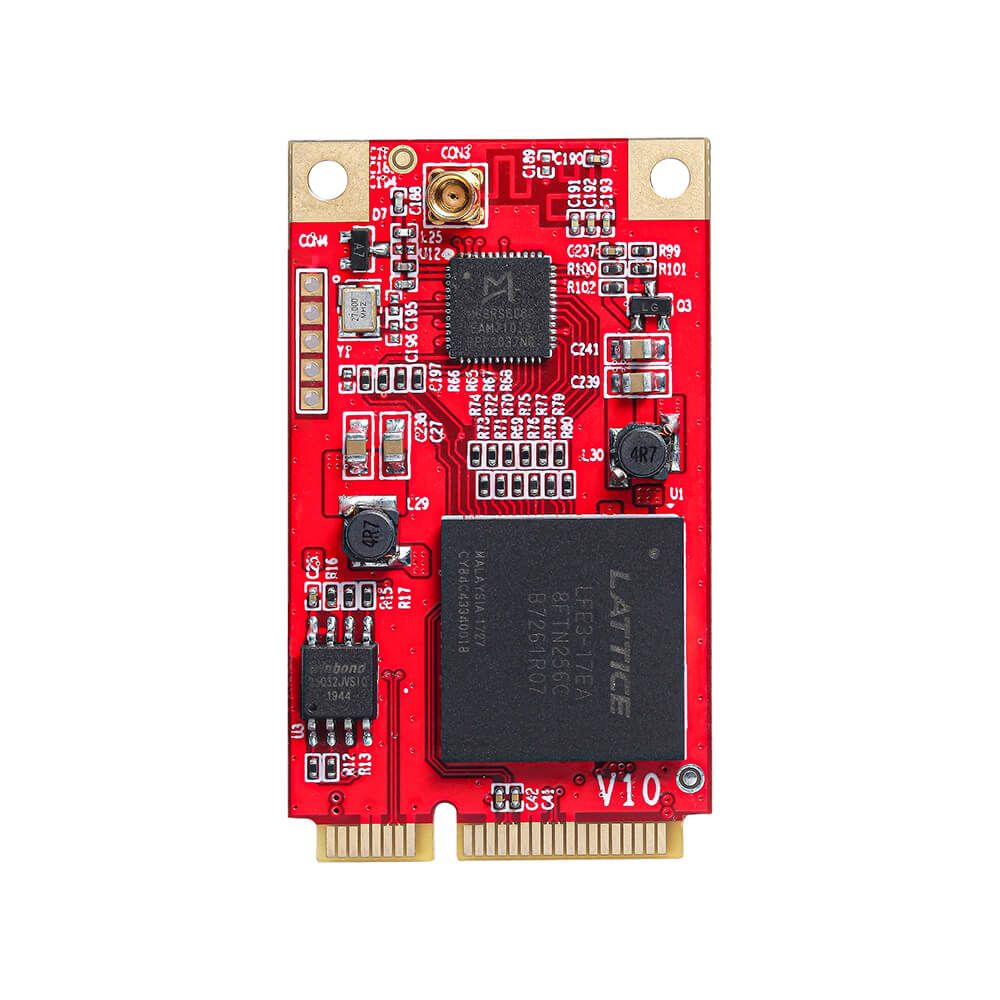

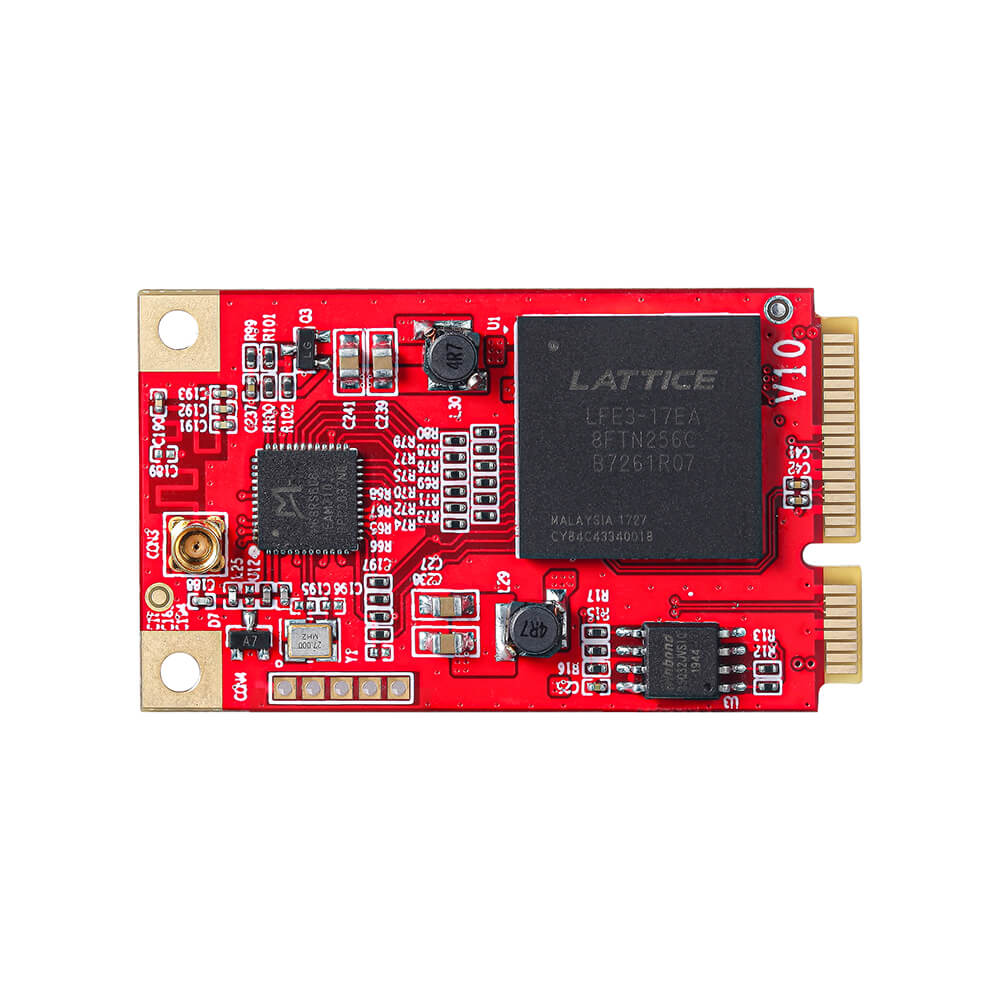

TBS7901 DVB-S2X/S2/S mini-PCI-e card is a digital satellite TV Tuner card for watching and recording Free to Air satellite TV on desktop PC. It supports not only advanced DVB-S2X/S2/S, but also VCM and multi stream, which is considered as a professional TV tuner for industrial-level users.
Main Features
- Support DVB-S/S2/S2X
- Fast scanning functionality for all media
- Supports VCM and multi stream
- High-speed data download via satellite
- Watch & record satellite TV / radio programs on PC

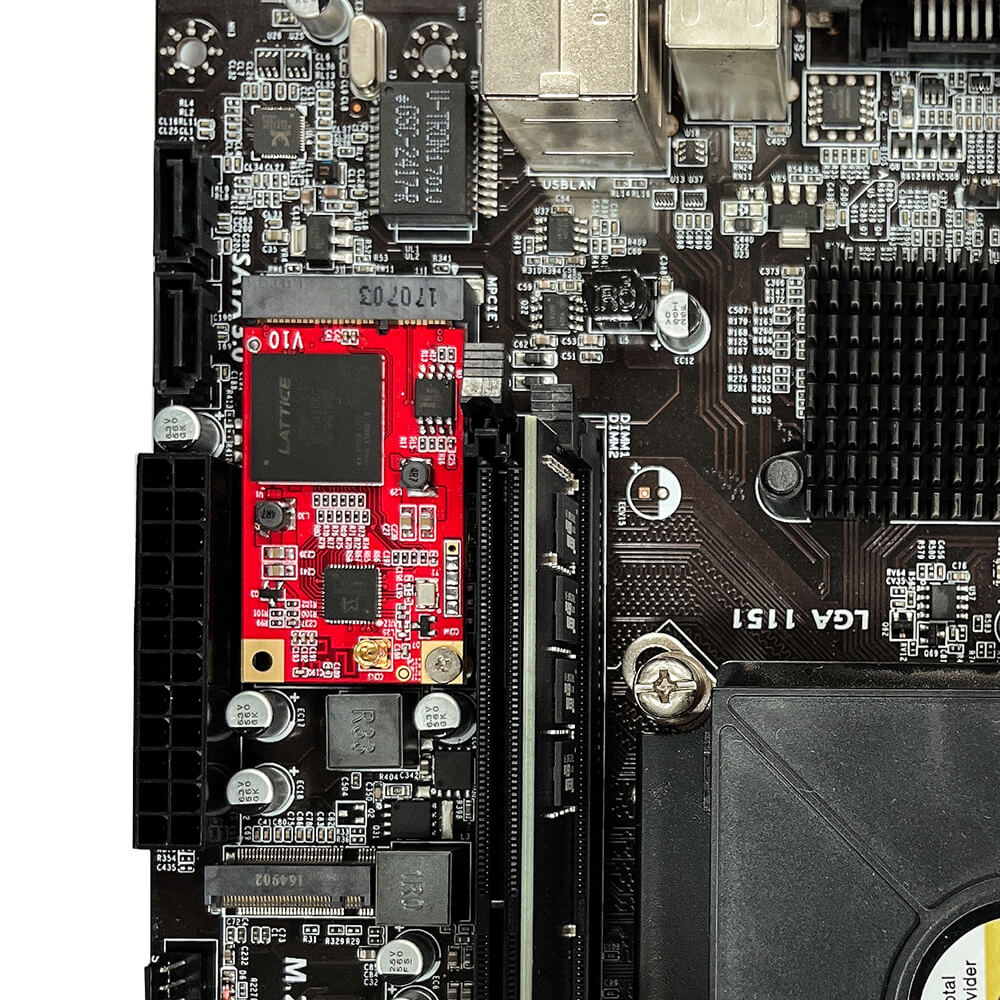

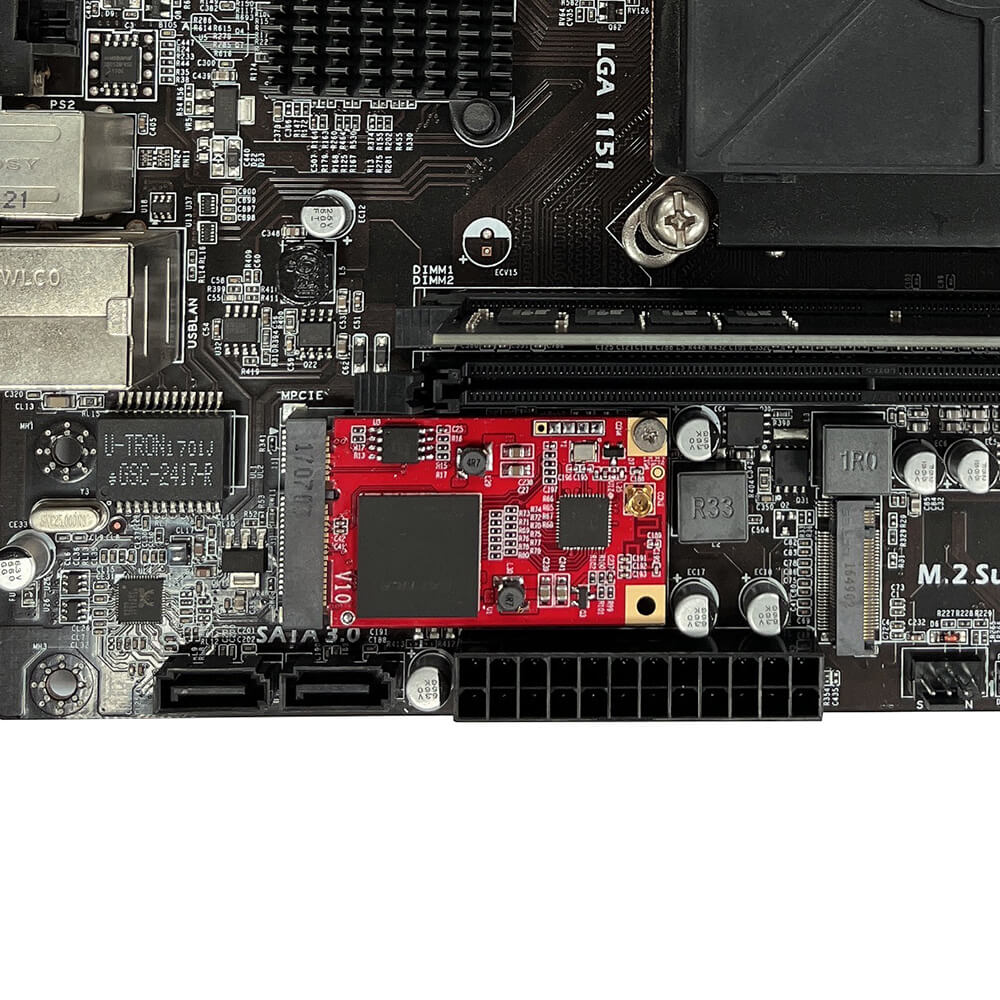

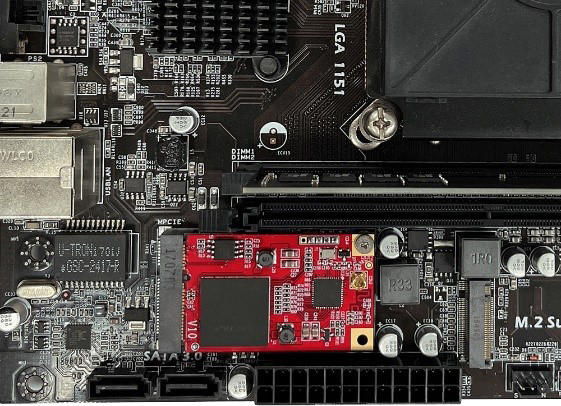

PCI-E Slot
Applications
- Data receiving
- IPTV streaming
- Media monitoring
- Digital content distribution
Specifications
| Model | DVB-S2X/S2 mini card | |
| Connection | Mini PCI-express slot | |
| 1x RF in | ||
| DVB-S/S2/S2X | ||
| DVB-S/S2 | QPSK | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 | |
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| 32APSK | 3/4, 4/5, 5/6, 8/9, 9/10 | |
| DVB-S2X | QPSK | 1/4,1/3, 2/5 (S2-MODCODs) |
| 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
| 8/9, 9/10 (S2-MODCODs) | ||
