TBS8510 Multiple inputs H.264/H.265 IPTV Transcoder
TBS8510 Multiple inputs H.264/H.265 IPTV Transcoder
- Model: TBS8510
- Weight: 22,000.00g
In Stock

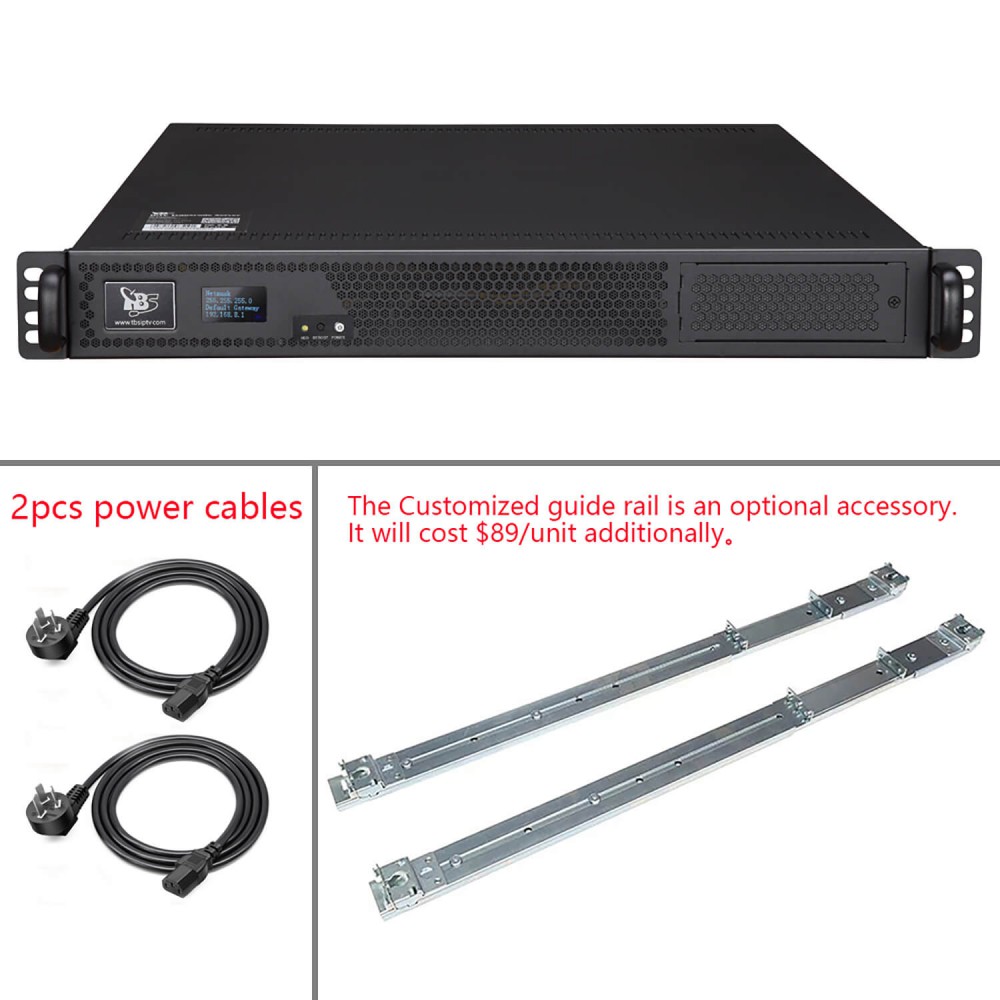

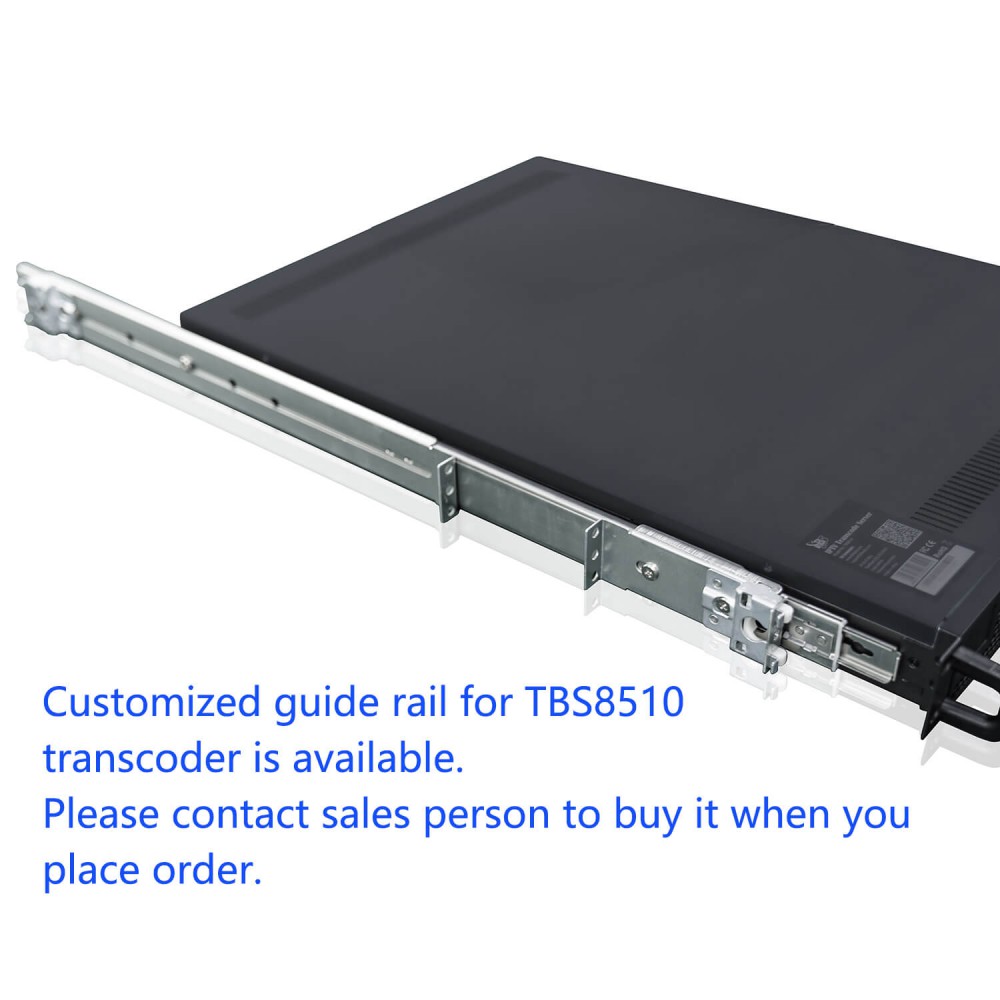

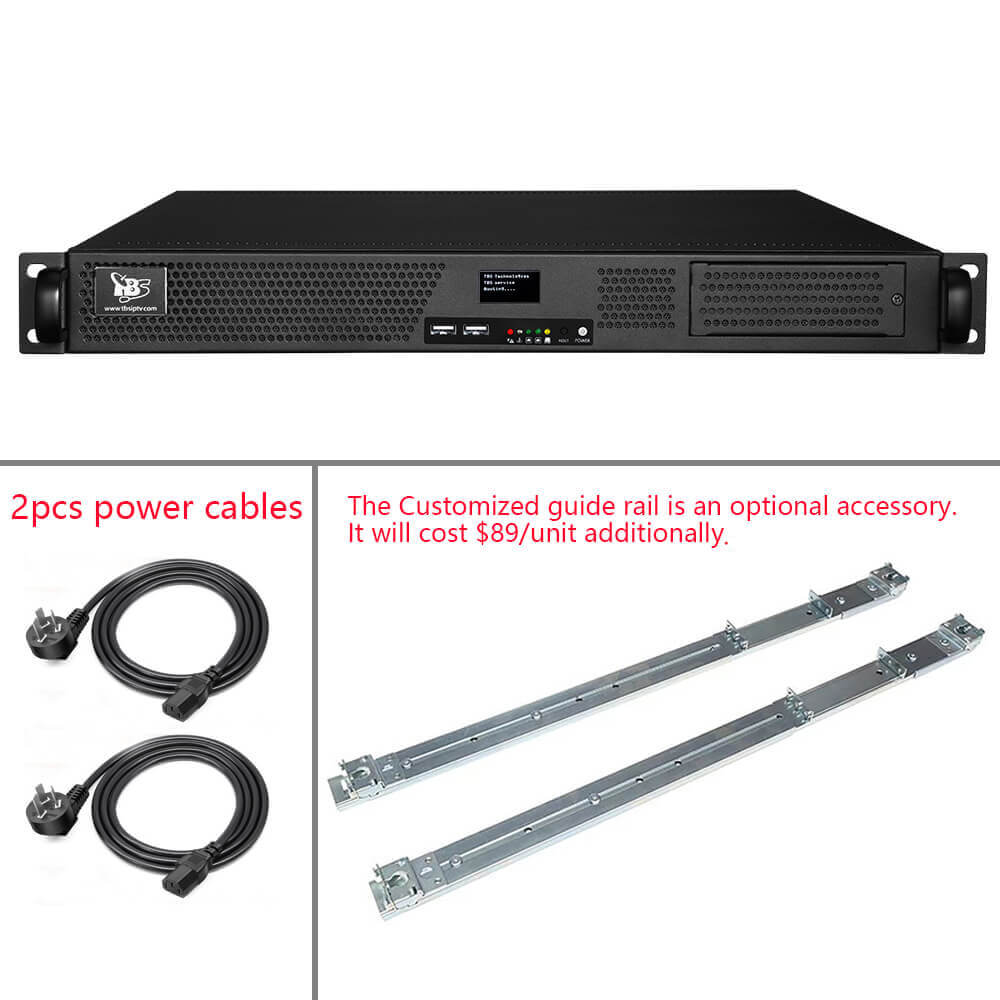

"Customized guide rail" for TBS8510 transcoder is available.
Please contact sales person to buy it when you place order.
TBS8510 is a real-time SPTS/MPTS transcoder, which supports converting media files from their source format into the best possible quality stream to downstream network, CDN or any other specific video distribution system.
TBS8510 supports multiple media resource input, capable of ingesting IP feeds, DVB feeds, ATSC feeds, ISDB-T feeds or HDMI videos. It supports converting streams to MPEG-4 or H.264/H.265 format, compressing the streams' bit rate, changing the graphics resolution and so on.
TBS8510 can be easily managed through NMS system and has become an ideal solution for operators to provide high quality video transcoding.
TBS8510 Transcoder is upgraded to Kylone V3 transcoding system

Overview of the "Web page playing function"
Once the video stream is output from TBS8510 transcoder in HLS protocol, users can easily watch/preview the video by appointing URL in browser or scan a QR code via smartphone or smart Pad.
Input the URL in browser to preview the stream or watch the video. | Scan QR code by smart phone or smart Pad to preview the stream |
![]() |
![]() |

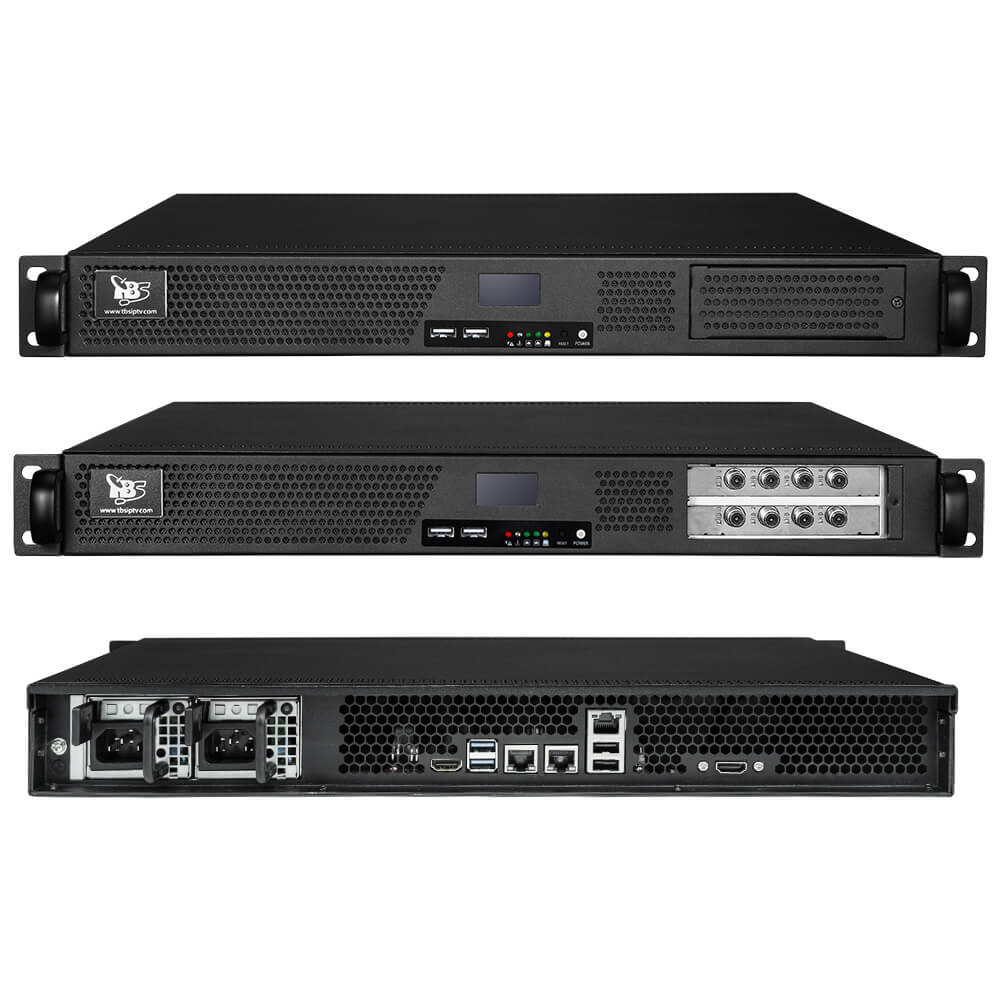

TBS8510 currently has 3 hardware versions to meet various system's requirements:

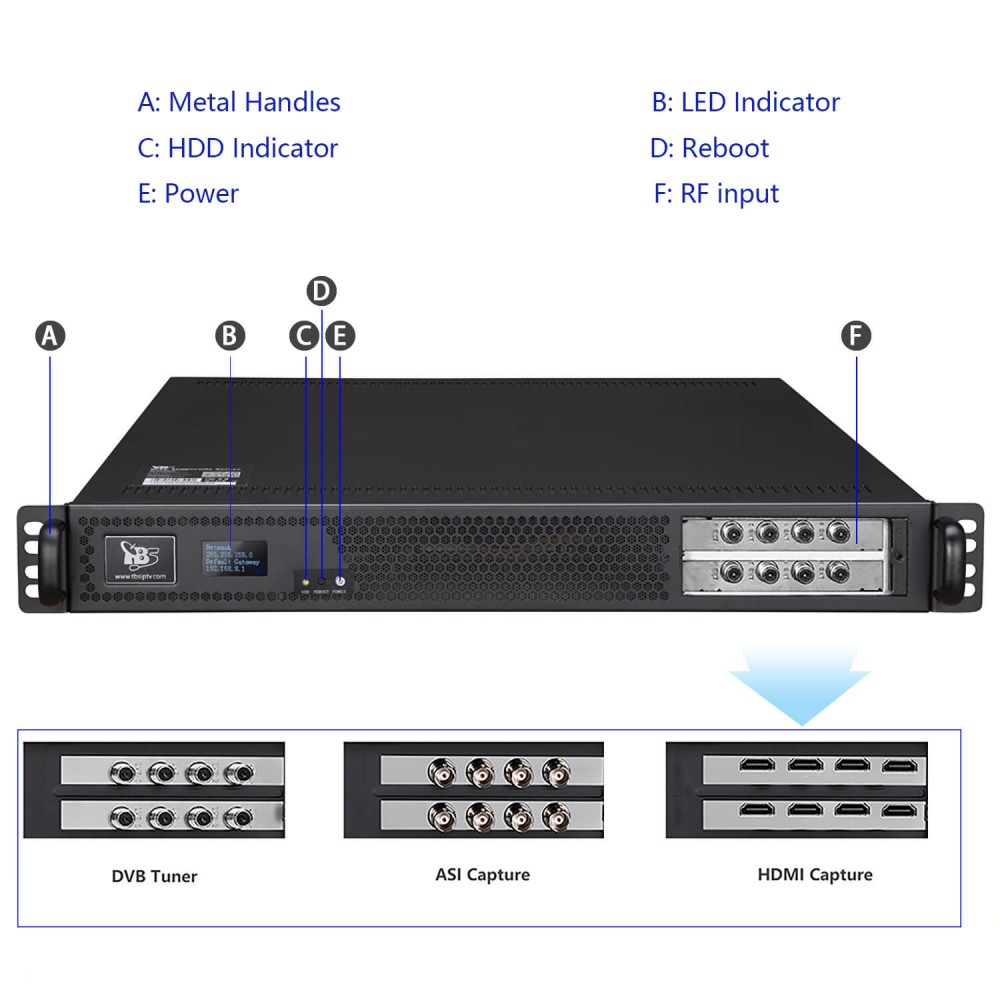

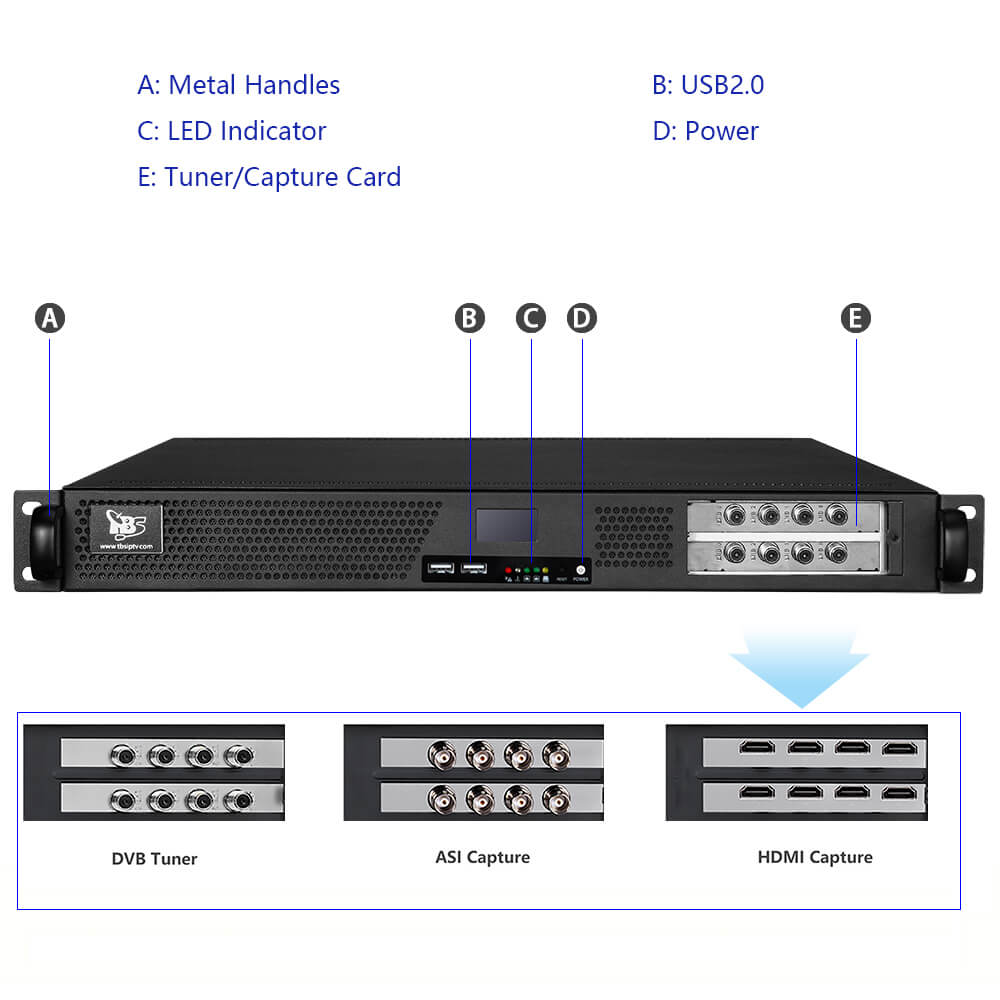

Version 1 supports installation of 2 TBS DVB/ATSC/ISDB-T capturing cards (up to 16 tuners) for receiving signals from DVB/ATSC/ISDB-T. It supports transcoding up to 30 HD or 60-80 SD channels.
Version 2 only supports IP stream input, not available to be installed with any TBS tuner card. It supports transcoding up to 40 HD or 80-100 SD channels.
Version 3 supports installation of 2pcs TBS DVB-C/DVB-T modulator cards (up to 8 frequencies) for converting IP streams to DVB-C or DVB-T signals and output via RF ports. It supports to output of up to 360Mbps DVB-C signal or 217Mbps DVB-T signal.
Every version of the TBS8510 transcoder has the following features and specifications:
- Multiple inputs available: DVB/S2/S/T2/T/C, ISDB-T, HDMI, ASI or IP.
- Optimized to be 1000Kbps for SD, 1800Kbps for HD 720P, 2500Kbps for HD 1080p.
- Supports HEVC / H.265 transcoding.
- Baseline, main profile and high profile with variable GOP.
- Multiple codecs, Protocols, Bitrate Resolution, Profile per channel.
- GbE IP output: UDP, RTP, RTMP, Pull/Push HTTP, HTTP, Live Smooth (HLS), FTP M3u8 playlist file.
- Flexible GOP structure with Reference-frame and B-frame editing.
- Up and down conversion of frame rate.
- High quality pre-processing, including filtering, de-interlacing, cross scaling, image insertion.
- Support variable Bit Rate (VBR) encoding, maximizes adaptive streaming video quality and bandwidth efficiency.
- Based on embedded Centos 7 Linux.
- Supports setting the MPEG-TS service provider and service name.
- Support by pass the EIA-608 Closed Captioning Subtitle
- Support transcoding all audio tracks and keep all subtitles
- DVB Subtitle and Logo insertion.
- Parameter templates settings and imports
- Easy configuration via Web UI
- Designed for safe 24*365 operation
Specifications:

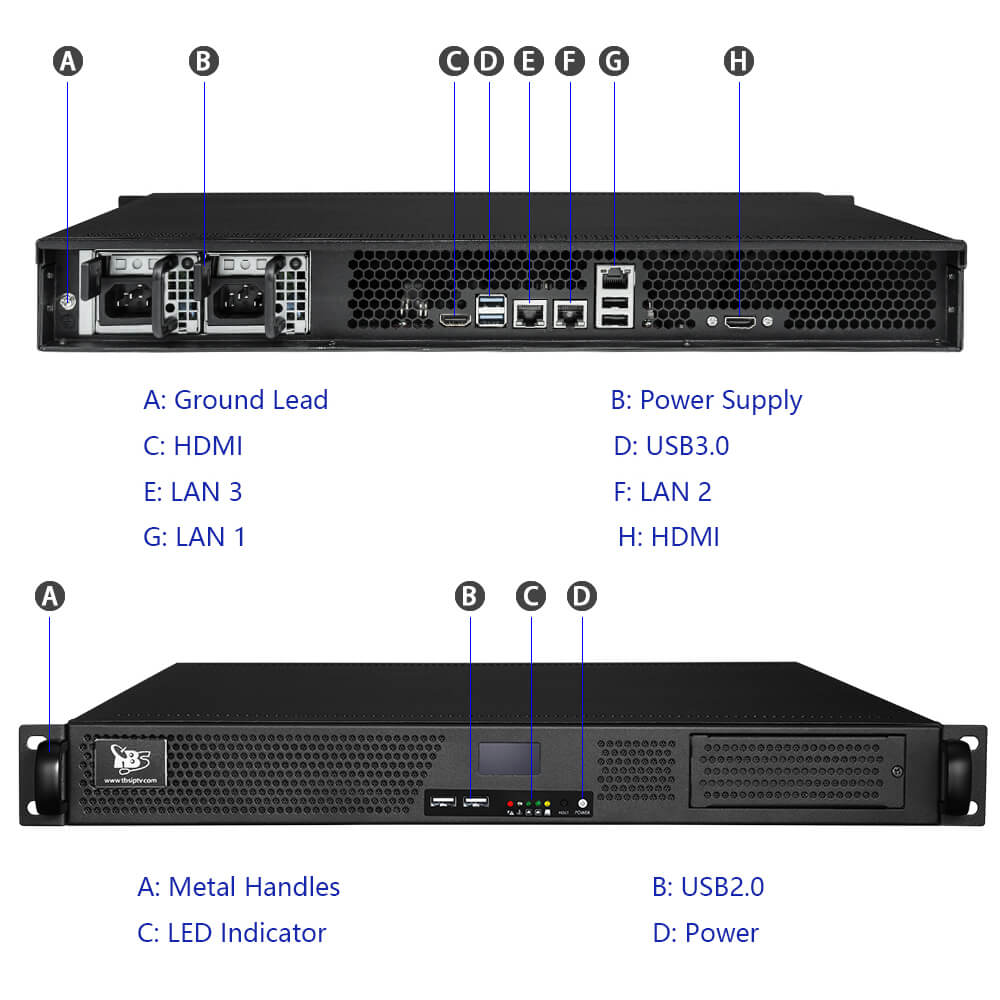

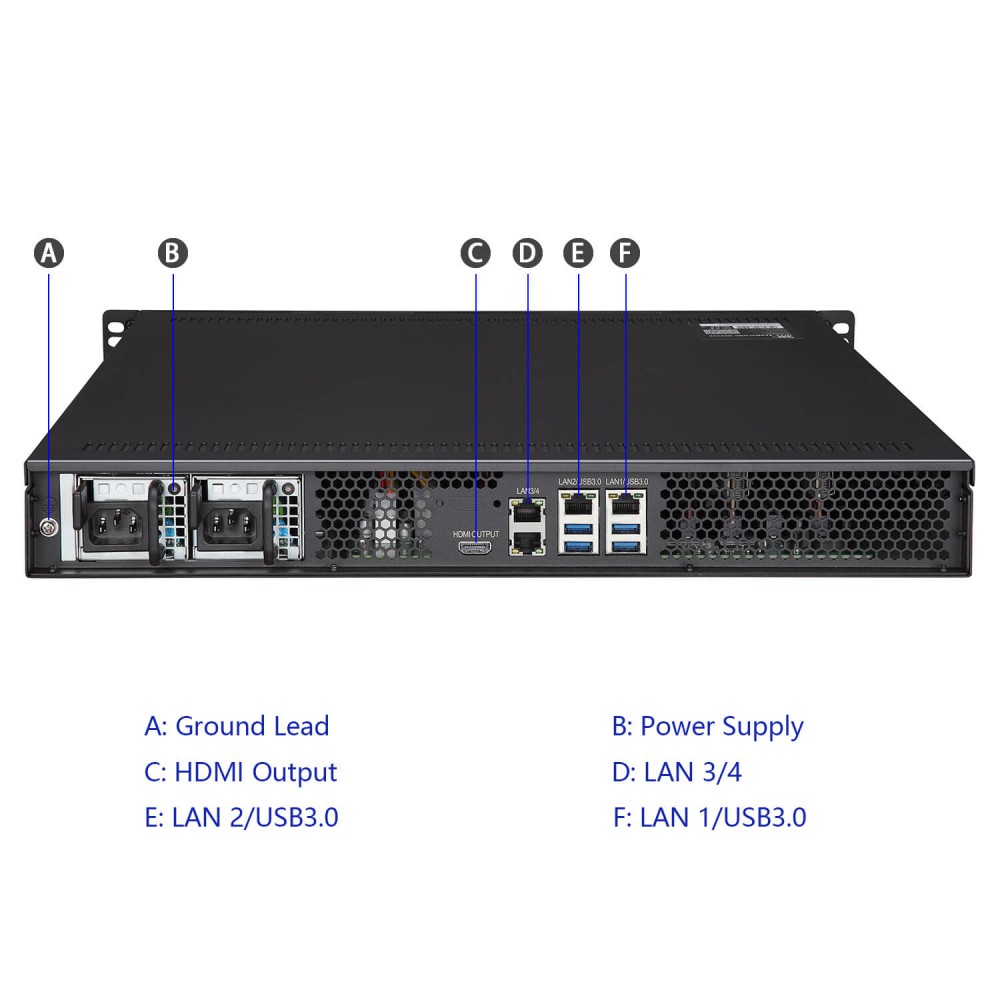

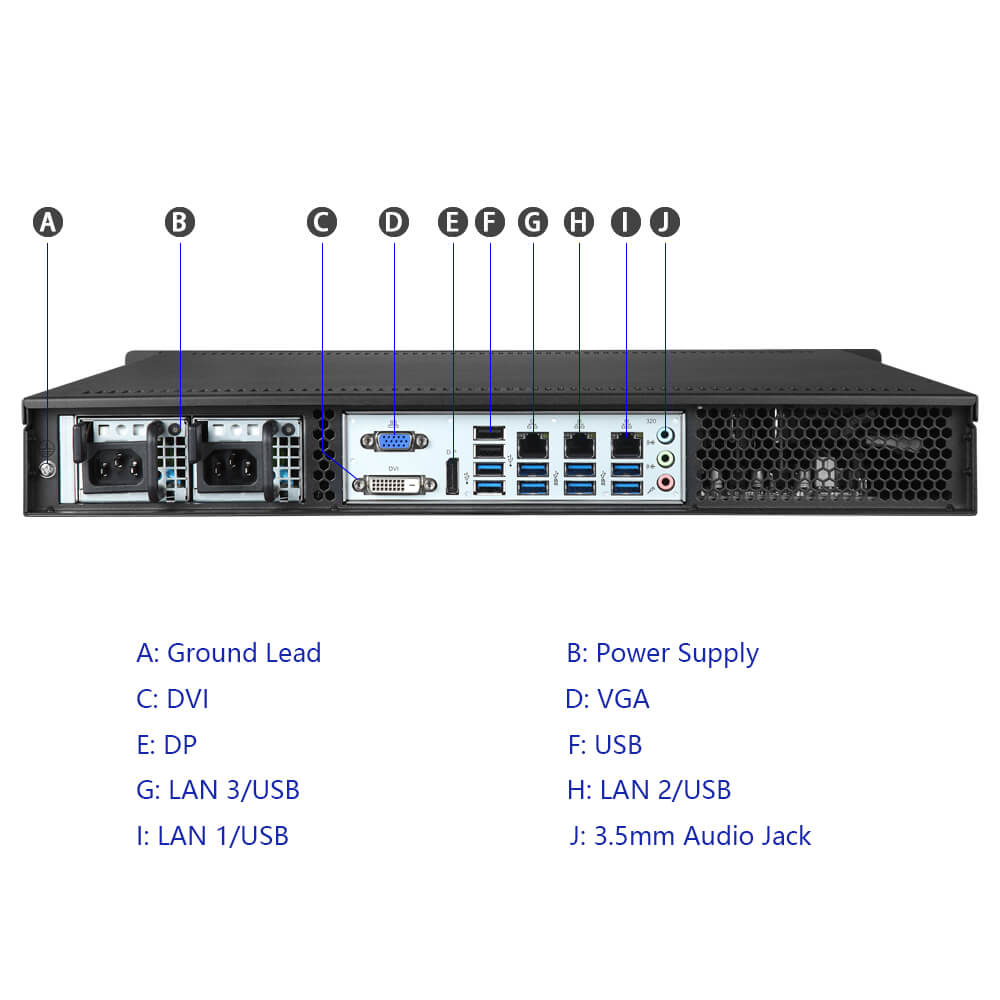

Interface | 2xRJ45, 1000M Base-T2 | ||||
2xPCI-E slot | |||||
DDR |
|
||||
Input | |||||
Input signal | DVBS/S2, DVBT/T2, DVBC, ATSC, ISDBT, DTMB, HDMI, ASI | ||||
Input Net Stream | UDP, RTP, HTTP, HLS, RTSP, Media Files, RTMP, SRT | ||||
Video codecs | MPEG-2, AVC/ H.264, HEVC / H.265 | ||||
Resolution | 1920x1080P, 1920x1080i, 1280x720P, 1024x576, 720x576i, 720x480i, 480x576, 544x576, 640x576, 704x576 | ||||
Audio codecs | AAC, MP2, MP3, AC-3 | ||||
Output | |||||
Output types | UDP, RTP, RTMP, HTTP, HLS(ABR), SRT | ||||
Video codecs | AVC/ H.264, HEVC / H.265 | ||||
Resolution | 1920x1080P, 1920x1080i, 1280x720P, 1024x576, 720x576i, 720x480i, 480x576, 544x576, 640x576, 704x576 | ||||
Audio codecs | AAC, MP3 | ||||
Rate Control | CBR VBR | ||||
Transcoder |
Version 1:
Version 2:
Version 3:
|
||||
Power Consumption | 90 ~ 230V, less than 200W | ||||
Dimensions | 592mm * 438mm * 53mm | ||||
Weight | 22kg |
