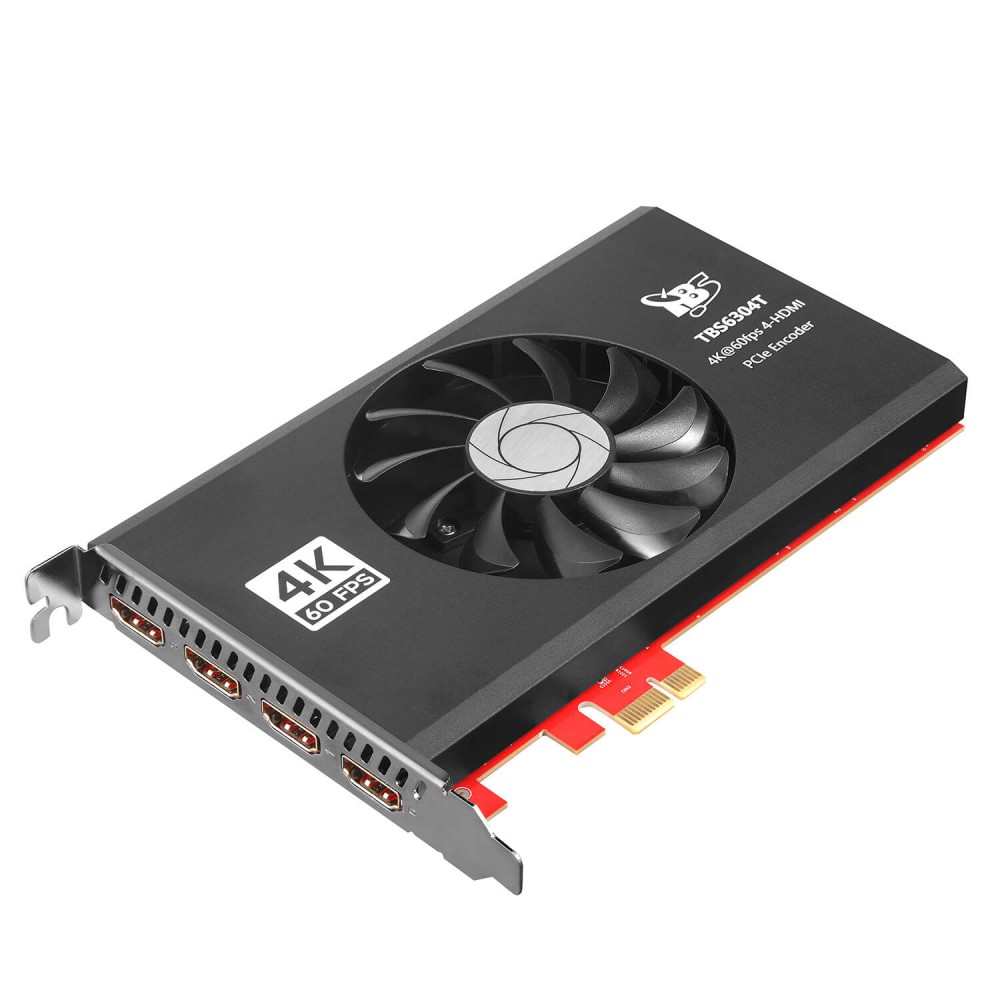

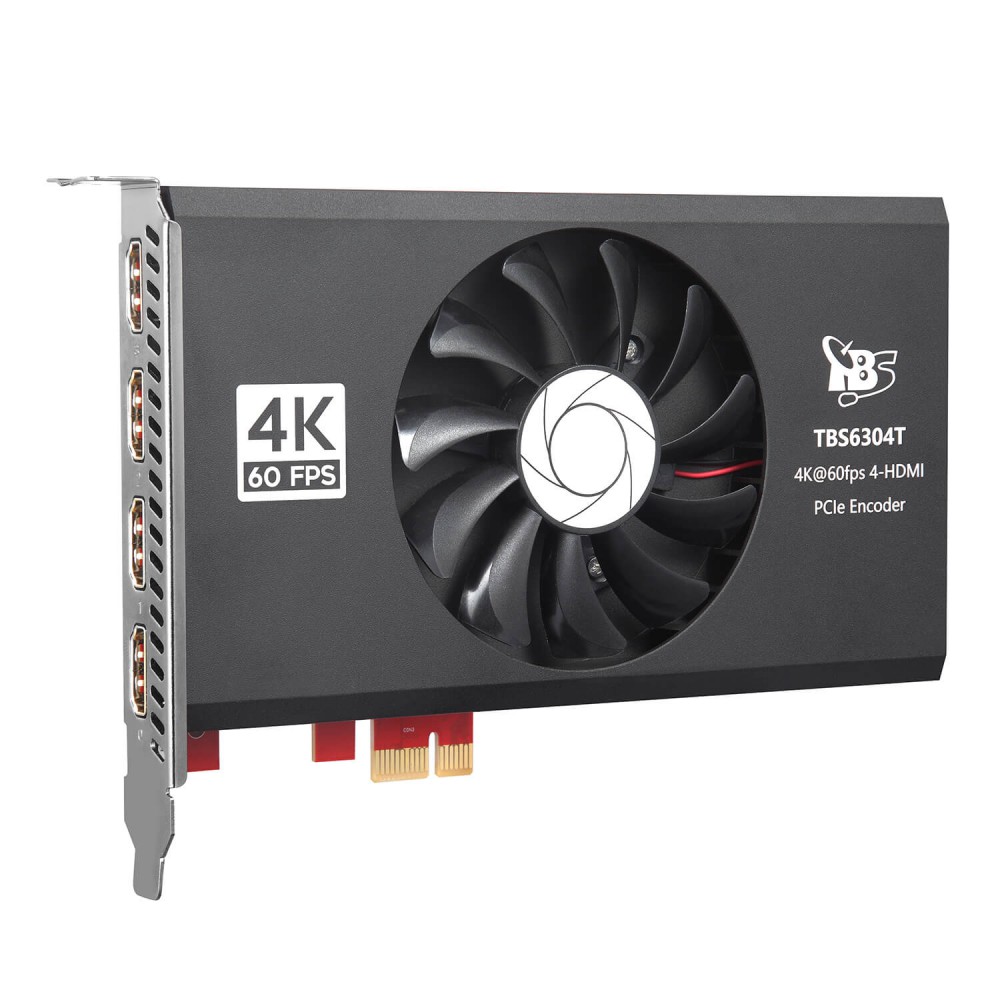

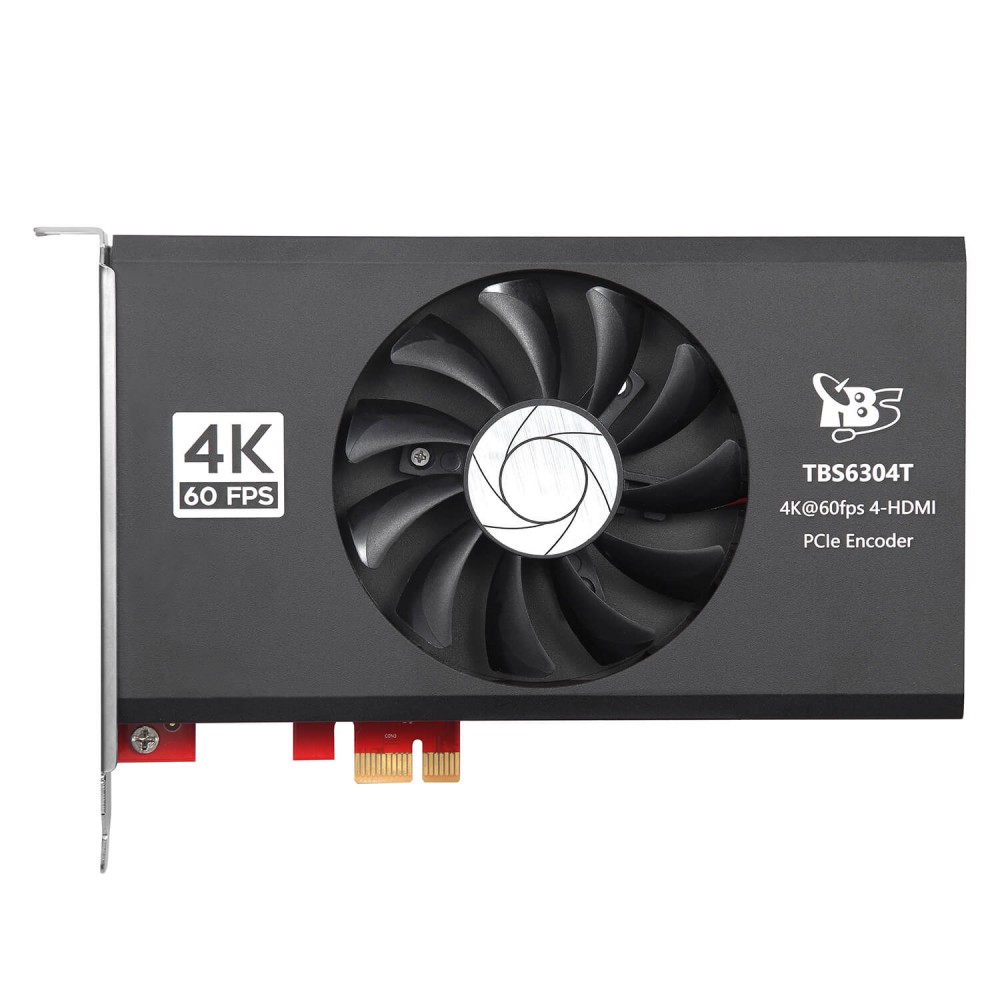

TBS6304T is a HDMI 4K UHD Video Encoding Card, with 4 HDMI 2.0 inputs. Each HDMI port supports max 3840 x 2160P@60hz input and H.265 & H.264 encoding. It is an ideal device for whom needs to stream lower bit rate video over LAN or WAN networks – often due to internal network limitations, whilst maintaining high quality video.

A special encoding pattern:

After capturing UHD/HD video from 4 HDMI ports, TBS6304T 4K@60fps 4 HDMI input encoding card will generate four H.264/H.265-encoded streams by TS packet and output via PCIe Interface. In short, TBS6304T can be used as a normal DVB Tuner PCIe card, so it can work with many DVB streaming software, such as Kylone, Astra Cesbo, DVBlast and Tvheadend on Linux or "DVB Dream" on Windows.

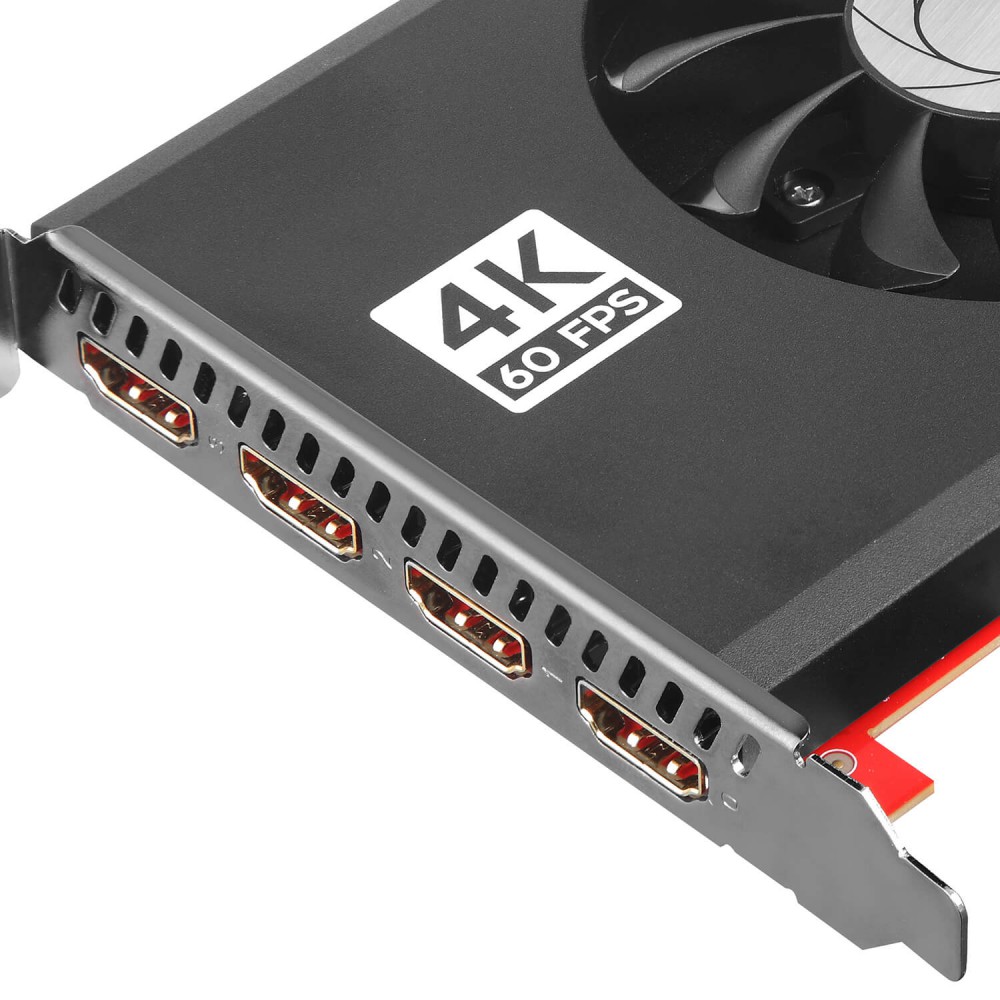

TBS6304T is equipped with 4 HDMI2.0 inputs. The PCIe interface allows users to install TBS6304T into any full-profile PCIe slot, including fixed workstations such as 2U or 4U Rack-mounted servers or media centers.

Main Features

• 4x HDMI 2.0 inputs, each supporting up to 3840x2160@60Hz.
• High efficient hardware encode, small CPU consumption
• H.265/HEVC and H.264/AVC encode
• Real 4K@60fps encode
• Compatible with DVB software such as DVB Dream, DVBViewer, DVBlast, Tvheadend, Astra Cesbo and Kylone.
• Widely used in the industries of education, health care, conference, IPTV, news interview, and more.

Specifications
