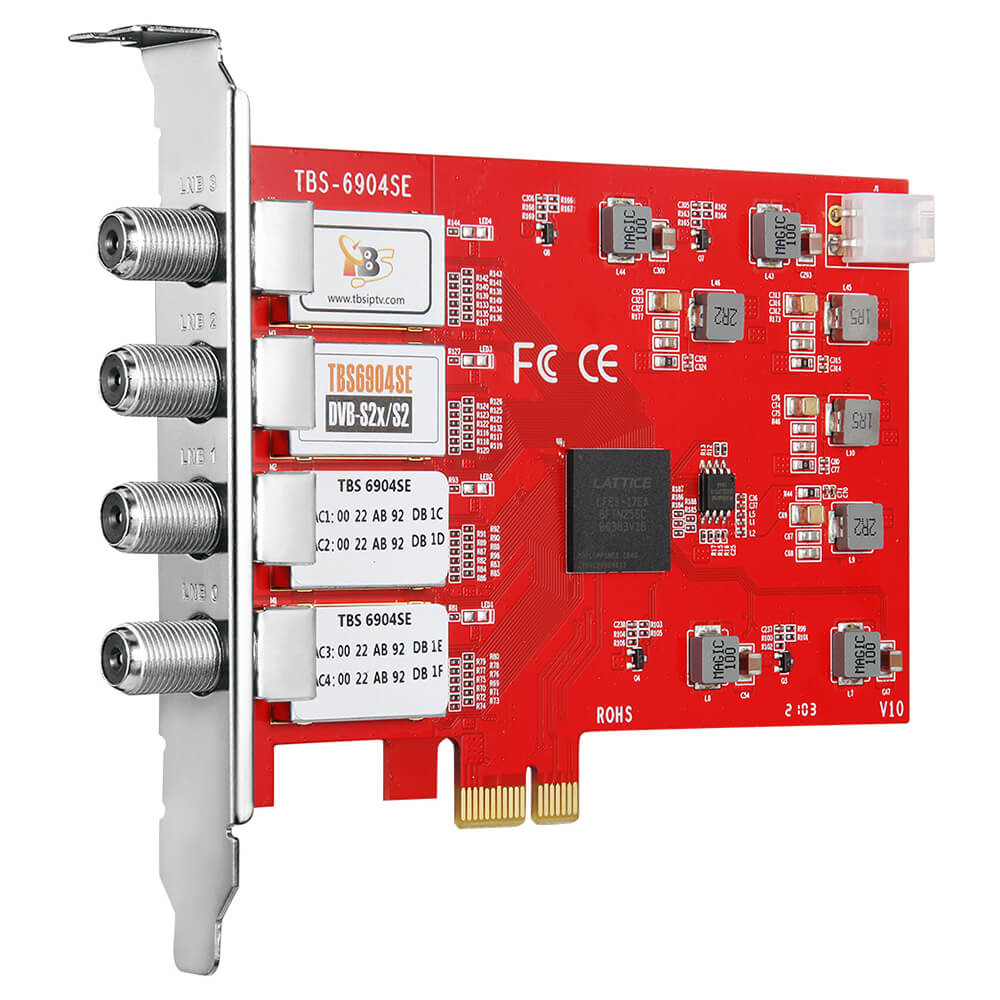

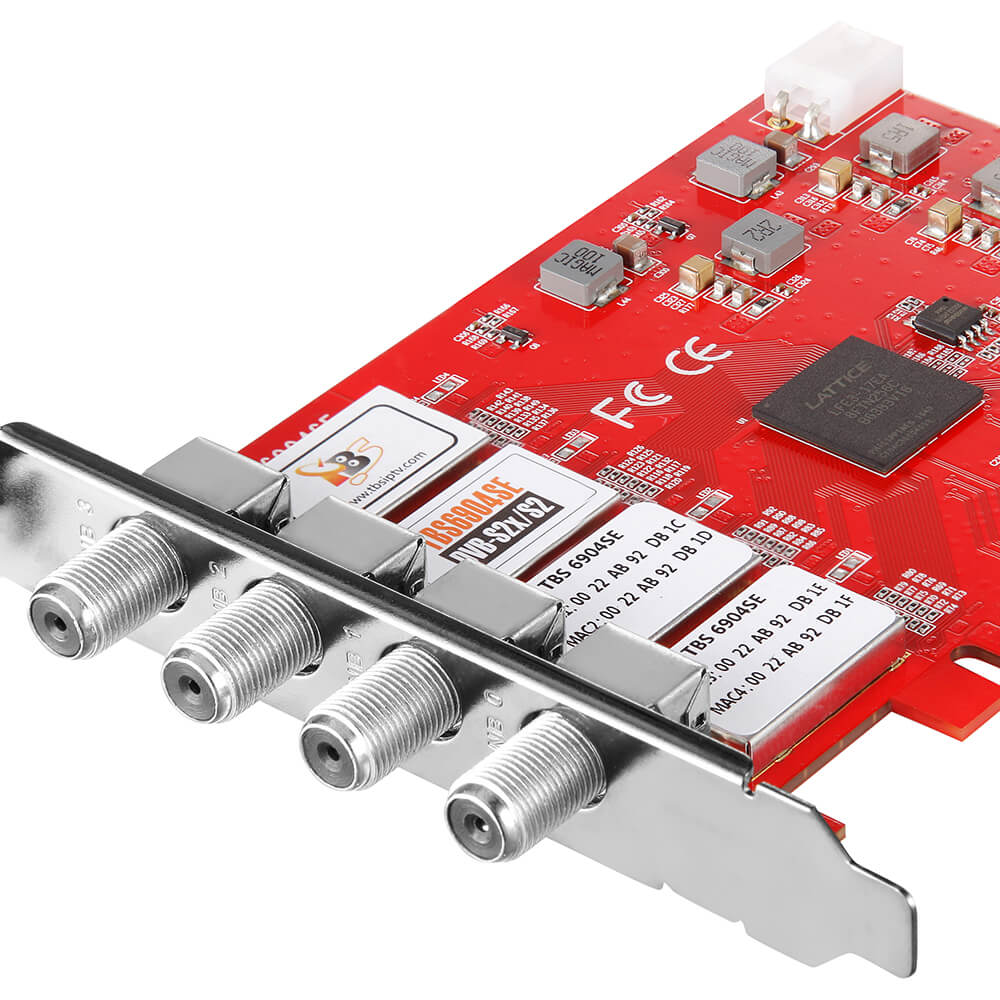

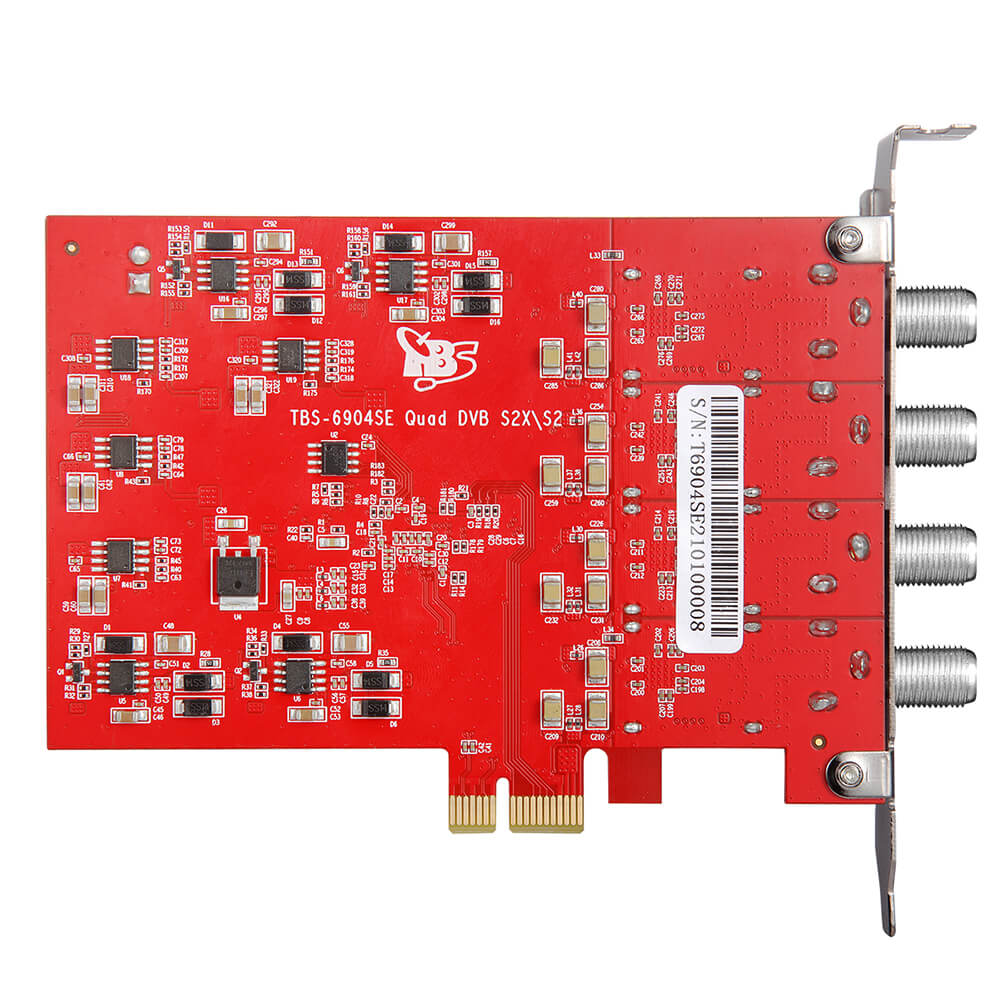

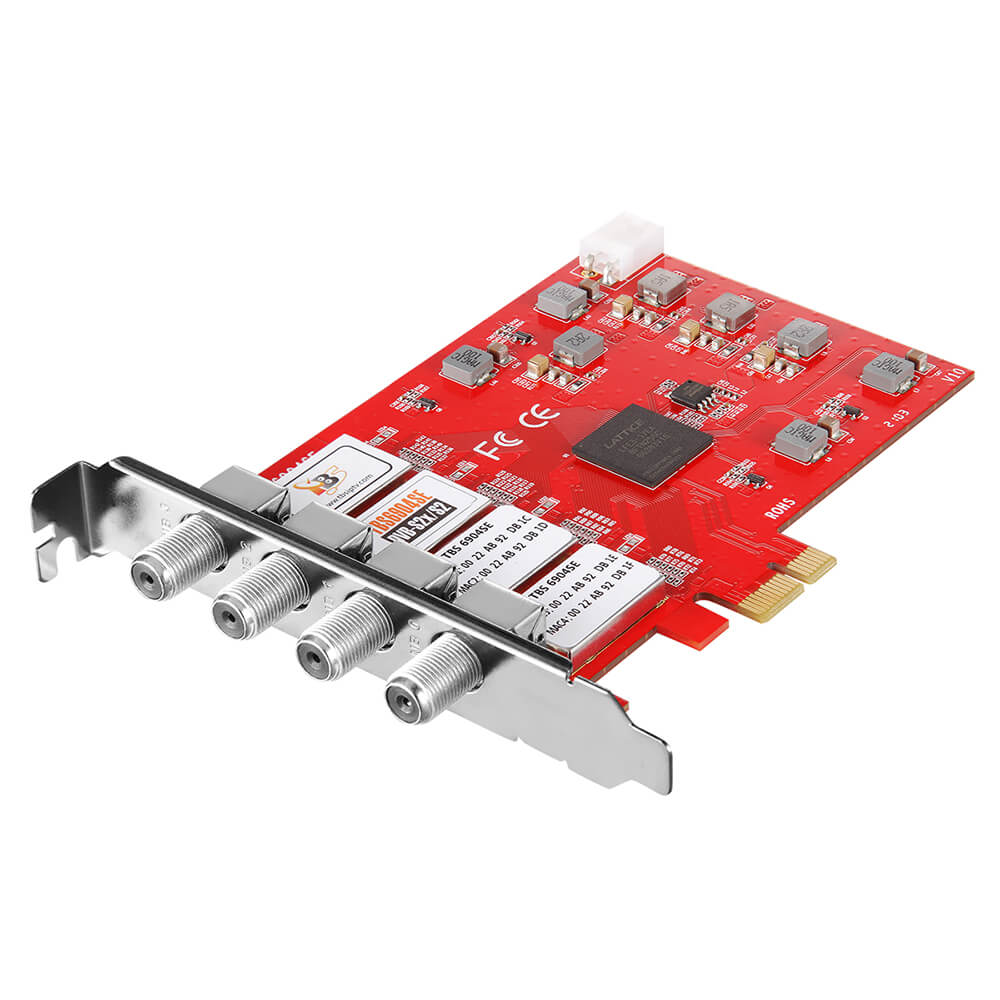

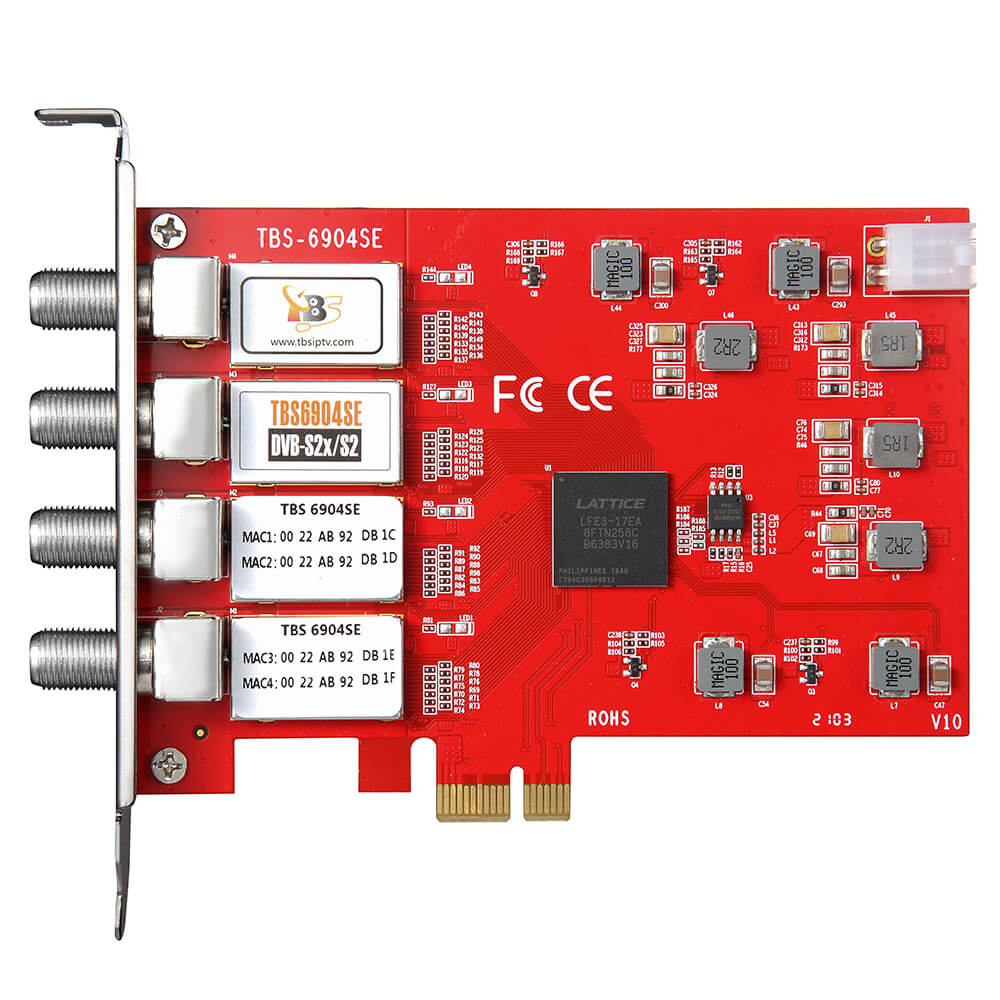

TBS6904SE DVB-S2X Quad Tuner PCIe Card
TBS6904SE DVB-S2X Quad Tuner PCIe Card
- Model: TBS6904SE
- Weight: 400g
- Reward Points: 200
In Stock
US$199.99
TBS6904SE is the successor of TBS6904, it not only supports to receive SD/HD digital TV channels from 4 different satellite transponders simultaneously, but also supports VCM, which is considered as a professional TV tuner for industrial-level users. The four advanced DVB-S2X/S2/S tuners enable you to watch TV channel from one satellite transponder, while recording three other channels from different satellite transponders at the same time.
Main Features:
- Support Quad DVB-S/S2/S2X
- Fast scanning functionality for all media
- Supports VCM and multi stream
- High-speed data download via satellite
- Watch & record satellite TV / radio programs on PC
Applications:
- Data receiving
- Media monitoring
- Digital content distribution
Specification
| Model | TBS6904SE | |
| Connection | PCI-express | |
| 4x RF in | ||
| DVB-S/S2/S2X | ||
| DVB-S/S2 | QPSK | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 | |
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| 32APSK | 3/4, 4/5, 5/6, 8/9, 9/10 | |
| DVB-S2X | QPSK | 1/4,1/3, 2/5 (S2-MODCODs) |
| 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
| 8/9, 9/10 (S2-MODCODs) | ||
| 11/45, 4/15, 14/45, 7/15 8/15, 32/45 | ||
| 8PSK (8APSK-L) | 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 32/45 | ||
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 3/5, 32/45 | ||
| 32APSK(32APSK-L) | 3/4 ,4/5,5/6, 8/9, 9/10 (S2-MODCODs)32/45 ,11/15,7/9 ,(2/3) | |
| VCM | Yes | |
| Symbol rate | 1 ~ 45Msymb/s | |
| Power consumption | ||
| Input/ Power: | 8 ~ 12W | |
| temperature | 0°~ 78° | |
| System Requirements | Windows XP / Vista/ 7/ 8/ 10, Linux | |
| Available PCI Express x1, x4, x8 or x16 slot | ||
| Dimension: | ||
| TV tuner card size | 145 * 92 * 1.6mm | |
| Gift Box Size | 200 * 130 * 30mm | |
| Weight | 400g | |
| Package Contents | 1 * TBS6904SE | |
| 1 * Power cable | ||
