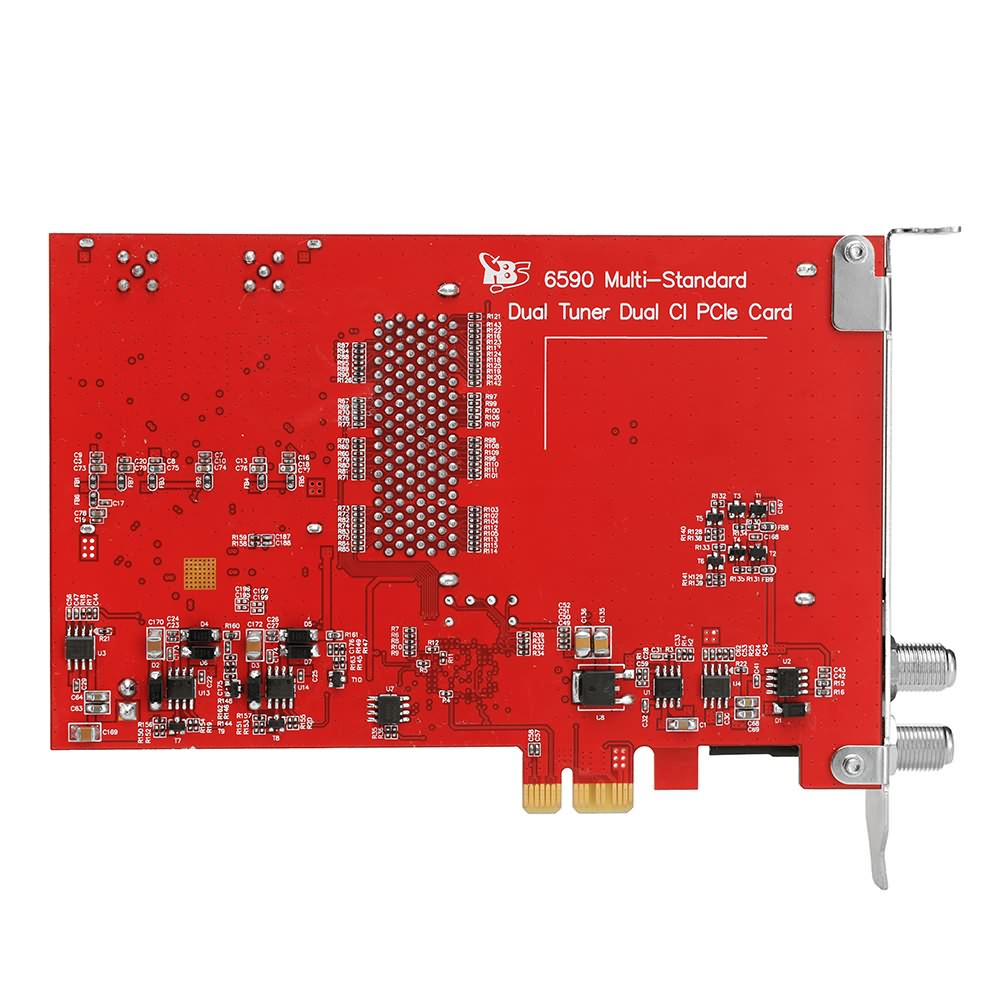

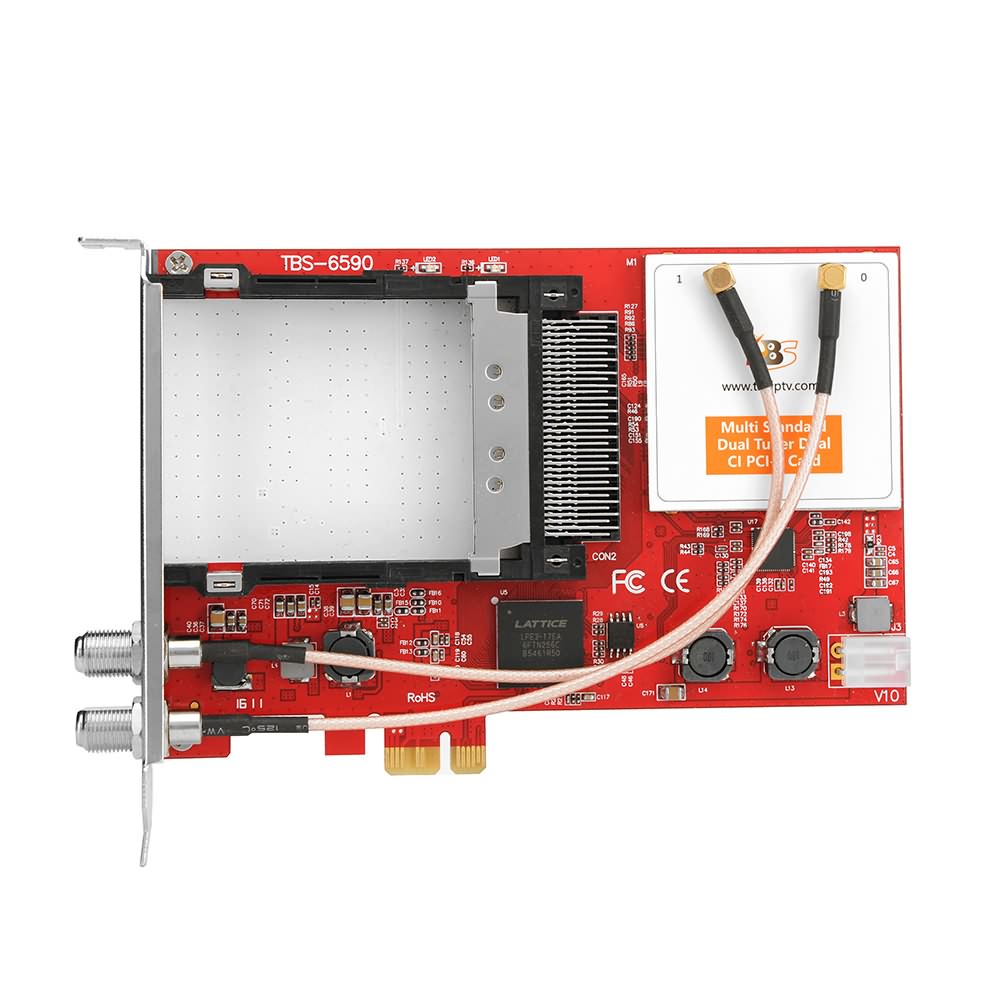

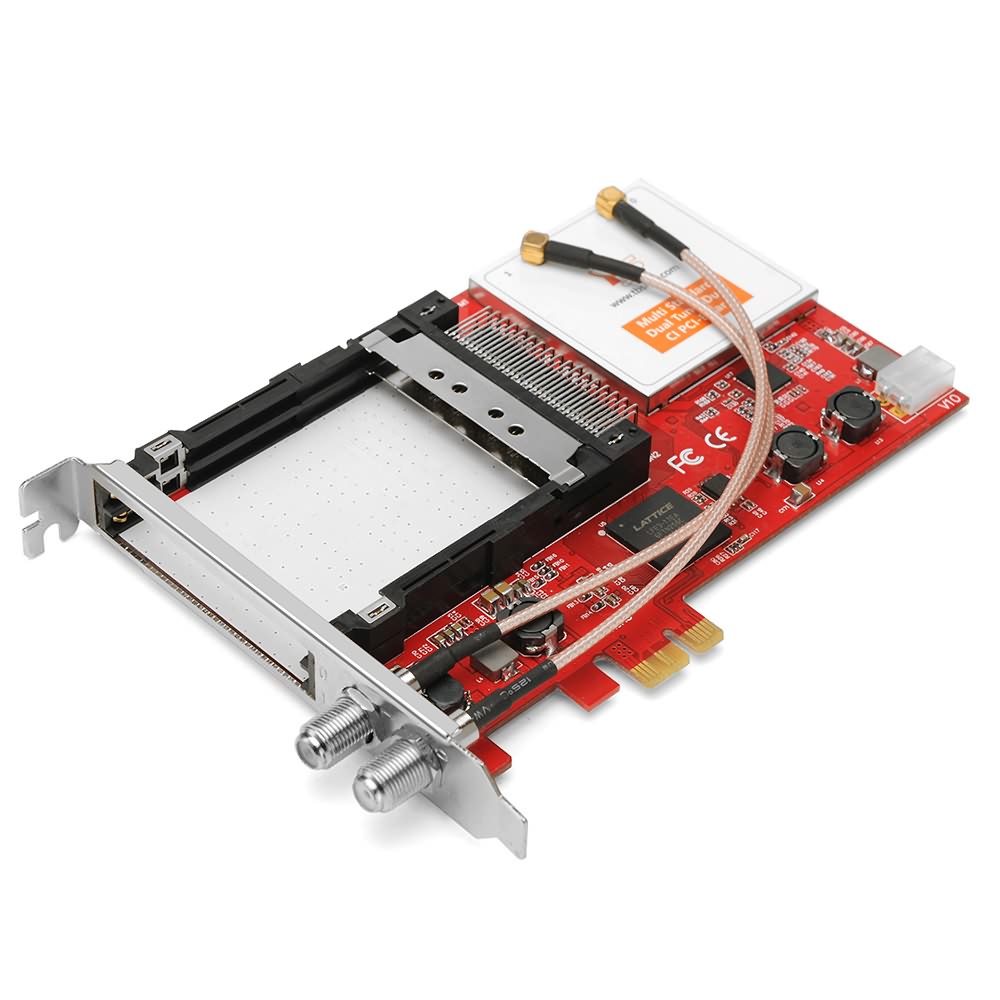

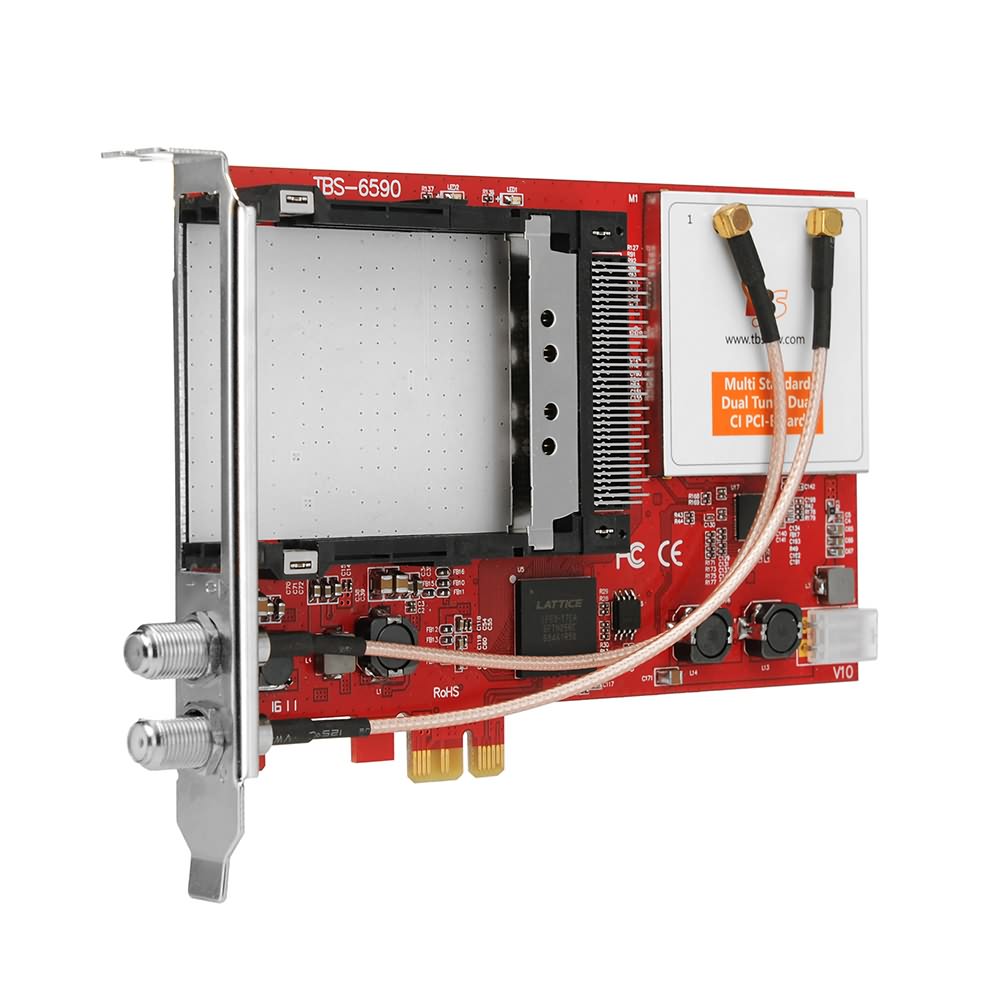

TBS6590 Multi Standard Dual Tuner Dual CI PCI-e Card


TBS6590 Multi Standard Dual Tuner Dual CI PCI-e Card

  • Model: TBS6590
  • Weight: 245.00g

Discontinued

Successor

TBS6590 multi standard dual tuner dual CI card is a twin tuner card for watching or recording two different channels from two different frequencies simultaneously. TBS6590 supports multiple digital TV standards, including DVB-S2/S, DVB-T2/T,DVB-C2/C, DVB-S2X and ISDB-T. It is built with 2 Common Interface which allows insertion of CAM and smartcard for pay TV, so it is a good choice for watching/recording digital HD TV on PC. What's more, with this multi-standard TV tuner card, it is much easier to switch between different digital TV signals. You just need to plug another signal cable instead of taking out the card from your server.

Main Features:

  • Support DVB-S/S2/S2X, DVB-T/T2/C(ITU-T J.83 Annex A/B/C)/C2, ISDB-T
  • Watch & record TV/ radio programs on PC
  • Common Interface (Dual CI) Support
  • SD or HD TV receiving

Applications:

  • Data receiving
  • Media monitoring
  • Digital content distribution

Specifications:

ISDB-T COFDM demodulator and FEC decoding
Support 3 layers decoding
TMCC decoding
Support differential demodulation
AC1 and AC2 decoding
DVB-T2 and T2-Lite Receiving channel:  VHF band, UHF band
Bandwidth: 1.7, 5, 6, 7, 8MHz
FEC:  QPSK, 16QAM, 64QAM,256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C2 COFDM demodulator(16_QAM to 4096_QAM)
FEC(LDPC/BCH) decoder
Bandwidth: 6MHz, 7MHz, 8MHz
DVB-C and ITU-T J.83 Annex B QAM demodulator
FEC decoder
1 to 7.2MSymbol/s
DVB-S/S2/S2X symbol rates: 1-45Msps
FEC:
DVB-S/S2
            QPSK:  1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
             8PSK:  3/5, 2/3, 3/4, 5/6, 8/9, 9/10
         16APSK:  2/3, 3/4, 4/5, 5/6, 8/9, 9/10
         32APSK:  3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X
                   QPSK:   13/45, 9/20, 11/20
        2_4_2_APSK:   100/180, 104/180
                    8PSK:   23/36, 25/36, 13/18
            8_8_APSK:   90/180, 96/180, 100/180, 18/30, 20/30
                16APSK:   26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180
4_12_16rb_APSK:   2/3
  4_8_4_16_APSK:   128/180, 132/180, 140/180
Power consumption
Input/ Power: 12V/10~18W
temperature 0-60℃
Other information:
System Requirements Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Digital TV signal (DVB-S2/S/S2X /DVB-T2/T/DVB-C2/C/ISDB-T)
Dimension:
TV tuner card size 104.5mm*150mm
Net weight 137G

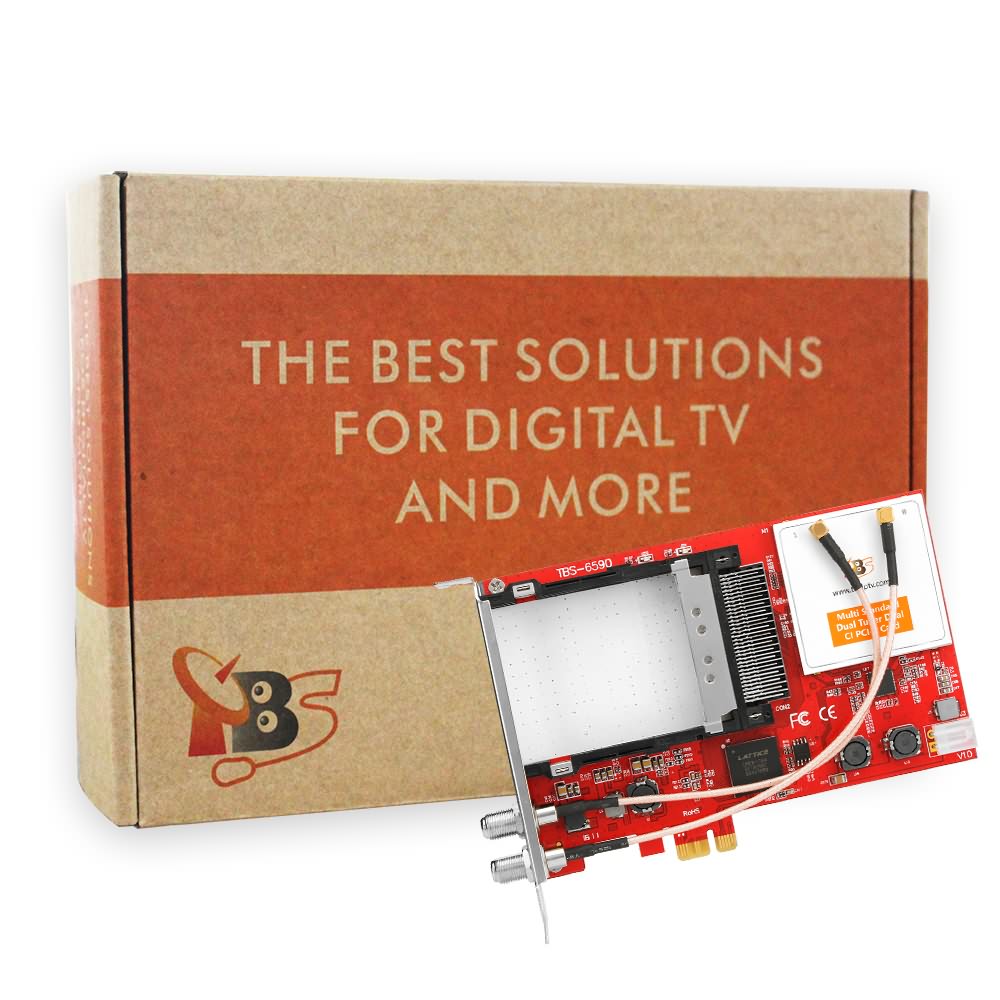

Gift Box Size 17.7*16*3CM
Weight 245G
Package Contents 1 x TBS6590
1x DC line
2x IEC Connector
