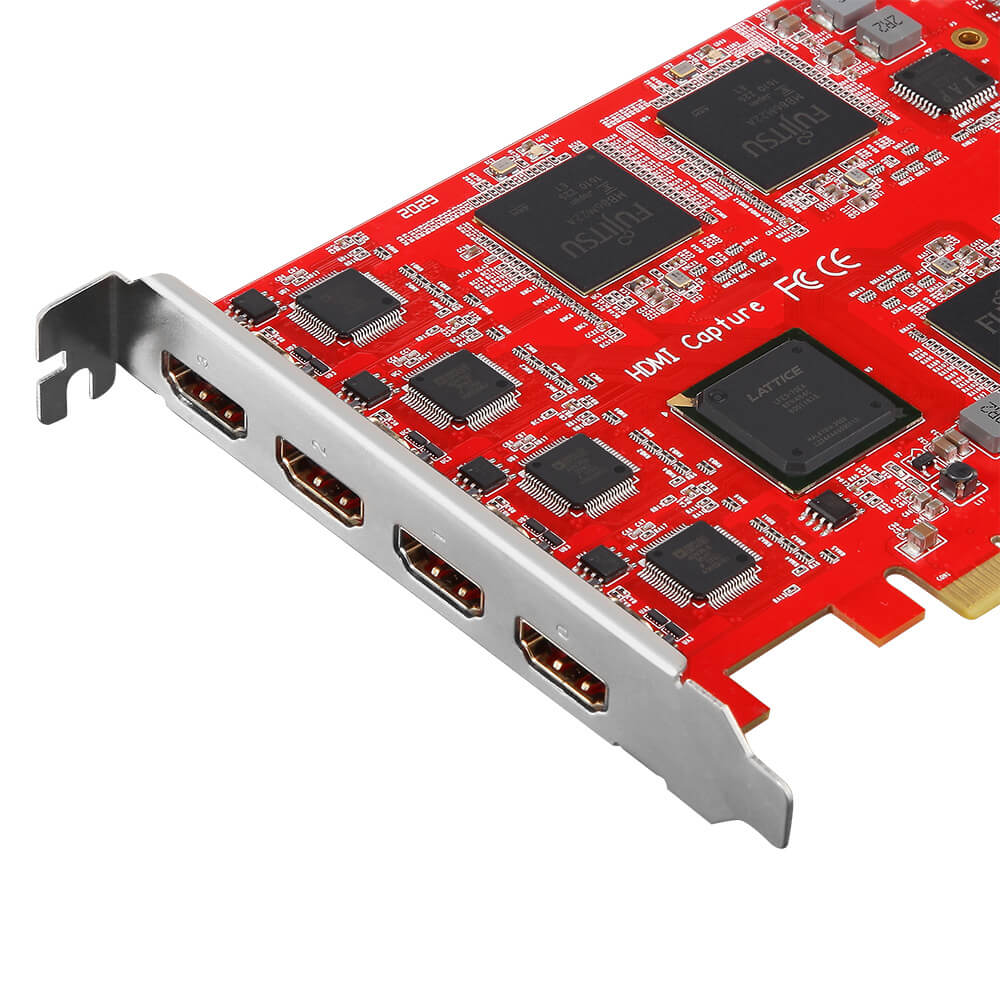

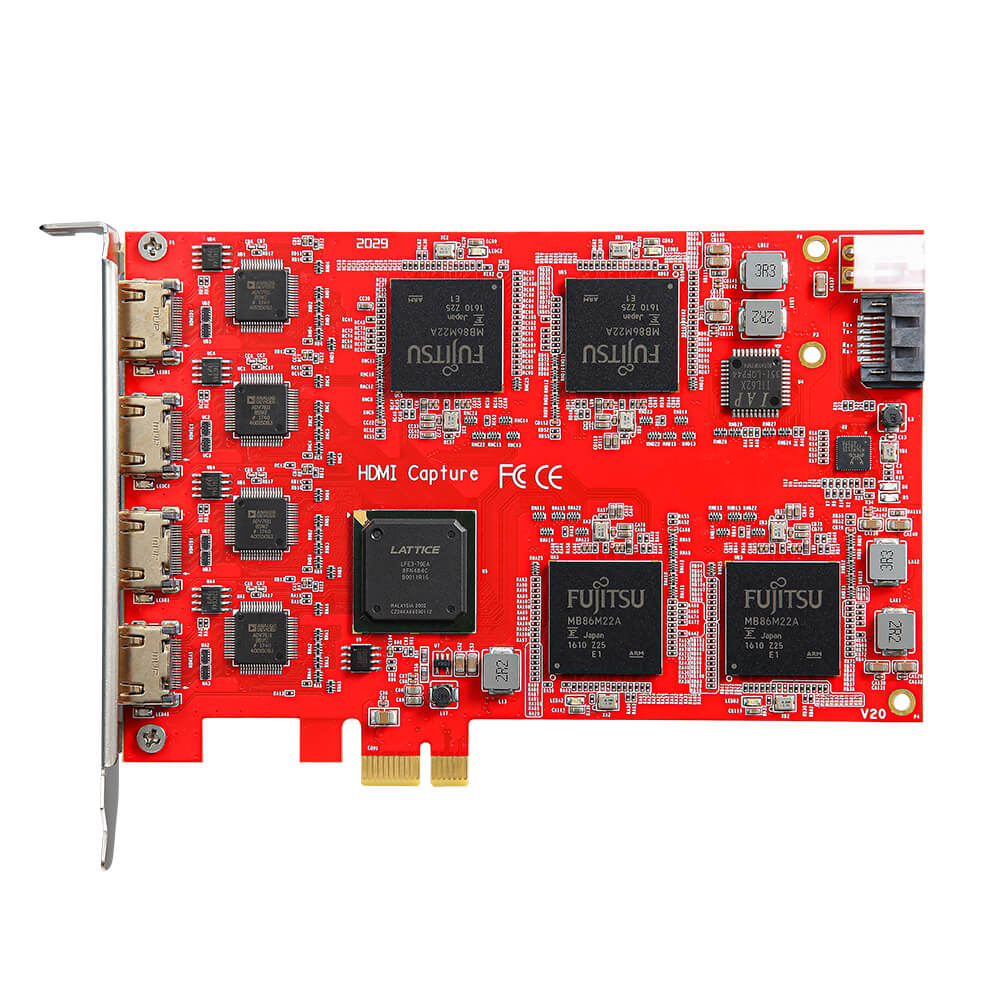

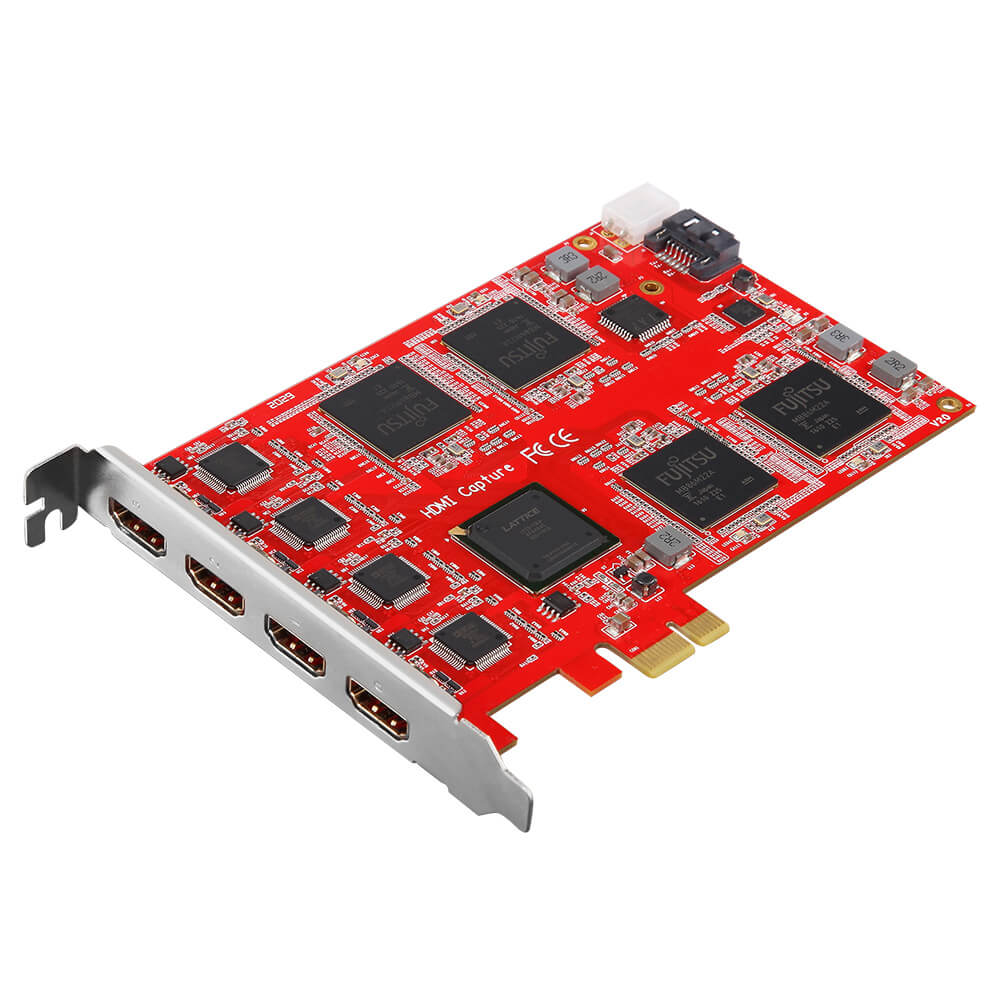

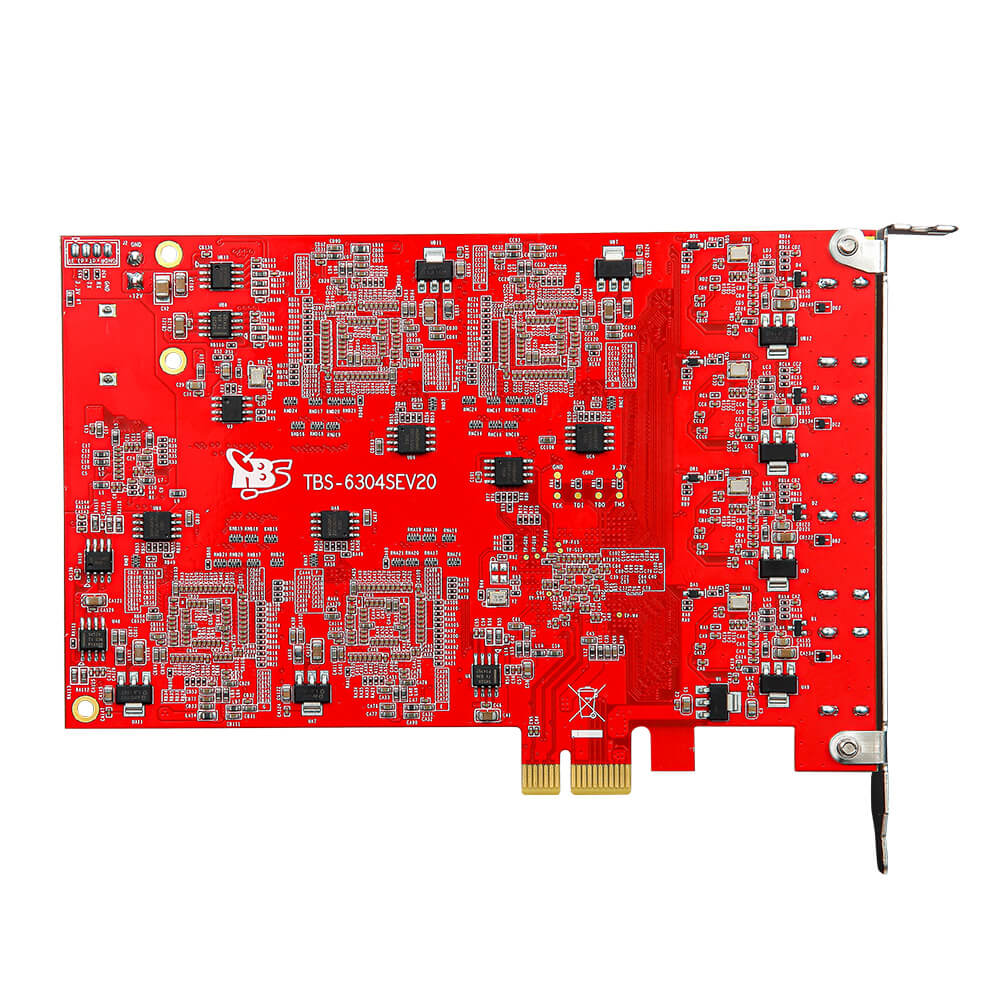

TBS6304SE Quad HD HDMI capture card


TBS6304SE Quad HD HDMI capture card

  • Model: TBS6304SE
  • Weight: 500.00g

In Stock

US$750.00

TBS6304SE Quad HD HDMI capture card
—— —— Quad HDMI | PCI Express | H.264 Hardware Compression
TBS6304SE is the updated version of TBS6304, it's a high and standard definition capture card with quad HDMI 1.4 inputs and H.264 hardware compression. Users can easily capture SD/HD signals from different kinds of devices by this Pro Quad HDMI Capture Card without limitation.
TBS6304SE not only supports quad HDMI/HDCP inputs, displaying up to 1080P resolution, but also supports to capture or record HD content in H.264 format from PS3, Xbox 360 and digital camcorders.
  • Applications:
  • IPTV Servers
  • Datacasting and monitoring
  • Live TV Capturing and streaming
  • Broadcast TV
  • Feartues:
  • Quad HDMI inputs
  • Max. input resolution 1920 x 1080 60fps
  • Compliant with HDMI 1.3, HDMI 1.4a, HDCP 1.4
  • H.264 hardware compression
  • 10-Bit absolute encoding
  • Windows & Linux support

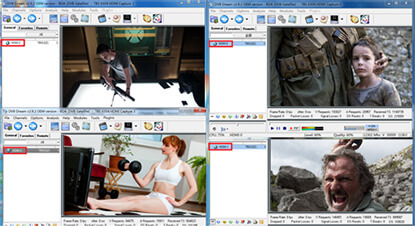

H.264 Hardware Compression with low CPU Consumption Solution
Equipped with an advanced built-in H.264 hardware encoder that enables the system not to utilise CPU's computing ability while maintaining high quality video encoding. This feature balances the load, thereby imporving the reliability of the system.
TBS Pro Quad HD HDMI Capture Card is used as a DVB tuner system device, built-in a H.264 encoder with HDCP supported and provides adjustable resolution and bitrate options. You can easily apply it to IPTV streaming servers of headend systems.

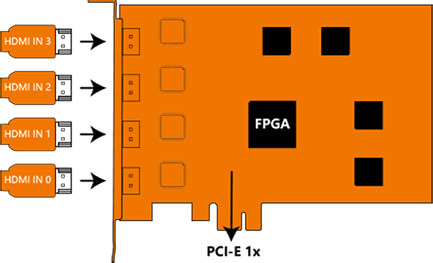

4 x Real HDMI Digital Interface
TBS HD HDMI Capture Card provides 4 HDMI inputs of the highest quality video. It meets the HDMI 1.4 standard and can be able to capture the LPCM audio signals.

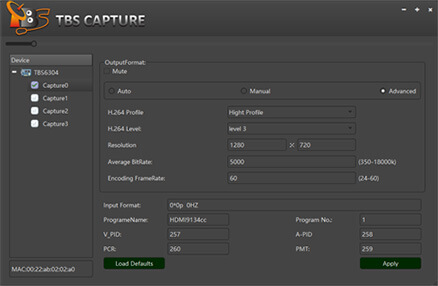

Intuitive User Interface for Effective Management of TS Stream Outputs
TBS Pro Quad HD HDMI Capture Card supports automatically detecting the signal source. With TBS encoded setting tool, it can easily switch between channels and adjust configurations, offering better TV viewing experience.
Specification
Model TBS6304SE
Interface PCI-E x 1
Input HDMI 1.4a
Output TS stream
Recording Mode Hardware compression, real time mode
Video Format H.264
Audio Input HDMI Embedded audio
Image Mirror Horizontal; Vertical
Update Firmware could be updated.
OS and Driver Windows XP / Vista / Windows 7 /Windows 8 / Windows 10/Linux
Power 12V/6W
Temperature 0~60 ℃
Dimension
Capture Card Size 144mm * 104.5mm

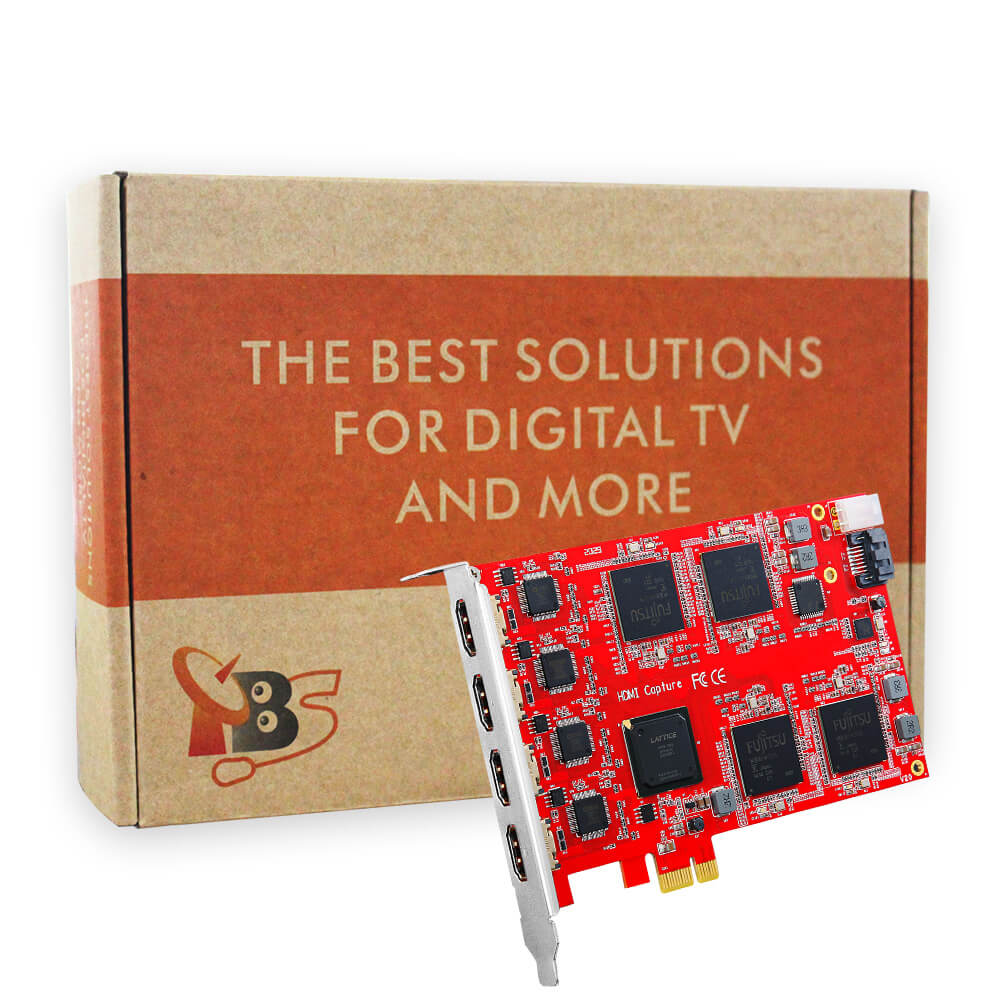

Gift Box Size 18.5*16.5*3.5 cm
Weight 500g
HDMI Input Video Format Support:
Horizontal size Vertical size Rate I (Interleave)or P (Progressive)
1920 1080 60 / 59.94 P
1920 1080 50 P
1920 1080 60 / 59.94 I
1920 1080 50 I
1280 720 60 / 59.94 P
1280 720 50 P
720 483(480) 59.94 P
720 576 50 P
1920 1080 30 / 29.97 P
1920 1080 25 P
1920 1080 24 / 23.98 P
